Application:

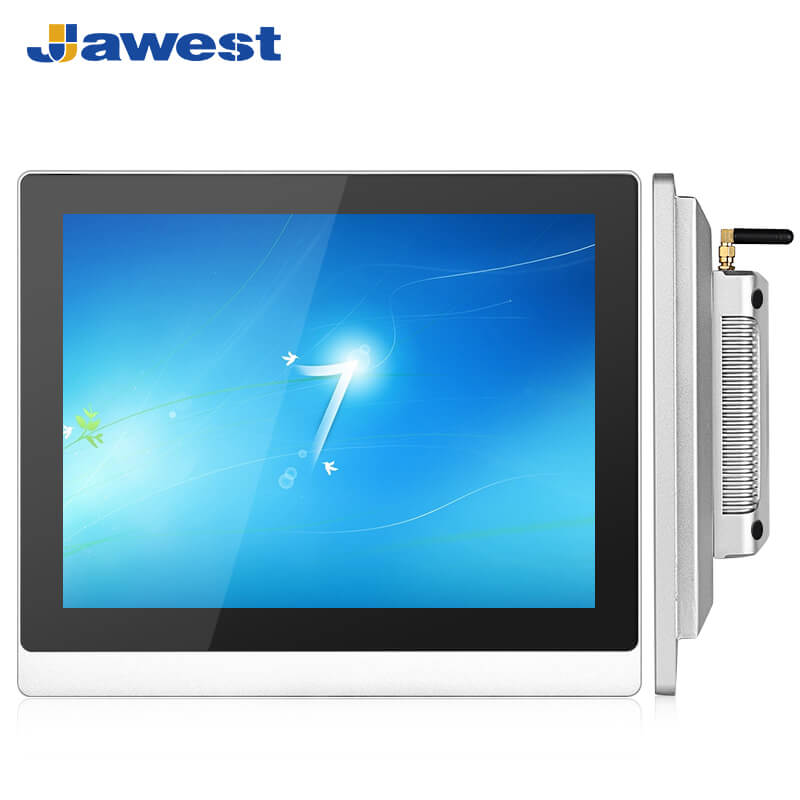

10.4" X86 Industrial Panel PC Intel i3/i5/i7 Panel PC

Model: JWS104-W4

• Display size: 10.4 inch.

• Working temperature: -10 ~ +60°C.

• Support 24/7 operation in harsh environments.

• 10mm enhanced display panel, stronger impact resistance.

• IP65-rated standard dust-proof and water-proof for front panel.

• Mounting options: wall-mounted, desktop, VESA 75/100mm.

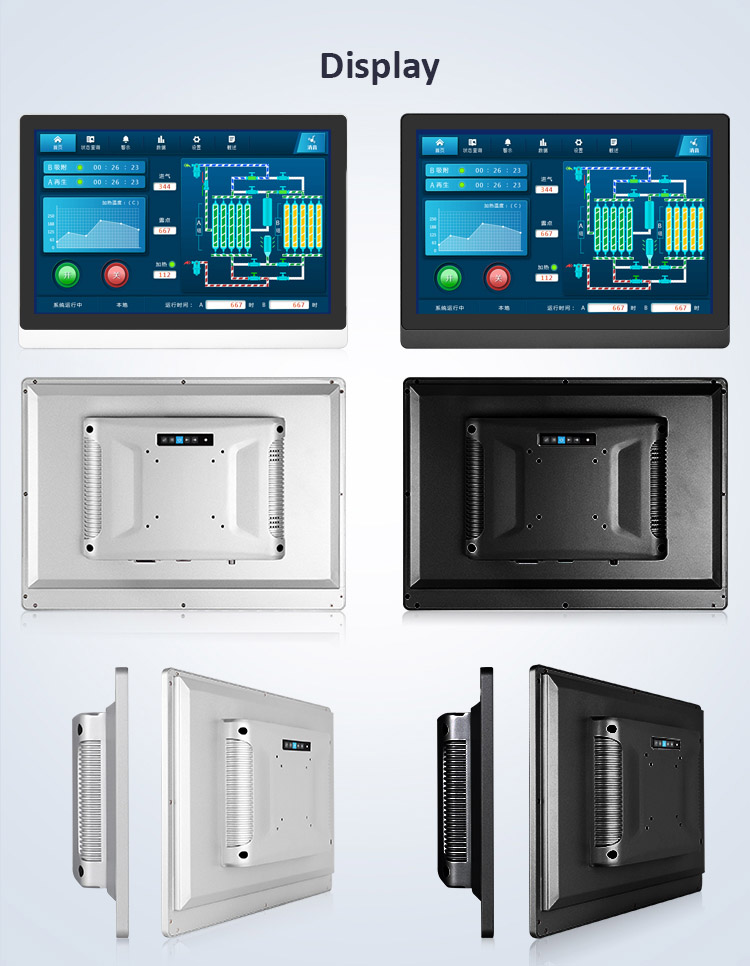

Appearance of the color

Black

Silver

Description
Parameter
Case

10.4" X86 Industrial Panel PC Intel i3/i5/i7 Panel PC

Model: JWS104-W4

Jawest offers a full range of LCD TFT display all-in-one panel PCs for professional industrial applications. They are widely used for indoor and outdoor devices. Also, performs perfectly under high bright sunlight or harsh environments. As a manufacturer, Our industrial panel PCs are of premium quality, low cost, and economically competitive.

10.4-inch Industrial All-in-one Panel PC Features

● Processors Options: Intel Celeron J1900/J4125/J6412, Intel® Core™ i3-1215U/i5-1235U/i7-1255U.
● Configuration options: 4/8/16/32GB RAM; 16/32/64/128/256/512GB SSD, 1T/2T HDD.

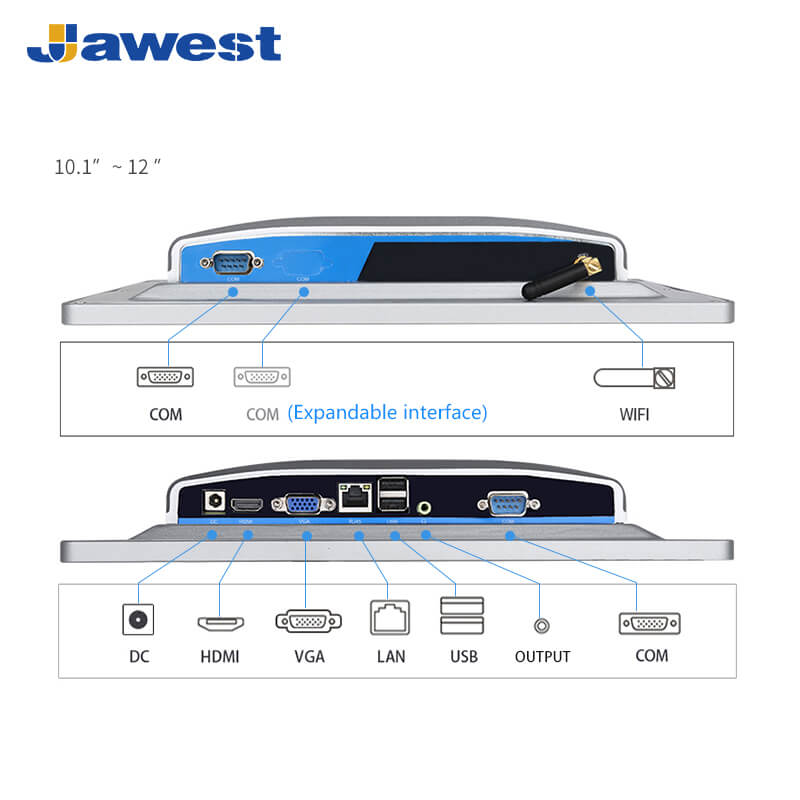

● I/O Ports: USB2.0*2, USB3.0*2, LAN*2, VGA*1, HDMI*1, SIM Slot*1, Audio I/O*1, DC*1, WIFI Antenna*2, GND*1, RS232(DB9)*1, COM Reserved*1(Optional RS232/422/485), 12P Phoenix Terminal (DC*1+RS232*1+RS485*1+GPIO*5), Power Button*1.
● Multi-point capacitive touchscreen, five-wire resistive touchscreen, IR, or non-touch are available.
● Special anti-shedding design for the DC interface, which prolongs its service life.

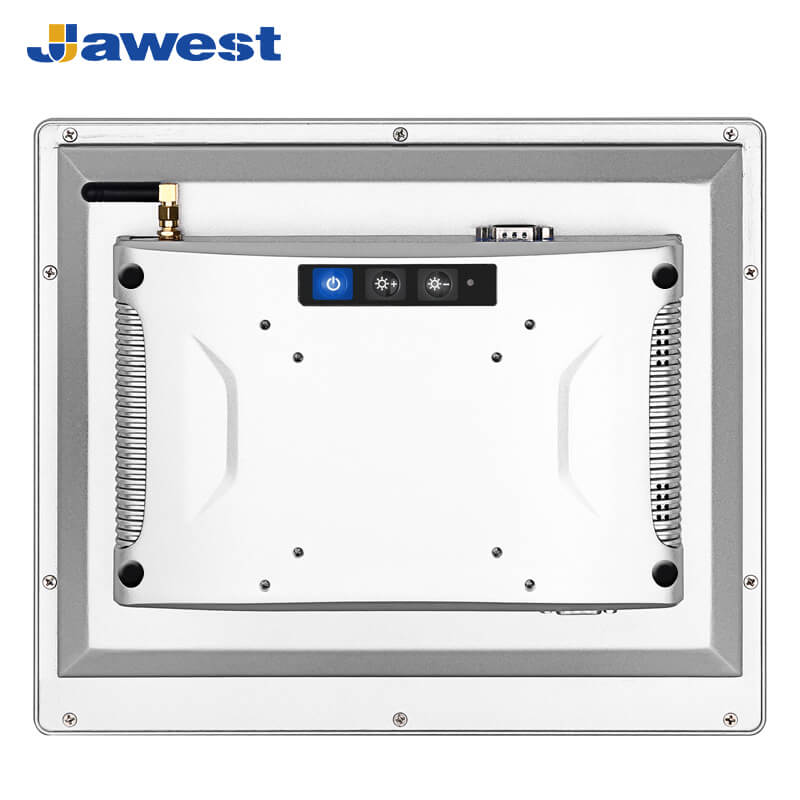

● OSD adjustment on the back panel.

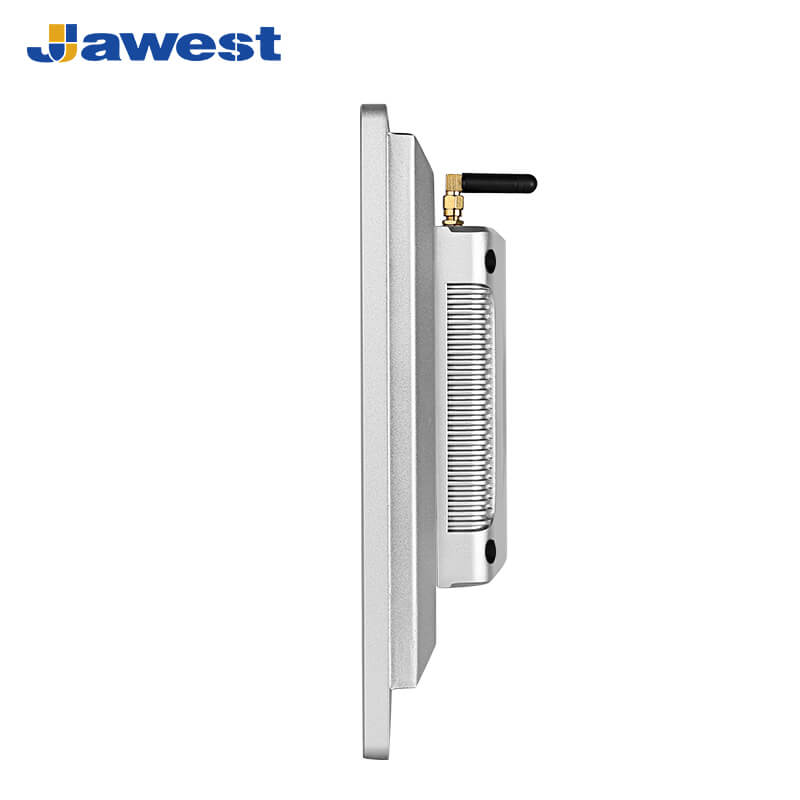

● Fanless heating-dissipation, the industrial all-in-one panel PC keeps mute running.
● Multiple installations: VESA arm, desktop, and wall-mounted.


Display Parameters	Size	10.4"
	Resolution	1024*768
	Screen Ratio	4:3
	Brightness	400 nits (Optional high brightness)
	Contrast Ratio	1000:1
	Viewing Angle	80°/80°/80°/80° (L/R/U/D)
	Backlight type	LED backlight screen, service life ≥ 50000H
	Touch Screen	Capacitive, Resistive, or Non-touch options

Motherboard Model Selection		CL-J1900B	CX-J4125-A	CX-J6412	CX-12U01
					i3-1215U	i5-1235U	i7-1255U
System Architecture	CPU	Intel Celeron J1900 Quad-Core 2.0GHz	Intel Celeron J4125 Quad-Core 2.0GHz	Intel Celeron J6412 Quad-Core 2.0GHz	Intel Core i3 1215U 1.2GHz	Intel Core i5 1235U 1.3GHz	Intel Core i7 1255U 1.7GHz
	Architecture	Intel Bay Trail	Intel Gemini Lake Refresh	Intel Elkhart Lake	Intel Alder Lake
	GPU	Intel HD Graphics	Intel UHD Graphics 600	Intel UHD Graphics 16 EUs	Intel Iris Xe Graphics 64	Intel Iris Xe Graphics 80	Intel Iris Xe Graphics 96
	Memory	DDR3 8GB	DDR4 4/8GB	DDR4 8/16GB	DDR4 32GB
	Storage	16GB (optional: 32/64/128/256/512GB)	32GB (optional: 64/128/256/512GB, 1T/2T HDD)	32GB (optional: 64/128/256/512GB, 1T/2T HDD)	64/128GB (optional: 256GB/512GB SSD, 1T/2T HDD)
	SATA	1*SATA3.0	1*SATA3.0	1*SATA3.0	1*SATA3.0
	MSATA	1*MSATA	1*MSATA	1*MSATA	/
	M.2	/	/	1*M.2	1*M.2

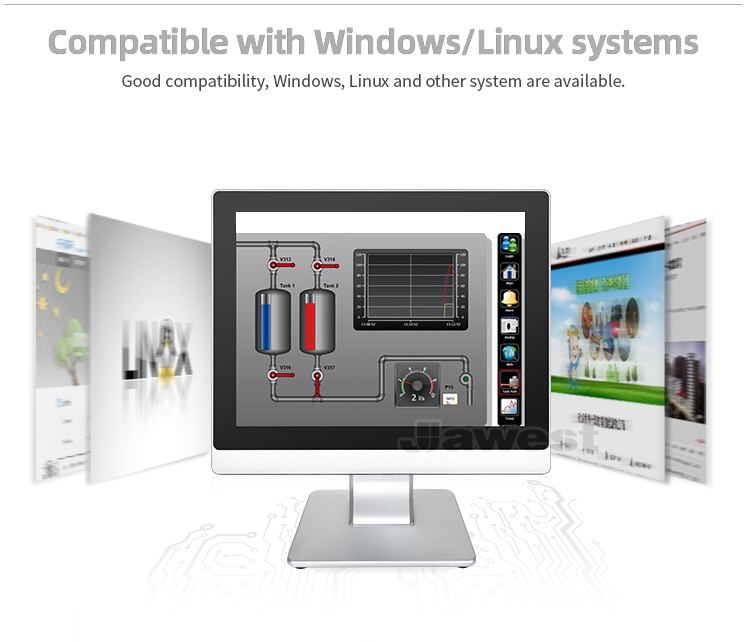

	Operating System	Win 7/10	Win 10/11	Win 10/11	Win 10/11
		Ubuntu14.04.6/16.04.7/18.04.5/18.04.6/20.04.1/20.04.3/20.04.4/22.04			/
		Centos7.4/7.8/7.9; Redhat7.4; Debian11.6	Centos7.8/8.4/7.9; Redhat7.4; Debian10.0/11.6		/

Networking	Ethernet	2*10M/100M/1000M adaptive Ethernet
	4G	Support
	5G	/	/	/	M.2 5G
	WIFI	Dual-band 2.4/5GHz
	Bluetooth	BT4.0 (Optional)	BT4.0 (Optional)	BT4.0 (Optional)	BT4.0 (Optional)

Display Function	LVDS	Supports 1920*1080 60Hz output
	EDP	Supports 3840*2160 60Hz output	Supports 4096*2160 60Hz output		Supports 4096*2304 120Hz output
	VGA	Supports 1920*1080 60Hz output
	HDMI	Supports 3840*2160 30Hz output	Supports 4096*2160 30Hz output		Supports 4096*2304 60Hz output
Touch Function	Touch Interface	USB	USB	USB	USB
I/O Ports	USB 2.0	USB2.02 + USB2.04 on board	USB2.02 + USB2.04 on board	USB2.02 + USB2.02 on board	USB2.02 + USB2.04 on board
	Type-C	/	/	/	2*type-c
	USB 3.0	USB3.0*2	USB3.0*2	USB3.0*2	USB3.02 + USB3.02 on board (converted by 2*Type-C)
	RS232	6*RS232 (one of which is for RS232/RS422/RS485 mutual conversion)
	RS485	1*RS232/RS422/RS485 mutual conversion
	RS422	1*RS232/RS422/RS485 mutual conversion
	TTL	/	/	/	/
	GPIO	GPIO*8 (input/output)
	SIM Slot	1SIM Slot + 1SIM Slot on board
	MINI PCIE	1*MINI PCIE	1*MINI PCIE	1*MINI PCIE	/
	Speaker	4PIN on board supports 8Ω5W	Built-in dual-channel 4R/10W or 8R/5W dual-channel power amplifier
	MIC	Support	Support	Support	Support
	Audio Port	3.5mm earphone jack, support input/output
	I/O Expansion	Support

Power	Power Input	12-36V DC	12-36V DC	12-36V DC	12-36V DC
	Adapter	24V / 2.5A	24V / 2.5A	24V / 2.5A	24V / 4A

Mechanical	Dimension	259.4224.755.8mm
	Enclosure	Aluminum alloy housing
	Cooling System	Fanless	Fanless	Fanless	Fanless
	Mounting	Wall-mounted, VESA75/100mm, desktop, etc.

Product Reliability	Working Temp	-10°C ~ 60°C
	Storage Temp	-20°C ~ 70°C
	Ambient Humidity	5% - 95% (relative humidity non-condensing)
	IP rating	Front IP65
