15 Inch Industrial All-in-one PC with True Flat Panels
Model: JWS150-W4

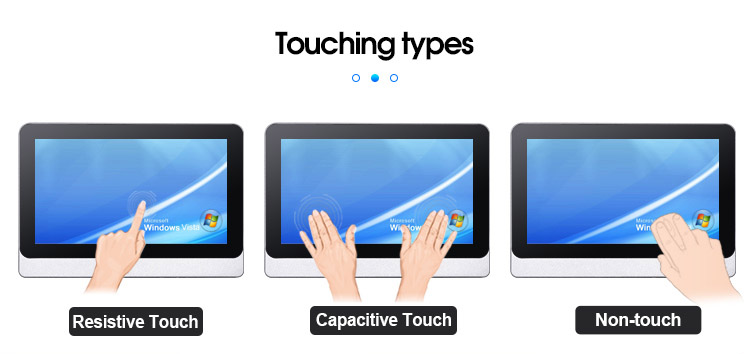

Jawest 15-inch industrial HMI Panel PCs are equipped with industrial grade motherboard, IP65-compliant dust-proof, and water-proof for the front panel. This industrial panel PC comes standard with Windows embedded standard 7 / 8 /10 and an X86 PC-based platform. It is easy to maintain and service, rugged, and fan-less. It can withstand high electromagnetic environments with its standard anti-interference performance, as well as shock resistance and anti-vibration during manufacturing or delivery. Available in both single-touch and multi-touch screens.
Jawest Industrial All-in-one Panel PC Features

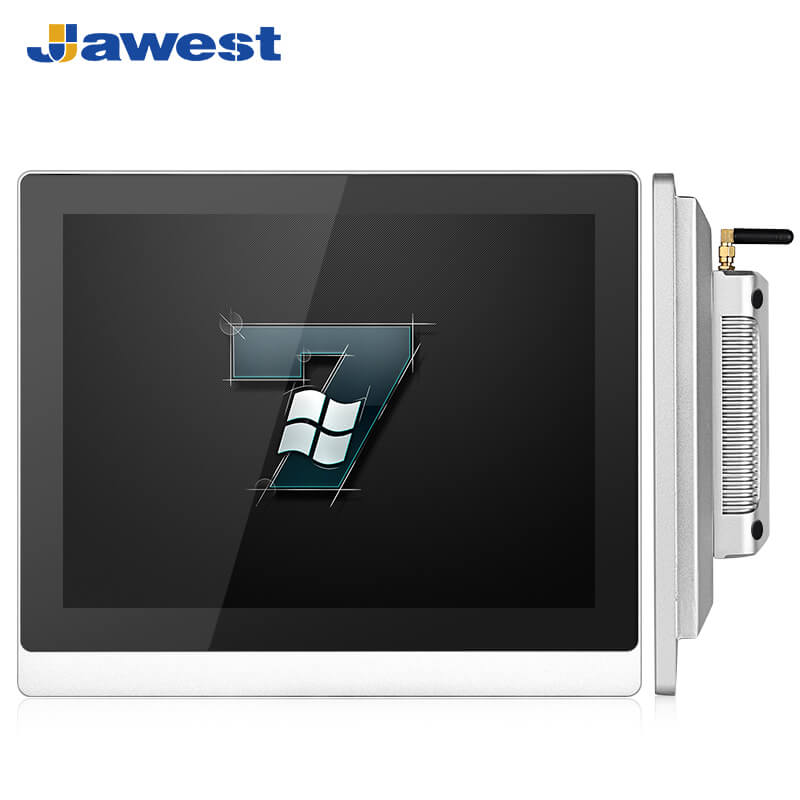

• 15-inch with 1024x768 resolution display; Aspect ratio: 4:3.
• Processors Options: Intel Celeron J1900/J4125/J6412, Intel® Core™ i3-1215U/i5-1235U/i7-1255U.
• Configuration options: 4/8/16/32GB RAM; 16/32/64/128/256/512GB SSD, 1T/2T HDD.

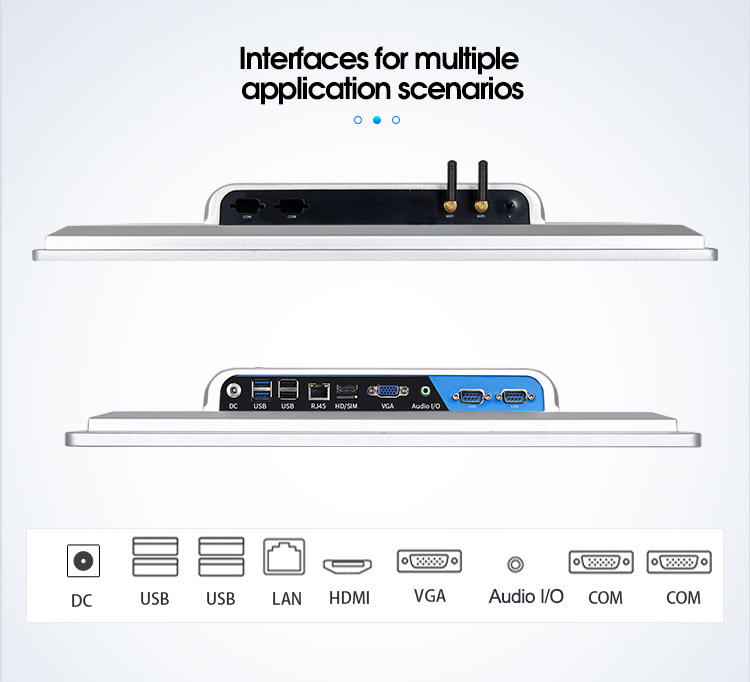

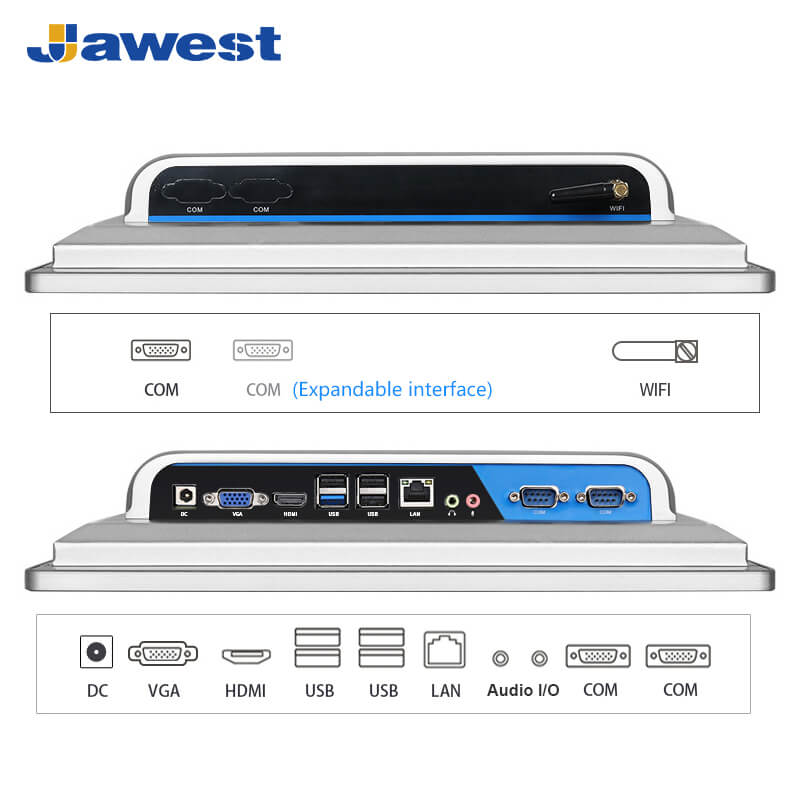

• I/O Ports: USB2.0*2, USB3.0*2, LAN*2, VGA*1, HDMI*1, SIM Slot*1, Audio I/O*1, DC*1, WIFI Antenna*2, GND*1, RS232(DB9)*1, COM Reserved*1(Optional RS232/422/485), 12P Phoenix Terminal (DC*1+RS232*1+RS485*1+GPIO*5), Power Button*1.
• Highly reliable touchscreens and long service life displays: Operationally tested to 7/24 long time operation without failure, touch screen positional accuracy standard deviation error is less than 0.080 (2mm).
• Rugged and reliable performance system: Completely flush aluminum alloy housing and IP65 ratings dustproof and waterproof for the front panel. Anti-high/low temperature, anti-vibration, shock resistance, EMI&EMC resistant.
• Comprehensive operating system: Based on X86 platform (ARM for optional), X86-optimized OS and development: Win 7/10/11; Ubuntu 20.04.3/20.04.4/22.04; Centos7.4/7.8/7.9; Debian10.0/11.6.
• XGA display with long service life LED Backlight.
• Sunlight readable screen for outdoor devices (up to 1500 nits).

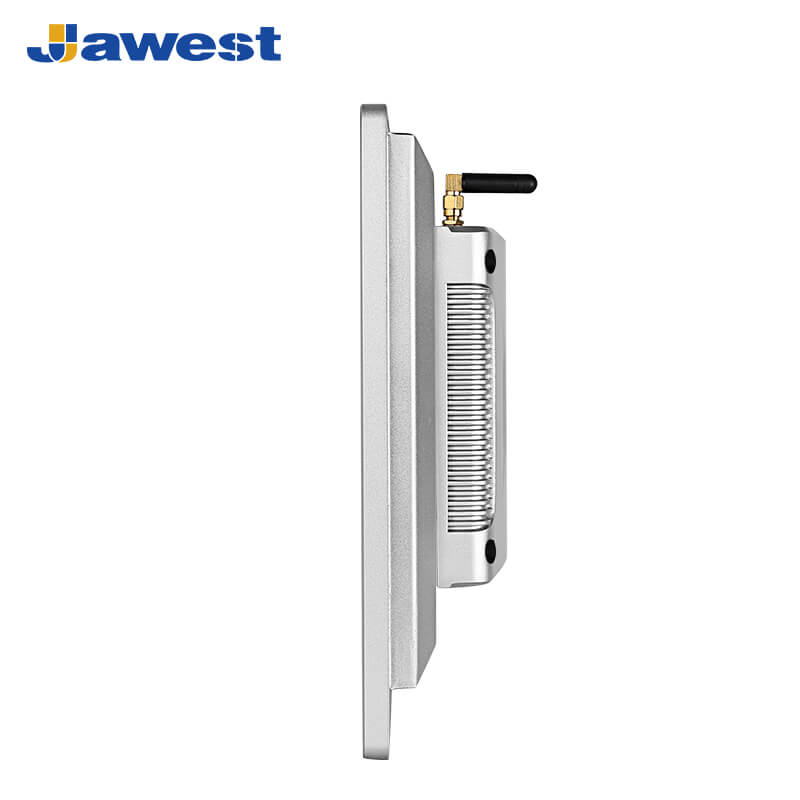

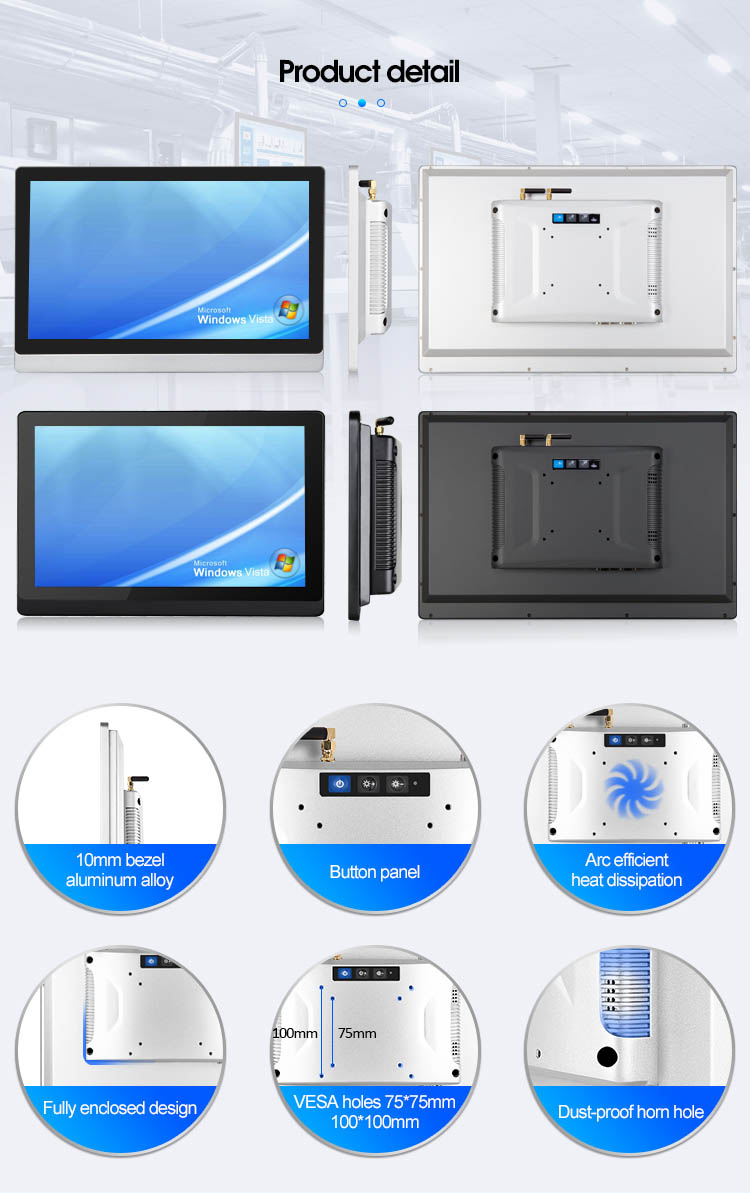

• 10mm front bezel and aluminum enclosure, strong impact resistant in harsh environments.
• Support functional module: NFC, RFID, IC card, ID card reader optional.
• Cooling system: fanless design.

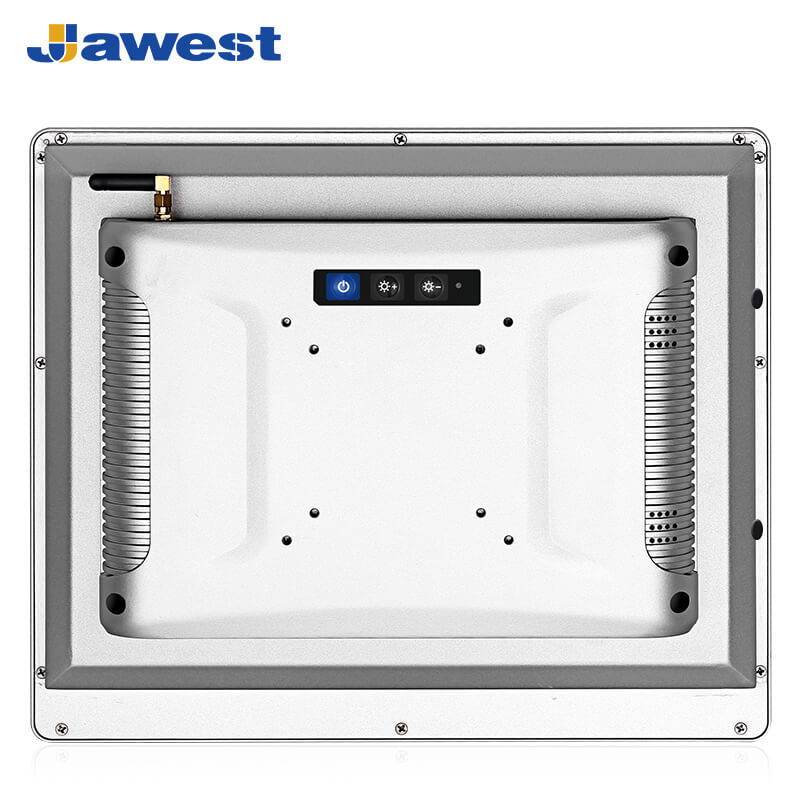

• Multi-mounting options: VESA, desktop, and wall-mounted.
• Functional module customization: built-in camera, high brightness of the screen, wide working temperature, wide voltage, touch screen types, NFC, RFID, fingerprint, card reader, 4G/5G Network.
