17 Inch Industrial Touch Screen Panel PC Daylight Viewable Panel PC


● Display size: 17-inch, 1280x1024 resolution, 5:4 aspect ratio

● XGA display with long service life LED backlight

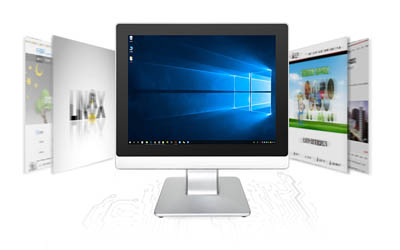

● Windows 7 / 10 / 11 versions for option

● Working temperature: -10~60°C (14~140°F)

● Popular interfaces and ports, support I/O expansion

● P-Cap  or resistive touchscreen with IP65 front bezel

● Sunlight readable screen for outdoor use (up to 1500 nits)

● Support 7/24 Wide voltage operation in all-weather conditions

● 10mm front enhanced display panel, strong impact resistance

● Aluminum alloy enclosure, robust for harsh industrial applications

● Support wall-mounted, desktop, VESA mount

● Support functional modules: NFC, RFID, IC / ID card reader, fingerprint, card reader, 4G Network


Appearance of the color
Black
Silver
share:
  • Description
  • Parameter
  • Case
  • 17 Inch Industrial Touch Screen Panel PC


    Model: JWS170-W4 Series


    This Jawest industrial all-in-one touchscreen panel PC offers durability and great design to fit customers' needs. With the Intel Celeron J1900/J4125/J6412, Intel® Core™ i3-1215U/i5-1235U/i7-1255U processor options and industrial-grade motherboards and components, it is built for 7/24 hours long-time running non-stop for commercial and industrial applications.


    High-quality components are built into the industrial panel PC to ensure high reliability of performance in a diverse environment and harsh conditions. The streamlined appearance design offers a perfect human-machine touch experience. This touchscreen tablet PC offers optional wireless LAN connectivity and popular I/O interfaces, which enables you to fully maximize your business output by making your processes more efficient.

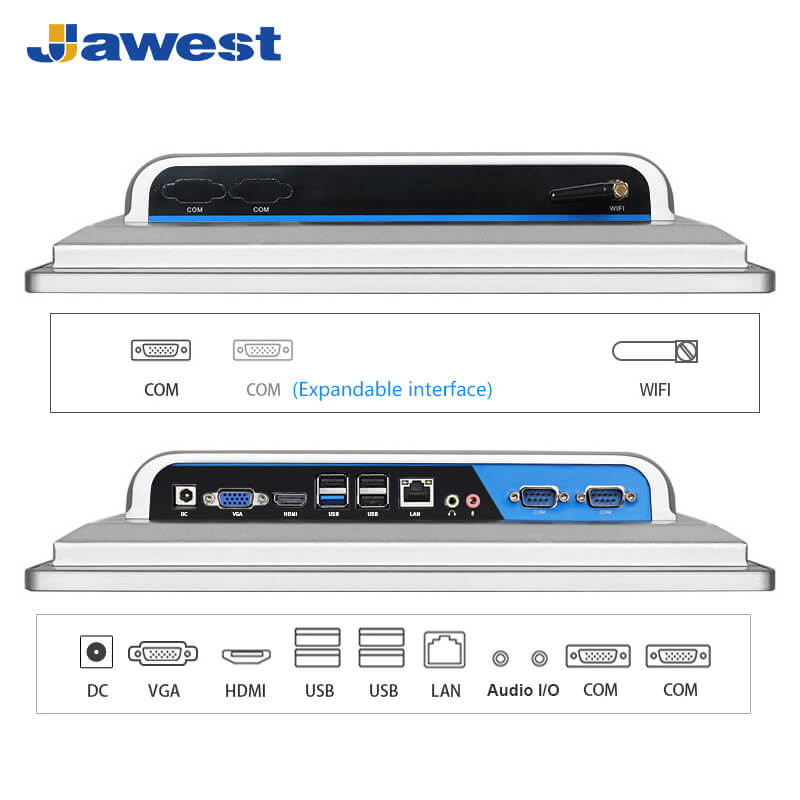

    I/O Ports: USB2.0*2, USB3.0*2, LAN*2, VGA*1, HDMI*1, SIM Slot*1, Audio I/O*1,  DC*1, WIFI Antenna*2, GND*1, RS232(DB9)*1, COM Reserved*1(Optional RS232/422/485), 12P Phoenix Terminal (DC*1+RS232*1+RS485*1+GPIO*5), Power Button*1.


    Jawest Industrial Touch Screen Panel PC Features


    17 Inch Industrial Touch Screen Panel PC

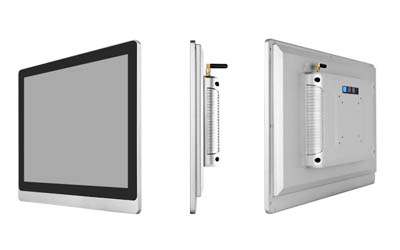

    Industrial Panel PC With Thick Front Bezel Design For Industrial Use

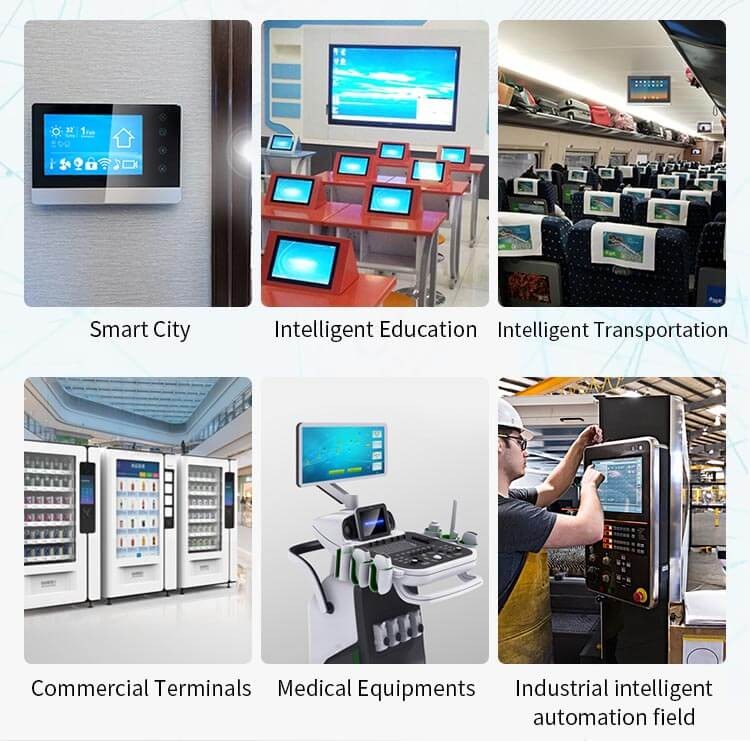

    The Jawest industrial touch screen panel PCs are designed for sunlight-readable extremely long life for operation reliably in demanding indoor and outdoor industrial applications. Offering ideal solutions for manufacturing facilities, industrial automation, process management systems, commercial automation, access controls, and custom indoor, semi-outdoor, or outdoor scenarios.


    17 Inch Industrial Touch Screen Panel PC

    Full View Angle TFT LCD Touch Panel PC

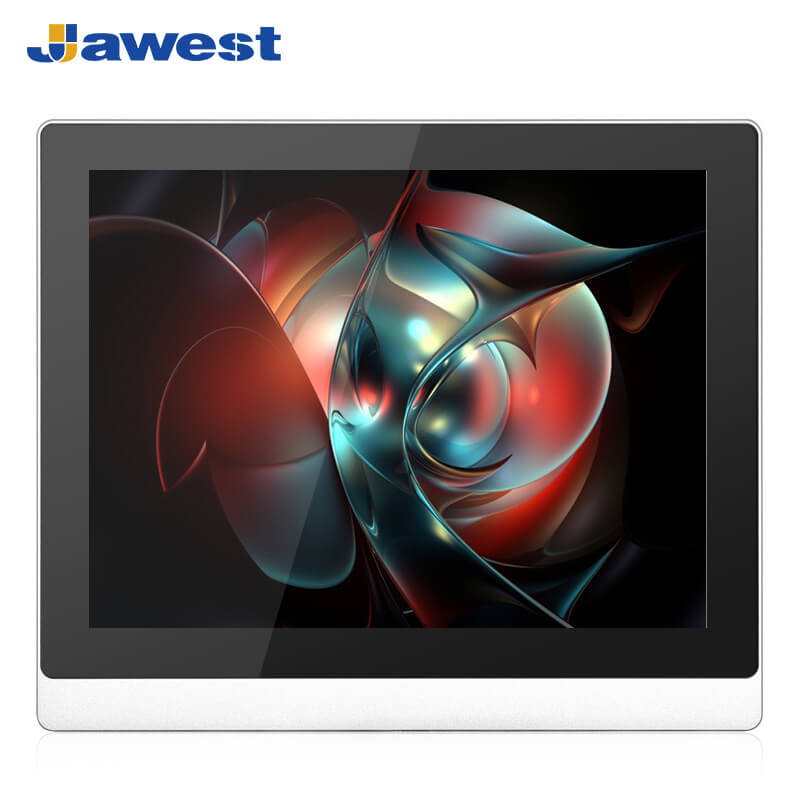

    Jawest industrial LCD 17-inch 1280*1024 high-resolution LCD display panel with a view angle of 85°/85°/80°/70° (L/R/U/D).


    17 Inch Industrial Touch Screen Panel PC


    Industrial Touch Panel PC Built For Industrial Sites Control

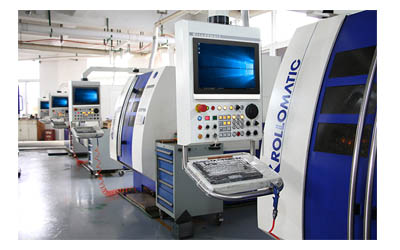

    Jawest industrial panel PCs are dedicated to offering excellent performance for CNC automation, and machinery control in industrial sites with HMI as the user interface. It can be connected with CNC by a high-speed serial Bus and replaces the standard display unit.







  • Display ParametersSize17"
    Resolution1280*1024
    Screen Ratio5:4
    Brightness250~300 nits (Optional high brightness)
    Contrast Ratio1000:1
    Viewing Angle85°/85°/80°/70° (L/R/U/D)
    Backlight typeLED backlight screen, service life ≥ 50000H
    Touch ScreenCapacitive, Resistive, or Non-touch options






    Motherboard Model SelectionCL-J1900B
    CX-J4125-ACX-J6412CX-12U01
    i3-1215Ui5-1235Ui7-1255U
    System ArchitectureCPUIntel Celeron J1900 Quad-Core 2.0GHzIntel Celeron J4125 Quad-Core 2.0GHzIntel Celeron J6412 Quad-Core 2.0GHzIntel Core i3 1215U 1.2GHzIntel Core i5 1235U 1.3GHzIntel Core i7 1255U 1.7GHz
    ArchitectureIntel Bay TrailIntel Gemini Lake RefreshIntel Elkhart LakeIntel Alder Lake
    GPUIntel HD GraphicsIntel UHD Graphics 600Intel UHD Graphics 16 EUsIntel Iris Xe Graphics 64Intel Iris Xe Graphics 80 Intel Iris Xe Graphics 96
    MemoryDDR3 8GBDDR4 4/8GBDDR4 8/16GBDDR4 32GB
    Storage16GB (optional: 32/64/128/256/512GB)32GB (optional: 64/128/256/512GB, 1T/2T HDD)32GB (optional: 64/128/256/512GB, 1T/2T HDD)64/128GB (optional: 256GB/512GB SSD, 1T/2T HDD)
    SATA1*SATA3.01*SATA3.01*SATA3.01*SATA3.0
    MSATA1*MSATA1*MSATA1*MSATA/
    M.2//1*M.21*M.2
    Operating SystemWin 7/10Win 10/11Win 10/11Win 10/11
    Ubuntu14.04.6/16.04.7/18.04.5/18.04.6/20.04.1/20.04.3/20.04.4/22.04/
    Centos7.4/7.8/7.9; Redhat7.4; Debian11.6Centos7.8/8.4/7.9; Redhat7.4; Debian10.0/11.6/

    NetworkingEthernet2*10M/100M/1000M adaptive Ethernet
    4GSupport
    5G///M.2 5G
    WIFIDual-band 2.4/5GHz
    BluetoothBT4.0 (Optional)BT4.0 (Optional)BT4.0 (Optional)BT4.0 (Optional)

    Display FunctionLVDSSupports 1920*1080 60Hz output
    EDPSupports 3840*2160 60Hz outputSupports 4096*2160 60Hz outputSupports 4096*2304 120Hz output
    VGASupports 1920*1080 60Hz output
    HDMISupports 3840*2160 30Hz outputSupports 4096*2160 30Hz outputSupports 4096*2304 60Hz output
    Touch FunctionTouch InterfaceUSBUSBUSBUSB
    I/O PortsUSB 2.0USB2.0*2 + USB2.0*4 on boardUSB2.0*2 + USB2.0*4 on boardUSB2.0*2 + USB2.0*2 on boardUSB2.0*2 + USB2.0*4 on board
    Type-C///2*type-c
    USB 3.0USB3.0*2USB3.0*2USB3.0*2USB3.0*2 + USB3.0*2 on board (converted by 2*Type-C)
    RS2326*RS232 (one of which is for RS232/RS422/RS485 mutual conversion)
    RS4851*RS232/RS422/RS485 mutual conversion
    RS4221*RS232/RS422/RS485 mutual conversion
    TTL////
    GPIOGPIO*8 (input/output)
    SIM Slot1*SIM Slot + 1*SIM Slot on board
    MINI PCIE1*MINI PCIE1*MINI PCIE1*MINI PCIE/
    Speaker4PIN on board supports 8Ω5WBuilt-in dual-channel 4R/10W or 8R/5W dual-channel power amplifier
    MICSupportSupportSupportSupport
    Audio Port3.5mm earphone jack, support input/output
    I/O Expansion Support






    PowerPower Input12-36V DC12-36V DC12-36V DC12-36V DC
    Adapter24V / 2.5A24V / 2.5A24V / 2.5A24V / 4A

    MechanicalDimension383.3*340.7*61.9mm
    EnclosureAluminum alloy housing
    Cooling SystemFanlessFanlessFanlessFanless
    MountingPanel-mount, Embedded, desktop, wall-mounted, VESA75/100mm, open frame, etc.

    Product ReliabilityWorking Temp -10°C ~ 60°C
    Storage Temp -20°C ~ 70°C
    Ambient Humidity 5% - 95% (relative humidity non-condensing)
    IP ratingFront IP65
