Model: JWS173-W4

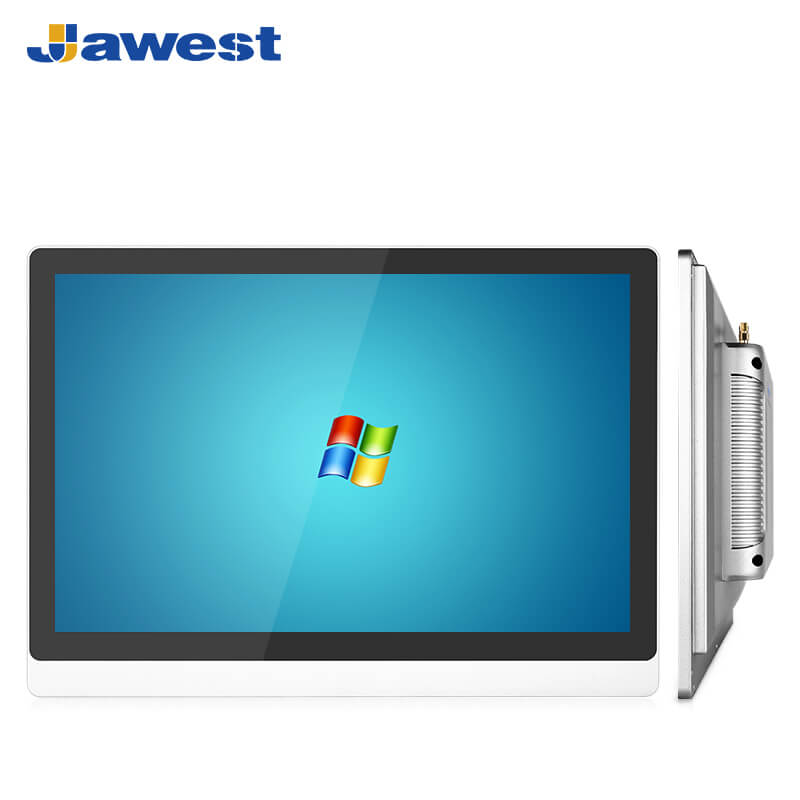

● 17.3-inch with 1920x1080 resolution display; Aspect ratio: 16:9

● Front IP65 protected touchscreen

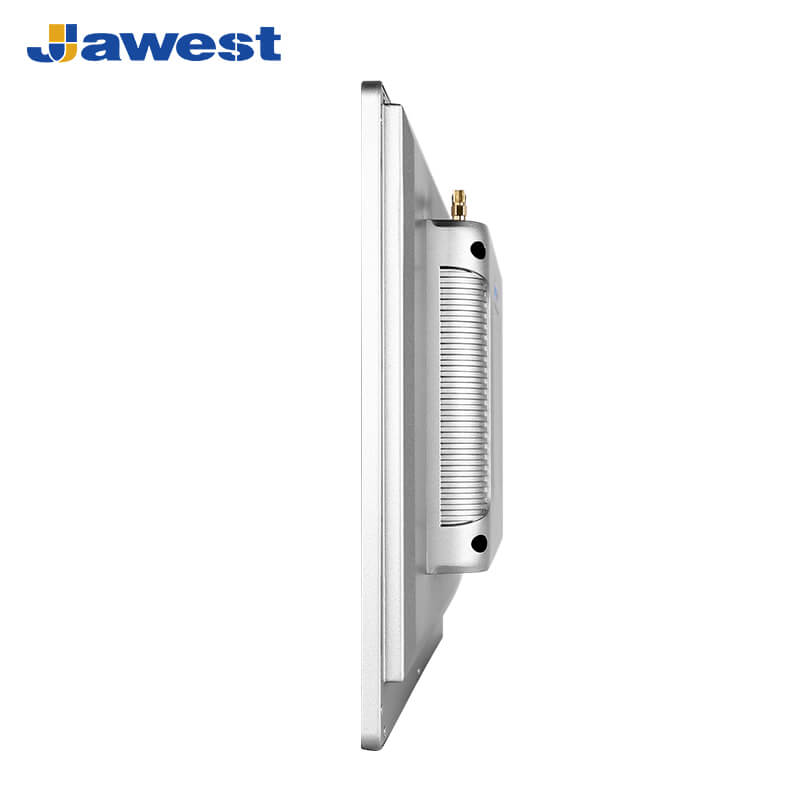

● Thin body, attractive appearance, and one-piece of die-cast Housing design

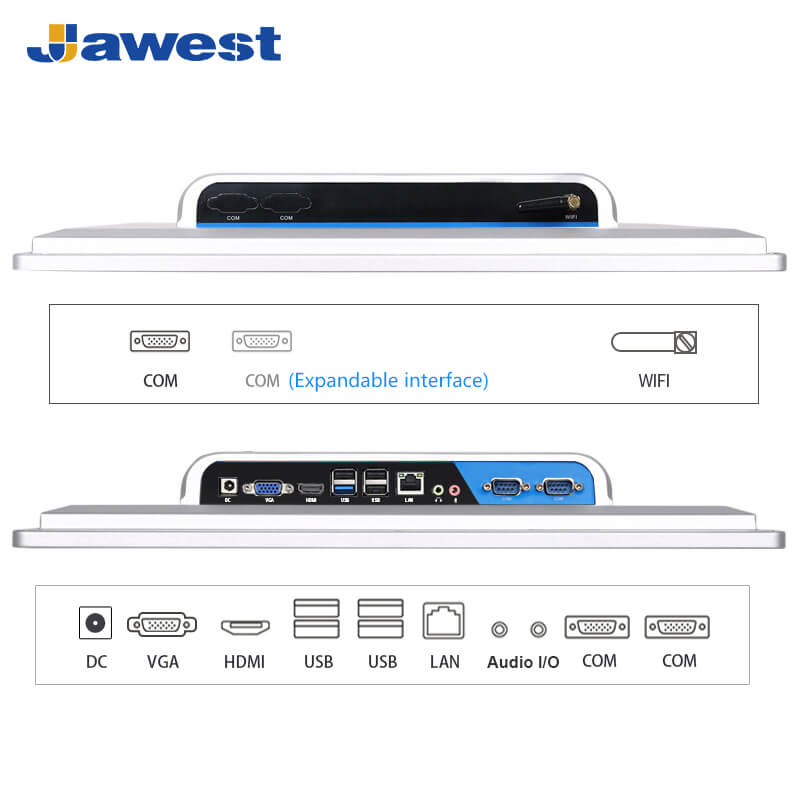

● Abundant I/O ports, support expansion

● Fanless heating-dissipation, no-noise, and low power consumption

● Sunlight readable screen for outdoor devices (up to 1500 nits)

● Operating System: Windows, (Linux, or Android for option)

● Configuration Options: Intel Celeron J1900/J4125/J6412, Intel® Core™ i3-1215U/i5-1235U/i7-1255U

● Ten-point PCAP touch control screen, five-wire resistive touch for option.

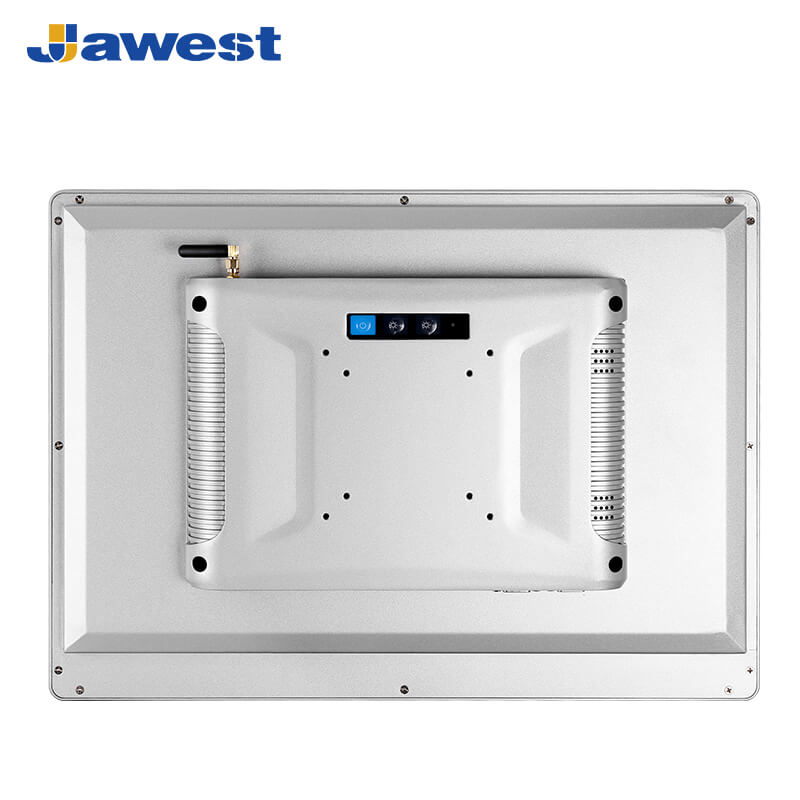

● Mounting options: VESA, desktop, and wall-mounted


Appearance of the color
Black
Silver
share:
  • Description
  • Parameter
  • Case
  • 17.3 Inch Industrial PC Human Machine Interface


    Model: JWS173-W4


    This Jawest 17.3-inch widescreen all-in-one computer is a powerful industrial panel PC. Supports  Intel Celeron J1900/J4125/J6412, Intel® Core™ i3-1215U/i5-1235U/i7-1255U CPUs, this touch panel PC is capable of handling even the most demanding applications. And takes full advantage of the fanless heating-dissipation system, which allows it to silently and efficiently with 7/24 hours operation. The industrial AIO tablet PC is equipped with a projected capacitive touchscreen and an IP65-rated dust-proof and waterproof front bezel. Besides the 17-inch display, Jawest also offers other displays from 10.1 ~ 21.5 inches with capacitive, resistive, or non-touch screens for all-in-one PCs. You can find your most affordable industrial all-in-one PCs with highly competitive prices, reliable products, and outstanding services in Jawest.




    Jawest Industrial Touch Panel PC Features


    17.3 Inch Industrial Panel PC Human Machine Interface


    Compatible With Windows/Linux Systems


    This industrial-grade panel PC is built with excellent compatibility and supports Windows 7/10/11, Ubuntu14.04.6/16.04.7/18.04.5/18.04.6/20.04.1/20.04.3/20.04.4/22.04, Centos7.8/8.4/7.9; Redhat7.4; and Debian10.0/11.6.


    17.3 Inch Industrial Panel PC Human Machine Interface


    IP65-rating Dustproof & Waterproof Protection


    Seamless front frame design, offering excellent and stable performance in wet and dusty harsh industrial environments.







    17.3 Inch Industrial Panel PC Human Machine Interface

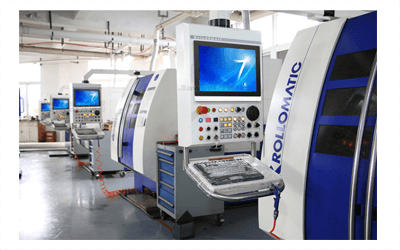

    Offering Touch Control and Display Solutions For Industrial Sites


    This Jawest industrial panel  PC is a cost-effective and budget-priced series that provides you with durability, reliability, and industrial touch control and display solutions with a vast selection of technologies and solutions that simplify PLC, HMI, and SCADA applications.











  • Display Parameters
    Size17.3"
    Resolution1920*1080
    Screen Ratio16:9
    Brightness400 nits (Optional high brightness)
    Contrast Ratio600:1
    Viewing Angle85°/85°/60°/80° (L/R/U/D)
    Backlight typeLED backlight screen, service life ≥ 50000H
    Touch ScreenCapacitive, Resistive, or Non-touch options






    Motherboard Model SelectionCL-J1900B
    CX-J4125-ACX-J6412CX-12U01
    i3-1215Ui5-1235Ui7-1255U
    System ArchitectureCPUIntel Celeron J1900 Quad-Core 2.0GHzIntel Celeron J4125 Quad-Core 2.0GHzIntel Celeron J6412 Quad-Core 2.0GHzIntel Core i3 1215U 1.2GHzIntel Core i5 1235U 1.3GHzIntel Core i7 1255U 1.7GHz
    ArchitectureIntel Bay TrailIntel Gemini Lake RefreshIntel Elkhart LakeIntel Alder Lake
    GPUIntel HD GraphicsIntel UHD Graphics 600Intel UHD Graphics 16 EUsIntel Iris Xe Graphics 64Intel Iris Xe Graphics 80 Intel Iris Xe Graphics 96
    MemoryDDR3 8GBDDR4 4/8GBDDR4 8/16GBDDR4 32GB
    Storage16GB (optional: 32/64/128/256/512GB)32GB (optional: 64/128/256/512GB, 1T/2T HDD)32GB (optional: 64/128/256/512GB, 1T/2T HDD)64/128GB (optional: 256GB/512GB SSD, 1T/2T HDD)
    SATA1*SATA3.01*SATA3.01*SATA3.01*SATA3.0
    MSATA1*MSATA1*MSATA1*MSATA/
    M.2//1*M.21*M.2
    Operating SystemWin 7/10Win 10/11Win 10/11Win 10/11
    Ubuntu14.04.6/16.04.7/18.04.5/18.04.6/20.04.1/20.04.3/20.04.4/22.04/
    Centos7.4/7.8/7.9; Redhat7.4; Debian11.6Centos7.8/8.4/7.9; Redhat7.4; Debian10.0/11.6/

    NetworkingEthernet2*10M/100M/1000M adaptive Ethernet
    4GSupport
    5G///M.2 5G
    WIFIDual-band 2.4/5GHz
    BluetoothBT4.0 (Optional)BT4.0 (Optional)BT4.0 (Optional)BT4.0 (Optional)

    Display FunctionLVDSSupports 1920*1080 60Hz output
    EDPSupports 3840*2160 60Hz outputSupports 4096*2160 60Hz outputSupports 4096*2304 120Hz output
    VGASupports 1920*1080 60Hz output
    HDMISupports 3840*2160 30Hz outputSupports 4096*2160 30Hz outputSupports 4096*2304 60Hz output
    Touch FunctionTouch InterfaceUSBUSBUSBUSB
    I/O PortsUSB 2.0USB2.0*2 + USB2.0*4 on boardUSB2.0*2 + USB2.0*4 on boardUSB2.0*2 + USB2.0*2 on boardUSB2.0*2 + USB2.0*4 on board
    Type-C///2*type-c
    USB 3.0USB3.0*2USB3.0*2USB3.0*2USB3.0*2 + USB3.0*2 on board (converted by 2*Type-C)
    RS2326*RS232 (one of which is for RS232/RS422/RS485 mutual conversion)
    RS4851*RS232/RS422/RS485 mutual conversion
    RS4221*RS232/RS422/RS485 mutual conversion
    TTL////
    GPIOGPIO*8 (input/output)
    SIM Slot1*SIM Slot + 1*SIM Slot on board
    MINI PCIE1*MINI PCIE1*MINI PCIE1*MINI PCIE/
    Speaker4PIN on board supports 8Ω5WBuilt-in dual-channel 4R/10W or 8R/5W dual-channel power amplifier
    MICSupportSupportSupportSupport
    Audio Port3.5mm earphone jack, support input/output
    I/O Expansion Support






    PowerPower Input12-36V DC12-36V DC12-36V DC12-36V DC
    Adapter24V / 2.5A24V / 2.5A24V / 2.5A24V / 4A

    MechanicalDimension427.7*285.4*67.4mm
    EnclosureAluminum alloy housing
    Cooling SystemFanlessFanlessFanlessFanless
    MountingPanel-mount, Embedded, desktop, wall-mounted, VESA75/100mm, open frame, etc.

    Product ReliabilityWorking Temp -10°C ~ 60°C
    Storage Temp -20°C ~ 70°C
    Ambient Humidity 5% - 95% (relative humidity non-condensing)
    IP ratingFront IP65
