Application:
19 Inch Industrial Fanless Panel PC Dual-LAN WIFI 5:4 Aspect Ratio19 Inch Industrial Fanless Panel PC Dual-LAN WIFI 5:4 Aspect Ratio19 Inch Industrial Fanless Panel PC Dual-LAN WIFI 5:4 Aspect Ratio19 Inch Industrial Fanless Panel PC Dual-LAN WIFI 5:4 Aspect Ratio

19 Inch Industrial Fanless Panel PC Dual-LAN WIFI 5:4 Aspect Ratio


Model: JWS190-W4

● Display size: 19 inch.

● Working temperature: -10° ~ +60°C.

● Support 7/24 operation.

● 10mm enhanced display panel, stronger impact resistance.

● IP65-rated dust-proof and water-proof for the front panel.

● Mounting options: wall-mounted, desktop, VESA 75/100mm.

Appearance of the color
Black
Silver
share:
  • Description
  • Parameter
  • Case
  • 19 Inch Industrial Fanless Panel PC 5:4 Aspect Ratio


    Model: JWS190-W4


    This Jawest industrial all-in-one touchscreen panel PC offers durability and great design to fit customers' needs. With the latest Intel Core processors and industrial-grade motherboards and components, it is built for 7/24 hours long-time running non-stop commercial and industrial applications. High-quality components are built into the industrial panel PC to ensure high reliability of performance in a diverse environment and harsh conditions under all weather. The streamlined appearance design offers a perfect human-machine experience touch feeling. This touchscreen tablet PC offers optional wireless LAN connectivity and popular I/O interfaces. The fanless panel PC enables you to fully maximize your business output by making your processes more efficient.



    Jawest Industrial All-in-one Panel PC Features

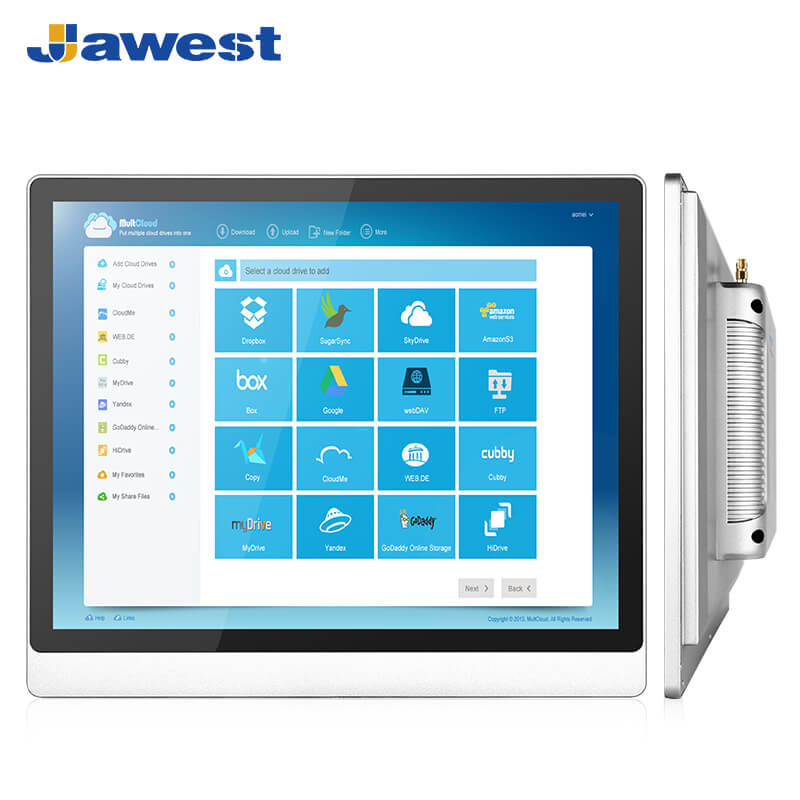

    •  19-inch with 1280x1024 resolution display; Aspect ratio: 5:4.

    •  XGA display with long service life LED Backlight.

    •  Processors Options: Intel Celeron J1900/J4125/J6412, Intel® Core™ i3-1215U/i5-1235U/i7-1255U.

    •  Configuration options: 4/8/16/32GB RAM; 16/32/64/128/256/512GB SSD, 1T/2T HDD.

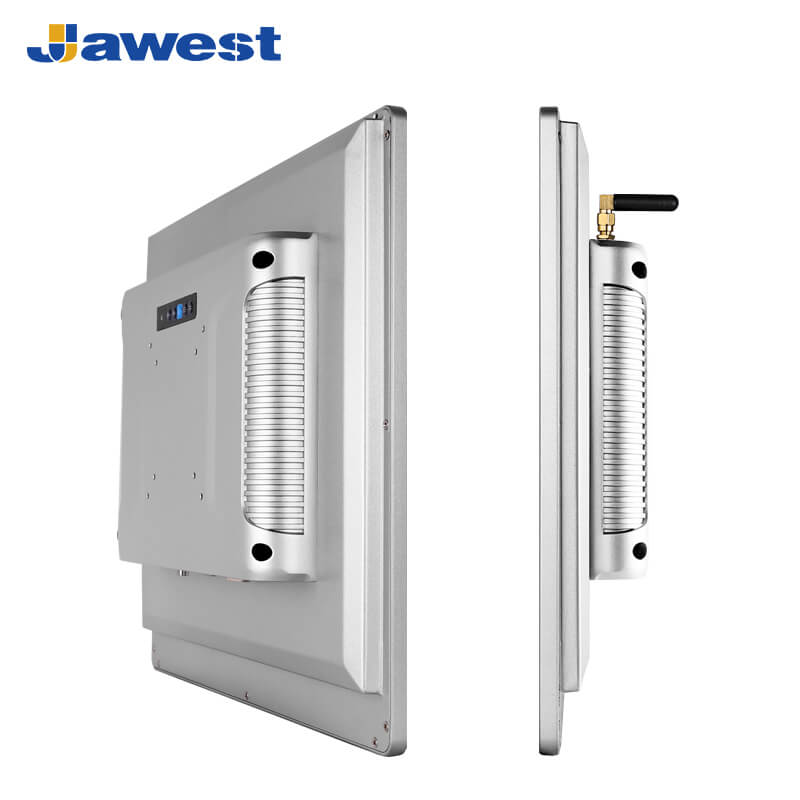

    •  Fanless thermal design for 7/24 Use.

    •  P-Cap touchscreen with IP65 front bezel.

    •  Popular interfaces and ports, support I/O expansion.

    •  Robust housing for harsh industrial applications.

    •  Sunlight readable screen for outdoor devices (up to 1500 nits).

    •  10mm front bezel and aluminum enclosure, strong impact resistant in harsh environments.

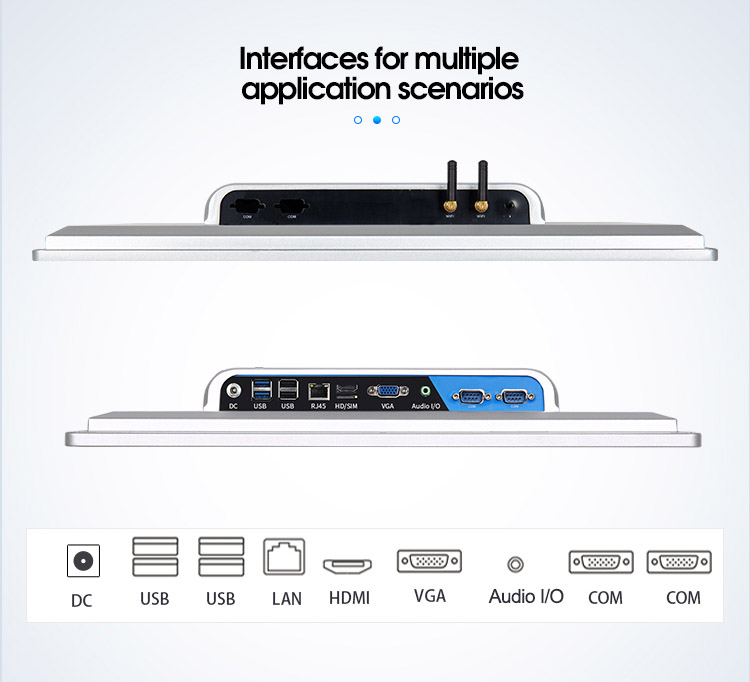

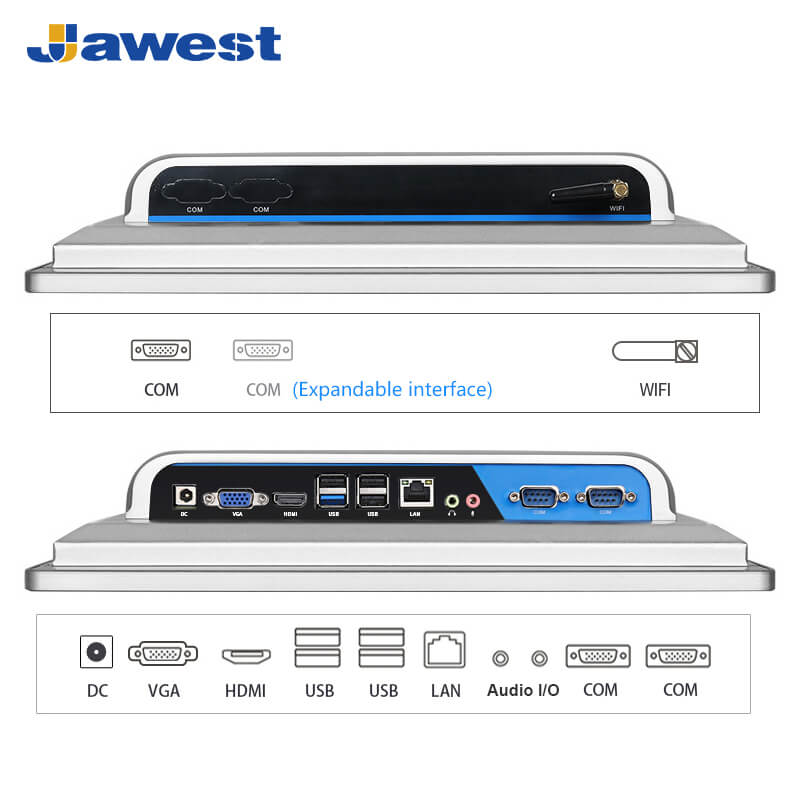

    •  I/O Ports: USB2.0*2, USB3.0*2, LAN*2, VGA*1, HDMI*1, SIM Slot*1, Audio I/O*1,  DC*1, WIFI Antenna*2, GND*1, RS232(DB9)*1, COM Reserved*1(Optional RS232/422/485), 12P Phoenix Terminal (DC*1+RS232*1+RS485*1+GPIO*5), Power Button*1.

    •  Support functional module: NFC, RFID, IC card, ID card reader optional.

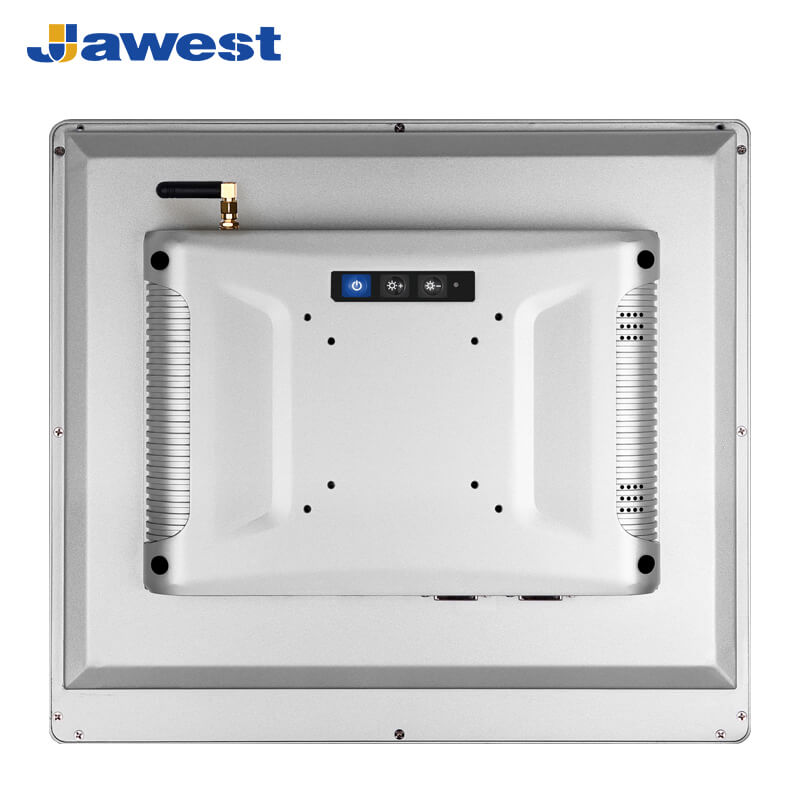

    •  Multi-mounting options: VESA, open frame, desktop, and wall-mounted.

    •  Support OEM, and ODM customization under the guide of experienced and skilled engineers.



    19 Inch Industrial Fanless Panel PC Dual-LAN WIFI 5:4 Aspect Ratio

    19 Inch Industrial Fanless Panel PC Dual-LAN WIFI 5:4 Aspect Ratio

    19 Inch Industrial Fanless Panel PC Dual-LAN WIFI 5:4 Aspect Ratio







  • Display Parameters
    Size19"
    Resolution1280*1024
    Screen Ratio5:4
    Brightness250~300 nits (Optional high brightness)
    Contrast Ratio1000:1
    Viewing Angle85°/85°/80°/80° (L/R/U/D)
    Backlight typeLED backlight screen, service life ≥ 50000H
    Touch ScreenCapacitive, Resistive, or Non-touch options






    Motherboard Model SelectionCL-J1900B
    CX-J4125-ACX-J6412CX-12U01
    i3-1215Ui5-1235Ui7-1255U
    System ArchitectureCPUIntel Celeron J1900 Quad-Core 2.0GHzIntel Celeron J4125 Quad-Core 2.0GHzIntel Celeron J6412 Quad-Core 2.0GHzIntel Core i3 1215U 1.2GHzIntel Core i5 1235U 1.3GHzIntel Core i7 1255U 1.7GHz
    ArchitectureIntel Bay TrailIntel Gemini Lake RefreshIntel Elkhart LakeIntel Alder Lake
    GPUIntel HD GraphicsIntel UHD Graphics 600Intel UHD Graphics 16 EUsIntel Iris Xe Graphics 64Intel Iris Xe Graphics 80 Intel Iris Xe Graphics 96
    MemoryDDR3 8GBDDR4 4/8GBDDR4 8/16GBDDR4 32GB
    Storage16GB (optional: 32/64/128/256/512GB)32GB (optional: 64/128/256/512GB, 1T/2T HDD)32GB (optional: 64/128/256/512GB, 1T/2T HDD)64/128GB (optional: 256GB/512GB SSD, 1T/2T HDD)
    SATA1*SATA3.01*SATA3.01*SATA3.01*SATA3.0
    MSATA1*MSATA1*MSATA1*MSATA/
    M.2//1*M.21*M.2
    Operating SystemWin 7/10Win 10/11Win 10/11Win 10/11
    Ubuntu14.04.6/16.04.7/18.04.5/18.04.6/20.04.1/20.04.3/20.04.4/22.04/
    Centos7.4/7.8/7.9; Redhat7.4; Debian11.6Centos7.8/8.4/7.9; Redhat7.4; Debian10.0/11.6/






    NetworkingEthernet2*10M/100M/1000M adaptive Ethernet
    4GSupport
    5G///M.2 5G
    WIFIDual-band 2.4/5GHz
    BluetoothBT4.0 (Optional)BT4.0 (Optional)BT4.0 (Optional)BT4.0 (Optional)

    Display FunctionLVDSSupports 1920*1080 60Hz output
    EDPSupports 3840*2160 60Hz outputSupports 4096*2160 60Hz outputSupports 4096*2304 120Hz output
    VGASupports 1920*1080 60Hz output
    HDMISupports 3840*2160 30Hz outputSupports 4096*2160 30Hz outputSupports 4096*2304 60Hz output
    Touch FunctionTouch InterfaceUSBUSBUSBUSB
    I/O PortsUSB 2.0USB2.0*2 + USB2.0*4 on boardUSB2.0*2 + USB2.0*4 on boardUSB2.0*2 + USB2.0*2 on boardUSB2.0*2 + USB2.0*4 on board
    Type-C///2*type-c
    USB 3.0USB3.0*2USB3.0*2USB3.0*2USB3.0*2 + USB3.0*2 on board (converted by 2*Type-C)
    RS2326*RS232 (one of which is for RS232/RS422/RS485 mutual conversion)
    RS4851*RS232/RS422/RS485 mutual conversion
    RS4221*RS232/RS422/RS485 mutual conversion
    TTL////
    GPIOGPIO*8 (input/output)
    SIM Slot1*SIM Slot + 1*SIM Slot on board
    MINI PCIE1*MINI PCIE1*MINI PCIE1*MINI PCIE/
    Speaker4PIN on board supports 8Ω5WBuilt-in dual-channel 4R/10W or 8R/5W dual-channel power amplifier
    MICSupportSupportSupportSupport
    Audio Port3.5mm earphone jack, support input/output
    I/O Expansion Support






    PowerPower Input12-36V DC12-36V DC12-36V DC12-36V DC
    Adapter24V / 2.5A24V / 2.5A24V / 2.5A24V / 4A

    MechanicalDimension423.3*372.9*59.9mm
    EnclosureAluminum alloy housing
    Cooling SystemFanlessFanlessFanlessFanless
    MountingPanel-mount, Embedded, desktop, wall-mounted, VESA75/100mm, open frame, etc.

    Product ReliabilityWorking Temp -10°C ~ 60°C
    Storage Temp -20°C ~ 70°C
    Ambient Humidity 5% - 95% (relative humidity non-condensing)
    IP ratingFront IP65
