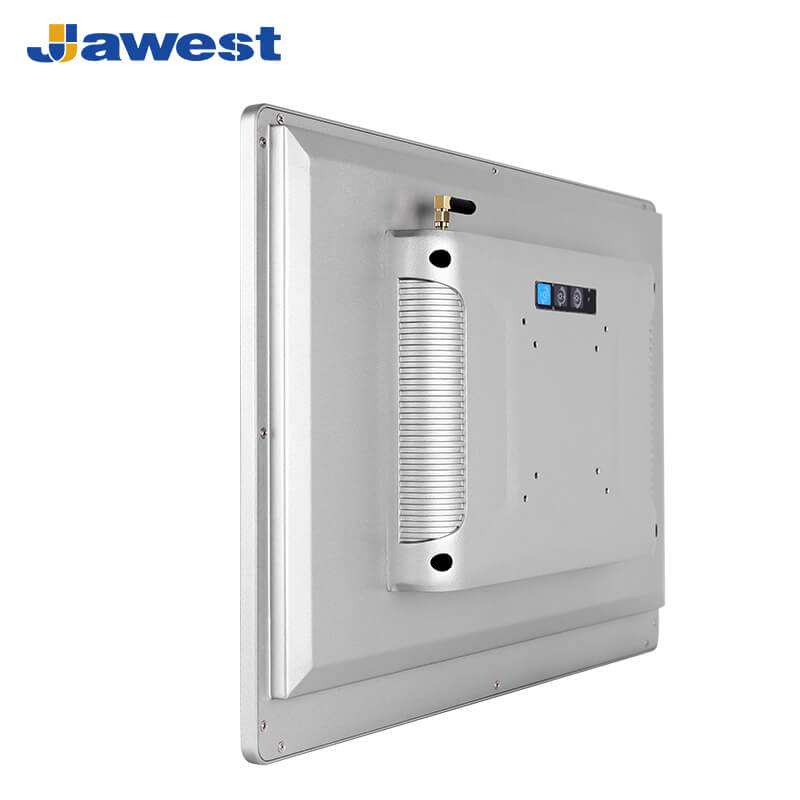

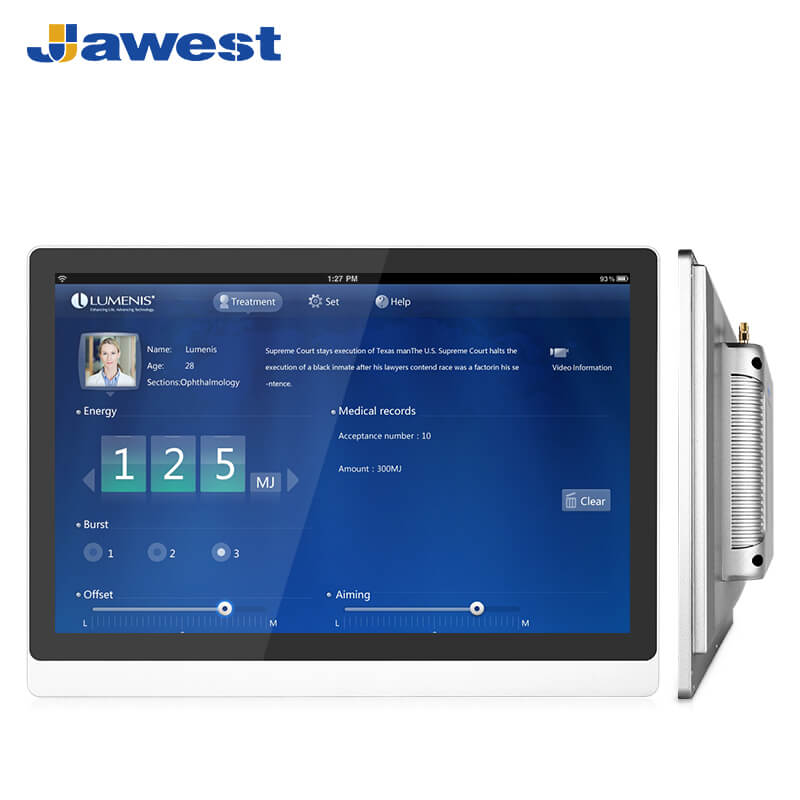

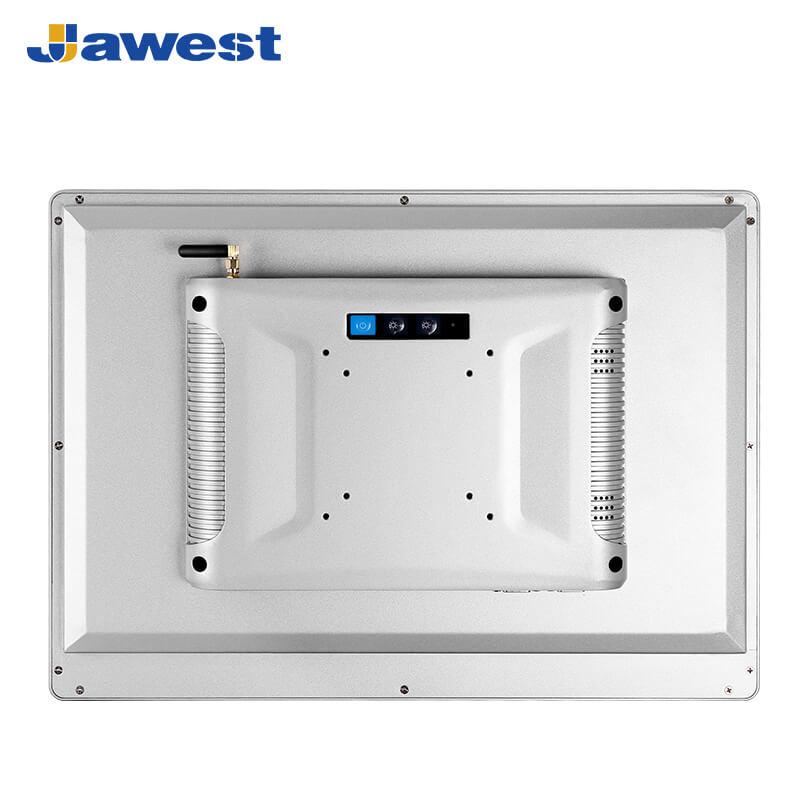

19.1 Inch Panel Mount Touch Screen PC
Model: JWS191-W4
This Jawest industrial all-in-one touch screen computer offers durability and great design to fit customers' needs. With the latest Intel Core i3/i5/i7 processor and industrial-grade motherboards and components, it is built for 7/24hours long-time running non-stop commercial and industrial applications. High-quality components are built into the industrial panel PC to ensure high reliability of performance in diverse environments and harsh conditions under all weather. The streamlined appearance design offers a perfect human-machine experience touch feeling. This touchscreen panel PC offers optional wireless LAN connectivity and popular I/O interfaces. The fanless panel PC enables you to fully maximize your business output by making your processes more efficient.
Jawest Industrial All-in-one Panel PC Features
● 19.1-inch with 1440x900 resolution display; Aspect ratio: 16:10.
● Processors Options: Intel Celeron J1900/J4125/J6412, Intel® Core™ i3-1215U/i5-1235U/i7-1255U.
● Configuration: 4/8/16/32GB RAM; 16/32/64/128/256/512GB SSD, 1T/2T HDD options.
● Operating System: Windows, Linux, or Android options.
● Sunlight readable screen for outdoor devices (up to 1500 nits).
● Ten-point PCAP touch control screen, 4/5-wire resistive touch, and Non-touch for option.
● 10mm front bezel and aluminum enclosure, strong impact resistant in harsh environments.
● IP65 dust-proof and waterproof for front enclosure protection.
● Support functional module: NFC, RFID, IC card, ID card reader optional.

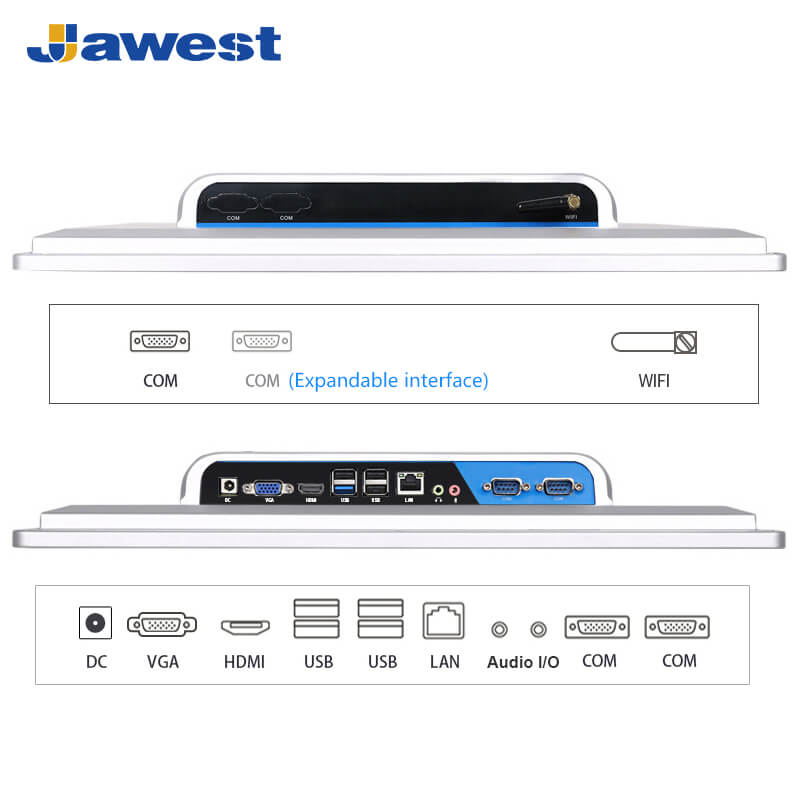

● I/O Ports: USB2.0*2, USB3.0*2, LAN*2, VGA*1, HDMI*1, SIM Slot*1, Audio I/O*1, DC*1, WIFI Antenna*2, GND*1, RS232(DB9)*1, COM Reserved*1(Optional RS232/422/485), 12P Phoenix Terminal (DC*1+RS232*1+RS485*1+GPIO*5), Power Button*1.
● Full-enclosed aluminum alloy material, sturdy and durable.
● Appearance: Black or Silver color, support customization.

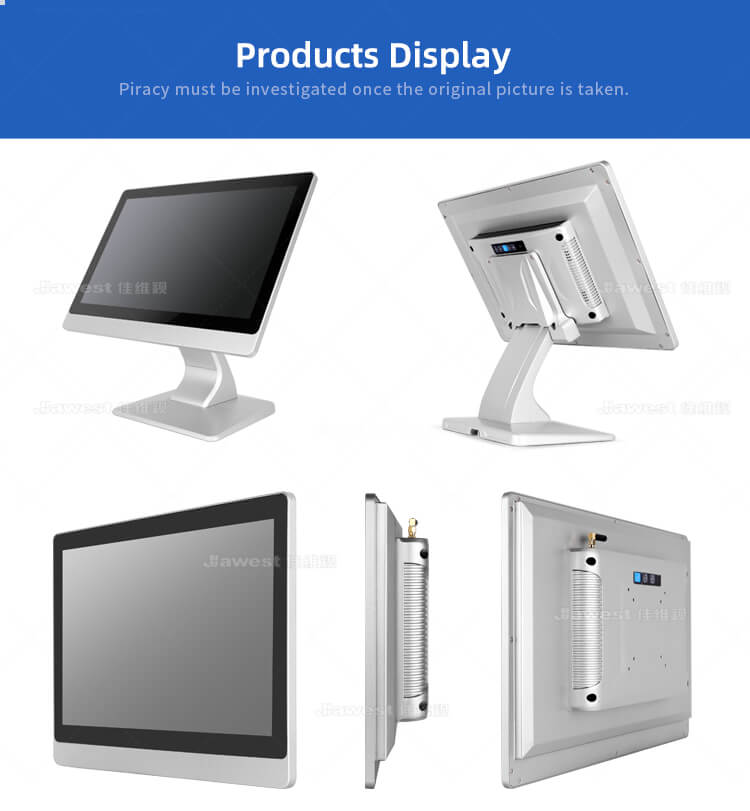

● Multi-mounting options: VESA, open frame, desktop, embedded, panel mount, and wall-mounted.
● Supports OEM, ODM customization under the guide of experienced and skilled engineers.
