Application:
21.5 Inch Flat Screen Panel Mount Panel PC Industrial Use21.5 Inch Flat Screen Panel Mount Panel PC Industrial Use21.5 Inch Flat Screen Panel Mount Panel PC Industrial Use21.5 Inch Flat Screen Panel Mount Panel PC Industrial Use

21.5 Inch Flat Screen Panel Mount Panel PC Industrial Use


Model: JWS215-W4

● Display size: 21.5 inch.

● Working temperature: -10°C ~ +60°C.

● Support 7/24 operations in harsh environments.

● 10mm enhanced display panel, excellent impact resistance.

● IP65-rated standard dust-proof and water-proof for front panel.

● Supports embedded, wall-mounted, desktop, VESA 75/100mm.

Appearance of the color
Black
Silver
share:
  • Description
  • Parameter
  • Case

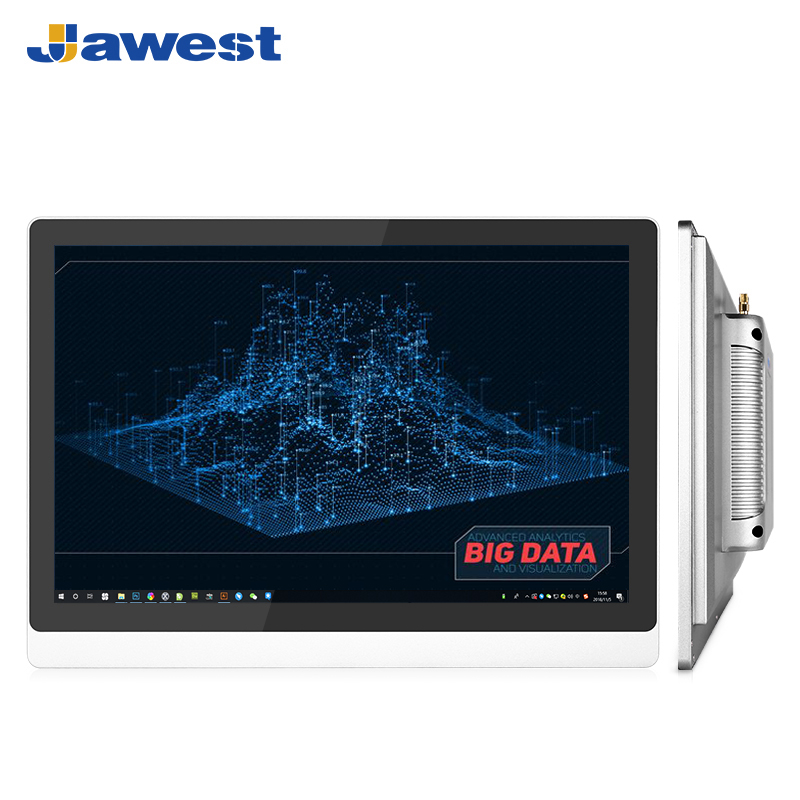

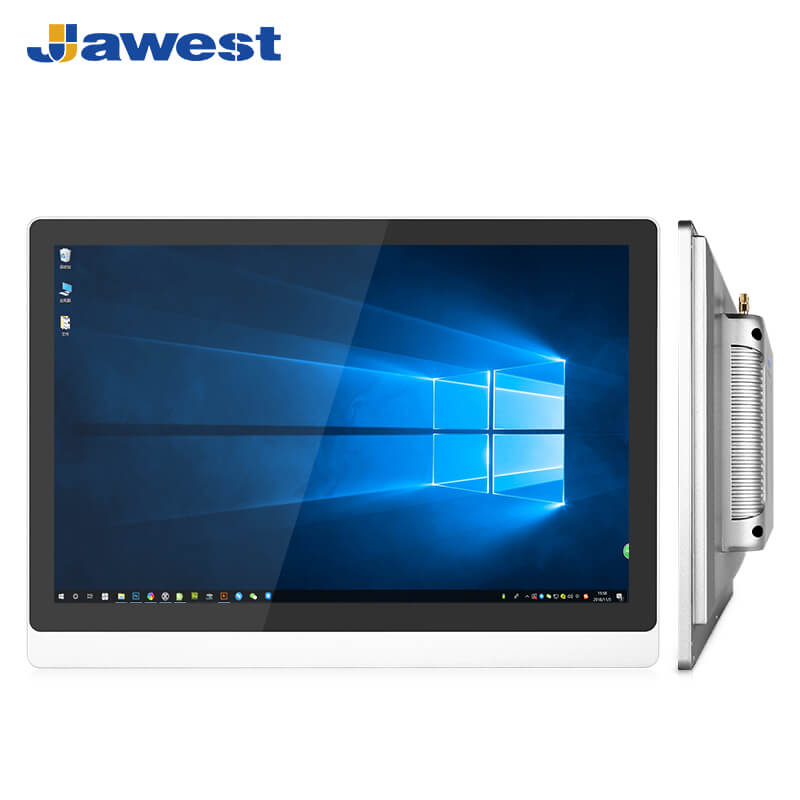

  • 21.5 Inch Flat Screen Panel Mount Panel PC


    Model: JWS215-W4




    This 21.5-inch industrial panel computer with an all-in-one design, Windows operating system, and industrial panel PC is designed for use in harsh industrial environments, such as industrial machinery and equipment industry. It supports a sunlight-readable screen up to 1500 nits (optional) making it excellent for outdoor display systems, emergency commands, transportation scheduling, industrial control, facility management, and other IoT applications. Jawest offers our customers highly competitive prices, reliable products, and outstanding services.



    Jawest Industrial All-in-one Panel PC Features


    ● 21.5-inch with 1920x1080 resolution display; Aspect ratio: 16:9.

    ● Sunlight readable screen for outdoor devices (up to 1500 nits).

    ● Operating System: Windows, Linux, or Android options.

    ● Appearance: Black or Silver color, support customization.

    ● Multi-configuration options: Intel Celeron J1900/J4125/J6412, Intel® Core™ i3-1215U/i5-1235U/i7-1255U processors.

    ● Expandable configuration: 4/8/16/32GB RAM; 16/32/64/128/256/512GB SSD, 1T/2T HDD options.

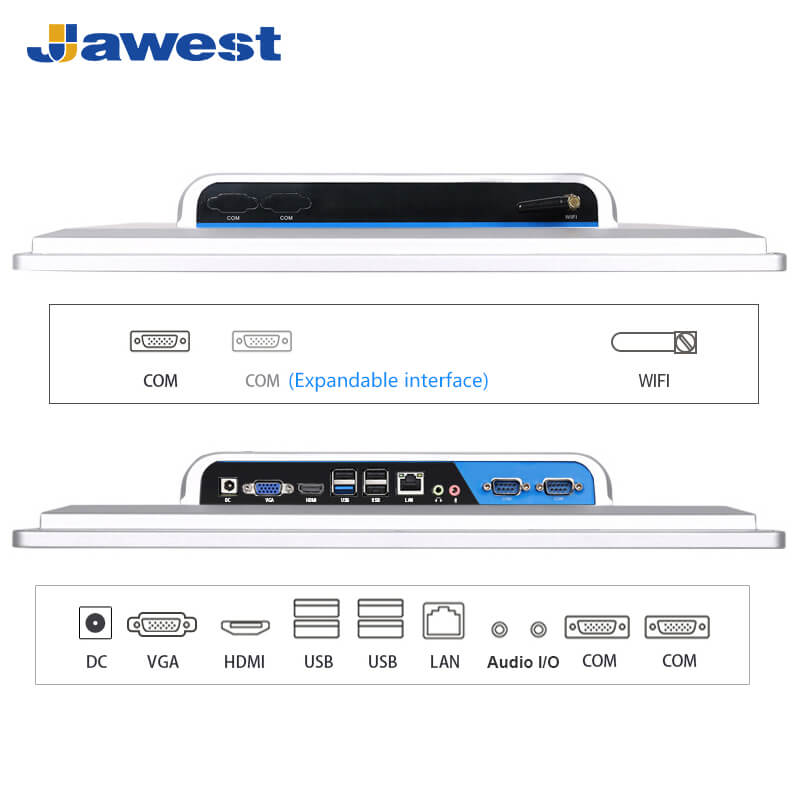

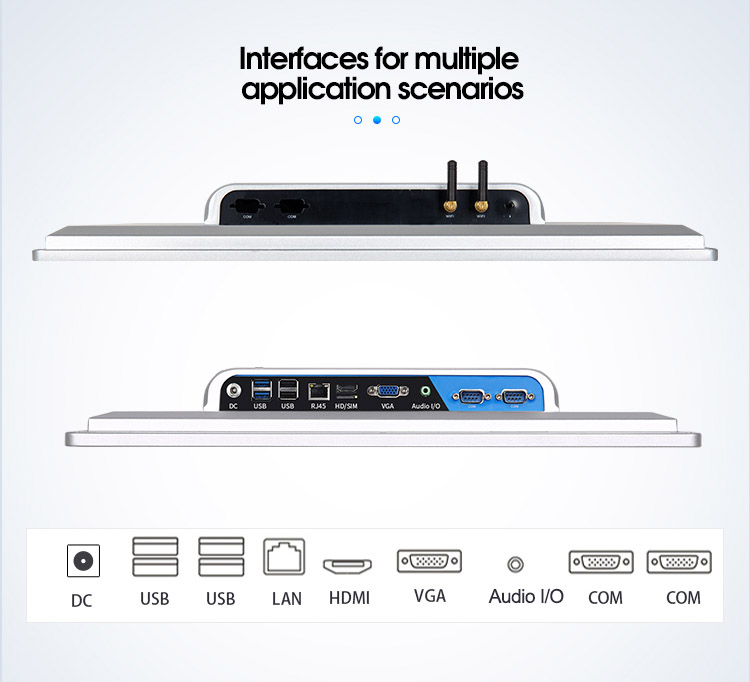

    ● I/O Ports: USB2.0*2, USB3.0*2, LAN*2, VGA*1, HDMI*1, SIM Slot*1, Audio I/O*1,  DC*1, WIFI Antenna*2, GND*1, RS232(DB9)*1, COM Reserved*1(Optional RS232/422/485), 12P Phoenix Terminal (DC*1+RS232*1+RS485*1+GPIO*5), Power Button*1.

    ● Ten-point PCAP touch control screen, 4/5-wire resistive touch for option.

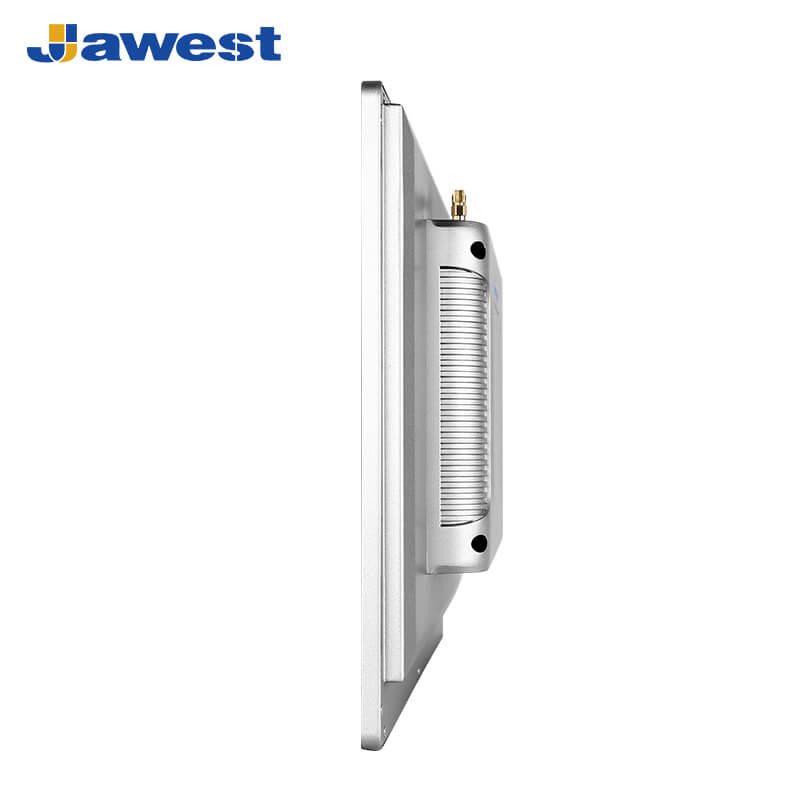

    ● 10mm front bezel and aluminum enclosure, excellent impact-resistant performance in harsh environments.

    ● IP65 dust-proof and waterproof for front enclosure.

    ● Support functional module: NFC, RFID, IC card, ID card reader optional.

    ● Aluminum alloy chassis and casing, good heating-dissipation under high-temperature conditions.

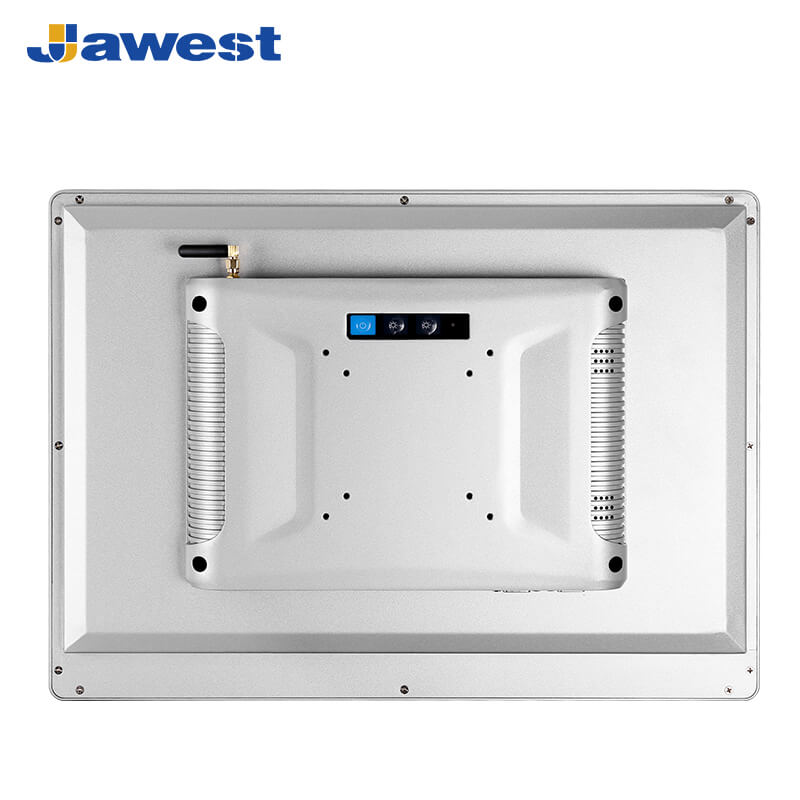

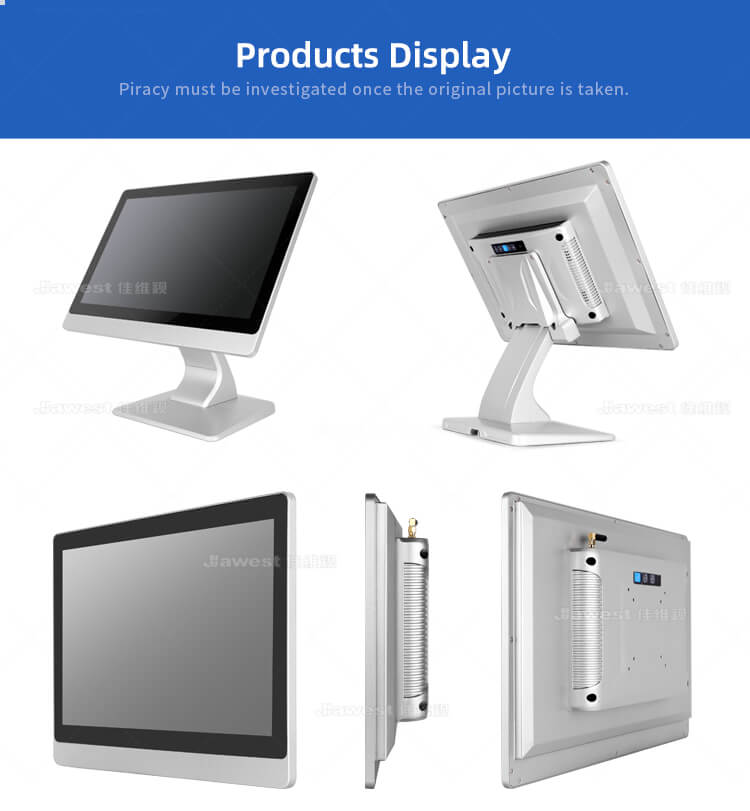

    ● Multi-mounting options: VESA, desktop, and wall-mounted.




    21.5 Inch Flat Screen Panel Mount Panel PC

    21.5 Inch Flat Screen Panel Mount Panel PC Industrial Use


    21.5 Inch Flat Screen Panel Mount Panel PC Industrial Use

    21.5 Inch Flat Screen Panel Mount Panel PC Industrial Use








  • Display ParametersSize21.5"
    Resolution1920*1080
    Screen Ratio16:9
    Brightness250~300 nits (Optional high brightness)
    Contrast Ratio1000:1
    Viewing Angle89°/89°/89°/89° (L/R/U/D)
    Backlight typeLED backlight screen, service life ≥ 50000H
    Touch ScreenCapacitive, Resistive, or Non-touch options






    Motherboard Model SelectionCL-J1900B
    CX-J4125-ACX-J6412CX-12U01
    i3-1215Ui5-1235Ui7-1255U
    System ArchitectureCPUIntel Celeron J1900 Quad-Core 2.0GHzIntel Celeron J4125 Quad-Core 2.0GHzIntel Celeron J6412 Quad-Core 2.0GHzIntel Core i3 1215U 1.2GHzIntel Core i5 1235U 1.3GHzIntel Core i7 1255U 1.7GHz
    ArchitectureIntel Bay TrailIntel Gemini Lake RefreshIntel Elkhart LakeIntel Alder Lake
    GPUIntel HD GraphicsIntel UHD Graphics 600Intel UHD Graphics 16 EUsIntel Iris Xe Graphics 64Intel Iris Xe Graphics 80 Intel Iris Xe Graphics 96
    MemoryDDR3 8GBDDR4 4/8GBDDR4 8/16GBDDR4 32GB
    Storage16GB (optional: 32/64/128/256/512GB)32GB (optional: 64/128/256/512GB, 1T/2T HDD)32GB (optional: 64/128/256/512GB, 1T/2T HDD)64/128GB (optional: 256GB/512GB SSD, 1T/2T HDD)
    SATA1*SATA3.01*SATA3.01*SATA3.01*SATA3.0
    MSATA1*MSATA1*MSATA1*MSATA/
    M.2//1*M.21*M.2
    Operating SystemWin 7/10Win 10/11Win 10/11Win 10/11
    Ubuntu14.04.6/16.04.7/18.04.5/18.04.6/20.04.1/20.04.3/20.04.4/22.04/
    Centos7.4/7.8/7.9; Redhat7.4; Debian11.6Centos7.8/8.4/7.9; Redhat7.4; Debian10.0/11.6/

    NetworkingEthernet2*10M/100M/1000M adaptive Ethernet
    4GSupport
    5G///M.2 5G
    WIFIDual-band 2.4/5GHz
    BluetoothBT4.0 (Optional)BT4.0 (Optional)BT4.0 (Optional)BT4.0 (Optional)

    Display FunctionLVDSSupports 1920*1080 60Hz output
    EDPSupports 3840*2160 60Hz outputSupports 4096*2160 60Hz outputSupports 4096*2304 120Hz output
    VGASupports 1920*1080 60Hz output
    HDMISupports 3840*2160 30Hz outputSupports 4096*2160 30Hz outputSupports 4096*2304 60Hz output
    Touch FunctionTouch InterfaceUSBUSBUSBUSB
    I/O PortsUSB 2.0USB2.0*2 + USB2.0*4 on boardUSB2.0*2 + USB2.0*4 on boardUSB2.0*2 + USB2.0*2 on boardUSB2.0*2 + USB2.0*4 on board
    Type-C///2*type-c
    USB 3.0USB3.0*2USB3.0*2USB3.0*2USB3.0*2 + USB3.0*2 on board (converted by 2*Type-C)
    RS2326*RS232 (one of which is for RS232/RS422/RS485 mutual conversion)
    RS4851*RS232/RS422/RS485 mutual conversion
    RS4221*RS232/RS422/RS485 mutual conversion
    TTL////
    GPIOGPIO*8 (input/output)
    SIM Slot1*SIM Slot + 1*SIM Slot on board
    MINI PCIE1*MINI PCIE1*MINI PCIE1*MINI PCIE/
    Speaker4PIN on board supports 8Ω5WBuilt-in dual-channel 4R/10W or 8R/5W dual-channel power amplifier
    MICSupportSupportSupportSupport
    Audio Port3.5mm earphone jack, support input/output
    I/O Expansion Support






    PowerPower Input12-36V DC12-36V DC12-36V DC12-36V DC
    Adapter24V / 2.5A24V / 2.5A24V / 2.5A24V / 4A

    MechanicalDimension522.1*338.5*62.6mm
    EnclosureAluminum alloy housing
    Cooling SystemFanlessFanlessFanlessFanless
    MountingPanel-mount, Embedded, desktop, wall-mounted, VESA75/100mm, open frame, etc.

    Product ReliabilityWorking Temp -10°C ~ 60°C
    Storage Temp -20°C ~ 70°C
    Ambient Humidity 5% - 95% (relative humidity non-condensing)
    IP ratingFront IP65
