Application:
15.6 inch All-in-One PC with Android / Linux / Ubuntu / Debian Operating System15.6 inch All-in-One PC with Android / Linux / Ubuntu / Debian Operating System15.6 inch All-in-One PC with Android / Linux / Ubuntu / Debian Operating System15.6 inch All-in-One PC with Android / Linux / Ubuntu / Debian Operating System

15.6 inch All-in-One PC with Android / Linux / Ubuntu / Debian Operating System


Model: JWS156-A4

● Display size: 15.6 inch.

● True flat design for the front panel.

● IP65 dustproof and waterproof.

● Android operating system is pre-installed.

● Multiple installation: desktop / wall / fold / embedded.

● Multi-touch control projected-capacitance or mouse control.

● Factory directly supply.

● 3-year warranty.

Appearance of the color
Black
Silver
share:
  • Description
  • Parameter
  • Case

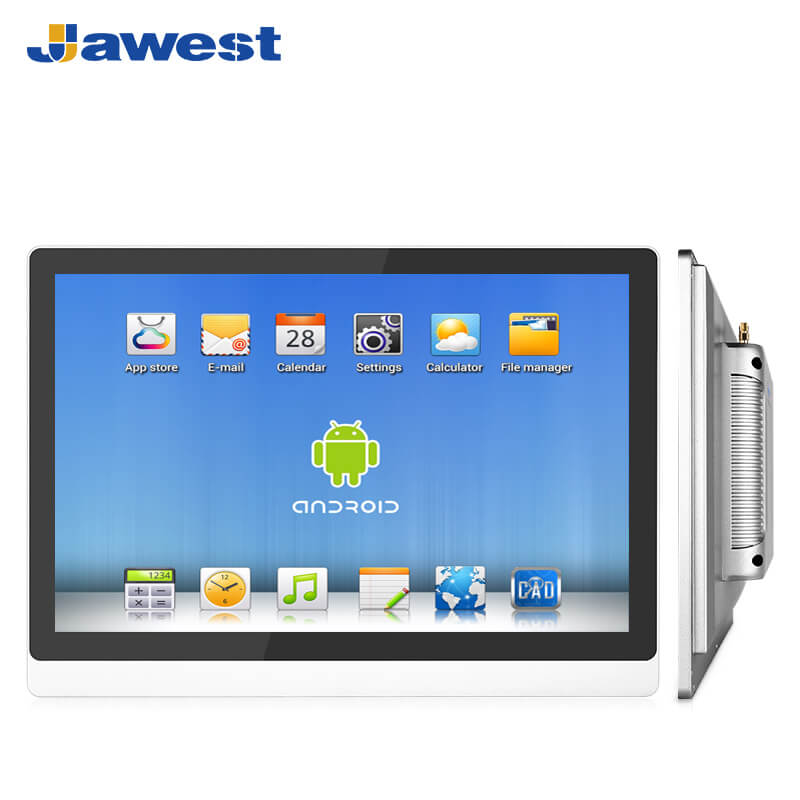

  • 15.6" All-in-One PC Android System


    Model: JWS156-A4


    Jawest 15.6 inch Android tablet PC with all-in-one and touch screen (non-touch optional) design, perfectly used for POS systems, emergency medical service, a terminal display device, hospital nurse stations, and smart home equipment. Also providing reliable performance in harsh industrial sites and outdoor applications.



    Jawest Industrial Android All-in-one Panel PC Features


    ● 15.6-inch display, 1920*1080 resolution

    ● Processor: Rockchip RK3568, Cortex-A55 Quad-Core, 64 bits, 2.0GHz. (RK3288/RK3399/RK3588 options).

    ● Memory: 2GB (4/8GB options).

    ● Storage: 32GB (64/128/256GB options).

    ● Versatile Operating System Support: Android12 / Linux 5.10 / Ubuntu 20.04 / Debian 11 options. Catering to diverse user preferences and requirements.

    ● All-in-One Design: Streamline your workspace with an integrated system that combines the display, processing unit, and input devices into a single unit, saving space and reducing cable clutter.

    ● Flexible Connectivity: Stay connected with a variety of connectivity options such as Wi-Fi, Bluetooth, Ethernet, USB ports, HDMI, and audio jacks, facilitating seamless data transfer and peripheral connectivity.

    ● Multiple Language Support: Operating system options may support multiple languages, catering to users in diverse regions and linguistic preferences.






    Multi-touch Panel PC Android OS

    15.6 Inch All-in-One PC Android System

    15.6 Inch All-in-One PC Android System






  • Display Parameters
    Size15.6"
    Resolution1920*1080
    Screen Ratio16:9
    Brightness300 nits (Optional high brightness)
    Contrast Ratio800:1
    Viewing Angle85°/85°/85°/85° (L/R/U/D)
    Backlight typeLED backlight screen, service life ≥ 50000H
    Touch ScreenCapacitive, Resistive, or Non-touch options









    Motherboard Model SelectionJWS64
    JWS3288-IJWS3399-MAIN-LCX3399-ACX3568-ACX3588-ACX-3588-G
    System ArchitectureCPUA64 Quad-Core 1.5GHzRK3288 Quad-Core 1.8GHzRK3399 Six-Core 2.0GHzRK3399 Six-Core 2.0GHzRK3568 Quad-Core 2.0GHzRK3588 Octa-Core 2.1GHzRK3588 Octa-Core 2.1GHz
    Core Architecture Cortex-A53Cortex-A17Dual-Core Cortex-A72 + Quad-Core Cortex-A53Dual-Core Cortex-A72 + Quad-Core Cortex-A53Cortex-A55Quad-Core Cortex-A76 + Quad-Core Cortex-A55Quad-Core Cortex-A76 + Quad-Core Cortex-A55
    GPUMali-T764Mali-T764Mali-T860 MP4Mali-T860 MP4Mali-G52 2EEMali G610 MP4Mali G610 MP4
    Memory (DDR)2GB (8GB optional)2GB (4GB optional)4GB2/4GB2GB (4/8GB optional)4GB (8/32GB optional)8GB (16/32GB optional)
    Storage (eMMC)16GB (32/64GB optional)16GB (32/64/128/256GB optional)32GB (64GB optional)32/64GB (256GB optional)32GB (64/128/256GB optional)64GB (128/256GB optional)64GB (128/256GB optional)
    SATA////Support/1*SATA hard drive port
    Operating SystemAndroid 6.0Android 7.1 / 10.0Android 7.1 / 9.0 / 11 Android 7.1 / 9.0 / 11Android 12Android 13.0Android 12
    /Linux 4.4Linux 4.4Linux 4.4Linux 5.10/Linux 5.10
    /Ubuntu 18.04Ubuntu 18.04Ubuntu 18.04Ubuntu 20.04/Ubuntu 20.04
    /Debian10.0Debian10.0Debian 10Debian 11/Debian 11









    NetworkingEthernet1*10M/100M/1000M adaptive Ethernet1*Gigabit Ethernet + 1*100 Mbit Ethernet2*10M/100M/1000M adaptive Ethernet
    4GOptional. Based on the 4G module selection
    5G//////Support M.2 5G module interface
    WIFI2.4GDual-band 2.4/5GDual-band 2.4/5GDual-band 2.4/5GWIFI6, 2.4GWIFI6, Dual-band 2.4/5GWIFI5/WIFI6 (optional), dual-band 2.4/5G
    BluetoothBT5.0BT5.0BT5.0BT5.0BT5.2BT5.0BT4.2 (WIFI 5) / BT5.0 (WIFI 6)









    Touch FunctionTouch InterfaceUSB/IICUSBUSB/IIC

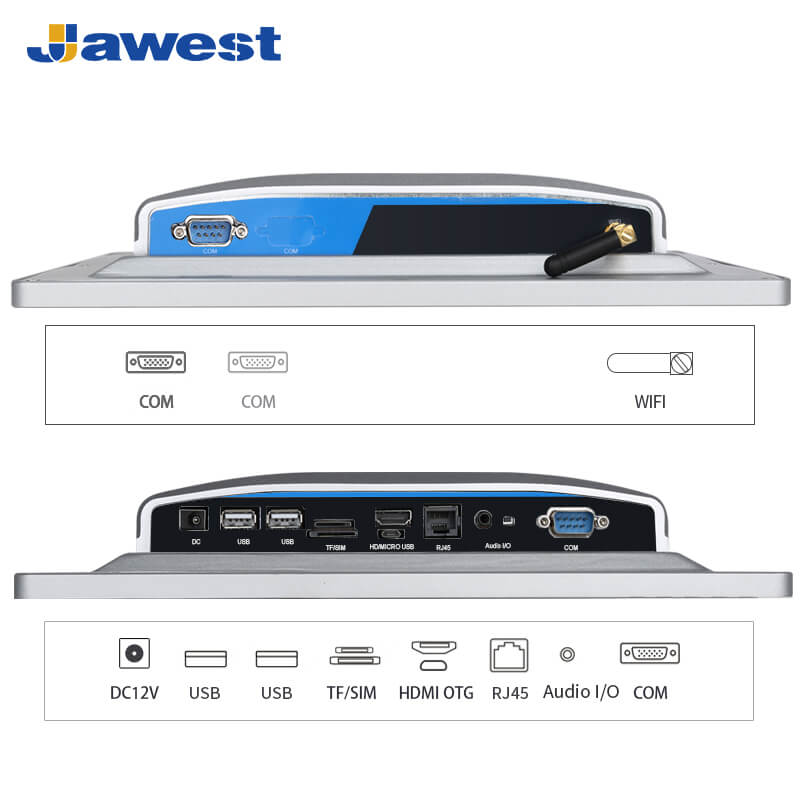

    I/O PortsUSB1*USB HOST, 1*USB OTG1*USB HOST, 1*USB OTG1*USB HOST, 1*USB OTG1*USB, 1*OTG2*USB3.01*USB, 1*OTG4*USB3.0
    HDMI1*HDMI, up to 4K1*HDMI, up to 4K1*HDMI, up to 4K1*HDMI, up to 4K1*HDMI, up to 4K1*HDMI, up to 4K1*HDMI In+1*HDMI Out, 8K
    LAN1*LAN1*LAN1*LAN1*LAN1*LAN2*LAN2*LAN
    DC1*DC2.11*DC2.11*DC2.11*DC2.11*DC2.11*DC2.11*DC2.1
    COM2*RS232+2*Reserved holes1*RS232+1*Reserved hole
    TF/SIM1* TF/SIM slot1*TF/SIM slot1*TF/SIM slot1*TF/SIM slot1*TF/SIM slot1*TF/SIM slot1*TF/SIM slot
    WiFi Antenna1*WiFi Antenna1*WiFi Antenna1*WiFi Antenna+1*Reserved hole
    Audio I/O1*3.5mm Earphone Jack
    Reset Button1*UBOOT1*UBOOT1*UBOOT1*UBOOT1*UBOOT1*UBOOT1*UBOOT
    GND1*GND1*GND1*GND1*GND1*GND1*GND1*GND
    MICRO OTG1*MICRO OTG//////
    1*12P Phoenix Terminal ///1*DC1*DC1*DC1*DC
    ///1*RS2321*RS2321*RS2321*RS232
    ///1*RS4851*RS4851*RS4851*RS485
    ///1*TTL1*CAN1*CAN1*CAN
    ///3*GPIO3*GPIO3*GPIO3*GPIO
    I/O Expansion Support









    PowerPower Input12V DC12V DC12-36V DC12-36V DC12-36V DC12-36V DC12-36V DC
    Adapter12V / 4A12V / 4A24V / 2.5A24V / 2.5A24V / 2.5A24V / 2.5A24V / 2.5A



    MechanicalDimension389.6*264*60mm
    EnclosureAluminum alloy housing

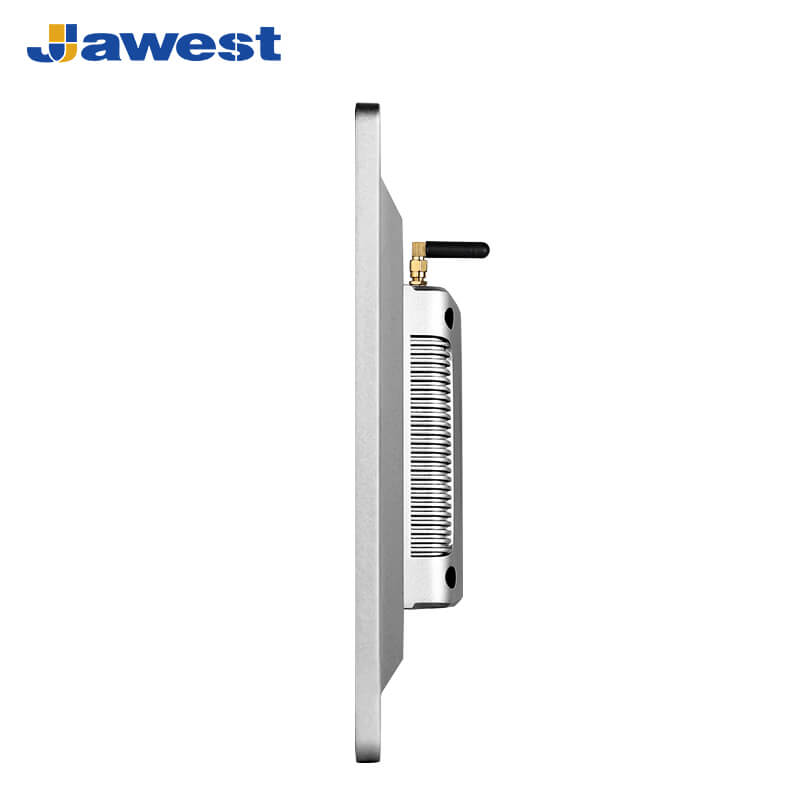

    Cooling SystemFanless

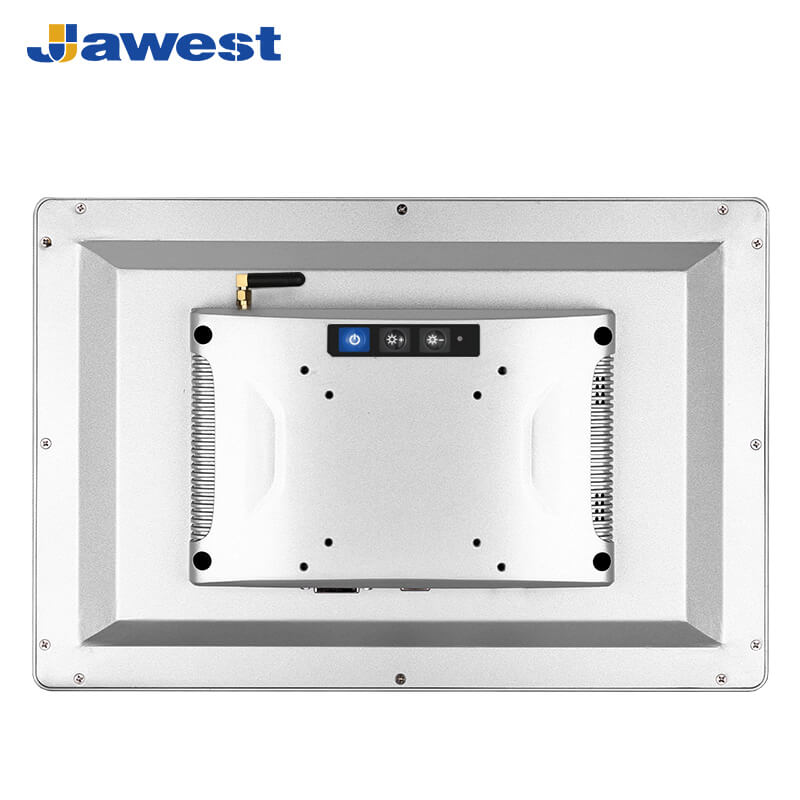

    MountingPanel-mount, Embedded, desktop, wall-mounted, VESA75/100mm, open frame, etc.



    Product ReliabilityWorking Temp -10°C ~ 60°C
    Storage Temp -20°C ~ 70°C
    Ambient Humidity 5% - 95% (relative humidity non-condensing)
    IP ratingFront IP65
