Application:
19 inch Android Panel PCs Panel Mount Touch PC Android 9.019 inch Android Panel PCs Panel Mount Touch PC Android 9.019 inch Android Panel PCs Panel Mount Touch PC Android 9.019 inch Android Panel PCs Panel Mount Touch PC Android 9.0

19 inch Android Panel PCs Panel Mount Touch PC Android 9.0


Model: JWS190-A4

● Display size: 19 inch.

● Flat design, elegant appearance.

● IP65 rating of dust-proof and waterproof.

● Multiple installation: desktop / wall-mounted / VESA / embedded.

● Ultra-sensitive touch screen, precise positioning, free control.


Appearance of the color
Black
Silver
share:
  • Description
  • Parameter
  • Case
  • 19" Android Industrial Panel PCs


    Model: JWS190-A4


    Jawest introduces a series of industrial Android all-in-one tablet PCs, that support custom multiple functional modules such as built-in card readers like ID cards, RFID, IC cards, NFC, face recognition, and fingerprint collection. These aspects of functional modules make the all-in-one panel PC series apply to access control and intelligent security systems for residential, industrial, financial, commercial, educational, or government institutions. With a fanless heating-dissipation design, all the inner components are well-protected during long-time operation. It offers a PCAP touch screen or non-touch screen.



    Jawest 19" Industrial All-in-one Tablet PC Features


    ● The front panel is IP65-rated dust-proof and waterproof.

    ● Full-flat designed panel rejects dust and drops penetrate into the interior of the all-in-one PC.

    ● Support external interface expansion for applying to multiple applications and environments.

    ● Efficient cooling low carbon energy saving

    ● 7/24hr uninterrupted operation in a harsh environment.

    ● All aluminum alloy material drawing process shows an elegant look.

    ● Aluminum alloy with good electrical conductivity, thermal conductivity, and corrosion resistance.




    Industrial Android Tablet PC Access Control 10.4"







  • Display Parameters
    Size19"
    Resolution1280*1024
    Screen Ratio5:4
    Brightness250~300 nits (Optional high brightness)
    Contrast Ratio1000:1
    Viewing Angle85°/85°/80°/80° (L/R/U/D)
    Backlight typeLED backlight screen, service life ≥ 50000H
    Touch ScreenCapacitive, Resistive, or Non-touch options









    Motherboard Model SelectionJWS64
    JWS3288-IJWS3399-MAIN-LCX3399-ACX3568-ACX3588-ACX-3588-G
    System ArchitectureCPUA64 Quad-Core 1.5GHzRK3288 Quad-Core 1.8GHzRK3399 Six-Core 2.0GHzRK3399 Six-Core 2.0GHzRK3568 Quad-Core 2.0GHzRK3588 Octa-Core 2.1GHzRK3588 Octa-Core 2.1GHz
    Core Architecture Cortex-A53Cortex-A17Dual-Core Cortex-A72 + Quad-Core Cortex-A53Dual-Core Cortex-A72 + Quad-Core Cortex-A53Cortex-A55Quad-Core Cortex-A76 + Quad-Core Cortex-A55Quad-Core Cortex-A76 + Quad-Core Cortex-A55
    GPUMali-T764Mali-T764Mali-T860 MP4Mali-T860 MP4Mali-G52 2EEMali G610 MP4Mali G610 MP4
    Memory (DDR)2GB (8GB optional)2GB (4GB optional)4GB2/4GB2GB (4/8GB optional)4GB (8/32GB optional)8GB (16/32GB optional)
    Storage (eMMC)16GB (32/64GB optional)16GB (32/64/128/256GB optional)32GB (64GB optional)32/64GB (256GB optional)32GB (64/128/256GB optional)64GB (128/256GB optional)64GB (128/256GB optional)
    SATA////Support/1*SATA hard drive port
    Operating SystemAndroid 6.0Android 7.1 / 10.0Android 7.1 / 9.0 / 11 Android 7.1 / 9.0 / 11Android 12Android 13.0Android 12
    /Linux 4.4Linux 4.4Linux 4.4Linux 5.10/Linux 5.10
    /Ubuntu 18.04Ubuntu 18.04Ubuntu 18.04Ubuntu 20.04/Ubuntu 20.04
    /Debian10.0Debian10.0Debian 10Debian 11/Debian 11









    NetworkingEthernet1*10M/100M/1000M adaptive Ethernet1*Gigabit Ethernet + 1*100 Mbit Ethernet2*10M/100M/1000M adaptive Ethernet
    4GOptional. Based on the 4G module selection
    5G//////Support M.2 5G module interface
    WIFI2.4GDual-band 2.4/5GDual-band 2.4/5GDual-band 2.4/5GWIFI6, 2.4GWIFI6, Dual-band 2.4/5GWIFI5/WIFI6 (optional), dual-band 2.4/5G
    BluetoothBT5.0BT5.0BT5.0BT5.0BT5.2BT5.0BT4.2 (WIFI 5) / BT5.0 (WIFI 6)









    Touch FunctionTouch InterfaceUSB/IICUSBUSB/IIC

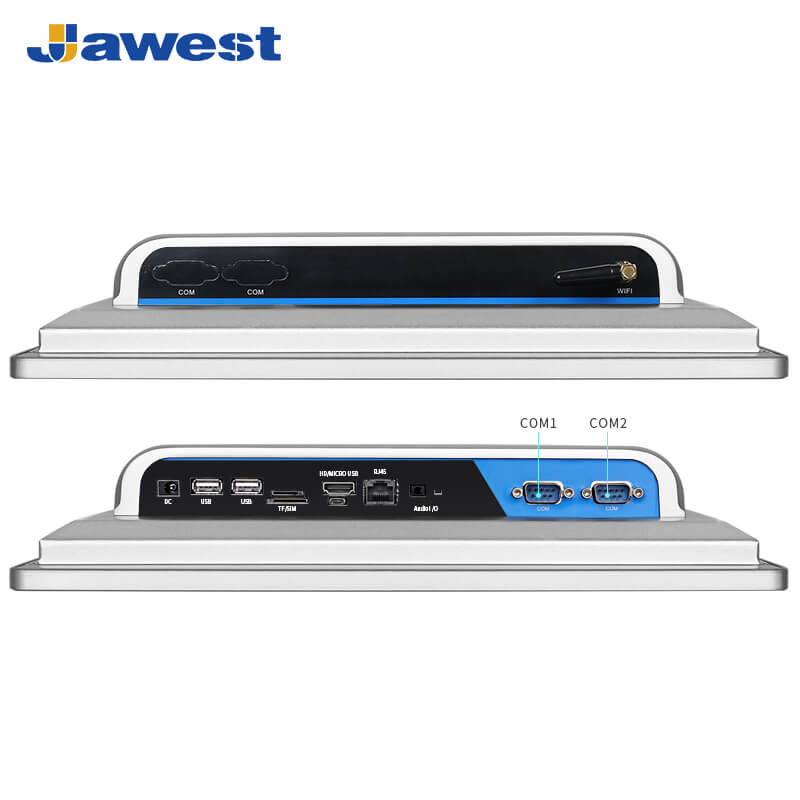

    I/O PortsUSB1*USB HOST, 1*USB OTG1*USB HOST, 1*USB OTG1*USB HOST, 1*USB OTG1*USB, 1*OTG2*USB3.01*USB, 1*OTG4*USB3.0
    HDMI1*HDMI, up to 4K1*HDMI, up to 4K1*HDMI, up to 4K1*HDMI, up to 4K1*HDMI, up to 4K1*HDMI, up to 4K1*HDMI In+1*HDMI Out, 8K
    LAN1*LAN1*LAN1*LAN1*LAN1*LAN2*LAN2*LAN
    DC1*DC2.11*DC2.11*DC2.11*DC2.11*DC2.11*DC2.11*DC2.1
    COM2*RS232+2*Reserved holes1*RS232+1*Reserved hole
    TF/SIM1* TF/SIM slot1*TF/SIM slot1*TF/SIM slot1*TF/SIM slot1*TF/SIM slot1*TF/SIM slot1*TF/SIM slot
    WiFi Antenna1*WiFi Antenna1*WiFi Antenna1*WiFi Antenna+1*Reserved hole
    Audio I/O1*3.5mm Earphone Jack
    Reset Button1*UBOOT1*UBOOT1*UBOOT1*UBOOT1*UBOOT1*UBOOT1*UBOOT
    GND1*GND1*GND1*GND1*GND1*GND1*GND1*GND
    MICRO OTG1*MICRO OTG//////
    1*12P Phoenix Terminal ///1*DC1*DC1*DC1*DC
    ///1*RS2321*RS2321*RS2321*RS232
    ///1*RS4851*RS4851*RS4851*RS485
    ///1*TTL1*CAN1*CAN1*CAN
    ///3*GPIO3*GPIO3*GPIO3*GPIO
    I/O Expansion Support









    PowerPower Input12V DC12V DC12-36V DC12-36V DC12-36V DC12-36V DC12-36V DC
    Adapter12V / 4A12V / 4A24V / 2.5A24V / 2.5A24V / 2.5A24V / 2.5A24V / 2.5A



    MechanicalDimension423.3*372.9*59.9mm
    EnclosureAluminum alloy housing
    Cooling SystemFanless
    MountingPanel-mount, Embedded, desktop, wall-mounted, VESA75/100mm, open frame, etc.



    Product ReliabilityWorking Temp -10°C ~ 60°C
    Storage Temp -20°C ~ 70°C
    Ambient Humidity 5% - 95% (relative humidity non-condensing)
    IP ratingFront IP65
