Model: JWS173-A4
● Display size: 17.3 inch.
● Resolution: 1920*1080; Aspect Ratio: 16:9.
● Luminance: 250 nits ~1500 nits optional.
● Touch screen: Multi-point capacitive or Non-touch (mouse control).
● Flat design, elegant appearance.
● IP65 rating of dustproof and waterproof.
● Multiple installation: desktop / wall / fold / embedded.
● Sensitive touch screen, precise positioning, free control.

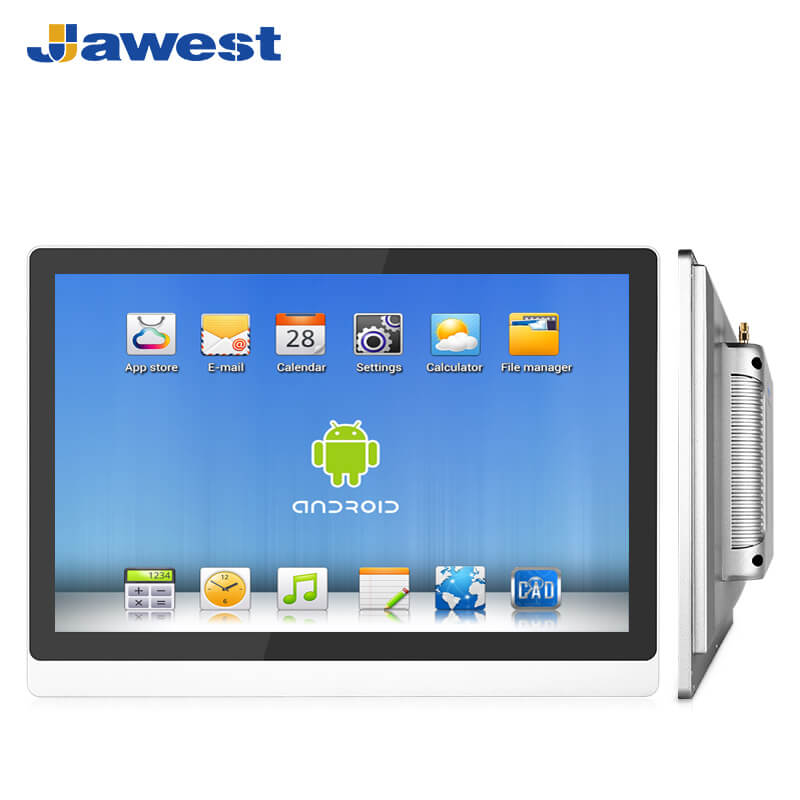

17.3" Capacitive Touchscreen All-in-One Panel PC
Model: JWS173-A4
Jawest 17.3 inch Android all-in-one tablet PCs are designed to provide high-quality images, pictures, and advanced features for reliable operation in harsh industrial sites for many years. The unique streamlined design with a 10mm front bezel makes the installation a snap. Options like types of touch screens and AC/DC or power input make these all-in-one PCs highly versatile. Backed by standard industrial certifications, 3rd-party environmental testing, and a trustworthy before and after-sales service system. Jawest is the most reliable cooperator and supplier for your business of industrial automation, artificial intelligence, commercial terminal devices, and medical projects.
Jawest Industrial Android All-in-one Panel PC Features
● 10mm front bezel design, strong impact resistance.
● Spacious 17.3" Display: Enjoy a large, high-resolution display for viewing critical data, graphics, and applications with clarity and detail.
● Industrial-Grade Construction: Aluminum alloy enclosure, built to withstand harsh industrial environments, featuring rugged construction that resists dust, moisture, vibration, and extreme temperatures.
● All-in-One Design: Consolidate your computing hardware into a single, compact device, saving space and simplifying installation and maintenance.
● Customizable Configuration: Tailor the device to your specific requirements with customizable features such as additional ports, memory, storage, and peripherals.
● Full-seamless panel design with IP65 grade dust-proof and waterproof.

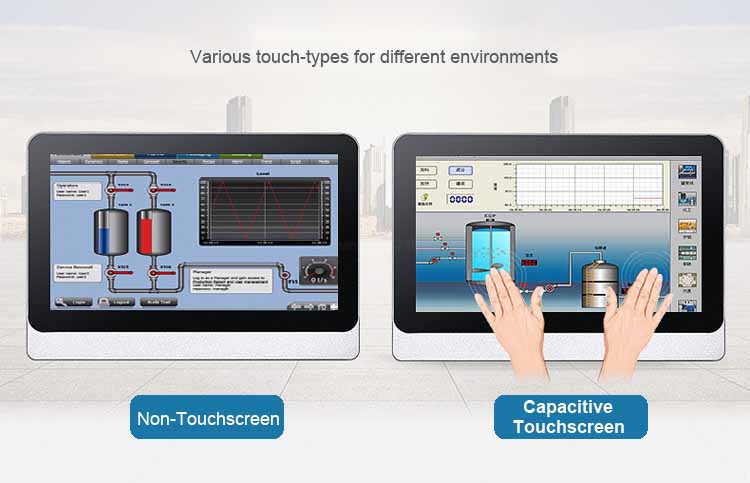

● Touchscreen: Support sunlight readable and ten-point capacitive touchscreen or non-touchscreen.
● Pre-installed Android OS, support Google Play service.

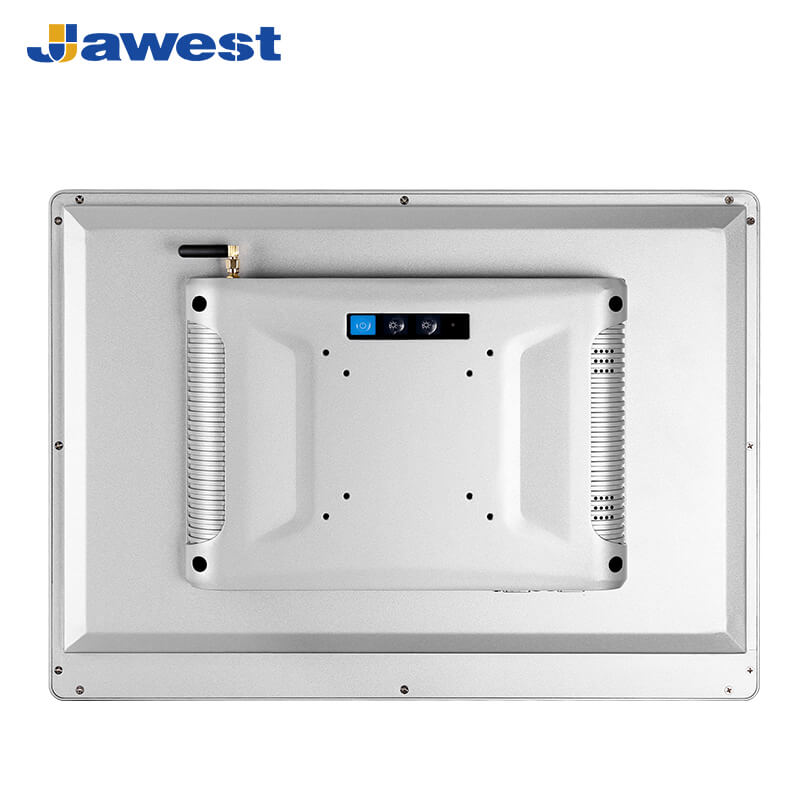

● Mounting Options: Wall-mounted, desktop stand, VESA, etc.
● Integrated functional modules: NFC, IC card reader, ID card reader, RFID, MSR, Camera, LTE, etc.
● Wide Operating Temperature Range: Designed to operate reliably across a wide temperature range, making it suitable for use in diverse industrial settings.
● Versatile Connectivity: Stay connected with a variety of connectivity options such as Ethernet, Wi-Fi, Bluetooth, USB, serial ports, and expansion slots for peripheral devices.

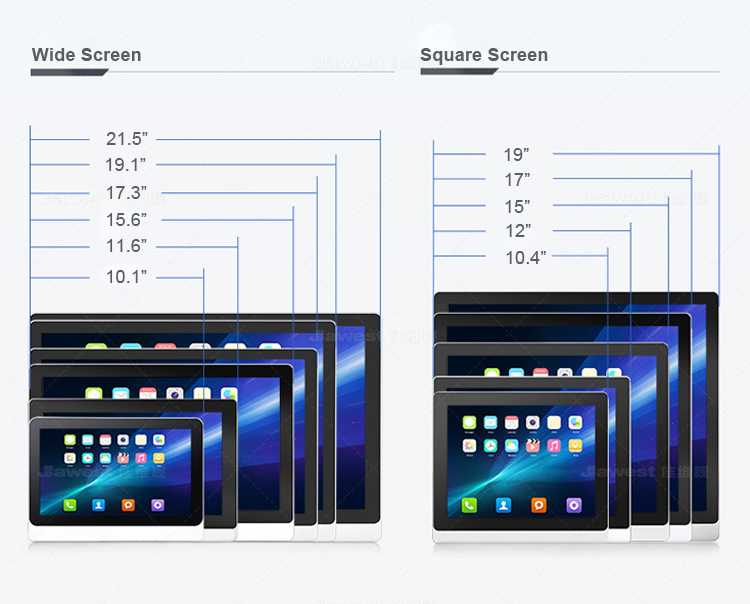

Industrial Android Panel PC - Product Model Fast Guide
Model | LCD Display | Resolution | Aspect Ratio | Touch Screen Type | Get A Quote Now |
JWS070-A-QD | 7" | 1024*600 | 16:9 | Capacitive / Non-touch | Inquiry |
JWS080-A-QD | 8" | 1024*768 | 4:3 | Capacitive / Non-touch | Inquiry |
JWS101-A4 | 10.1" | 1280*800 | 16:10 | Capacitive / Non-touch | Inquiry |
JWS104-A4 | 10.4" | 1024*768 | 4:3 | Capacitive / Non-touch | Inquiry |
JWS116-A4 | 11.6" | 1920*1080 | 16:9 | Capacitive / Non-touch | Inquiry |
JWS120-A4 | 12" | 1024*768 | 4:3 | Capacitive / Non-touch | Inquiry |
JWS150-A4 | 15" | 1024*768 | 4:3 | Capacitive / Non-touch | Inquiry |
JWS156-A4 | 15.6" | 1920*1080 | 16:9 | Capacitive / Non-touch | Inquiry |
JWS170-A4 | 17" | 1280*1024 | 5:4 | Capacitive / Non-touch | Inquiry |
JWS173-A4 | 17.3" | 1920*1080 | 16:9 | Capacitive / Non-touch | Inquiry |
JWS190-A4 | 19" | 1280*1024 | 5:4 | Capacitive / Non-touch | Inquiry |
JWS191-A4 | 19.1" | 1440*900 | 16:10 | Capacitive / Non-touch | Inquiry |
JWS215-A4 | 21.5" | 1920*1080 | 16:9 | Capacitive / Non-touch | Inquiry |
JWS238-A2 | 23.8" | 1920*1080 | 16:9 | Capacitive / Non-touch | Inquiry |
Display Parameters | Size | 17.3" | ||||||
Resolution | 1920*1080 | |||||||
Screen Ratio | 16:9 | |||||||
Brightness | 400 nits (Optional high brightness) | |||||||
Contrast Ratio | 600:1 | |||||||
Viewing Angle | 85°/85°/60°/80° (L/R/U/D) | |||||||
Backlight type | LED backlight screen, service life ≥ 50000H | |||||||
Touch Screen | Capacitive, Resistive, or Non-touch options | |||||||
Motherboard Model Selection | JWS64 | JWS3288-I | JWS3399-MAIN-L | CX3399-A | CX3568-A | CX3588-A | CX-3588-G | |
System Architecture | CPU | A64 Quad-Core 1.5GHz | RK3288 Quad-Core 1.8GHz | RK3399 Six-Core 2.0GHz | RK3399 Six-Core 2.0GHz | RK3568 Quad-Core 2.0GHz | RK3588 Octa-Core 2.1GHz | RK3588 Octa-Core 2.1GHz |
Core Architecture | Cortex-A53 | Cortex-A17 | Dual-Core Cortex-A72 + Quad-Core Cortex-A53 | Dual-Core Cortex-A72 + Quad-Core Cortex-A53 | Cortex-A55 | Quad-Core Cortex-A76 + Quad-Core Cortex-A55 | Quad-Core Cortex-A76 + Quad-Core Cortex-A55 | |
GPU | Mali-T764 | Mali-T764 | Mali-T860 MP4 | Mali-T860 MP4 | Mali-G52 2EE | Mali G610 MP4 | Mali G610 MP4 | |
Memory (DDR) | 2GB (8GB optional) | 2GB (4GB optional) | 4GB | 2/4GB | 2GB (4/8GB optional) | 4GB (8/32GB optional) | 8GB (16/32GB optional) | |
Storage (eMMC) | 16GB (32/64GB optional) | 16GB (32/64/128/256GB optional) | 32GB (64GB optional) | 32/64GB (256GB optional) | 32GB (64/128/256GB optional) | 64GB (128/256GB optional) | 64GB (128/256GB optional) | |
SATA | / | / | / | / | Support | / | 1*SATA hard drive port | |
Operating System | Android 6.0 | Android 7.1 / 10.0 | Android 7.1 / 9.0 / 11 | Android 7.1 / 9.0 / 11 | Android 12 | Android 13.0 | Android 12 | |
/ | Linux 4.4 | Linux 4.4 | Linux 4.4 | Linux 5.10 | / | Linux 5.10 | ||
/ | Ubuntu 18.04 | Ubuntu 18.04 | Ubuntu 18.04 | Ubuntu 20.04 | / | Ubuntu 20.04 | ||
/ | Debian10.0 | Debian10.0 | Debian 10 | Debian 11 | / | Debian 11 | ||
Networking | Ethernet | 1*10M/100M/1000M adaptive Ethernet | 1*Gigabit Ethernet + 1*100 Mbit Ethernet | 2*10M/100M/1000M adaptive Ethernet | ||||
4G | Optional. Based on the 4G module selection | |||||||
5G | / | / | / | / | / | / | Support M.2 5G module interface | |
WIFI | 2.4G | Dual-band 2.4/5G | Dual-band 2.4/5G | Dual-band 2.4/5G | WIFI6, 2.4G | WIFI6, Dual-band 2.4/5G | WIFI5/WIFI6 (optional), dual-band 2.4/5G | |
Bluetooth | BT5.0 | BT5.0 | BT5.0 | BT5.0 | BT5.2 | BT5.0 | BT4.2 (WIFI 5) / BT5.0 (WIFI 6) | |
Touch Function | Touch Interface | USB/IIC | USB | USB/IIC | ||||

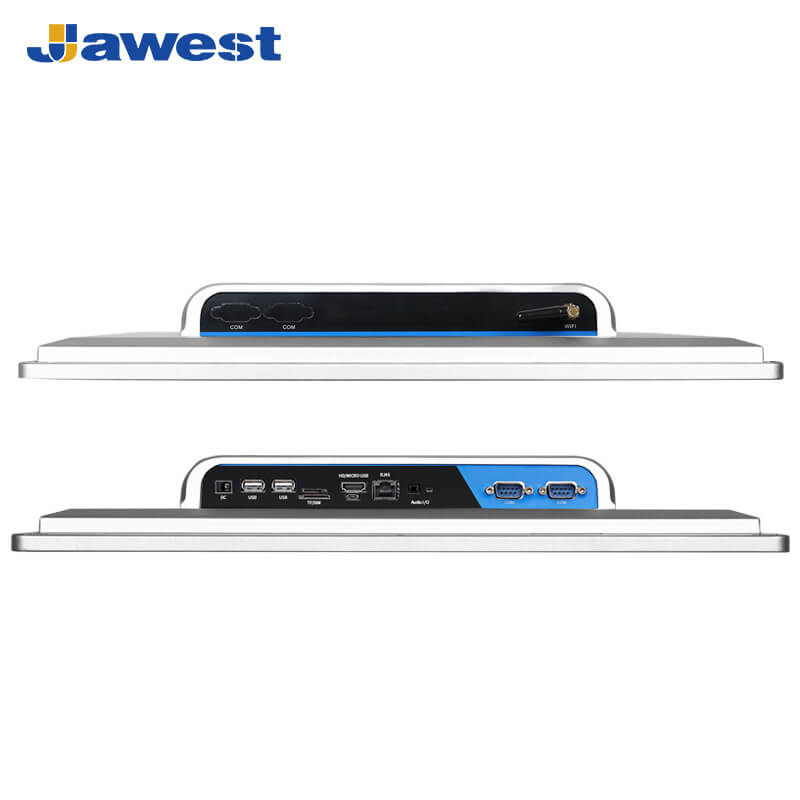

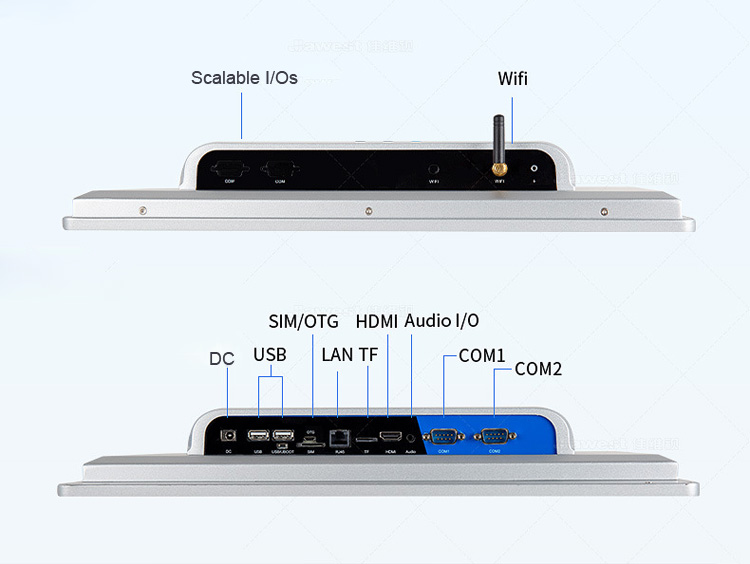

I/O Ports | USB | 1*USB HOST, 1*USB OTG | 1*USB HOST, 1*USB OTG | 1*USB HOST, 1*USB OTG | 1*USB, 1*OTG | 2*USB3.0 | 1*USB, 1*OTG | 4*USB3.0 |
HDMI | 1*HDMI, up to 4K | 1*HDMI, up to 4K | 1*HDMI, up to 4K | 1*HDMI, up to 4K | 1*HDMI, up to 4K | 1*HDMI, up to 4K | 1*HDMI In+1*HDMI Out, 8K | |
LAN | 1*LAN | 1*LAN | 1*LAN | 1*LAN | 1*LAN | 2*LAN | 2*LAN | |
DC | 1*DC2.1 | 1*DC2.1 | 1*DC2.1 | 1*DC2.1 | 1*DC2.1 | 1*DC2.1 | 1*DC2.1 | |
COM | 2*RS232+2*Reserved holes | 1*RS232+1*Reserved hole | ||||||
TF/SIM | 1* TF/SIM slot | 1*TF/SIM slot | 1*TF/SIM slot | 1*TF/SIM slot | 1*TF/SIM slot | 1*TF/SIM slot | 1*TF/SIM slot | |
WiFi Antenna | 1*WiFi Antenna | 1*WiFi Antenna | 1*WiFi Antenna+1*Reserved hole | |||||
Audio I/O | 1*3.5mm Earphone Jack | |||||||
Reset Button | 1*UBOOT | 1*UBOOT | 1*UBOOT | 1*UBOOT | 1*UBOOT | 1*UBOOT | 1*UBOOT | |
GND | 1*GND | 1*GND | 1*GND | 1*GND | 1*GND | 1*GND | 1*GND | |
MICRO OTG | 1*MICRO OTG | / | / | / | / | / | / | |
1*12P Phoenix Terminal | / | / | / | 1*DC | 1*DC | 1*DC | 1*DC | |
/ | / | / | 1*RS232 | 1*RS232 | 1*RS232 | 1*RS232 | ||
/ | / | / | 1*RS485 | 1*RS485 | 1*RS485 | 1*RS485 | ||
/ | / | / | 1*TTL | 1*CAN | 1*CAN | 1*CAN | ||
/ | / | / | 3*GPIO | 3*GPIO | 3*GPIO | 3*GPIO | ||
I/O Expansion | Support | |||||||
Power | Power Input | 12V DC | 12V DC | 12-36V DC | 12-36V DC | 12-36V DC | 12-36V DC | 12-36V DC |
Adapter | 12V / 4A | 12V / 4A | 24V / 2.5A | 24V / 2.5A | 24V / 2.5A | 24V / 2.5A | 24V / 2.5A | |

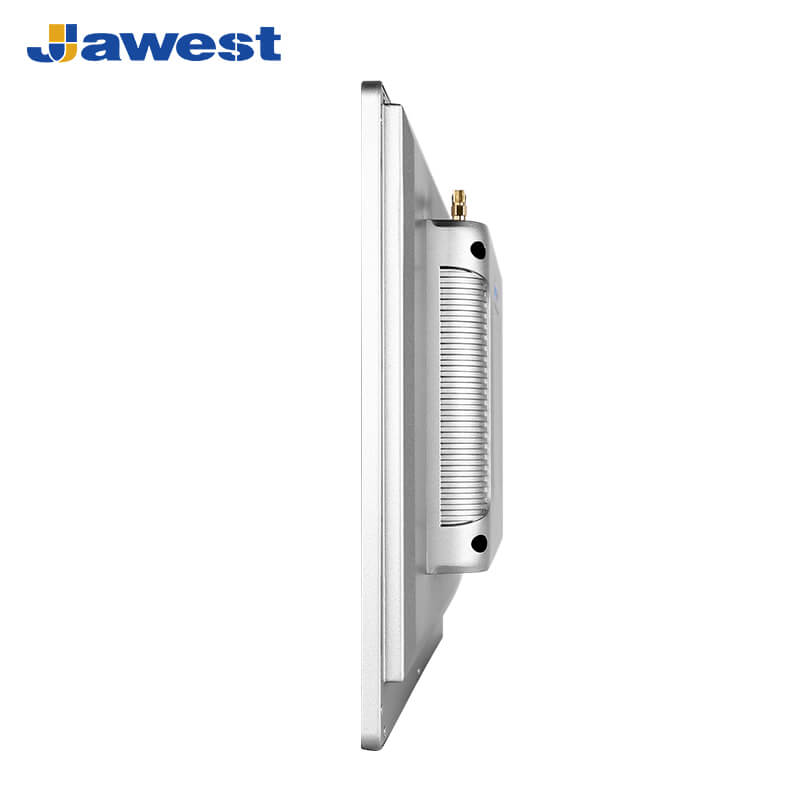

Mechanical | Dimension | 427.7*285.4*67.4mm | ||||||
Enclosure | Aluminum alloy housing | |||||||
Cooling System | Fanless | |||||||
Mounting | Panel-mount, Embedded, desktop, wall-mounted, VESA75/100mm, open frame, etc. | |||||||
Product Reliability | Working Temp | -10°C ~ 60°C | ||||||
Storage Temp | -20°C ~ 70°C | |||||||
Ambient Humidity | 5% - 95% (relative humidity non-condensing) | |||||||
IP rating | Front IP65 |
