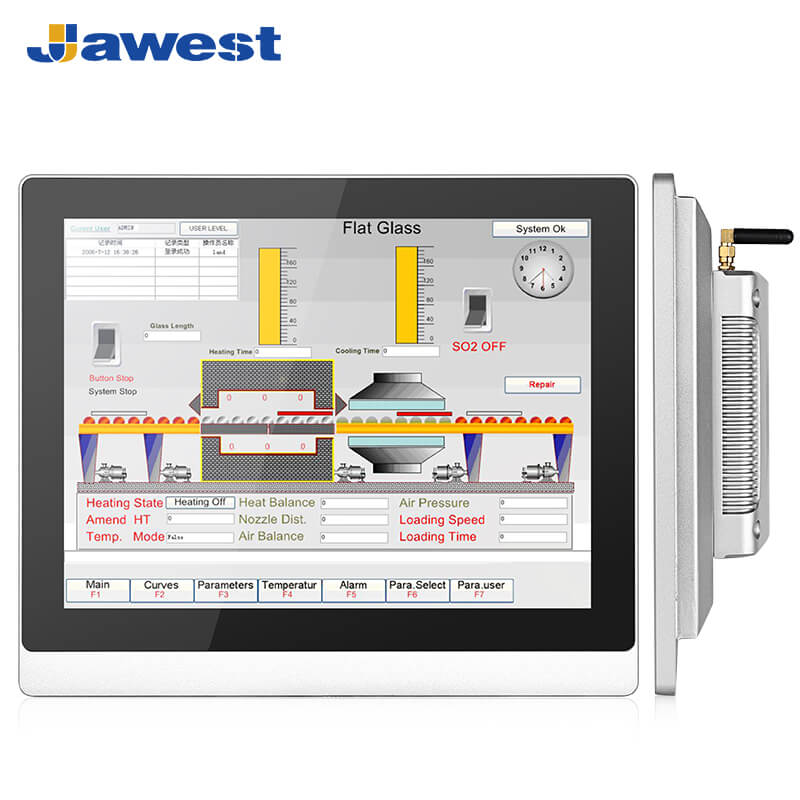

Model: JWS150-A4
● Display size: 15 inch.
● Flat design, elegant appearance.
● IP65 rating of dustproof and waterproof.
● Mounting options: desktop stand / wall-hanging / VESA 75/100mm.
● Sensitive touch screen, precise positioning, free control.
Industrial Android Tablet PC Manufacturer 15 Inch
Model: JWS150-A4
Jawest reliable rugged tablets are commonly deployed in manufacturing, construction, warehousing, distribution, transportation, freight, self-service terminals, and other indoor and outdoor environments. It is a 15-inch display with the Android operating system, and also supports Windows or Linux. The all-in-one tablet PCs are designed to provide high-quality images, pictures,s and advanced features for reliable operation in community access control, commercial self-service vending equipment, and security for many years. Options like types of touch screens and AC DC or power input make these tablet PCs highly versatile. Backed by standard industrial certifications and a trustworthy before and after-sales service system. Jawest is the most reliable cooperator and supplier for your business.
Jawest Industrial Android All-in-one Panel PC Features
● Processor: Rockchip RK3568, Cortex-A55 Quad-Core, 64 bits, 2.0GHz. (RK3288/RK3399/RK3588 options).
● Memory: 2GB (4/8GB options).
● Storage: 32GB (64/128/256GB options).
● OS: Android12 / Linux 5.10 / Ubuntu 20.04 / Debian 11 options.

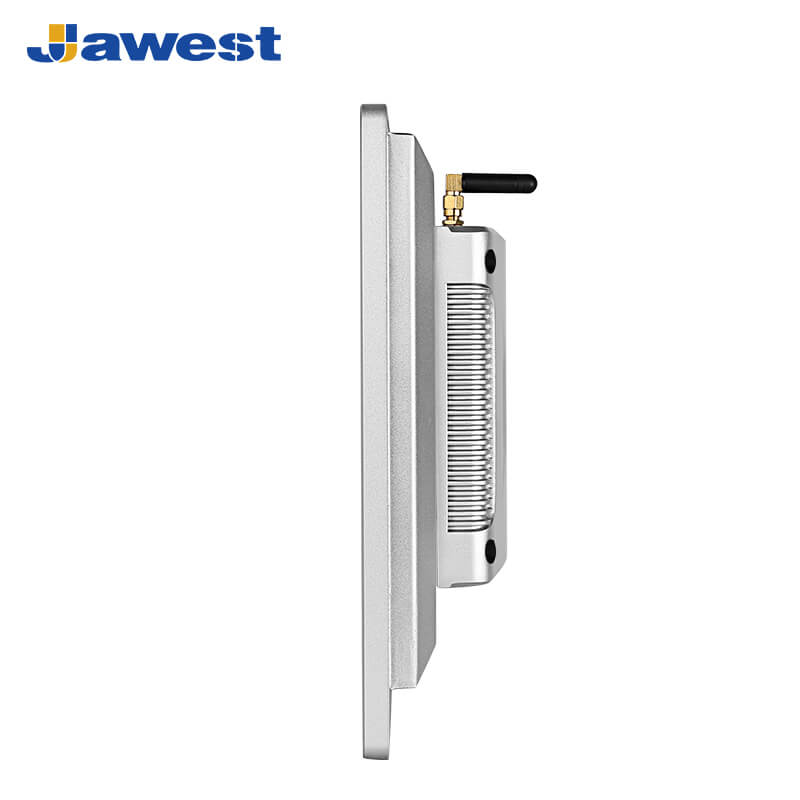

● 10mm thin front bezel design, strong impact resistance.
● Full-seamless panel design with IP65 grade dust-proof and waterproof.

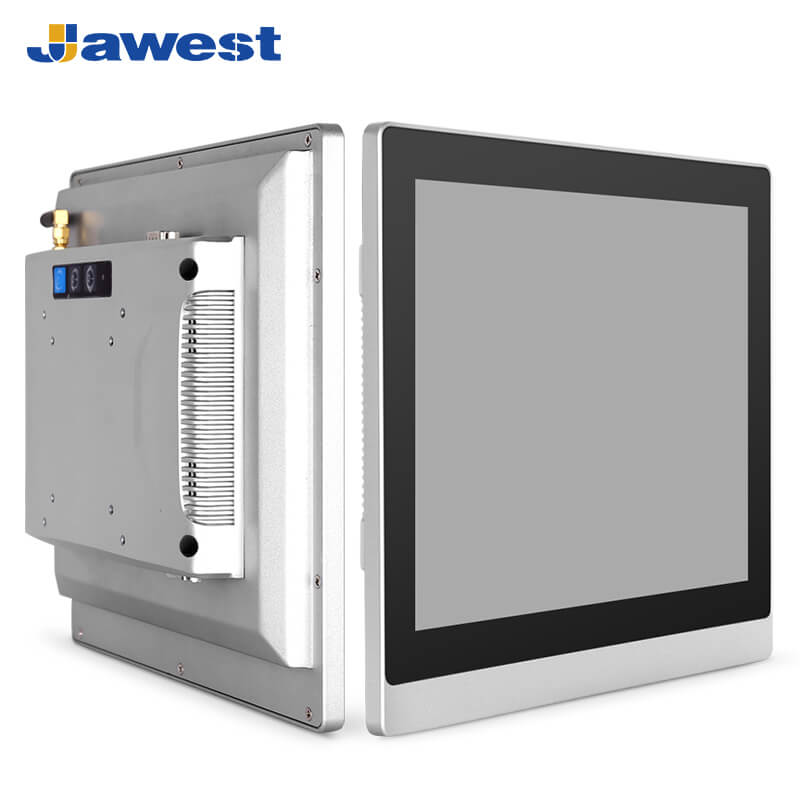

● Whole aluminum alloy enclosure, perfect efficiency for heat-dissipation.
● Support sunlight readable and ten-point capacitive touchscreen or non-touch screen.
● Pre-installed Android OS, support Google Play service.

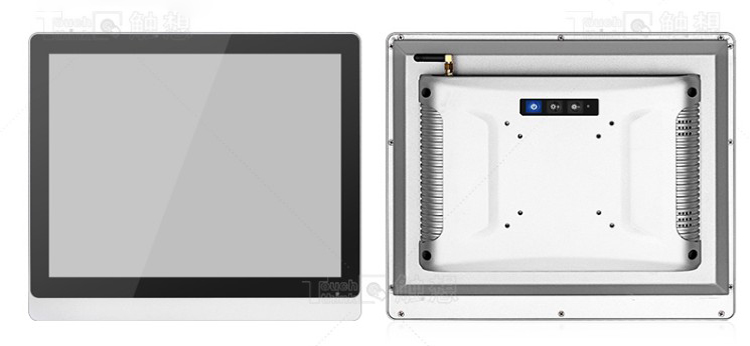

● Support wall-mounted, embedded mount, desktop mount, VESA, etc.
● Integrated functional modules: NFC, IC card reader, ID card reader, RFID, MSR, Camera, LTE, etc.
● Free SDK or send clients full Android firmware.
● Support OEM, and ODM customization under the guidance of experienced and skilled engineers.

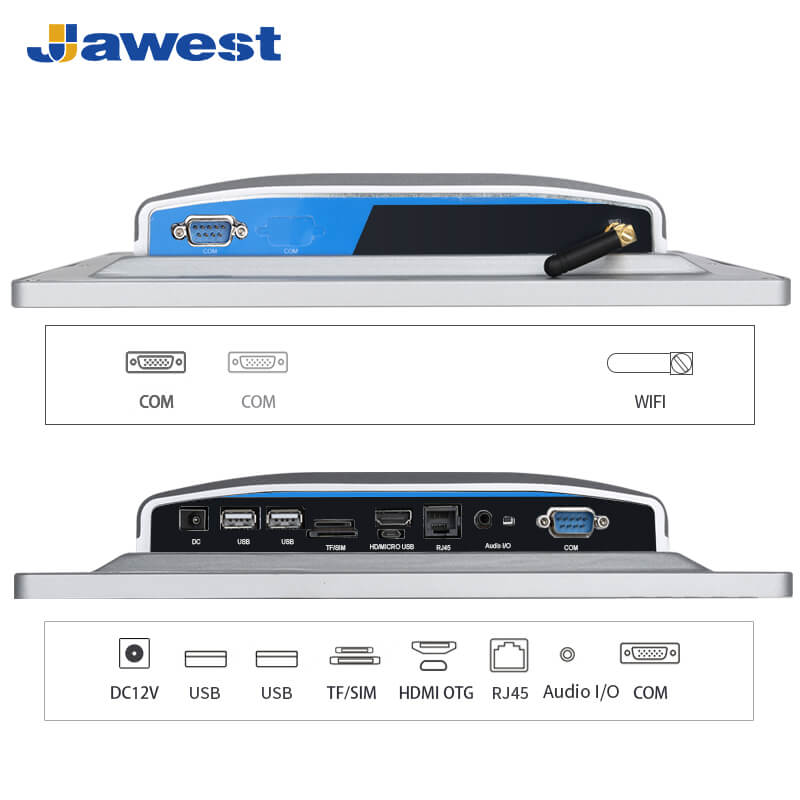

● Standard ports: WIFI antenna, DC power supply, VGA, HDMI, USB 2.0, RJ45, Audio I/O, COM. Support more ports.
Display Parameters | Size | 15" | ||||||
Resolution | 1024*768 | |||||||
Screen Ratio | 4:3 | |||||||
Brightness | 350 nits (Optional high brightness) | |||||||
Contrast Ratio | 1000:1 | |||||||
Viewing Angle | 89°/89°/89°/89° (L/R/U/D) | |||||||
Backlight type | LED backlight screen, service life ≥ 50000H | |||||||
Touch Screen | Capacitive, Resistive, or Non-touch options | |||||||
Motherboard Model Selection | JWS64 | JWS3288-I | JWS3399-MAIN-L | CX3399-A | CX3568-A | CX3588-A | CX-3588-G | |
System Architecture | CPU | A64 Quad-Core 1.5GHz | RK3288 Quad-Core 1.8GHz | RK3399 Six-Core 2.0GHz | RK3399 Six-Core 2.0GHz | RK3568 Quad-Core 2.0GHz | RK3588 Octa-Core 2.1GHz | RK3588 Octa-Core 2.1GHz |
Core Architecture | Cortex-A53 | Cortex-A17 | Dual-Core Cortex-A72 + Quad-Core Cortex-A53 | Dual-Core Cortex-A72 + Quad-Core Cortex-A53 | Cortex-A55 | Quad-Core Cortex-A76 + Quad-Core Cortex-A55 | Quad-Core Cortex-A76 + Quad-Core Cortex-A55 | |
GPU | Mali-T764 | Mali-T764 | Mali-T860 MP4 | Mali-T860 MP4 | Mali-G52 2EE | Mali G610 MP4 | Mali G610 MP4 | |
Memory (DDR) | 2GB (8GB optional) | 2GB (4GB optional) | 4GB | 2/4GB | 2GB (4/8GB optional) | 4GB (8/32GB optional) | 8GB (16/32GB optional) | |
Storage (eMMC) | 16GB (32/64GB optional) | 16GB (32/64/128/256GB optional) | 32GB (64GB optional) | 32/64GB (256GB optional) | 32GB (64/128/256GB optional) | 64GB (128/256GB optional) | 64GB (128/256GB optional) | |
SATA | / | / | / | / | Support | / | 1*SATA hard drive port | |
Operating System | Android 6.0 | Android 7.1 / 10.0 | Android 7.1 / 9.0 / 11 | Android 7.1 / 9.0 / 11 | Android 12 | Android 13.0 | Android 12 | |
/ | Linux 4.4 | Linux 4.4 | Linux 4.4 | Linux 5.10 | / | Linux 5.10 | ||
/ | Ubuntu 18.04 | Ubuntu 18.04 | Ubuntu 18.04 | Ubuntu 20.04 | / | Ubuntu 20.04 | ||
/ | Debian10.0 | Debian10.0 | Debian 10 | Debian 11 | / | Debian 11 | ||
Networking | Ethernet | 1*10M/100M/1000M adaptive Ethernet | 1*Gigabit Ethernet + 1*100 Mbit Ethernet | 2*10M/100M/1000M adaptive Ethernet | ||||
4G | Optional. Based on the 4G module selection | |||||||
5G | / | / | / | / | / | / | Support M.2 5G module interface | |
WIFI | 2.4G | Dual-band 2.4/5G | Dual-band 2.4/5G | Dual-band 2.4/5G | WIFI6, 2.4G | WIFI6, Dual-band 2.4/5G | WIFI5/WIFI6 (optional), dual-band 2.4/5G | |
Bluetooth | BT5.0 | BT5.0 | BT5.0 | BT5.0 | BT5.2 | BT5.0 | BT4.2 (WIFI 5) / BT5.0 (WIFI 6) | |
Touch Function | Touch Interface | USB/IIC | USB | USB/IIC | ||||
I/O Ports | USB | 1*USB HOST, 1*USB OTG | 1*USB HOST, 1*USB OTG | 1*USB HOST, 1*USB OTG | 1*USB, 1*OTG | 2*USB3.0 | 1*USB, 1*OTG | 4*USB3.0 |
HDMI | 1*HDMI, up to 4K | 1*HDMI, up to 4K | 1*HDMI, up to 4K | 1*HDMI, up to 4K | 1*HDMI, up to 4K | 1*HDMI, up to 4K | 1*HDMI In+1*HDMI Out, 8K | |
LAN | 1*LAN | 1*LAN | 1*LAN | 1*LAN | 1*LAN | 2*LAN | 2*LAN | |
DC | 1*DC2.1 | 1*DC2.1 | 1*DC2.1 | 1*DC2.1 | 1*DC2.1 | 1*DC2.1 | 1*DC2.1 | |
COM | 2*RS232+2*Reserved holes | 1*RS232+1*Reserved hole | ||||||
TF/SIM | 1* TF/SIM slot | 1*TF/SIM slot | 1*TF/SIM slot | 1*TF/SIM slot | 1*TF/SIM slot | 1*TF/SIM slot | 1*TF/SIM slot | |
WiFi Antenna | 1*WiFi Antenna*1 | 1*WiFi Antenna | 1*WiFi Antenna+1*Reserved hole | |||||
Audio I/O | 1*3.5mm Earphone Jack | |||||||
Reset Button | 1*UBOOT | 1*UBOOT | 1*UBOOT | 1*UBOOT | 1*UBOOT | 1*UBOOT | 1*UBOOT | |
GND | 1*GND | 1*GND | 1*GND | 1*GND | 1*GND | 1*GND | 1*GND | |
MICRO OTG | 1*MICRO OTG | / | / | / | / | / | / | |
1*12P Phoenix Terminal | / | / | / | 1*DC | 1*DC | 1*DC | 1*DC | |
/ | / | / | 1*RS232 | 1*RS232 | 1*RS232 | 1*RS232 | ||
/ | / | / | 1*RS485 | 1*RS485 | 1*RS485 | 1*RS485 | ||
/ | / | / | 1*TTL | 1*CAN | 1*CAN | 1*CAN | ||
/ | / | / | 3*GPIO | 3*GPIO | 3*GPIO | 3*GPIO | ||
I/O Expansion | Support | |||||||
Power | Power Input | 12V DC | 12V DC | 12-36V DC | 12-36V DC | 12-36V DC | 12-36V DC | 12-36V DC |
Adapter | 12V / 4A | 12V / 4A | 24V / 2.5A | 24V / 2.5A | 24V / 2.5A | 24V / 2.5A | 24V / 2.5A | |
Mechanical | Dimension | 350.5*296.4*59.7mm | ||||||
Enclosure | Aluminum alloy housing | |||||||
Cooling System | Fanless | |||||||
Mounting | Panel-mount, Embedded, desktop, wall-mounted, VESA75/100mm, open frame, etc. | |||||||
Product Reliability | Working Temp | -10°C ~ 60°C | ||||||
Storage Temp | -20°C ~ 70°C | |||||||
Ambient Humidity | 5% - 95% (relative humidity non-condensing) | |||||||
IP rating | Front IP65 |
