Application:
12 Inch NFC RFID All-in-One Industrial Touch Screen Panel PC12 Inch NFC RFID All-in-One Industrial Touch Screen Panel PC12 Inch NFC RFID All-in-One Industrial Touch Screen Panel PC12 Inch NFC RFID All-in-One Industrial Touch Screen Panel PC

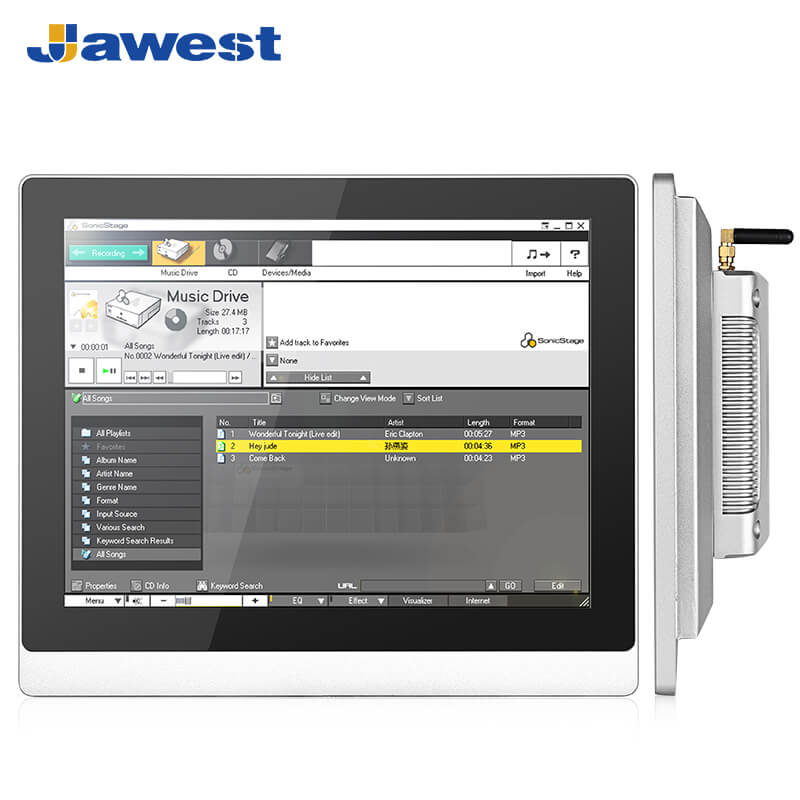

12 Inch NFC RFID All-in-One Industrial Touch Screen Panel PC


Model: JWS120-A4

● Display size: 12 inch.

● Flat design, elegant appearance.

● IP65 rating of dustproof and waterproof.

● Mounting options: desktop / wall-hanging / VESA.

● Sensitive touch screen, precise positioning, free control.


Appearance of the color
Black
Silver
share:
  • Description
  • Parameter
  • Case
  • 12" All-in-One Touch Screen Panel PC Support NFC RFID Custom


    Model: JWS120-A4


    Jawest 12-inch Android HMI NFC RFID panel PC with an all-in-one design provides high-quality images, pictures, and advanced features for reliable operation in any commercial self-service vending equipment, community access control, and security for many years. The unique streamlined design with ultra-thin 10mm front bezel makes installation a snap. Options like types of touch screens and DC or power input make these all-in-one PCs highly versatile. Backed by standard industrial certifications, 3rd-party environmental testing, and a trustworthy before / after-sales service system.


    Jawest is the most reliable industrial touch control and display solutions provider for your business in the fields of industrial automation, artificial intelligence, commercial terminal devices, and medical projects.



    Jawest Industrial Android All-in-one Panel PC Features


    ● 12-inch display, 1024*768 resolution

    ● Processor: Rockchip RK3568, Cortex-A55 Quad-Core, 64 bits, 2.0GHz. (RK3288/RK3399/RK3588 options).

    ● Memory: 2GB (4/8GB options).

    ● Storage: 32GB (64/128/256GB options).

    ● OS: Android12 / Linux 5.10 / Ubuntu 20.04 / Debian 11 options.

    ● Flexible Connectivity: Stay connected with a variety of connectivity options such as Wi-Fi, Bluetooth, Ethernet, USB ports, HDMI, and audio jacks, facilitating seamless data transfer and peripheral connectivity.

    ● Multiple Language Support: Operating system options may support multiple languages, catering to users in diverse regions and linguistic preferences.







  • Display Parameters
    Size12"
    Resolution1024*768
    Screen Ratio4:3
    Brightness500 nits (Optional high brightness)
    Contrast Ratio1000:1
    Viewing Angle85°/85°/85°/85° (L/R/U/D)
    Backlight typeLED backlight screen, service life ≥ 50000H
    Touch ScreenCapacitive, Resistive, or Non-touch options









    Motherboard Model SelectionJWS64
    JWS3288-IJWS3399-MAIN-LCX3399-ACX3568-ACX3588-ACX-3588-G
    System ArchitectureCPUA64 Quad-Core 1.5GHzRK3288 Quad-Core 1.8GHzRK3399 Six-Core 2.0GHzRK3399 Six-Core 2.0GHzRK3568 Quad-Core 2.0GHzRK3588 Octa-Core 2.1GHzRK3588 Octa-Core 2.1GHz
    Core Architecture Cortex-A53Cortex-A17Dual-Core Cortex-A72 + Quad-Core Cortex-A53Dual-Core Cortex-A72 + Quad-Core Cortex-A53Cortex-A55Quad-Core Cortex-A76 + Quad-Core Cortex-A55Quad-Core Cortex-A76 + Quad-Core Cortex-A55
    GPUMali-T764Mali-T764Mali-T860 MP4Mali-T860 MP4Mali-G52 2EEMali G610 MP4Mali G610 MP4
    Memory (DDR)2GB (8GB optional)2GB (4GB optional)4GB2/4GB2GB (4/8GB optional)4GB (8/32GB optional)8GB (16/32GB optional)
    Storage (eMMC)16GB (32/64GB optional)16GB (32/64/128/256GB optional)32GB (64GB optional)32/64GB (256GB optional)32GB (64/128/256GB optional)64GB (128/256GB optional)64GB (128/256GB optional)
    SATA////Support/1*SATA hard drive port
    Operating SystemAndroid 6.0Android 7.1 / 10.0Android 7.1 / 9.0 / 11 Android 7.1 / 9.0 / 11Android 12Android 13.0Android 12
    /Linux 4.4Linux 4.4Linux 4.4Linux 5.10/Linux 5.10
    /Ubuntu 18.04Ubuntu 18.04Ubuntu 18.04Ubuntu 20.04/Ubuntu 20.04
    /Debian10.0Debian10.0Debian 10Debian 11/Debian 11









    NetworkingEthernet1*10M/100M/1000M adaptive Ethernet1*Gigabit Ethernet + 1*100 Mbit Ethernet2*10M/100M/1000M adaptive Ethernet
    4GOptional. Based on the 4G module selection
    5G//////Support M.2 5G module interface
    WIFI2.4GDual-band 2.4/5GDual-band 2.4/5GDual-band 2.4/5GWIFI6, 2.4GWIFI6, Dual-band 2.4/5GWIFI5/WIFI6 (optional), dual-band 2.4/5G
    BluetoothBT5.0BT5.0BT5.0BT5.0BT5.2BT5.0BT4.2 (WIFI 5) / BT5.0 (WIFI 6)









    Touch FunctionTouch InterfaceUSB/IICUSBUSB/IIC

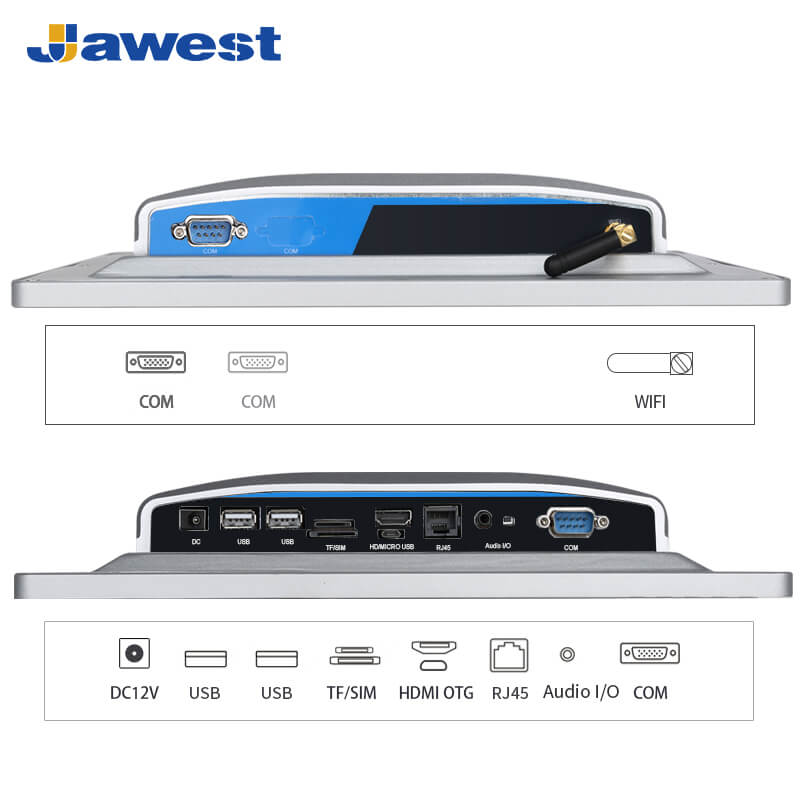

    I/O PortsUSB1*USB HOST, 1*USB OTG1*USB HOST, 1*USB OTG1*USB HOST, 1*USB OTG1*USB, 1*OTG2*USB3.01*USB, 1*OTG4*USB3.0
    HDMI1*HDMI, up to 4K1*HDMI, up to 4K1*HDMI, up to 4K1*HDMI, up to 4K1*HDMI, up to 4K1*HDMI, up to 4K1*HDMI In+1*HDMI Out, 8K
    LAN1*LAN1*LAN1*LAN1*LAN1*LAN2*LAN2*LAN
    DC1*DC2.11*DC2.11*DC2.11*DC2.11*DC2.11*DC2.11*DC2.1
    COM2*RS232+2*Reserved holes1*RS232+1*Reserved hole
    TF/SIM1* TF/SIM slot1*TF/SIM slot1*TF/SIM slot1*TF/SIM slot1*TF/SIM slot1*TF/SIM slot1*TF/SIM slot
    WiFi Antenna1*WiFi Antenna1*WiFi Antenna1*WiFi Antenna+1*Reserved hole
    Audio I/O1*3.5mm Earphone Jack
    Reset Button1*UBOOT1*UBOOT1*UBOOT1*UBOOT1*UBOOT1*UBOOT1*UBOOT
    GND1*GND1*GND1*GND1*GND1*GND1*GND1*GND
    MICRO OTG1*MICRO OTG//////
    1*12P Phoenix Terminal ///1*DC1*DC1*DC1*DC
    ///1*RS2321*RS2321*RS2321*RS232
    ///1*RS4851*RS4851*RS4851*RS485
    ///1*TTL1*CAN1*CAN1*CAN
    ///3*GPIO3*GPIO3*GPIO3*GPIO
    I/O Expansion Support









    PowerPower Input12V DC12V DC12-36V DC12-36V DC12-36V DC12-36V DC12-36V DC
    Adapter12V / 4A12V / 4A24V / 2.5A24V / 2.5A24V / 2.5A24V / 2.5A24V / 2.5A



    MechanicalDimension292*250.5*59.7mm
    EnclosureAluminum alloy housing
    Cooling SystemFanless

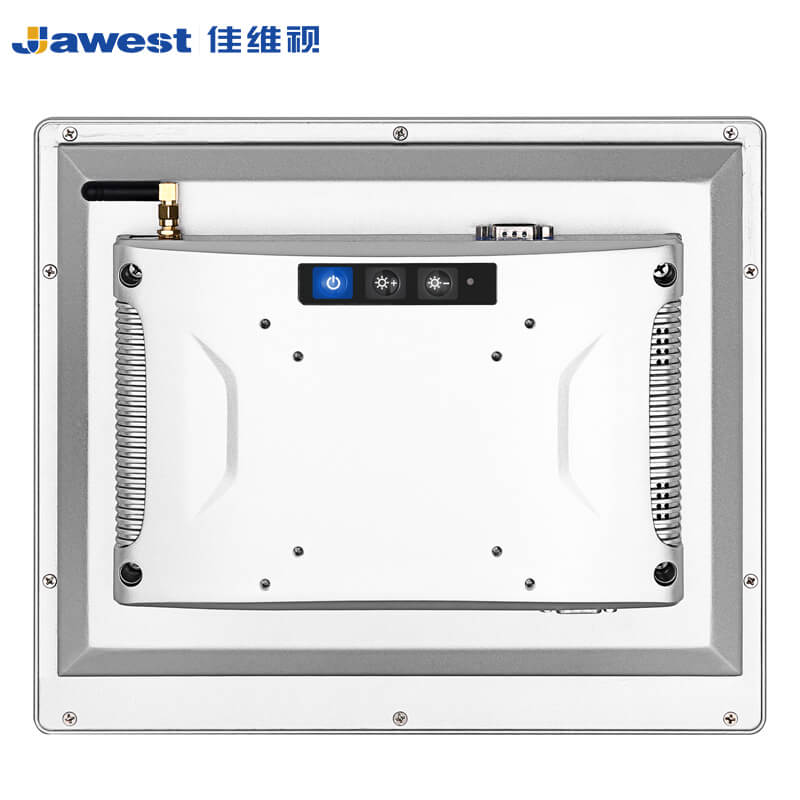

    MountingPanel-mount, Embedded, desktop, wall-mounted, VESA75/100mm, open frame, etc.



    Product ReliabilityWorking Temp -10°C ~ 60°C
    Storage Temp -20°C ~ 70°C
    Ambient Humidity 5% - 95% (relative humidity non-condensing)
    IP ratingFront IP65
