Model: JWS185-W2
● Display size: 7" to 23.8" for optional
● Intel Celeron J1900/J4125/J6412, and i3/i5/i7 CPU options
● Single/dual Gigabit Ethernet options
● Aluminum alloy shell design, durable and sturdy
● Ultra-thin front bezel, suitable for panel-mount
● Standard interface design, supports customization
● Strong compatibility and adapt to various industrial environments

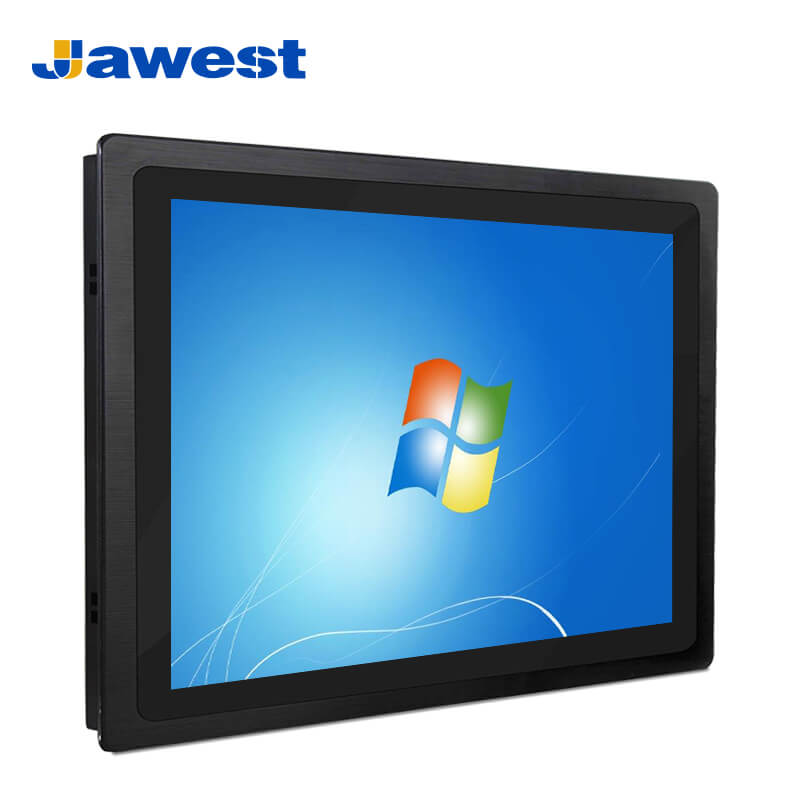

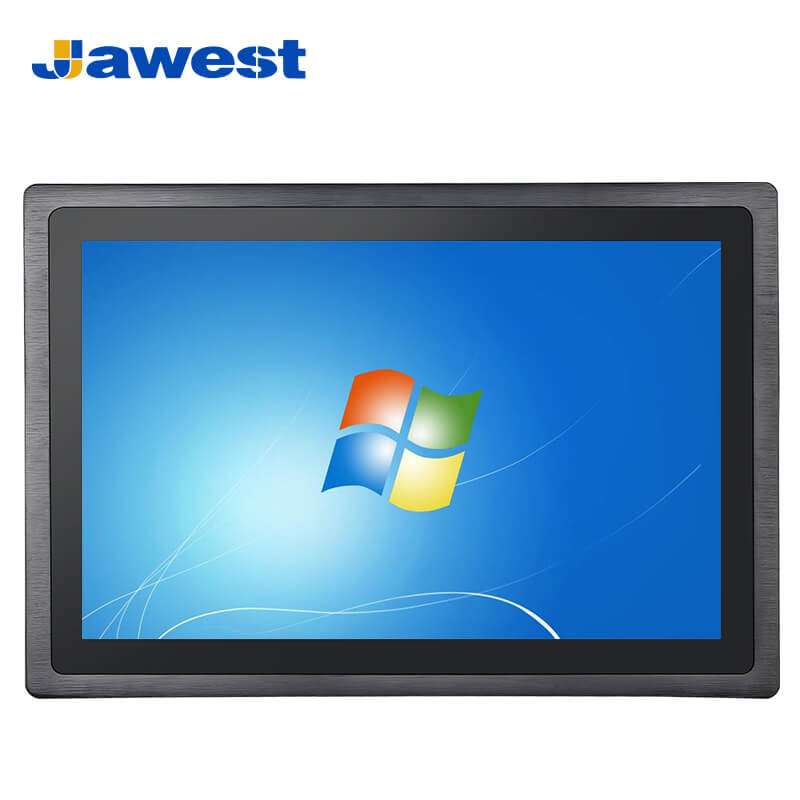

Industrial Fanless Panel PC With Touch Screen 18.5 Inch
Model: JWS185-W2
If you are looking for an around 19” panel PC for your projects, our 18.5” will be alternative choice. It is constructed with rugged and sturdy components for withdrawing harsh environments. It is equipped with multiple CPU options according to your requirements.

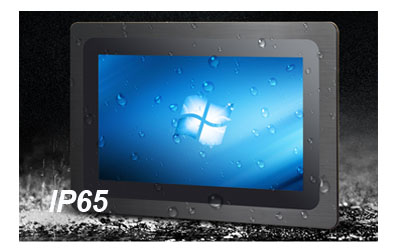

Industrial-grade Protection
The true flat panel is designed with an industrial-grade IP65 rating for dustproof and waterproof, which can effectively prevent water splashing, rain, and dust from entering the panel PC, thus providing reliable performance in outdoor, indoor, production, and manufacturing environment.

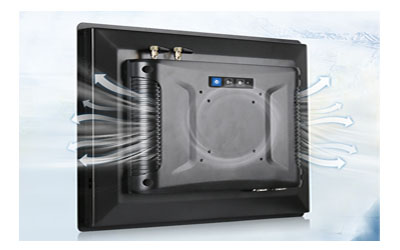

Aluminum Alloy Housing & Drawing Process Offers High Heat Dissipation Performance
This industrial panel PC is made of aluminum alloy housing, a wire drawing process, and with Fanless design. The whole panel PC is light and thin, corrosion-resistant, pollution-proof, and efficient heat dissipation, which is suitable for operation in various harsh environments and high-strength working environments.

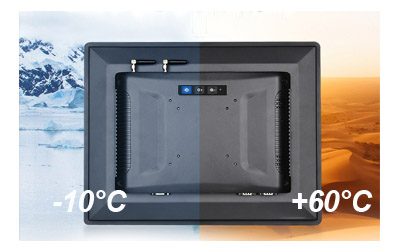

Fully Enclosed For Excellent Dust-proof Performance, Wide Temperature Operation

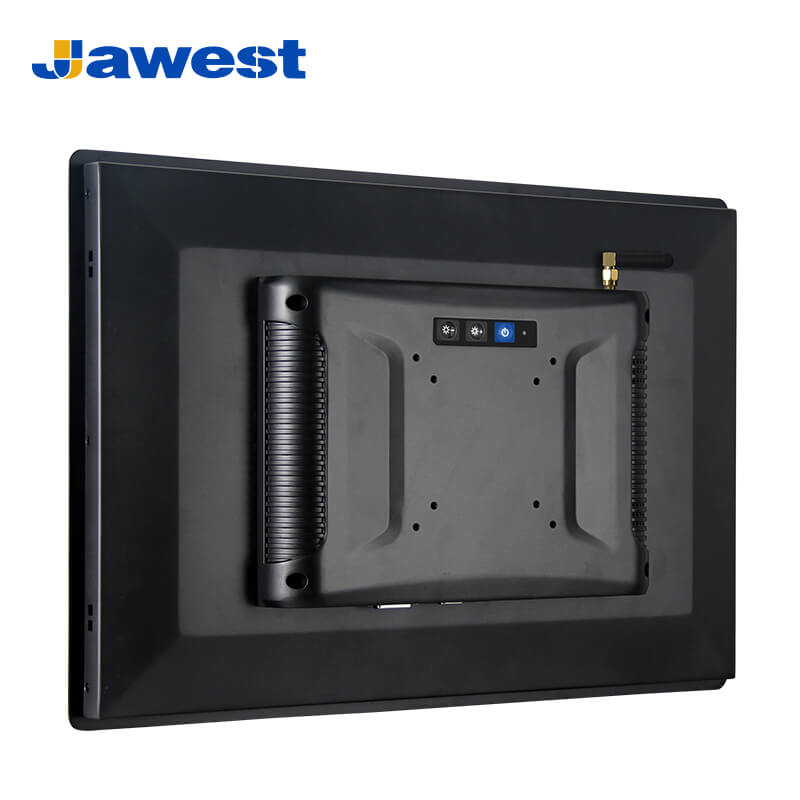

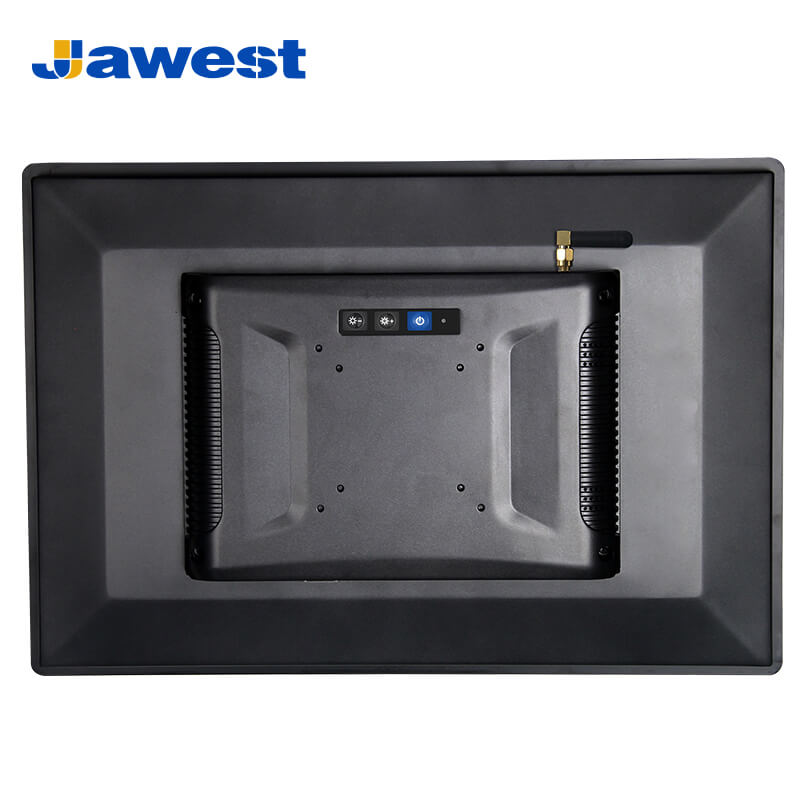

The back cover is designed with VESA holes, and the inside of the panel, PC adopts the heat dissipation structure technology, which can effectively dissipate the hot air generated in the operation of the panel PC in extreme temperature environments, prolong the service life of components in the touch panel PC, and improve the stability and reliability.
Sunlight Readable High Bright Panel PCs
This 18.5" panel PC supports high brightness panels, also known as sunlight-readable displays, suitable in very bright environments, like in daylight time, and outdoor use. Such high-brightness panel PCs provide at least 800 nits of brightness, while common industrial panel PC with 200-300 nits is enough.

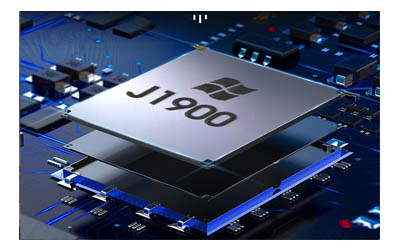

High-Reliability Industrial Mainboard
Industrial-grade J1900 mainboard, offering stable performance, low power consumption, anti-electromagnetic interference, anti-static, anti-surge, and other characteristics.
Standard Conf. Supports Upgrade
RAM: 4GB DDR3 ( 8GB optional ); Memory: 64G SSD ( 128GB optional )
OS: Windows 7 ( Win 8 / 10 / Windows 10 IoT Enterprise / Linux / Ubuntu )
Product Model Fast Guide
Product Models | LCD Displays | Resolution | Aspect Ratio | Touch Screens Types | Get A Quote Now! |
JWS070-W-QD | 7" | 1024*600 | 16:9 | Capacitive / Resistive / Non-touch | Inquiry |
JWS080-W-QD | 8" | 1024*768 | 4:3 | Capacitive / Resistive / Non-touch | Inquiry |
JWS101-W2 | 10.1" | 1280*800 | 16:10 | Capacitive / Resistive / Non-touch | Inquiry |
JWS104-W2 | 10.4" | 1024*768 | 4:3 | Capacitive / Resistive / Non-touch | Inquiry |
JWS116-W2 | 11.6" | 1920*1080 | 16:9 | Capacitive / Resistive / Non-touch | Inquiry |
JWS120-W2 | 12" | 1024*768 | 4:3 | Capacitive / Resistive / Non-touch | Inquiry |
JWS121-W2 | 12.1" | 1280*800 | 16:10 | Capacitive / Resistive / Non-touch | Inquiry |
JWS150-W2 | 15" | 1024*768 | 4:3 | Capacitive / Resistive / Non-touch | Inquiry |
JWS156-W2 | 15.6" | 1920*1080 | 16:9 | Capacitive / Resistive / Non-touch | Inquiry |
JWS170-W2 | 17" | 1280*1024 | 5:4 | Capacitive / Resistive / Non-touch | Inquiry |
JWS185-W2 | 18.5" | 1920*1080 | 16:9 | Capacitive / Resistive / Non-touch | Inquiry |
JWS173-W2 | 17.3" | 1920*1080 | 16:9 | Capacitive / Resistive / Non-touch | Inquiry |
JWS190-W2 | 19" | 1280*1024 | 5:4 | Capacitive / Resistive / Non-touch | Inquiry |
JWS191-W2 | 19.1" | 1440*900 | 16:10 | Capacitive / Resistive / Non-touch | Inquiry |
JWS215-W2 | 21.5" | 1920*1080 | 16:9 | Capacitive / Resistive / Non-touch | Inquiry |
JWS238-W2 | 23.8" | 1920*1080 | 16:9 | Capacitive / Resistive / Non-touch | Inquiry |
Display Parameters | Size | 18.5" | |||||
Resolution | 1920*1080 | ||||||
Screen Ratio | 16:9 | ||||||
Brightness | 300 nits (Optional high brightness) | ||||||
Contrast Ratio | 1000:1 | ||||||
Viewing Angle | 89°/89°/89°/89° (L/R/U/D) | ||||||
Backlight type | LED backlight screen, service life ≥ 50000H | ||||||
Touch Screen | Capacitive, Resistive, or Non-touch options | ||||||
Motherboard Model Selection | CL-J1900B | CX-J4125-A | CX-J6412 | CX-12U01 | |||
i3-1215U | i5-1235U | i7-1255U | |||||
System Architecture | CPU | Intel Celeron J1900 Quad-Core 2.0GHz | Intel Celeron J4125 Quad-Core 2.0GHz | Intel Celeron J6412 Quad-Core 2.0GHz | Intel Core i3 1215U 1.2GHz | Intel Core i5 1235U 1.3GHz | Intel Core i7 1255U 1.7GHz |
Architecture | Intel Bay Trail | Intel Gemini Lake Refresh | Intel Elkhart Lake | Intel Alder Lake | |||
GPU | Intel HD Graphics | Intel UHD Graphics 600 | Intel UHD Graphics 16 EUs | Intel Iris Xe Graphics 64 | Intel Iris Xe Graphics 80 | Intel Iris Xe Graphics 96 | |
Memory | DDR3 8GB | DDR4 4/8GB | DDR4 8/16GB | DDR4 32GB | |||
Storage | 16GB (optional: 32/64/128/256/512GB) | 32GB (optional: 64/128/256/512GB, 1T/2T HDD) | 32GB (optional: 64/128/256/512GB, 1T/2T HDD) | 64/128GB (optional: 256GB/512GB SSD, 1T/2T HDD) | |||
SATA | 1*SATA3.0 | 1*SATA3.0 | 1*SATA3.0 | 1*SATA3.0 | |||
MSATA | 1*MSATA | 1*MSATA | 1*MSATA | / | |||
M.2 | / | / | 1*M.2 | 1*M.2 | |||
Operating System | Win 7/10 | Win 10/11 | Win 10/11 | Win 10/11 | |||
Ubuntu14.04.6/16.04.7/18.04.5/18.04.6/20.04.1/20.04.3/20.04.4/22.04 | / | ||||||
Centos7.4/7.8/7.9; Redhat7.4; Debian11.6 | Centos7.8/8.4/7.9; Redhat7.4; Debian10.0/11.6 | / | |||||
Networking | Ethernet | 2*10M/100M/1000M adaptive Ethernet | |||||
4G | Support | ||||||
5G | / | / | / | M.2 5G | |||
WIFI | Dual-band 2.4/5GHz | ||||||
Bluetooth | BT4.0 (Optional) | BT4.0 (Optional) | BT4.0 (Optional) | BT4.0 (Optional) | |||
Display Function | LVDS | Supports 1920*1080 60Hz output | |||||
EDP | Supports 3840*2160 60Hz output | Supports 4096*2160 60Hz output | Supports 4096*2304 120Hz output | ||||
VGA | Supports 1920*1080 60Hz output | ||||||
HDMI | Supports 3840*2160 30Hz output | Supports 4096*2160 30Hz output | Supports 4096*2304 60Hz output | ||||
Touch Function | Touch Interface | USB | USB | USB | USB | ||
I/O Ports | USB 2.0 | USB2.0*2 + USB2.0*4 on board | USB2.0*2 + USB2.0*4 on board | USB2.0*2 + USB2.0*2 on board | USB2.0*2 + USB2.0*4 on board | ||
Type-C | / | / | / | 2*type-c | |||
USB 3.0 | USB3.0*2 | USB3.0*2 | USB3.0*2 | USB3.0*2 + USB3.0*2 on board (converted by 2*Type-C) | |||
RS232 | 6*RS232 (one of which is for RS232/RS422/RS485 mutual conversion) | ||||||
RS485 | 1*RS232/RS422/RS485 mutual conversion | ||||||
RS422 | 1*RS232/RS422/RS485 mutual conversion | ||||||
TTL | / | / | / | / | |||
GPIO | GPIO*8 (input/output) | ||||||
SIM Slot | 1*SIM Slot + 1*SIM Slot on board | ||||||
MINI PCIE | 1*MINI PCIE | 1*MINI PCIE | 1*MINI PCIE | / | |||
Speaker | 4PIN on board supports 8Ω5W | Built-in dual-channel 4R/10W or 8R/5W dual-channel power amplifier | |||||
MIC | Support | Support | Support | Support | |||
Audio Port | 3.5mm earphone jack, support input/output | ||||||
I/O Expansion | Support | ||||||
Power | Power Input | 12-36V DC | 12-36V DC | 12-36V DC | 12-36V DC | ||
Adapter | 24V / 2.5A | 24V / 2.5A | 24V / 2.5A | 24V / 4A | |||
Mechanical | Dimension | 486.5*307.4*67mm | |||||
Enclosure | Aluminum alloy housing | ||||||
Cooling System | Fanless | Fanless | Fanless | Fanless | |||
Mounting | Panel-mount, Embedded, desktop, wall-mounted, VESA75/100mm, open frame, etc. | ||||||
Product Reliability | Working Temp | -10°C ~ 60°C | |||||
Storage Temp | -20°C ~ 70°C | ||||||
Ambient Humidity | 5% - 95% (relative humidity non-condensing) | ||||||
IP rating | Front IP65 |
