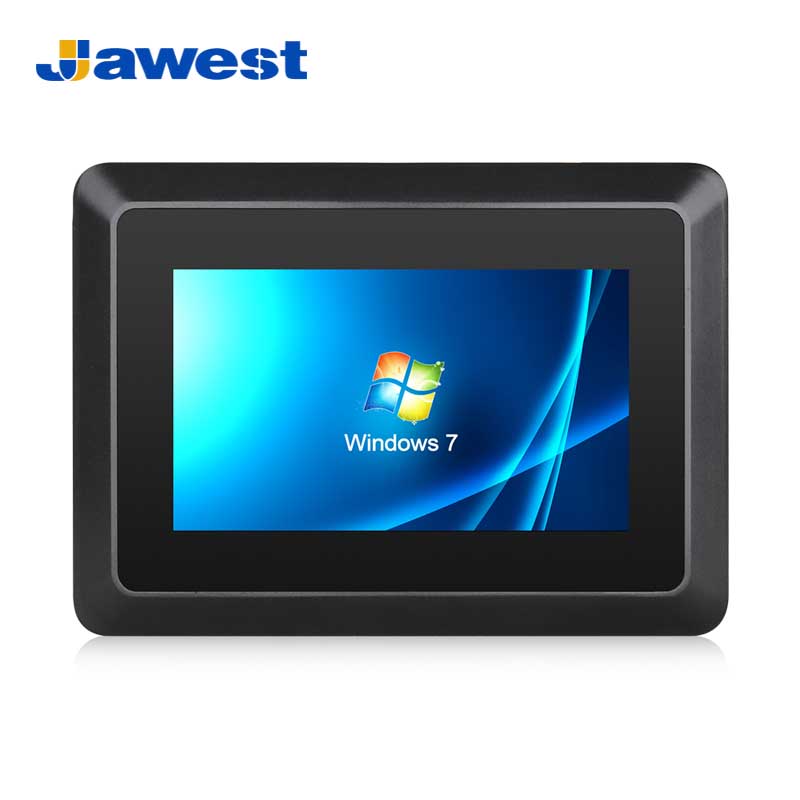

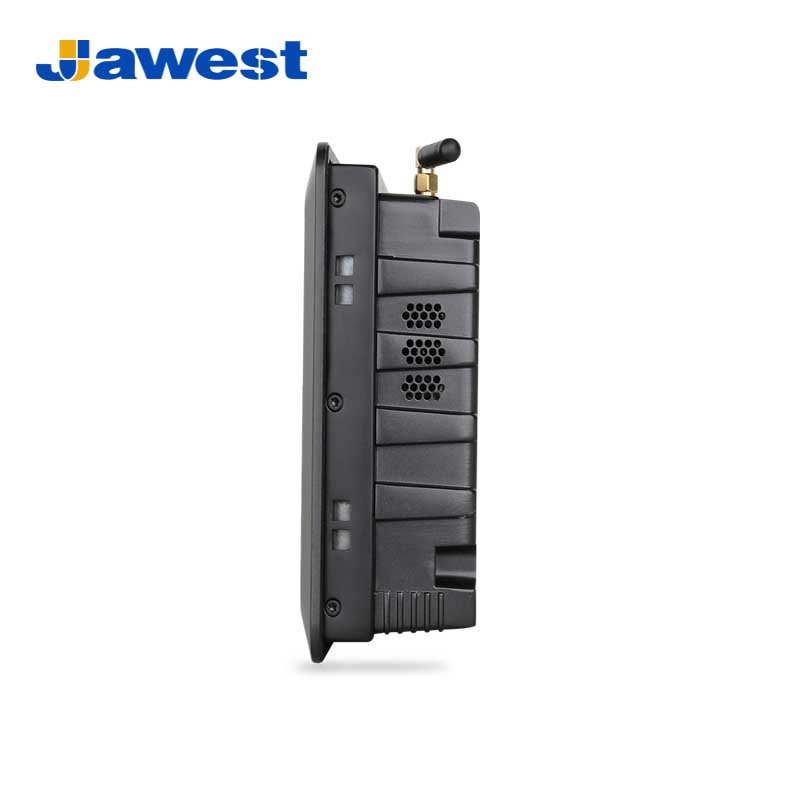

The JWS070-W2 is an 7" LCD Panel with a touch screen that has IP65 front panel protection. It has abundant Inputs and Outputs ports for excellent connections with other equipment.
7" Industrial Touchscreen Panel PC CE RoHS Approved
Model: JWS070-W2-QD
Product Features
● Display size: 7 inch
● Ultra-thin front bezel, suitable for the embedded mount for cabinets in industrial sites.
● Aluminum alloy material casing, drawing process, presenting excellent anti-corrosion and anti-fouling performance.
● Industrial-grade driver board, and built with good anti-static and anti-electromagnetic interference.

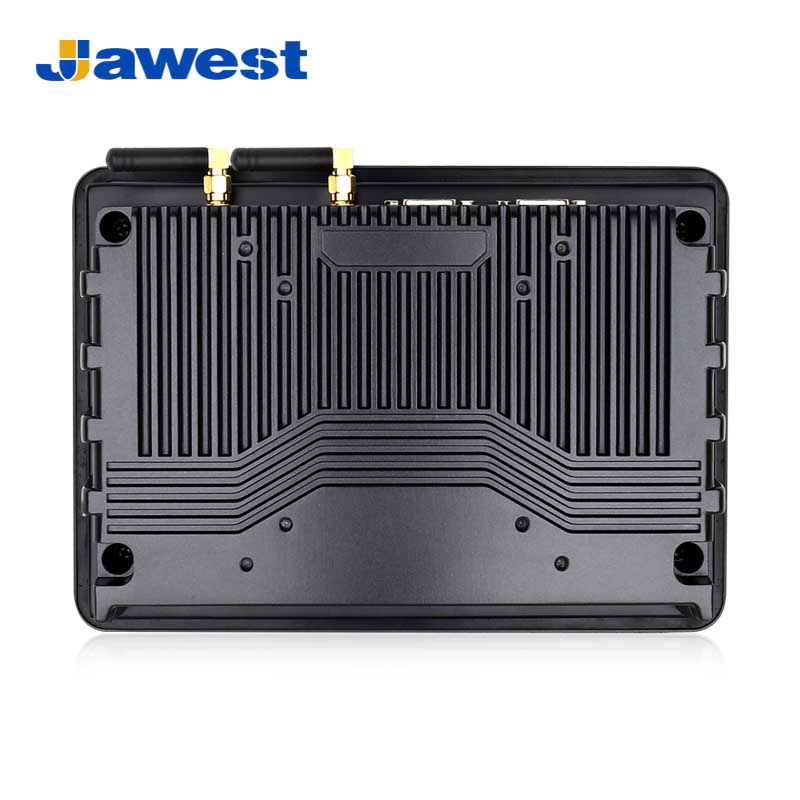

● Internal fanless heat dissipation structure design supports 24/7 long-term uninterrupted operation.
● The surface is IP65 dustproof and waterproof, and fully dustproof design.
● Capacitive / resistive / mouse control for the touch screens.
● Factory direct supplying.
● OEM & ODM are available.
Jawest Industrial Panel PC With IP65 Rating
Jawest's IP65-rated industrial panel PCs offer surface waterproof and complete dust protection against contact and ingress. It ensures the panel PCs keep reliable running when they are installed in outside environments, such as public self-service kiosk machines, or some mobile devices equipped with this panel PC ensures operators complete the job without delay when they are covered in dust, digging in a mine, or on a windy day.
High Compatibility For Multi-Systems
- Support Win 7 / Win 8 / Win 10, Linux, and Ubuntu systems optional.
- Jawest industrial all-in-one panel PCs with Windows are made to endure 24/7 on-the-job use and allow them to withstand more challenges than consumer-grade tablets.
Superior Powerful Chip, Stable Performance, Fast Response, Low Power Consumption
- Celeron® J1900 Processor with quad-core, 2.0GHZ main frequency
- Inner memory: 2G DDR3L (4/8/16G optional)
- Storage: 32G SSD (64/128/256G optional)
- Graphics card: Integrated HD Graphics, support VGA, HDMI, LVDS output.
Capacitive & Resistive Touch Panel PC, High Efficient Work & Cost Reduction
- The 8" industrial panel PC supports a multi-touch capacitive touchscreen or 4/5-wire single-point touch resistive screen.
- Capacitive touch screen panel PCs have extraordinary picture quality thanks to the use of a glass layer, suitable for smart city projects, such as IoT systems, digital signage, etc.
- For capacitive touchscreens, it is more sensitive to light touch due to register touch via the human body’s electrical current, so requires less operating pressure than resistive touch panel glass.
- Touch panel PC with resistive screens have excellent durability & resistance in harsh environments where accidental stimuli like liquid spills or splatters are due to lower sensitivity than capacitive screens.

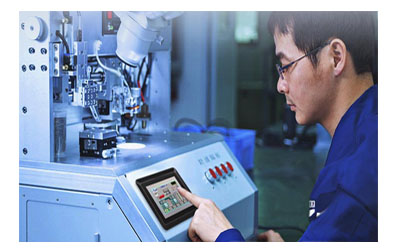

Flexible Installation
Jawest 7-inch industrial panel PC with LCD 16:9 wide screen support multiple installation methods.
- Embedded mount: Suitable for embedding into various cabinets, Lab equipment, industrial test equipment, and indoor/outdoor kiosk machines.
- Wall-mounted: Suitable for building automation's touch display system, smart campus's information display system, etc.
- VESA75/100mm: VESA mount industrial panel PCs are suitable for Digital Factory's production line automation equipment, or medical carts in hospitals.
- Desktop mount: such a small size panel PC also support desktop mount, often used in smart retail system, like point-of-sale.
Industrial Touch Panel PC - Product Model Fast Guide
Model | LCD Display | Resolution | Aspect Ratio | Touch Screen Type | Get A Quote Now |
JWS070-W2-QD | 7" | 1024*600 | 16:9 | Capacitive / Resistive / Non-touch | Inquiry |
JWS080-W2-QD | 8" | 1024*768 | 4:3 | Capacitive / Resistive / Non-touch | Inquiry |
JWS101-W2 | 10.1" | 1280*800 | 16:10 | Capacitive / Resistive / Non-touch | Inquiry |
JWS104-W2 | 10.4" | 1024*768 | 4:3 | Capacitive / Resistive / Non-touch | Inquiry |
JWS116-W2 | 11.6" | 1920*1080 | 16:9 | Capacitive / Resistive / Non-touch | Inquiry |
JWS120-W2 | 12" | 1024*768 | 4:3 | Capacitive / Resistive / Non-touch | Inquiry |
JWS150-W2 | 15" | 1024*768 | 4:3 | Capacitive / Resistive / Non-touch | Inquiry |
JWS156-W2 | 15.6" | 1920*1080 | 16:9 | Capacitive / Resistive / Non-touch | Inquiry |
JWS170-W2 | 17" | 1280*1024 | 5:4 | Capacitive / Resistive / Non-touch | Inquiry |
JWS173-W2 | 17.3" | 1920*1080 | 16:9 | Capacitive / Resistive / Non-touch | Inquiry |
JWS190-W2 | 19" | 1280*1024 | 5:4 | Capacitive / Resistive / Non-touch | Inquiry |
JWS191-W2 | 19.1" | 1440*900 | 16:10 | Capacitive / Resistive / Non-touch | Inquiry |
JWS215-W2 | 21.5" | 1920*1080 | 16:9 | Capacitive / Resistive / Non-touch | Inquiry |
JWS238-W2 | 23.8" | 1920*1080 | 16:9 | Capacitive / Resistive / Non-touch | Inquiry |
7 Inch Industrial Touchscreen Panel PC CE RoHS Approved | ||||||||
Size | 7 inch | |||||||
Model | JWS070-W2-QD | |||||||
Panel Type | Industrial LCD panel A+ grade | |||||||
Aspect Ratio | 16:9 | |||||||
Resolution | 1024*600 | |||||||
Contrast | 800:1 | |||||||
Luminance | 300nit-1500nit | |||||||
Response time | 5ms | |||||||
Active Area (mm) | 227*131 | |||||||
Display colors | 16.7M(8-bit) | |||||||
View angle | 80/80/80/80 | |||||||
PC Configuration | ||||||||
CPU | Intel Celeron J1900 fanless, Intel i3/i5/i7 can be customized | |||||||
Graphics Card | Integrated Intel HD Graphics | |||||||
Inner memory | 2G DDR3 RAM ( 4G/8G RAM can be customized) | |||||||
Storage | 32G SSD (64G/128G/256G SSD, 500G HDD can be customized) | |||||||
Expansion Card Slot | 2xMini-PCIe slot, support SSD, WIFI, 3G module | |||||||
Audio | Realtek ALG662 6 soundtrack audio frequency | |||||||
Internet | 1xRTL811E gigabit network card | |||||||
Operating System | Win7/8/10 optional | |||||||
Support multi-language | English/Portuguese/French…etc | |||||||
Touch Screen | Capacitive / resistive screen / mouse control | |||||||

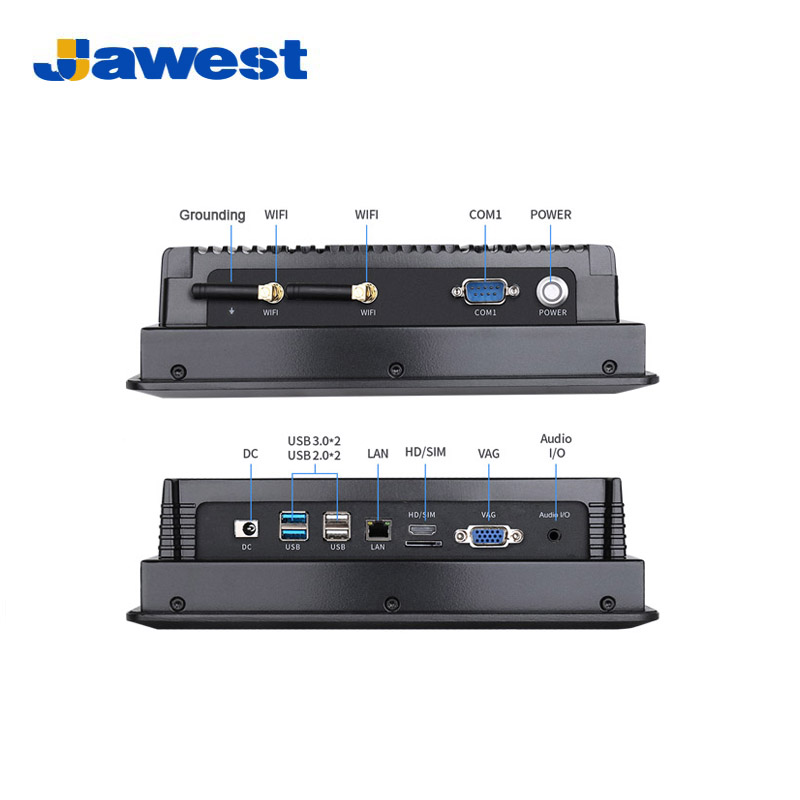

I/O Ports | 1*12V DC_JACK input (ATX is optional) , 1*VGA,1*HDMI, 4*USB port | |||||||
1*RJ-45 network interface, 1*Audio I/O interface, 1*COM (can be customized, up to 4*COM) | ||||||||
Power Input | AC 110-240V, 50/60Hz | |||||||
Operation Temperature | -10°C-60°C | |||||||
Storage Temperature | -30°C-60°C | |||||||
Operation Humidity | 10%--80% | |||||||
Storage Humidity | 10%-90% | |||||||
Material | Aluminum alloy enclosure+High Strength Cold Rolled Steel | |||||||
Bezel Thickness | 3mm bezel, 10mm bezel (optional) | |||||||
IP Rating | IP65 standard seamless front | |||||||
Color | Black, silver | |||||||
Installation Way | VESA, Embedded, Wall Mount, Desktop optional | |||||||
Certification | CE,FCC,ROHS,ISO | |||||||
Packaging | EPE+Carton (wooden crate for mass order) |
