Home >> Products >> Industrial Panel PC | X86 >> Industrial Panel PC | 2nd-GEN Ultra-thin Front Bezel
Application:
Industrial Fanless Panel PC Intel CPU For Industrial Production 10.1 InchIndustrial Fanless Panel PC Intel CPU For Industrial Production 10.1 InchIndustrial Fanless Panel PC Intel CPU For Industrial Production 10.1 InchIndustrial Fanless Panel PC Intel CPU For Industrial Production 10.1 Inch

Industrial Fanless Panel PC Intel CPU For Industrial Production 10.1 Inch


 Model: JWS101-W2

• Display size: 10.1 inch.

• Industrial panel PC working temperature: -10° ~ +60°C.

• IP65 grade waterproof, dust-proof for the front flat panel.

• Long running time, up to 7 days*24 hours.

• 3mm bezel thin front panel, suitable for embedding to the cabinet.

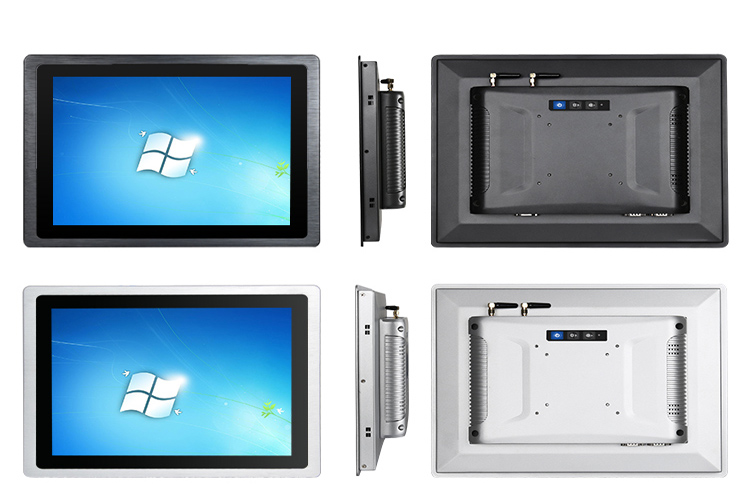

Appearance of the color
Black
Silver
share:
  • Description
  • Parameter
  • Case

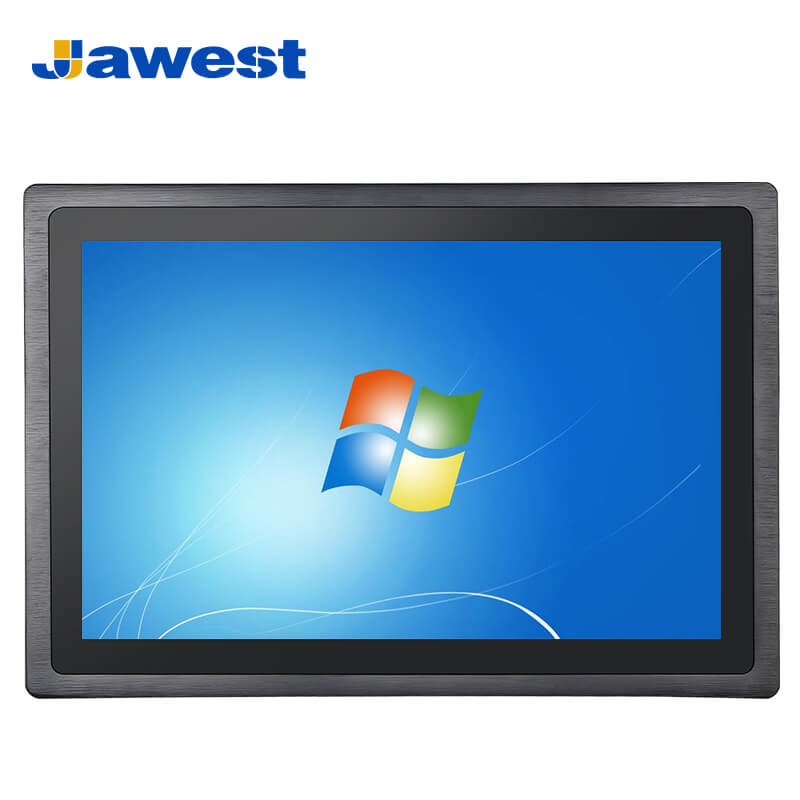

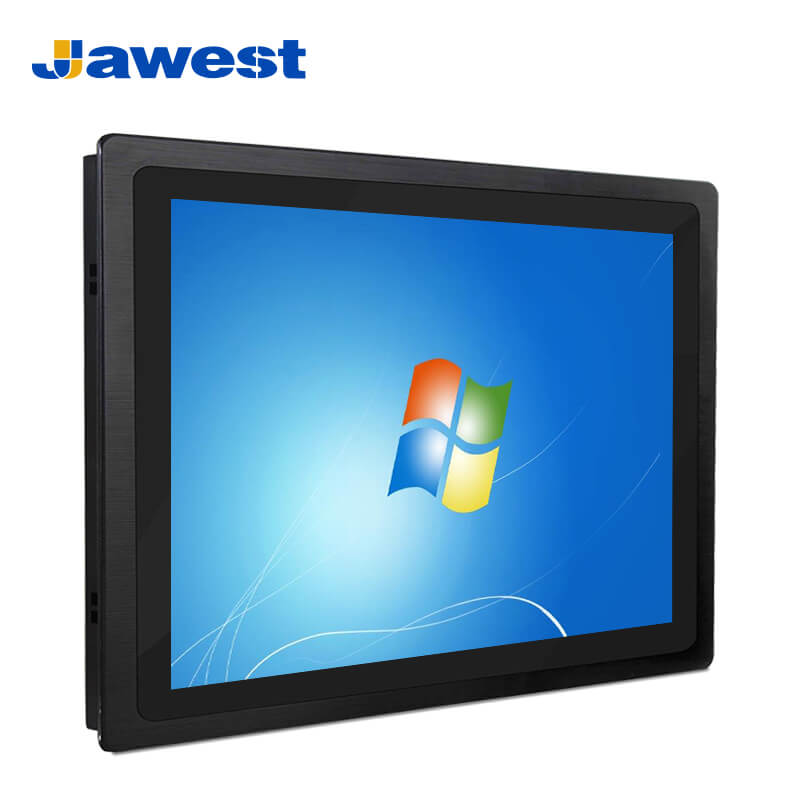

  • 10.1" Industrial Panel PC with Windows System


    Model: JWS101-W2


    Industrial flat panel computer with all-in-one design, pre-installing Windows system, and offer excellent high quality and low-cost solutions to industrial computing requirements. We offer flat panels ranging from 7 - 23.8 inch or more customized sizes. This product can also support multi-touch when configured with an optional capacitive touchscreen or comes with a resistive touchscreen or non-touchscreen. The industrial flat panel PC can be configured with multi-interfaces to satisfy expanded needs. The industrial display can be configured for sunlight readability with high resolution. The project supports Microsoft Windows 7, Windows 8, Windows 10, or Android operating systems.



    Upgraded Quality to meet clients who have high-standard needs for industrial panel PC

    Jawest industrial panel computer adapts to various harsh industrial environments, Its low power consumption, high temperature, and low-temperature resistance, good stability, rich I/O interface, convenient installation, beautiful and light, and takes up a small space of the cabinet and more features perform perfectly in a harsh environment.



    Product Features

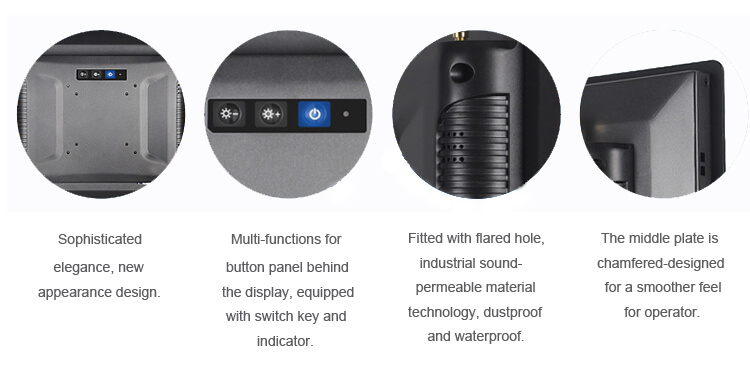

    ● 3mm Ultra-thin front bezel appearance.

    ● Seamless panel design with IP65 standard dustproof and waterproof.

    ● Whole Aluminum alloy enclosure, perfect design for heat dissipation.

    ● Supports resistive, capacitive, and Infrared touch screens, sunlight-readable.

    ● Versatile I/O ports: USB2.0*2, USB3.0*2, LAN*2, VGA*1, HDMI*1, SIM Slot*1, Audio I/O*1,  DC*1, WIFI Antenna*2, GND*1, RS232(DB9)*1, COM Reserved*1(Optional RS232/422/485), 12P Phoenix Terminal (DC*1+RS232*1+RS485*1+GPIO*5), Power Button*1.

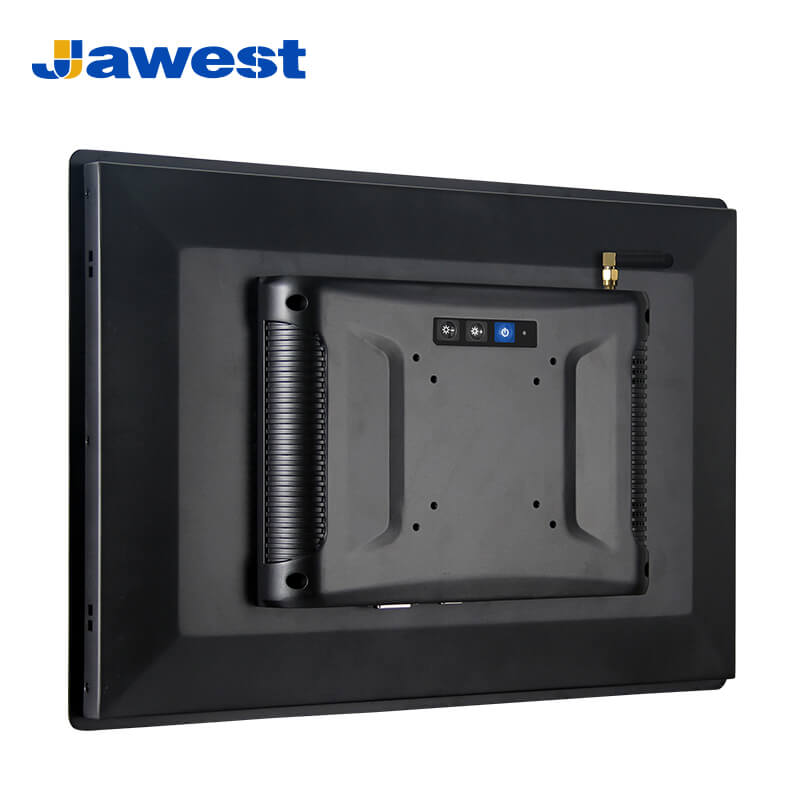

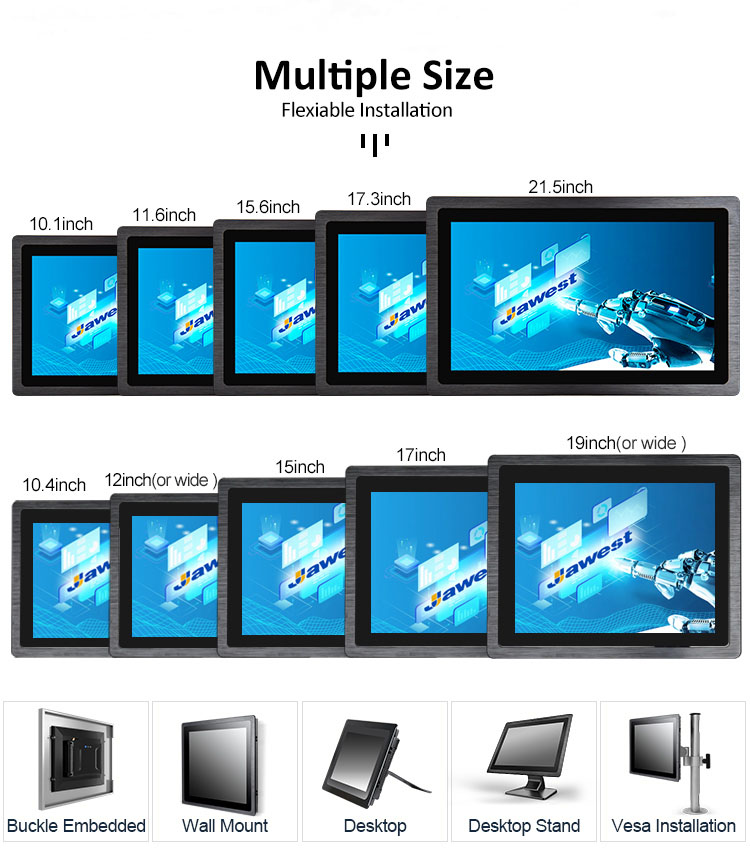

    ● Supporting multi-installation methods, such as panel-mount, desktop, embedded, wall-mounted, VESA 75/100mm, and open frame.

    ● Integrated modules options: NFC/RFID/IC/MSR/Camera/LTE module,.etc.




    Industrial Panel PC - Product Model Fast Guide

    Product ModelsLCD DisplaysResolutionAspect RatioTouch Screens Types
    Get A Quote Now!
    JWS070-W-QD7"1024*60016:9Capacitive / Resistive / Non-touch
    Inquiry
    JWS080-W-QD8"1024*7684:3

    Capacitive / Resistive / Non-touch

    Inquiry
    JWS101-W210.1"
    1280*80016:10Capacitive / Resistive / Non-touchInquiry
    JWS104-W210.4"1024*7684:3

    Capacitive / Resistive / Non-touch

    Inquiry
    JWS116-W211.6"1920*108016:9

    Capacitive / Resistive / Non-touch

    Inquiry
    JWS120-W212"1024*7684:3Capacitive / Resistive / Non-touchInquiry
    JWS121-W212.1"1280*80016:10Capacitive / Resistive / Non-touchInquiry
    JWS150-W215"1024*7684:3Capacitive / Resistive / Non-touchInquiry
    JWS156-W215.6"1920*108016:9Capacitive / Resistive / Non-touchInquiry
    JWS170-W217"1280*10245:4Capacitive / Resistive / Non-touchInquiry
    JWS173-W217.3"1920*108016:9Capacitive / Resistive / Non-touchInquiry
    JWS185-W218.5"1920*108016:9Capacitive / Resistive / Non-touchInquiry
    JWS190-W219"1280*10245:4Capacitive / Resistive / Non-touchInquiry
    JWS191-W219.1"1440*90016:10Capacitive / Resistive / Non-touchInquiry
    JWS215-W221.5"1920*108016:9Capacitive / Resistive / Non-touchInquiry
    JWS238-W223.8"1920*108016:9Capacitive / Resistive / Non-touchInquiry



    Industrial Fanless Panel PC Intel CPU For Industrial Production 10.1 Inch

    Industrial Touch Panel All In One PC

    Industrial Touch Panel All In One PC

    Industrial Fanless Panel PC Intel CPU For Industrial Production 10.1 Inch

    Industrial Fanless Panel PC Intel CPU For Industrial Production 10.1 Inch



    What are the advantages of an industrial all-in-one panel PC?


    With the ongoing growth of industries, there is a rising demand for processing larger volumes of data. However, traditional commercial-grade PCs face limitations when it comes to their suitability for rugged industrial settings like construction sites or factories due to their size and fragility. In response to this need, durable industrial all-in-one-panel PCs have emerged, playing a crucial role in advancing the industry.


    Explore the distinctive benefits of industrial panel PCs here.


    1. Extensive control and operational capabilities

    Professional industrial panel PCs offer extensive control and operational capabilities for industrial production, addressing operational challenges and eliminating concerns about labor shortages when compared to commercial-grade computers. Unlike regular commercial computers, industrial PCs can maintain reliable connectivity over longer distances, making them suitable for a wide range of machine tools production applications while ensuring stable operation.


    2. High data processing capacity

    While computer data processing capabilities have significantly advanced, industrial panel PCs are frequently employed as large controllers within factory settings. These all-in-one PCs effortlessly handle tasks such as data transmission, conversion, analysis, and visualization, representing the pinnacle of human ingenuity and the current state of technological advancement.


    3. High environmental adaptability

    General computers are prone to quick damage when operating in challenging environments like factories and construction sites due to their vulnerability. In contrast, robust industrial panel all-in-one PCs excel in these settings, thanks to their robust performance and sturdy build, enabling them to thrive in demanding conditions.


    To sum it up, industrial all-in-one computers offer a wide range of advantages that surpass those of typical computers. These advantages encompass three key elements: extensive control capabilities, exceptional data processing power, and robust environmental adaptability. When customers are seeking data processing solutions for their companies or factories, the industrial all-in-one panel PC stands out as the top choice, guaranteeing stability and problem-solving capabilities for users.






  • Display ParametersSize10.1"
    Resolution1280*800
    Screen Ratio16:10
    Brightness400 nits (Optional high brightness)
    Contrast Ratio1000:1
    Viewing Angle85°/85°/85°/85° (L/R/U/D)
    Backlight typeLED backlight screen, service life ≥ 50000H
    Touch ScreenCapacitive, Resistive, or Non-touch options






    Motherboard Model SelectionCL-J1900B
    CX-J4125-ACX-J6412CX-12U01
    i3-1215Ui5-1235Ui7-1255U
    System ArchitectureCPUIntel Celeron J1900 Quad-Core 2.0GHzIntel Celeron J4125 Quad-Core 2.0GHzIntel Celeron J6412 Quad-Core 2.0GHzIntel Core i3 1215U 1.2GHzIntel Core i5 1235U 1.3GHzIntel Core i7 1255U 1.7GHz
    ArchitectureIntel Bay TrailIntel Gemini Lake RefreshIntel Elkhart LakeIntel Alder Lake
    GPUIntel HD GraphicsIntel UHD Graphics 600Intel UHD Graphics 16 EUsIntel Iris Xe Graphics 64Intel Iris Xe Graphics 80 Intel Iris Xe Graphics 96
    MemoryDDR3 8GBDDR4 4/8GBDDR4 8/16GBDDR4 32GB
    Storage16GB (optional: 32/64/128/256/512GB)32GB (optional: 64/128/256/512GB, 1T/2T HDD)32GB (optional: 64/128/256/512GB, 1T/2T HDD)64/128GB SSD (optional: 256GB/512GB SSD, 1T/2T HDD)
    SATA1*SATA3.01*SATA3.01*SATA3.01*SATA3.0
    MSATA1*MSATA1*MSATA1*MSATA/
    M.2//1*M.21*M.2
    Operating SystemWin 7/10Win 10/11Win 10/11Win 10/11
    Ubuntu14.04.6/16.04.7/18.04.5/18.04.6/20.04.1/20.04.3/20.04.4/22.04/
    Centos7.4/7.8/7.9; Redhat7.4; Debian11.6Centos7.8/8.4/7.9; Redhat7.4; Debian10.0/11.6/

    NetworkingEthernet2*10M/100M/1000M adaptive Ethernet
    4GSupport
    5G///M.2 5G
    WIFIDual-band 2.4/5GHz
    BluetoothBT4.0 (Optional)BT4.0 (Optional)BT4.0 (Optional)BT4.0 (Optional)

    Display FunctionLVDSSupports 1920*1080 60Hz output
    EDPSupports 3840*2160 60Hz outputSupports 4096*2160 60Hz outputSupports 4096*2304 120Hz output
    VGASupports 1920*1080 60Hz output
    HDMISupports 3840*2160 30Hz outputSupports 4096*2160 30Hz outputSupports 4096*2304 60Hz output
    Touch FunctionTouch InterfaceUSBUSBUSBUSB
    I/O PortsUSB 2.0USB2.0*2 + USB2.0*4 on boardUSB2.0*2 + USB2.0*4 on boardUSB2.0*2 + USB2.0*2 on boardUSB2.0*2 + USB2.0*4 on board
    Type-C///2*type-c
    USB 3.0USB3.0*2USB3.0*2USB3.0*2USB3.0*2 + USB3.0*2 on board (converted by 2*Type-C)
    RS2326*RS232 (one of which is for RS232/RS422/RS485 mutual conversion)
    RS4851*RS232/RS422/RS485 mutual conversion
    RS4221*RS232/RS422/RS485 mutual conversion
    TTL////
    GPIOGPIO*8 (input/output)
    SIM Slot1*SIM Slot + 1*SIM Slot on board
    MINI PCIE1*MINI PCIE1*MINI PCIE1*MINI PCIE/
    Speaker4PIN on board supports 8Ω5WBuilt-in dual-channel 4R/10W or 8R/5W dual-channel power amplifier
    MICSupportSupportSupportSupport
    Audio Port3.5mm earphone jack, support input/output
    I/O Expansion Support






    PowerPower Input12-36V DC12-36V DC12-36V DC12-36V DC
    Adapter24V / 2.5A24V / 2.5A24V / 2.5A24V / 4A

    MechanicalDimension293.6*193.6*48.5mm
    EnclosureAluminum alloy housing
    Cooling SystemFanlessFanlessFanlessFanless
    MountingPanel-mount, Embedded, desktop, wall-mounted, VESA75/100mm, open frame, etc.

    Product ReliabilityWorking Temp-10°C ~ 60°C
    Storage Temp-20°C ~ 70°C
    Ambient Humidity5% - 95% (relative humidity non-condensing)
    IP ratingFront IP65
