Industrial Touch Panel For Kiosks and ATM POS system 17 Inch Windows All-in-one PC


Model: JWS170-W2

● Display size: 17 inch.

● Industrial panel PC working temperature: -10° ~ +60°C.

● IP65-rating dust-proof and water-proof for the front panel.

● 24/7 long-time operation in harsh environments.

● 3mm bezel ultra-thin front panel, ideal for industrial cabinets.

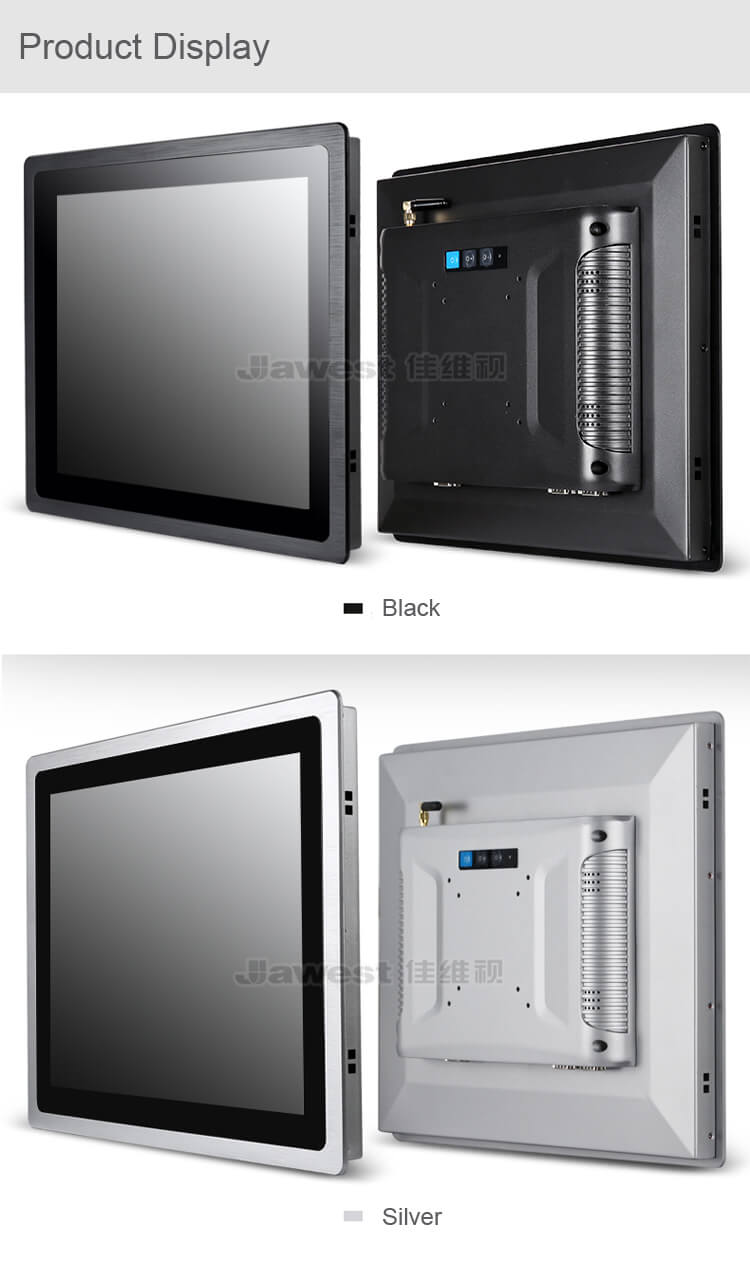

Appearance of the color
Black
Silver
share:
  • Description
  • Parameter
  • Case
  • 17 Inch Industrial Touch Panel For Kiosks and ATM POS system


    Model: JWS170-W2


    17-inch industrial panel PC with touch screens is widely used in kinds of industrial & commercial terminal devices, finance equipment, and self-service and vending machines. The panel PC provides a capacitive or resistive touch screen, usually, these two touch screens are used mostly due to their flexible operation or durable touching quality.


    Jawest is a value-added supplier of industrial touch monitors and panel PCs for embedded computing solutions, used in industrial robotics, machine vision, process control, and commercial intelligent terminals ( touch screen kiosks, ATMs, self-service machines, vending machines, and smart home devices. ), and other high-performance applications.




    Product Features


    ● 3mm ultra-thin front bezel, excellent for embedding to the cabinet, control desk, workstation, and other equipment.

    ● Full seamless design for the whole panel, IP65 rated standard dust-proof and waterproof for the front panel.

    ● Aluminum alloy enclosure, good for heat dissipation, strong antioxidant capacity.

    ● Supports resistive, capacitive, and Non-touch screens, and is sunlight readable for outdoor applications.

    ● Versatile I/O: USB2.0*2, USB3.0*2, LAN*2, VGA*1, HDMI*1, SIM Slot*1, Audio I/O*1,  DC*1, WIFI Antenna*2, GND*1, RS232(DB9)*1, COM Reserved*1(Optional RS232/422/485), 12P Phoenix Terminal (DC*1+RS232*1+RS485*1+GPIO*5), Power Button*1.

    ● This industrial panel PC is pre-installed with Windows /Linux OS ( Win7 / Win8 / Win10 optional )

    ● Supports multi-installation methods, such as tabletop, embedded, wall-mounted, and VESA.

    ● Integrated modules custom option: NFC / RFID / IC / MSR / Camera / LTE module,.etc.

    ● low power consumption, high temperature, and low-temperature resistance.














  • Display Parameters
    Size17"
    Resolution1280*1024
    Screen Ratio5:4
    Brightness250~300 nits (Optional high brightness)
    Contrast Ratio1000:1
    Viewing Angle85°/85°/80°/70° (L/R/U/D)
    Backlight typeLED backlight screen, service life ≥ 50000H
    Touch ScreenCapacitive, Resistive, or Non-touch options






    Motherboard Model SelectionCL-J1900B
    CX-J4125-ACX-J6412CX-12U01
    i3-1215Ui5-1235Ui7-1255U
    System ArchitectureCPUIntel Celeron J1900 Quad-Core 2.0GHzIntel Celeron J4125 Quad-Core 2.0GHzIntel Celeron J6412 Quad-Core 2.0GHzIntel Core i3 1215U 1.2GHzIntel Core i5 1235U 1.3GHzIntel Core i7 1255U 1.7GHz
    ArchitectureIntel Bay TrailIntel Gemini Lake RefreshIntel Elkhart LakeIntel Alder Lake
    GPUIntel HD GraphicsIntel UHD Graphics 600Intel UHD Graphics 16 EUsIntel Iris Xe Graphics 64Intel Iris Xe Graphics 80 Intel Iris Xe Graphics 96
    MemoryDDR3 8GBDDR4 4/8GBDDR4 8/16GBDDR4 32GB
    Storage16GB (optional: 32/64/128/256/512GB)32GB (optional: 64/128/256/512GB, 1T/2T HDD)32GB (optional: 64/128/256/512GB, 1T/2T HDD)64/128GB (optional: 256GB/512GB SSD, 1T/2T HDD)
    SATA1*SATA3.01*SATA3.01*SATA3.01*SATA3.0
    MSATA1*MSATA1*MSATA1*MSATA/
    M.2//1*M.21*M.2
    Operating SystemWin 7/10Win 10/11Win 10/11Win 10/11
    Ubuntu14.04.6/16.04.7/18.04.5/18.04.6/20.04.1/20.04.3/20.04.4/22.04/
    Centos7.4/7.8/7.9; Redhat7.4; Debian11.6Centos7.8/8.4/7.9; Redhat7.4; Debian10.0/11.6/

    NetworkingEthernet2*10M/100M/1000M adaptive Ethernet
    4GSupport
    5G///M.2 5G
    WIFIDual-band 2.4/5GHz
    BluetoothBT4.0 (Optional)BT4.0 (Optional)BT4.0 (Optional)BT4.0 (Optional)

    Display FunctionLVDSSupports 1920*1080 60Hz output
    EDPSupports 3840*2160 60Hz outputSupports 4096*2160 60Hz outputSupports 4096*2304 120Hz output
    VGASupports 1920*1080 60Hz output
    HDMISupports 3840*2160 30Hz outputSupports 4096*2160 30Hz outputSupports 4096*2304 60Hz output
    Touch FunctionTouch InterfaceUSBUSBUSBUSB
    I/O PortsUSB 2.0USB2.0*2 + USB2.0*4 on boardUSB2.0*2 + USB2.0*4 on boardUSB2.0*2 + USB2.0*2 on boardUSB2.0*2 + USB2.0*4 on board
    Type-C///2*type-c
    USB 3.0USB3.0*2USB3.0*2USB3.0*2USB3.0*2 + USB3.0*2 on board (converted by 2*Type-C)
    RS2326*RS232 (one of which is for RS232/RS422/RS485 mutual conversion)
    RS4851*RS232/RS422/RS485 mutual conversion
    RS4221*RS232/RS422/RS485 mutual conversion
    TTL////
    GPIOGPIO*8 (input/output)
    SIM Slot1*SIM Slot + 1*SIM Slot on board
    MINI PCIE1*MINI PCIE1*MINI PCIE1*MINI PCIE/
    Speaker4PIN on board supports 8Ω5WBuilt-in dual-channel 4R/10W or 8R/5W dual-channel power amplifier
    MICSupportSupportSupportSupport
    Audio Port3.5mm earphone jack, support input/output
    I/O Expansion Support






    PowerPower Input12-36V DC12-36V DC12-36V DC12-36V DC
    Adapter24V / 2.5A24V / 2.5A24V / 2.5A24V / 4A

    MechanicalDimension414*345*63mm
    EnclosureAluminum alloy housing
    Cooling SystemFanlessFanlessFanlessFanless
    MountingPanel-mount, Embedded, desktop, wall-mounted, VESA75/100mm, open frame, etc.

    Product ReliabilityWorking Temp -10°C ~ 60°C
    Storage Temp -20°C ~ 70°C
    Ambient Humidity 5% - 95% (relative humidity non-condensing)
    IP ratingFront IP65
