Application:
12 Inch Industrial Android Tablet Human Machine Interactive System12 Inch Industrial Android Tablet Human Machine Interactive System12 Inch Industrial Android Tablet Human Machine Interactive System12 Inch Industrial Android Tablet Human Machine Interactive System

12 Inch Industrial Android Tablet Human Machine Interactive System


Model: JWS120-A2

● Display size: 12 inch.

● Flat design, elegant appearance.

● IP65 rating of dustproof and waterproof.

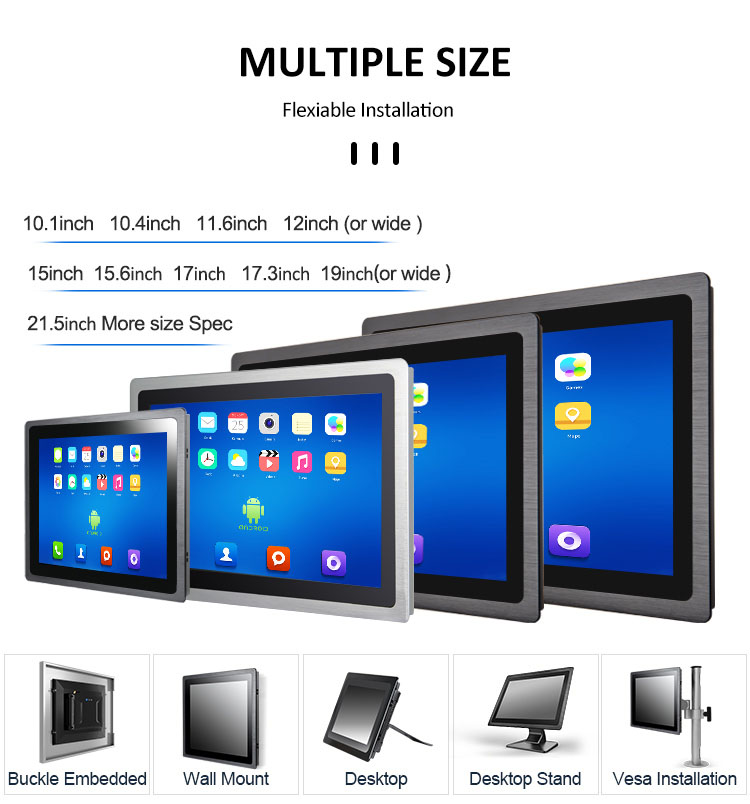

● Multiple installation: desktop / wall-hanging / VESA / embedded.

● Ultra-sensitive touch screen, precise positioning, free control.

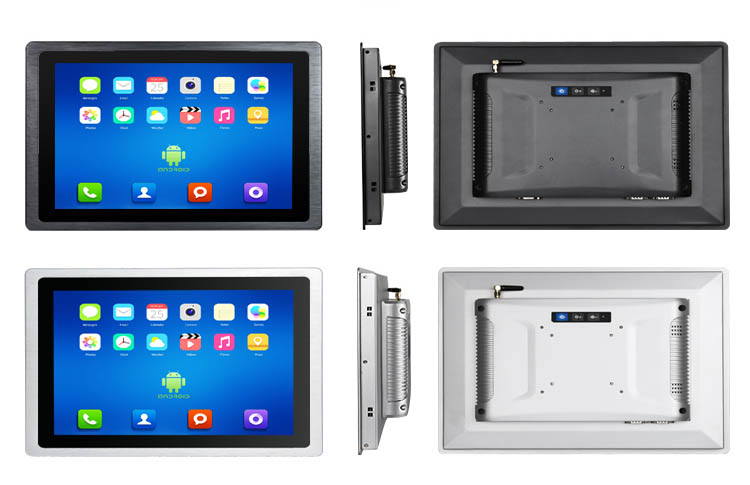

Appearance of the color
Black
Silver
share:
  • Description
  • Parameter
  • Case
  • 12-inch Industrial Android Panel PC


    Model: JWS120-A2

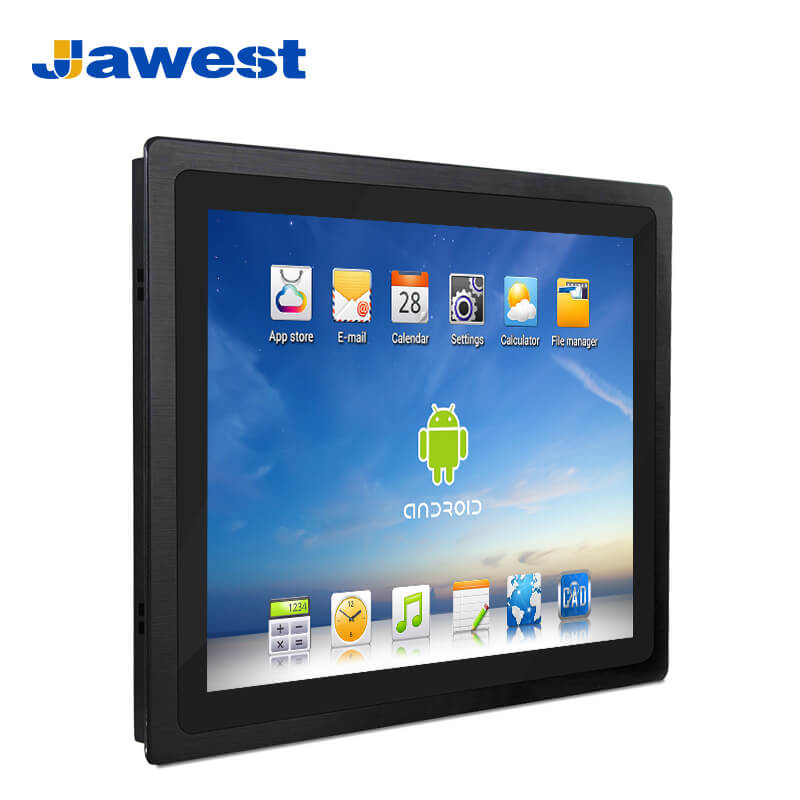

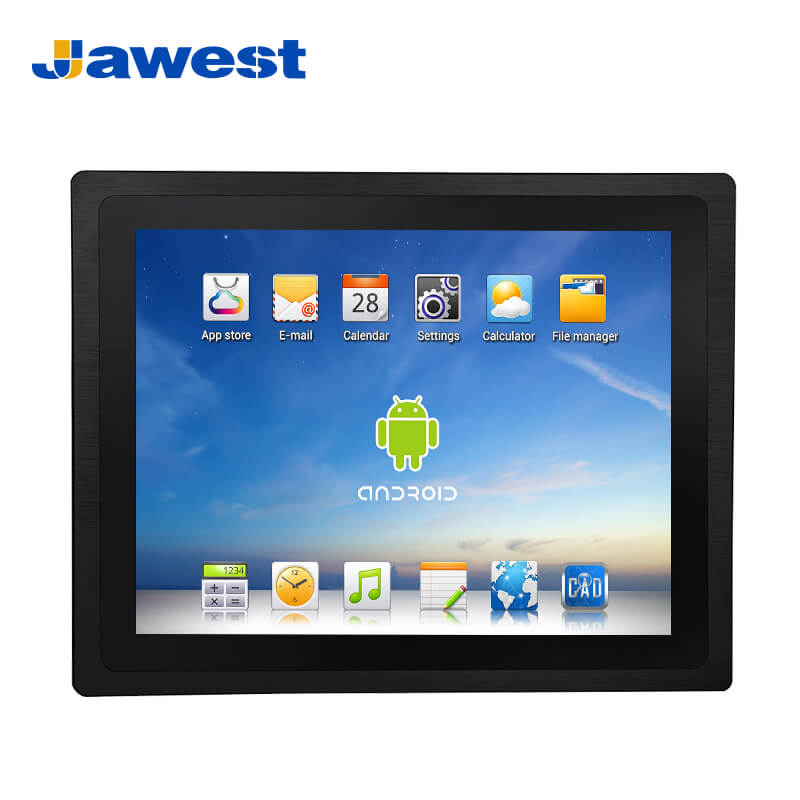

    This Jawest 12-inch industrial-grade Android tablet PC built with an industrial LCD monitor is suitable for cabinets and environment monitoring systems as a human-machine interactive panel.



    Jawest 12" Industrial Tablet Features


    ● 12" 1024x768 resolution display.

    ● 10-point PCAP touch, or Non-touch screen (mouse control).

    ● Processor: Rockchip RK3568, Cortex-A55 Quad-Core, 64 bits, 2.0GHz. (RK3288/RK3399/RK3588 options).

    ● Memory: 2GB (4/8/16/32GB options).

    ● Storage: 32GB (64/128/256GB options).

    ● OS: Android 12/14, Linux 5.10, Ubuntu 20.04/22.04, Debian 11 options.

    ● IP65 is dust-proof and waterproof for the front panel.

    ● 3mm thin front bezel, good for embedded into a cabinet.

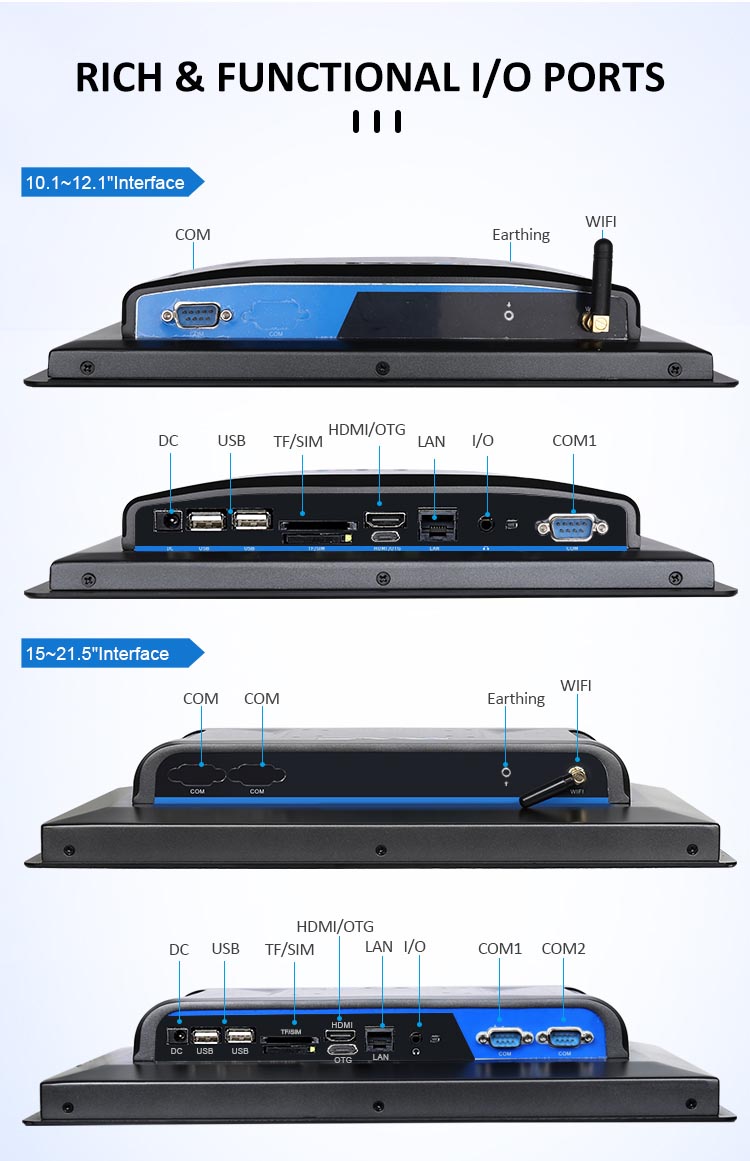

    ● Support I/O expansion for different peripheral equipment.

    ● Aluminum alloy material enclosure, good oxidation resistance, and heat dissipation performance.

    ● 7/24 hours uninterrupted operation, support plug-and-play, watchdog function.

    ● Three-year warranty.



    .

    12 Inch Industrial Android Tablet Human Machine Interactive System

    12 Inch Industrial Android Tablet Human Machine Interactive System

    12 Inch Industrial Android Tablet Human Machine Interactive System

    12 Inch Industrial Android Tablet Human Machine Interactive System







  • Display Parameters
    Size12"
    Resolution1024*768
    Screen Ratio4:3
    Brightness500 nits (Optional high brightness)
    Contrast Ratio1000:1
    Viewing Angle85°/85°/85°/85° (L/R/U/D)
    Backlight typeLED backlight screen, service life ≥ 50000H
    Touch ScreenCapacitive, Resistive, or Non-touch options









    Motherboard Model SelectionJWS64
    JWS3288-IJWS3399-MAIN-LCX3399-ACX3568-ACX3588-ACX-3588-G
    System ArchitectureCPUA64 Quad-Core 1.5GHzRK3288 Quad-Core 1.8GHzRK3399 Six-Core 2.0GHzRK3399 Six-Core 2.0GHzRK3568 Quad-Core 2.0GHzRK3588 Octa-Core 2.1GHzRK3588 Octa-Core 2.1GHz
    Core Architecture Cortex-A53Cortex-A17Dual-Core Cortex-A72 + Quad-Core Cortex-A53Dual-Core Cortex-A72 + Quad-Core Cortex-A53Cortex-A55Quad-Core Cortex-A76 + Quad-Core Cortex-A55Quad-Core Cortex-A76 + Quad-Core Cortex-A55
    GPUMali-T764Mali-T764Mali-T860 MP4Mali-T860 MP4Mali-G52 2EEMali G610 MP4Mali G610 MP4
    Memory (DDR)2GB (8GB optional)2GB (4GB optional)4GB2/4GB2GB (4/8GB optional)4GB (8/32GB optional)8GB (16/32GB optional)
    Storage (eMMC)16GB (32/64GB optional)16GB (32/64/128/256GB optional)32GB (64GB optional)32/64GB (256GB optional)32GB (64/128/256GB optional)64GB (128/256GB optional)64GB (128/256GB optional)
    SATA////Support/1*SATA hard drive port
    Operating SystemAndroid 6.0Android 7.1 / 10.0Android 7.1 / 9.0 / 11 Android 7.1 / 9.0 / 11Android 12/14Android 13.0Android 12
    /Linux 4.4Linux 4.4Linux 4.4Linux 5.10Linux 5.10Linux 5.10
    /Ubuntu 18.04Ubuntu 18.04Ubuntu 18.04Ubuntu 20.04/22.04Ubuntu 20.04/22.04Ubuntu 20.04/22.04
    /Debian10.0Debian10.0Debian 10Debian 11Debian 11Debian 11









    NetworkingEthernet1*10M/100M/1000M adaptive Ethernet1*Gigabit Ethernet + 1*100 Mbit Ethernet2*10M/100M/1000M adaptive Ethernet
    4GOptional. Based on the 4G module selection
    5G//////Support M.2 5G module interface
    WIFI2.4GDual-band 2.4/5GDual-band 2.4/5GDual-band 2.4/5GWIFI6, 2.4GWIFI6, Dual-band 2.4/5GWIFI5/WIFI6 (optional), dual-band 2.4/5G
    BluetoothBT5.0BT5.0BT5.0BT5.0BT5.2BT5.0BT4.2 (WIFI 5) / BT5.0 (WIFI 6)









    Touch FunctionTouch InterfaceUSB/IICUSBUSB/IIC
    I/O PortsUSB1*USB HOST, 1*USB OTG1*USB HOST, 1*USB OTG1*USB HOST, 1*USB OTG1*USB, 1*OTG2*USB3.01*USB, 1*OTG4*USB3.0
    HDMI1*HDMI, up to 4K1*HDMI, up to 4K1*HDMI, up to 4K1*HDMI, up to 4K1*HDMI, up to 4K1*HDMI, up to 4K1*HDMI In+1*HDMI Out, 8K
    LAN1*LAN1*LAN1*LAN1*LAN1*LAN2*LAN2*LAN
    DC1*DC2.11*DC2.11*DC2.11*DC2.11*DC2.11*DC2.11*DC2.1
    COM2*RS232+2*Reserved holes1*RS232+1*Reserved hole
    TF/SIM1* TF/SIM slot1*TF/SIM slot1*TF/SIM slot1*TF/SIM slot1*TF/SIM slot1*TF/SIM slot1*TF/SIM slot
    WiFi Antenna1*WiFi Antenna*11*WiFi Antenna1*WiFi Antenna+1*Reserved hole
    Audio I/O1*3.5mm Earphone Jack
    Reset Button1*UBOOT1*UBOOT1*UBOOT1*UBOOT1*UBOOT1*UBOOT1*UBOOT
    GND1*GND1*GND1*GND1*GND1*GND1*GND1*GND
    MICRO OTG1*MICRO OTG//////
    12P Phoenix Terminal ///1*12P (1*DC+1*RS232+1*RS485+1*TTL+3*GPIO)1*12P Phoenix Terminal (1*DC+1*RS232+1*RS485+1*CAN+3*GPIO)
    I/O Expansion Support









    PowerPower Input12V DC12V DC12-36V DC12-36V DC12-36V DC12-36V DC12-36V DC
    Adapter12V / 4A12V / 4A24V / 2.5A24V / 2.5A24V / 2.5A24V / 2.5A24V / 2.5A



    MechanicalDimension319*257*56.5mm
    EnclosureAluminum alloy housing
    Cooling SystemFanless
    MountingPanel-mount, Embedded, desktop, wall-mounted, VESA75/100mm, open frame, etc.



    Product ReliabilityWorking Temp -10°C ~ 60°C
    Storage Temp -20°C ~ 70°C
    Ambient Humidity 5% - 95% (relative humidity non-condensing)
    IP ratingFront IP65
