Application:
12.1 inch Fanless Touchscreen Panel PCs Android 14 IP65 Full Flat Front Panel12.1 inch Fanless Touchscreen Panel PCs Android 14 IP65 Full Flat Front Panel12.1 inch Fanless Touchscreen Panel PCs Android 14 IP65 Full Flat Front Panel12.1 inch Fanless Touchscreen Panel PCs Android 14 IP65 Full Flat Front Panel12.1 inch Fanless Touchscreen Panel PCs Android 14 IP65 Full Flat Front Panel

12.1 inch Fanless Touchscreen Panel PCs Android 14 IP65 Full Flat Front Panel


Model: JWS121-A2

● Display size: 12.1 inch

● Configuration Options: 2/4/8/16/32GB for RAM, 32/64/128/256GB for storage.

● Multiple Processors Options: RK3568/RK3399/RK3588.

● Flexible OS Support: Android 7.1/9.0/11/12/13/14; Linux 4.4/5.10; Ubuntu 18.04/20.04/22.04; Debian 10/11.


Appearance of the color
Black
Silver
share:
  • Description
  • Parameter
  • Case
  • 12.1 inch Fanless Touchscreen Panel PCs Android 14 IP65 Full Flat Front Panel


    Model: JWS121-A2



    Overview


    Jawest JWS121-A2 is a 12.1-inch fanless touchscreen panel PC with Android 14 and IP65 full flat front panels that stand out as reliable and cutting-edge tools for modern applications. The device combines ruggedness, performance, and advanced features, making it suitable for diverse environments, from industrial automation to retail and healthcare.



    Key Features of the 12.1-inch Fanless Touchscreen Panel PC



    Fanless Design

    The fanless architecture eliminates moving parts, reducing the risk of mechanical failure while ensuring silent operation. This makes these PCs ideal for use in noise-sensitive environments like medical facilities and offices. Additionally, the absence of a fan minimizes dust ingress, further enhancing durability and reliability.



    12.1-inch Touchscreen

    With a medium-sized 12.1-inch display, these panel PCs strike the perfect balance between visibility and compactness. The touchscreen is often capacitive, supporting multi-touch functionality for intuitive operation. This size is particularly well-suited for applications like Human-Machine Interfaces (HMIs), interactive kiosks, and point-of-sale (POS) systems.



    Android 14 OS

    Running on Android 14, these devices benefit from the latest software features, improved performance, and enhanced security. The Android ecosystem allows for compatibility with a vast range of applications, making these panel PCs adaptable to different operational needs. Features like enhanced multitasking, better device management, and AI-driven optimizations elevate the user experience.



    IP65 Full Flat Front Panel

    The IP65 rating guarantees protection against dust and water, ensuring reliable performance in harsh environments. The full flat front panel not only enhances the aesthetic appeal but also simplifies cleaning and maintenance, which is crucial for settings like food processing units or medical facilities.



    Robust Build and Versatility

    These PCs are designed for durability and are often constructed with industrial-grade materials that withstand extreme temperatures, vibrations, and mechanical shocks. Their slim and sleek design enables easy integration into various installations, whether wall-mounted, VESA-mounted, or embedded into machinery.









  • Display Parameters
    Size12.1"
    Resolution1280*800
    Screen Ratio16:10
    Brightness350 nits (Optional high brightness)
    Contrast Ratio1000:1
    Viewing Angle85°/85°/85°/85° (L/R/U/D)
    Backlight typeLED backlight screen, service life ≥ 50000H
    Touch ScreenCapacitive, Resistive, or Non-touch options









    Motherboard Model SelectionJWS64
    JWS3288-IJWS3399-MAIN-LCX3399-ACX3568-ACX3588-ACX-3588-G
    System ArchitectureCPUA64 Quad-Core 1.5GHzRK3288 Quad-Core 1.8GHzRK3399 Six-Core 2.0GHzRK3399 Six-Core 2.0GHzRK3568 Quad-Core 2.0GHzRK3588 Octa-Core 2.1GHzRK3588 Octa-Core 2.1GHz
    Core Architecture Cortex-A53Cortex-A17Dual-Core Cortex-A72 + Quad-Core Cortex-A53Dual-Core Cortex-A72 + Quad-Core Cortex-A53Cortex-A55Quad-Core Cortex-A76 + Quad-Core Cortex-A55Quad-Core Cortex-A76 + Quad-Core Cortex-A55
    GPUMali-T764Mali-T764Mali-T860 MP4Mali-T860 MP4Mali-G52 2EEMali G610 MP4Mali G610 MP4
    Memory (DDR)2GB (8GB optional)2GB (4GB optional)4GB2/4GB2GB (4/8GB optional)4GB (8/32GB optional)8GB (16/32GB optional)
    Storage (eMMC)16GB (32/64GB optional)16GB (32/64/128/256GB optional)32GB (64GB optional)32/64GB (256GB optional)32GB (64/128/256GB optional)64GB (128/256GB optional)64GB (128/256GB optional)
    SATA////Support/1*SATA hard drive port
    Operating SystemAndroid 6.0Android 7.1 / 10.0Android 7.1 / 9.0 / 11 Android 7.1 / 9.0 / 11Android 12/14Android 13.0Android 12
    /Linux 4.4Linux 4.4Linux 4.4Linux 5.10Linux 5.10Linux 5.10
    /Ubuntu 18.04Ubuntu 18.04Ubuntu 18.04Ubuntu 20.04/22.04Ubuntu 20.04/22.04Ubuntu 20.04/22.04
    /Debian10.0Debian10.0Debian 10Debian 11Debian 11Debian 11









    NetworkingEthernet1*10M/100M/1000M adaptive Ethernet1*Gigabit Ethernet + 1*100 Mbit Ethernet2*10M/100M/1000M adaptive Ethernet
    4GOptional. Based on the 4G module selection
    5G//////Support M.2 5G module interface
    WIFI2.4GDual-band 2.4/5GDual-band 2.4/5GDual-band 2.4/5GWIFI6, 2.4GWIFI6, Dual-band 2.4/5GWIFI5/WIFI6 (optional), dual-band 2.4/5G
    BluetoothBT5.0BT5.0BT5.0BT5.0BT5.2BT5.0BT4.2 (WIFI 5) / BT5.0 (WIFI 6)









    Touch FunctionTouch InterfaceUSB/IICUSBUSB/IIC

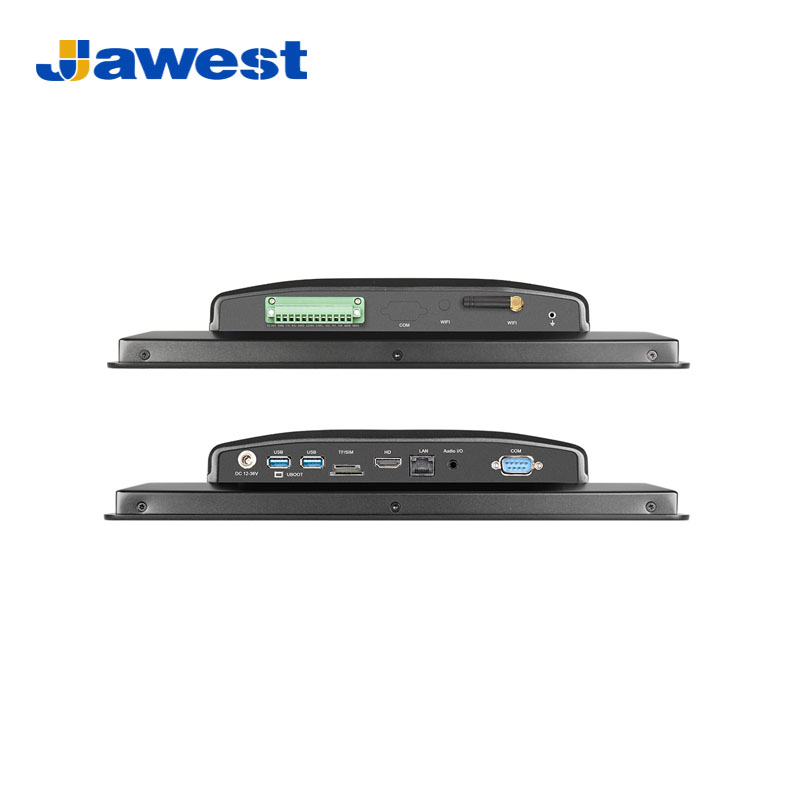

    I/O PortsUSB1*USB HOST, 1*USB OTG1*USB HOST, 1*USB OTG1*USB HOST, 1*USB OTG1*USB, 1*OTG2*USB3.01*USB, 1*OTG4*USB3.0
    HDMI1*HDMI, up to 4K1*HDMI, up to 4K1*HDMI, up to 4K1*HDMI, up to 4K1*HDMI, up to 4K1*HDMI, up to 4K1*HDMI In+1*HDMI Out, 8K
    LAN1*LAN1*LAN1*LAN1*LAN1*LAN2*LAN2*LAN
    DC1*DC2.11*DC2.11*DC2.11*DC2.11*DC2.11*DC2.11*DC2.1
    COM2*RS232+2*Reserved holes1*RS232+1*Reserved hole
    TF/SIM1* TF/SIM slot1*TF/SIM slot1*TF/SIM slot1*TF/SIM slot1*TF/SIM slot1*TF/SIM slot1*TF/SIM slot
    WiFi Antenna1*WiFi Antenna*11*WiFi Antenna1*WiFi Antenna+1*Reserved hole
    Audio I/O1*3.5mm Earphone Jack
    Reset Button1*UBOOT1*UBOOT1*UBOOT1*UBOOT1*UBOOT1*UBOOT1*UBOOT
    GND1*GND1*GND1*GND1*GND1*GND1*GND1*GND
    MICRO OTG1*MICRO OTG//////
    12P Phoenix Terminal ///1*12P (1*DC+1*RS232+1*RS485+1*TTL+3*GPIO)1*12P Phoenix Terminal (1*DC+1*RS232+1*RS485+1*CAN+3*GPIO)
    I/O Expansion Support









    PowerPower Input12V DC12V DC12-36V DC12-36V DC12-36V DC12-36V DC12-36V DC
    Adapter12V / 4A12V / 4A24V / 2.5A24V / 2.5A24V / 2.5A24V / 2.5A24V / 2.5A



    MechanicalDimension330*227.3*53.5mm
    EnclosureAluminum alloy housing
    Cooling SystemFanless
    MountingPanel-mount, Embedded, desktop, wall-mounted, VESA75/100mm, open frame, etc.



    Product ReliabilityWorking Temp-10°C ~ 60°C
    Storage Temp-20°C ~ 70°C
    Ambient Humidity5% - 95% (relative humidity non-condensing)
    IP ratingFront IP65
