Model: JWS133-A2
● Display size: 13.3 inch
● Configuration Options: 2/4/8/16/32GB for RAM, 32/64/128/256GB for storage.
● Multiple Processors Options: RK3568/RK3399/RK3588.
● Flexible OS Support: Android 7.1/9.0/11/12/13/14; Linux 4.4/5.10; Ubuntu 18.04/20.04/22.04; Debian 10/11.
13.3-inch Industrial-Strength Touch Panel Computers
Model: JWS133-A2
Overview
JWS133-A2 is a 13.3-inch industrial-strength touch panel computer with Full-HD and supports multi-point projected capacitive touch screens, it is a versatile and reliable solution for a wide range of applications. Its robust design, high-resolution display, and advanced touch technology ensure it meets the needs of modern businesses, whether in industrial automation, healthcare, retail, or transportation. Combining durability with cutting-edge functionality, the device is an excellent investment for organizations seeking efficient and resilient computing solutions.
Key Features of 13.3-Inch Industrial Touch Panel Computers
13.3-Inch Full-HD Display
The 13.3-inch display size provides an excellent balance between portability and screen real estate. With Full-HD resolution (1920x1080 pixels), these touch panel computers deliver crisp visuals, essential for detailed work such as monitoring, analysis, or graphical user interfaces. The high resolution ensures clarity and precision, whether displaying data dashboards or multimedia content.
Projected Capacitive Multi-Point Touch Screen
The multi-point projected capacitive (PCAP) touch technology supports multiple simultaneous touch points, enabling intuitive gestures like pinch-to-zoom, swipe, and drag. This technology is highly responsive, ensuring smooth interaction with the screen even in challenging conditions, such as when wearing gloves or in environments with high humidity.
Industrial-Strength Build
Designed for demanding environments, these computers are built with rugged materials capable of withstanding extreme conditions, such as temperature fluctuations, vibrations, and mechanical shocks. Their robust design ensures reliability and longevity, reducing downtime and maintenance costs.
Versatile Mounting and Integration
The slim and compact design of these devices allows for flexible installation options. They can be wall-mounted, panel-mounted, or integrated into machinery using VESA or custom mounts, adapting seamlessly to a wide range of applications.
High-Performance Hardware
Equipped with powerful processors, ample memory, and versatile connectivity options, these touch panel computers can handle demanding tasks with ease. They often include multiple I/O ports, wireless connectivity, and expandable storage, ensuring they meet diverse operational requirements.
Enhanced Environmental Resistance
Many of these devices feature high IP ratings (e.g., IP65 or higher), providing protection against dust, water, and other environmental hazards. This makes them suitable for outdoor installations or use in harsh industrial settings.
Display Parameters | Size | 13.3" | ||||||
Resolution | 1920*1080 | |||||||
Screen Ratio | 16:9 | |||||||
Brightness | 220~300 nits (Optional high brightness) | |||||||
Contrast Ratio | 1000:1 | |||||||
Viewing Angle | 85°/85°/85°/85° (L/R/U/D) | |||||||
Backlight type | LED backlight screen, service life ≥ 50000H | |||||||
Touch Screen | Capacitive, Resistive, or Non-touch options | |||||||
Motherboard Model Selection | JWS64 | JWS3288-I | JWS3399-MAIN-L | CX3399-A | CX3568-A | CX3588-A | CX-3588-G | |
System Architecture | CPU | A64 Quad-Core 1.5GHz | RK3288 Quad-Core 1.8GHz | RK3399 Six-Core 2.0GHz | RK3399 Six-Core 2.0GHz | RK3568 Quad-Core 2.0GHz | RK3588 Octa-Core 2.1GHz | RK3588 Octa-Core 2.1GHz |
Core Architecture | Cortex-A53 | Cortex-A17 | Dual-Core Cortex-A72 + Quad-Core Cortex-A53 | Dual-Core Cortex-A72 + Quad-Core Cortex-A53 | Cortex-A55 | Quad-Core Cortex-A76 + Quad-Core Cortex-A55 | Quad-Core Cortex-A76 + Quad-Core Cortex-A55 | |
GPU | Mali-T764 | Mali-T764 | Mali-T860 MP4 | Mali-T860 MP4 | Mali-G52 2EE | Mali G610 MP4 | Mali G610 MP4 | |
Memory (DDR) | 2GB (8GB optional) | 2GB (4GB optional) | 4GB | 2/4GB | 2GB (4/8GB optional) | 4GB (8/32GB optional) | 8GB (16/32GB optional) | |
Storage (eMMC) | 16GB (32/64GB optional) | 16GB (32/64/128/256GB optional) | 32GB (64GB optional) | 32/64GB (256GB optional) | 32GB (64/128/256GB optional) | 64GB (128/256GB optional) | 64GB (128/256GB optional) | |
SATA | / | / | / | / | Support | / | 1*SATA hard drive port | |
Operating System | Android 6.0 | Android 7.1 / 10.0 | Android 7.1 / 9.0 / 11 | Android 7.1 / 9.0 / 11 | Android 12/14 | Android 13.0 | Android 12 | |
/ | Linux 4.4 | Linux 4.4 | Linux 4.4 | Linux 5.10 | Linux 5.10 | Linux 5.10 | ||
/ | Ubuntu 18.04 | Ubuntu 18.04 | Ubuntu 18.04 | Ubuntu 20.04/22.04 | Ubuntu 20.04/22.04 | Ubuntu 20.04/22.04 | ||
/ | Debian10.0 | Debian10.0 | Debian 10 | Debian 11 | Debian 11 | Debian 11 | ||
Networking | Ethernet | 1*10M/100M/1000M adaptive Ethernet | 1*Gigabit Ethernet + 1*100 Mbit Ethernet | 2*10M/100M/1000M adaptive Ethernet | ||||
4G | Optional. Based on the 4G module selection | |||||||
5G | / | / | / | / | / | / | Support M.2 5G module interface | |
WIFI | 2.4G | Dual-band 2.4/5G | Dual-band 2.4/5G | Dual-band 2.4/5G | WIFI6, 2.4G | WIFI6, Dual-band 2.4/5G | WIFI5/WIFI6 (optional), dual-band 2.4/5G | |
Bluetooth | BT5.0 | BT5.0 | BT5.0 | BT5.0 | BT5.2 | BT5.0 | BT4.2 (WIFI 5) / BT5.0 (WIFI 6) | |
Touch Function | Touch Interface | USB/IIC | USB | USB/IIC | ||||

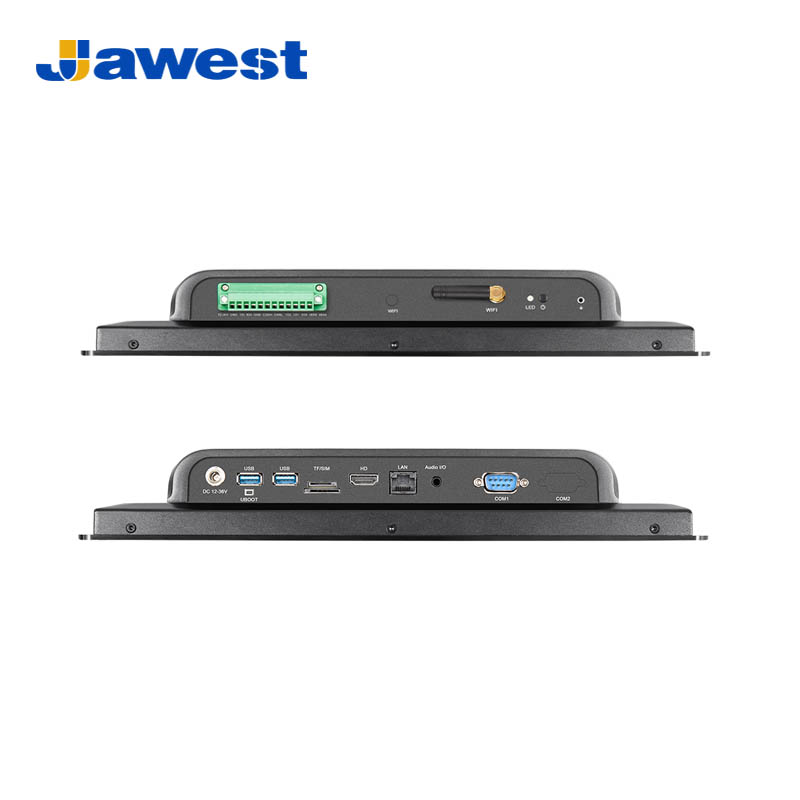

I/O Ports | USB | 1*USB HOST, 1*USB OTG | 1*USB HOST, 1*USB OTG | 1*USB HOST, 1*USB OTG | 1*USB, 1*OTG | 2*USB3.0 | 1*USB, 1*OTG | 4*USB3.0 |
HDMI | 1*HDMI, up to 4K | 1*HDMI, up to 4K | 1*HDMI, up to 4K | 1*HDMI, up to 4K | 1*HDMI, up to 4K | 1*HDMI, up to 4K | 1*HDMI In+1*HDMI Out, 8K | |
LAN | 1*LAN | 1*LAN | 1*LAN | 1*LAN | 1*LAN | 2*LAN | 2*LAN | |
DC | 1*DC2.1 | 1*DC2.1 | 1*DC2.1 | 1*DC2.1 | 1*DC2.1 | 1*DC2.1 | 1*DC2.1 | |
COM | 2*RS232+2*Reserved holes | 1*RS232+1*Reserved hole | ||||||
TF/SIM | 1* TF/SIM slot | 1*TF/SIM slot | 1*TF/SIM slot | 1*TF/SIM slot | 1*TF/SIM slot | 1*TF/SIM slot | 1*TF/SIM slot | |
WiFi Antenna | 1*WiFi Antenna*1 | 1*WiFi Antenna | 1*WiFi Antenna+1*Reserved hole | |||||
Audio I/O | 1*3.5mm Earphone Jack | |||||||
Reset Button | 1*UBOOT | 1*UBOOT | 1*UBOOT | 1*UBOOT | 1*UBOOT | 1*UBOOT | 1*UBOOT | |
GND | 1*GND | 1*GND | 1*GND | 1*GND | 1*GND | 1*GND | 1*GND | |
MICRO OTG | 1*MICRO OTG | / | / | / | / | / | / | |
12P Phoenix Terminal | / | / | / | 1*12P (1*DC+1*RS232+1*RS485+1*TTL+3*GPIO) | 1*12P Phoenix Terminal (1*DC+1*RS232+1*RS485+1*CAN+3*GPIO) | |||
I/O Expansion | Support | |||||||
Power | Power Input | 12V DC | 12V DC | 12-36V DC | 12-36V DC | 12-36V DC | 12-36V DC | 12-36V DC |
Adapter | 12V / 4A | 12V / 4A | 24V / 2.5A | 24V / 2.5A | 24V / 2.5A | 24V / 2.5A | 24V / 2.5A | |
Mechanical | Dimension | 373.6*245.2*57mm | ||||||
Enclosure | Aluminum alloy housing | |||||||
Cooling System | Fanless | |||||||
Mounting | Panel-mount, Embedded, desktop, wall-mounted, VESA75/100mm, open frame, etc. | |||||||
Product Reliability | Working Temp | -10°C ~ 60°C | ||||||
Storage Temp | -20°C ~ 70°C | |||||||
Ambient Humidity | 5% - 95% (relative humidity non-condensing) | |||||||
IP rating | Front IP65 |
