Application:
17 Inch Android System Tablet PC Industrial Environment Use17 Inch Android System Tablet PC Industrial Environment Use17 Inch Android System Tablet PC Industrial Environment Use17 Inch Android System Tablet PC Industrial Environment Use

17 Inch Android System Tablet PC Industrial Environment Use


Model: JWS170-A2

● Display size: 17 inch.

● Durable and robust aluminum alloy enclosure.

● IP65-rated dustproof and waterproof for the front panel.

● True color flat panel with industrial A / A+ quality.

● Android operating system is available.

● 10 point capacitive touch screen or control by mouse.

● High-performance motherboard, 7/24 operation.

● Embedded, desktop, VESA, panel mount for wide industrial applications.

Appearance of the color
Black
Silver
share:
  • Description
  • Parameter
  • Case
  • 17 inch Android System Tablet PC Industrial Environment Use


    Model: JWS170-A2

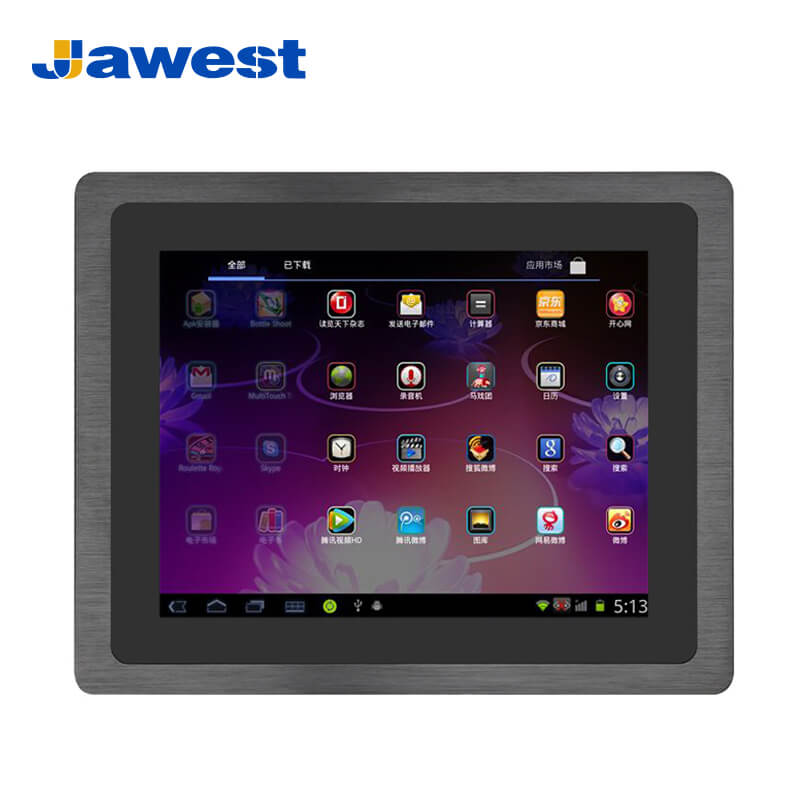

    This Jawest 17-inch industrial-grade Android tablet PC built with an industrial touchscreen monitor is suitable for POS and environment monitoring systems as a human-machine interactive panel.



    Jawest 17" Industrial Tablet Features


    ● 17" 1280x1024 resolution display

    ● Processor: Rockchip RK3568, Cortex-A55 Quad-Core, 64 bits, 2.0GHz. (RK3288/RK3399/RK3588 options)

    ● Memory: 2GB (4/8/16/32GB options).

    ● Storage: 32GB (64/128/256GB options).

    ● OS: Android1214, Linux 5.10, Ubuntu 20.04/22.04, Debian 11 options.

    ● IP65 dust-proof and waterproof for the front panel.

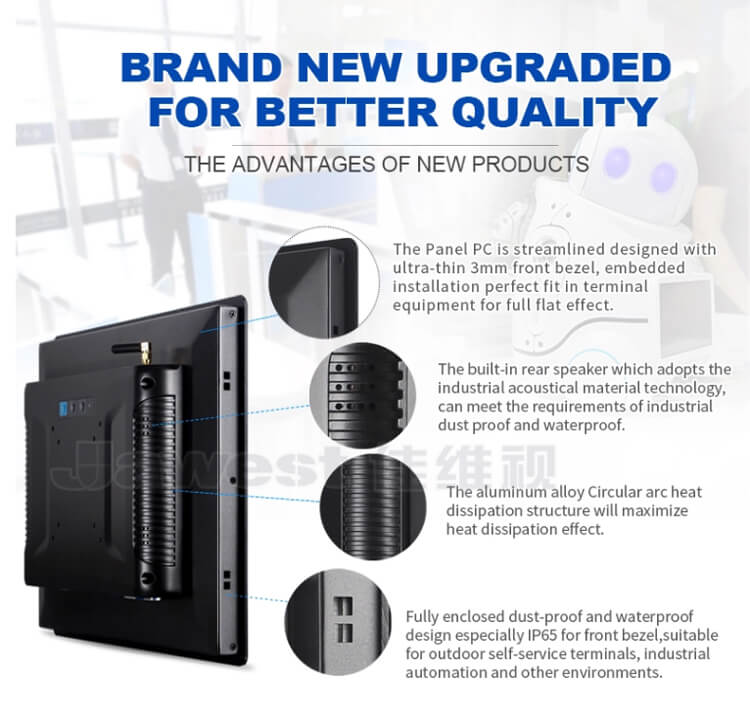

    ● 3mm thin front bezel, good for embedding into the cabinet.

    ● Support I/O expansion for different peripheral equipment.

    ● Aluminum alloy material enclosure, good oxidation resistance, and heat dissipation performance.

    ● 7/24 hours uninterrupted operation, support plug-and-play, watchdog function.

    ● Three-year warranty.




    Android Panel PC For Service Robot 10.4 Inch

    Android Panel PC For Service Robot 10.4 Inch

    Android Panel PC For Service Robot 10.4 Inch

    Android Panel PC For Service Robot 10.4 Inch




  • Display Parameters
    Size17"
    Resolution1280*1024
    Screen Ratio16:9
    Brightness250~300 nits (Optional high brightness)
    Contrast Ratio1000:1
    Viewing Angle85°/85°/80°/70° (L/R/U/D)
    Backlight typeLED backlight screen, service life ≥ 50000H
    Touch ScreenCapacitive, Resistive, or Non-touch options









    Motherboard Model SelectionJWS64
    JWS3288-IJWS3399-MAIN-LCX3399-ACX3568-ACX3588-ACX-3588-G
    System ArchitectureCPUA64 Quad-Core 1.5GHzRK3288 Quad-Core 1.8GHzRK3399 Six-Core 2.0GHzRK3399 Six-Core 2.0GHzRK3568 Quad-Core 2.0GHzRK3588 Octa-Core 2.1GHzRK3588 Octa-Core 2.1GHz
    Core Architecture Cortex-A53Cortex-A17Dual-Core Cortex-A72 + Quad-Core Cortex-A53Dual-Core Cortex-A72 + Quad-Core Cortex-A53Cortex-A55Quad-Core Cortex-A76 + Quad-Core Cortex-A55Quad-Core Cortex-A76 + Quad-Core Cortex-A55
    GPUMali-T764Mali-T764Mali-T860 MP4Mali-T860 MP4Mali-G52 2EEMali G610 MP4Mali G610 MP4
    Memory (DDR)2GB (8GB optional)2GB (4GB optional)4GB2/4GB2GB (4/8GB optional)4GB (8/32GB optional)8GB (16/32GB optional)
    Storage (eMMC)16GB (32/64GB optional)16GB (32/64/128/256GB optional)32GB (64GB optional)32/64GB (256GB optional)32GB (64/128/256GB optional)64GB (128/256GB optional)64GB (128/256GB optional)
    SATA////Support/1*SATA hard drive port
    Operating SystemAndroid 6.0Android 7.1 / 10.0Android 7.1 / 9.0 / 11 Android 7.1 / 9.0 / 11Android 12/14Android 13.0Android 12
    /Linux 4.4Linux 4.4Linux 4.4Linux 5.10Linux 5.10Linux 5.10
    /Ubuntu 18.04Ubuntu 18.04Ubuntu 18.04Ubuntu 20.04/22.04Ubuntu 20.04/22.04Ubuntu 20.04/22.04
    /Debian10.0Debian10.0Debian 10Debian 11Debian 11Debian 11









    NetworkingEthernet1*10M/100M/1000M adaptive Ethernet1*Gigabit Ethernet + 1*100 Mbit Ethernet2*10M/100M/1000M adaptive Ethernet
    4GOptional. Based on the 4G module selection
    5G//////Support M.2 5G module interface
    WIFI2.4GDual-band 2.4/5GDual-band 2.4/5GDual-band 2.4/5GWIFI6, 2.4GWIFI6, Dual-band 2.4/5GWIFI5/WIFI6 (optional), dual-band 2.4/5G
    BluetoothBT5.0BT5.0BT5.0BT5.0BT5.2BT5.0BT4.2 (WIFI 5) / BT5.0 (WIFI 6)









    Touch FunctionTouch InterfaceUSB/IICUSBUSB/IIC

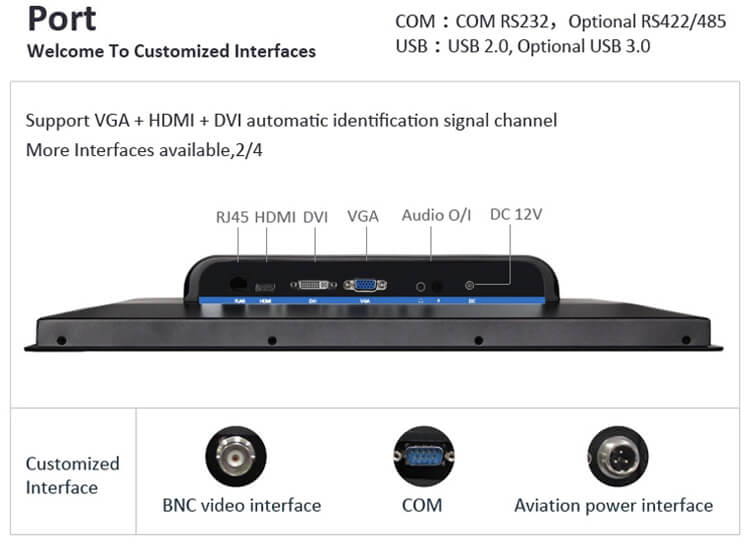

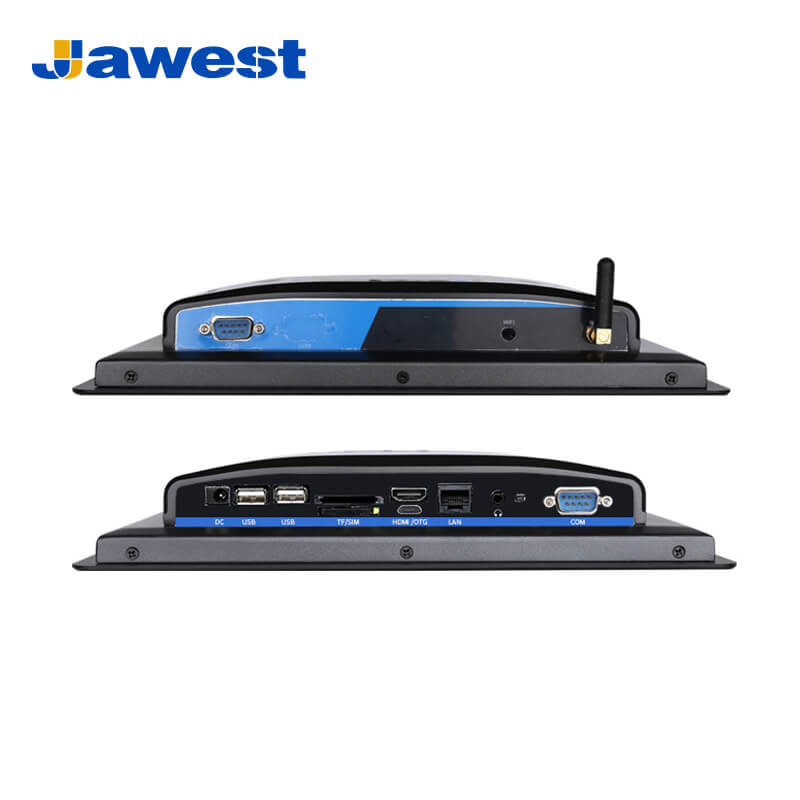

    I/O PortsUSB1*USB HOST, 1*USB OTG1*USB HOST, 1*USB OTG1*USB HOST, 1*USB OTG1*USB, 1*OTG2*USB3.01*USB, 1*OTG4*USB3.0
    HDMI1*HDMI, up to 4K1*HDMI, up to 4K1*HDMI, up to 4K1*HDMI, up to 4K1*HDMI, up to 4K1*HDMI, up to 4K1*HDMI In+1*HDMI Out, 8K
    LAN1*LAN1*LAN1*LAN1*LAN1*LAN2*LAN2*LAN
    DC1*DC2.11*DC2.11*DC2.11*DC2.11*DC2.11*DC2.11*DC2.1
    COM2*RS232+2*Reserved holes1*RS232+1*Reserved hole
    TF/SIM1* TF/SIM slot1*TF/SIM slot1*TF/SIM slot1*TF/SIM slot1*TF/SIM slot1*TF/SIM slot1*TF/SIM slot
    WiFi Antenna1*WiFi Antenna*11*WiFi Antenna1*WiFi Antenna+1*Reserved hole
    Audio I/O1*3.5mm Earphone Jack
    Reset Button1*UBOOT1*UBOOT1*UBOOT1*UBOOT1*UBOOT1*UBOOT1*UBOOT
    GND1*GND1*GND1*GND1*GND1*GND1*GND1*GND
    MICRO OTG1*MICRO OTG//////
    12P Phoenix Terminal ///1*12P (1*DC+1*RS232+1*RS485+1*TTL+3*GPIO)1*12P Phoenix Terminal (1*DC+1*RS232+1*RS485+1*CAN+3*GPIO)
    I/O Expansion Support









    PowerPower Input12V DC12V DC12-36V DC12-36V DC12-36V DC12-36V DC12-36V DC
    Adapter12V / 4A12V / 4A24V / 2.5A24V / 2.5A24V / 2.5A24V / 2.5A24V / 2.5A



    MechanicalDimension414*345*63mm
    EnclosureAluminum alloy housing
    Cooling SystemFanless
    MountingPanel-mount, Embedded, desktop, wall-mounted, VESA75/100mm, open frame, etc.



    Product ReliabilityWorking Temp -10°C ~ 60°C
    Storage Temp -20°C ~ 70°C
    Ambient Humidity 5% - 95% (relative humidity non-condensing)
    IP ratingFront IP65
