17.3 Inch Android Industrial Panel PC With 12~36V Wide Voltage Input RJ45 LAN VGA DVI Interface


Model: JWS173-A2

● Display size: 17.3 inch.

● Flat design, elegant appearance.

● IP65 rating of dustproof and waterproof.

● Multiple installation: embedded / desktop / wall / fold / VESA.

● Ultra-sensitive touch screen, precise positioning, free control.


Appearance of the color
Black
Silver
share:
  • Description
  • Parameter
  • Case
  • 17.3" Industrial Android Panel PC


    Model: JWS173-A2

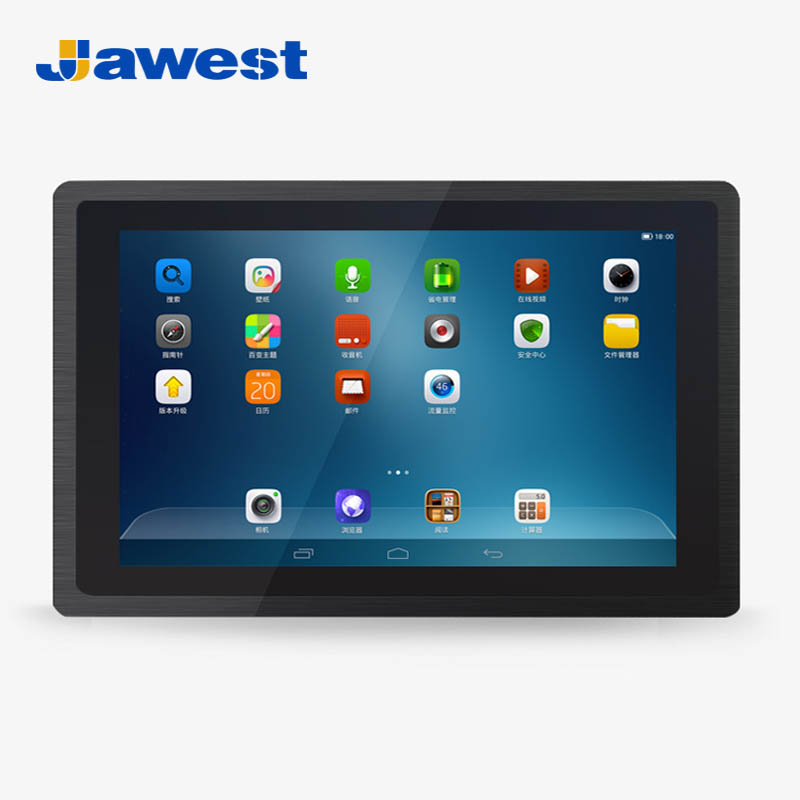

    This 17.3" Android panel PC with a front IP65 rate is designed for use in harsh environments prone to dust and water. With 1920*1080P resolution, providing high-quality, clear images in digital factories. This panel PC supports high brightness screens up to 1500 nits, sunlight-readable for outdoor applications. The industrial tablet PC comes with a variety of options that include multi-system versions, such as Android 7.1 / 9.0 / 11 /12, Linux, Ubuntu, and Debian options, besides, we have other screen sizes from 7" to 23.8" for optional.



    Jawest 17.3" Industrial Tablet PCs Features


    ● 17.3" 1920x1080 resolution display

    ● 10-point PCAP touch, or Non-touch screen (mouse control)

    ● Processor: Rockchip RK3568, Cortex-A55 Quad-Core, 64 bits, 2.0GHz. (RK3288/RK3399/RK3588 options)

    ● Memory: 2GB (4/8/16/32GB options).

    ● Storage: 32GB (64/128/256GB options).

    ● OS: Android 12/14, Linux 5.10, Ubuntu 20.04/22.04, Debian 11 options.

    ● 3mm ultra-thin slim aluminum alloy enclosure.

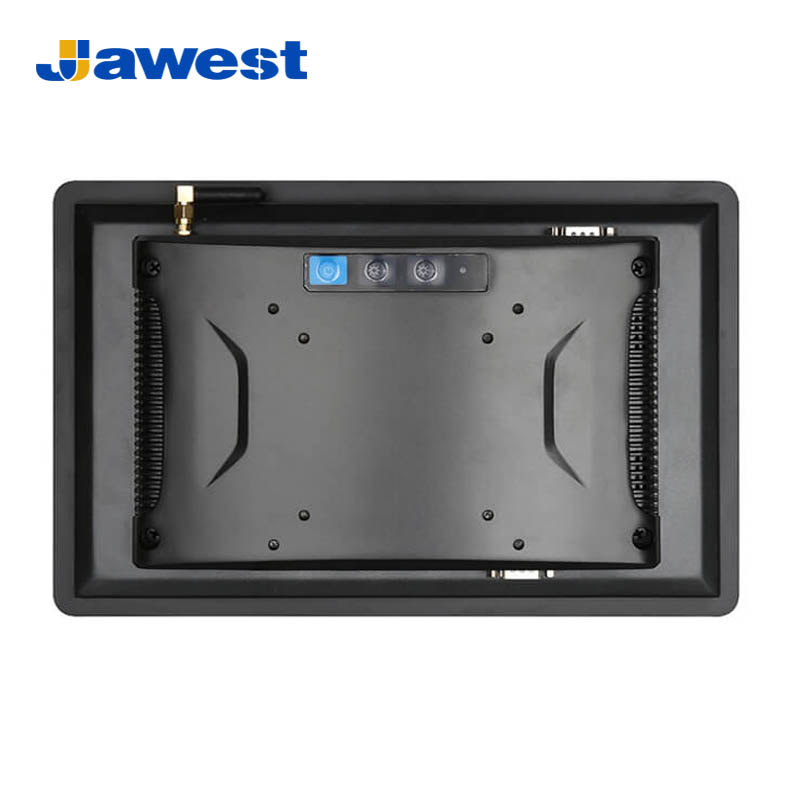

    ● Mounting options: panel mount, embedded, wall-mounted, desktop, VESA 75/100mm, etc.

    ● Screen brightness: 400 Nits (high brightness screen optional).

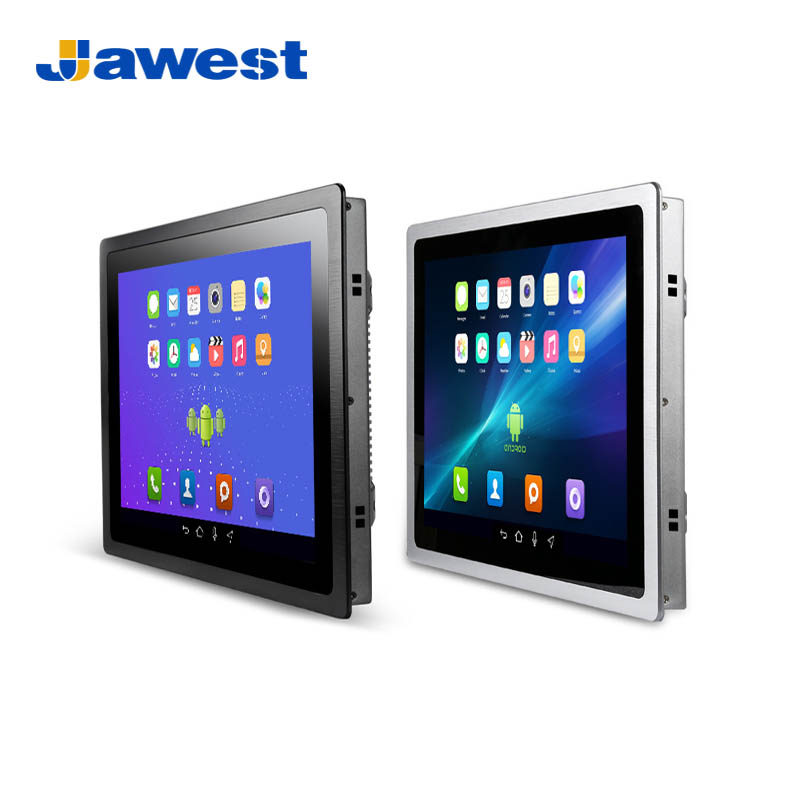

    ● Color: Black or Silver.

    ● Front IP65.

    ● CE certified.

    ● 3-year warranty.







  • Display Parameters
    Size17.3"
    Resolution1920x1080
    Screen Ratio16:9
    Brightness400 nits (Optional high brightness)
    Contrast Ratio600:1
    Viewing Angle80°/80°/60°/80° (L/R/U/D)
    Backlight typeLED backlight screen, service life ≥ 50000H
    Touch ScreenCapacitive, Resistive, or Non-touch options









    Motherboard Model SelectionJWS64
    JWS3288-IJWS3399-MAIN-LCX3399-ACX3568-ACX3588-ACX-3588-G
    System ArchitectureCPUA64 Quad-Core 1.5GHzRK3288 Quad-Core 1.8GHzRK3399 Six-Core 2.0GHzRK3399 Six-Core 2.0GHzRK3568 Quad-Core 2.0GHzRK3588 Octa-Core 2.1GHzRK3588 Octa-Core 2.1GHz
    Core Architecture Cortex-A53Cortex-A17Dual-Core Cortex-A72 + Quad-Core Cortex-A53Dual-Core Cortex-A72 + Quad-Core Cortex-A53Cortex-A55Quad-Core Cortex-A76 + Quad-Core Cortex-A55Quad-Core Cortex-A76 + Quad-Core Cortex-A55
    GPUMali-T764Mali-T764Mali-T860 MP4Mali-T860 MP4Mali-G52 2EEMali G610 MP4Mali G610 MP4
    Memory (DDR)2GB (8GB optional)2GB (4GB optional)4GB2/4GB2GB (4/8GB optional)4GB (8/32GB optional)8GB (16/32GB optional)
    Storage (eMMC)16GB (32/64GB optional)16GB (32/64/128/256GB optional)32GB (64GB optional)32/64GB (256GB optional)32GB (64/128/256GB optional)64GB (128/256GB optional)64GB (128/256GB optional)
    SATA////Support/1*SATA hard drive port
    Operating SystemAndroid 6.0Android 7.1 / 10.0Android 7.1 / 9.0 / 11 Android 7.1 / 9.0 / 11Android 12/14Android 13.0Android 12
    /Linux 4.4Linux 4.4Linux 4.4Linux 5.10Linux 5.10Linux 5.10
    /Ubuntu 18.04Ubuntu 18.04Ubuntu 18.04Ubuntu 20.04/22.04Ubuntu 20.04/22.04Ubuntu 20.04/22.04
    /Debian10.0Debian10.0Debian 10Debian 11Debian 11Debian 11









    NetworkingEthernet1*10M/100M/1000M adaptive Ethernet1*Gigabit Ethernet + 1*100 Mbit Ethernet2*10M/100M/1000M adaptive Ethernet
    4GOptional. Based on the 4G module selection
    5G//////Support M.2 5G module interface
    WIFI2.4GDual-band 2.4/5GDual-band 2.4/5GDual-band 2.4/5GWIFI6, 2.4GWIFI6, Dual-band 2.4/5GWIFI5/WIFI6 (optional), dual-band 2.4/5G
    BluetoothBT5.0BT5.0BT5.0BT5.0BT5.2BT5.0BT4.2 (WIFI 5) / BT5.0 (WIFI 6)









    Touch FunctionTouch InterfaceUSB/IICUSBUSB/IIC

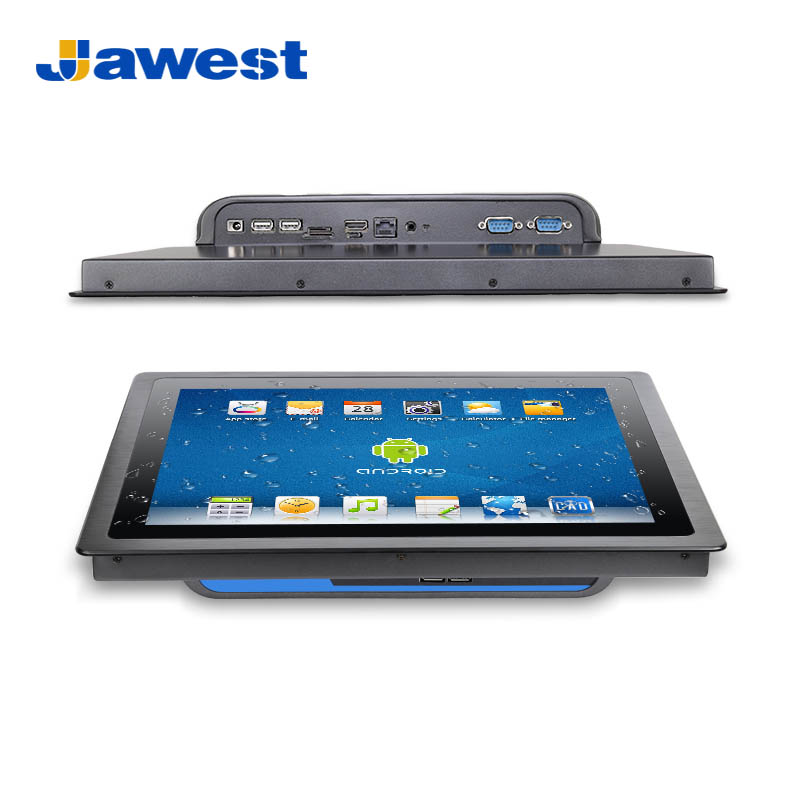

    I/O PortsUSB1*USB HOST, 1*USB OTG1*USB HOST, 1*USB OTG1*USB HOST, 1*USB OTG1*USB, 1*OTG2*USB3.01*USB, 1*OTG4*USB3.0
    HDMI1*HDMI, up to 4K1*HDMI, up to 4K1*HDMI, up to 4K1*HDMI, up to 4K1*HDMI, up to 4K1*HDMI, up to 4K1*HDMI In+1*HDMI Out, 8K
    LAN1*LAN1*LAN1*LAN1*LAN1*LAN2*LAN2*LAN
    DC1*DC2.11*DC2.11*DC2.11*DC2.11*DC2.11*DC2.11*DC2.1
    COM2*RS232+2*Reserved holes1*RS232+1*Reserved hole
    TF/SIM1* TF/SIM slot1*TF/SIM slot1*TF/SIM slot1*TF/SIM slot1*TF/SIM slot1*TF/SIM slot1*TF/SIM slot
    WiFi Antenna1*WiFi Antenna*11*WiFi Antenna1*WiFi Antenna+1*Reserved hole
    Audio I/O1*3.5mm Earphone Jack
    Reset Button1*UBOOT1*UBOOT1*UBOOT1*UBOOT1*UBOOT1*UBOOT1*UBOOT
    GND1*GND1*GND1*GND1*GND1*GND1*GND1*GND
    MICRO OTG1*MICRO OTG//////
    12P Phoenix Terminal ///1*12P (1*DC+1*RS232+1*RS485+1*TTL+3*GPIO)1*12P Phoenix Terminal (1*DC+1*RS232+1*RS485+1*CAN+3*GPIO)
    I/O Expansion Support









    PowerPower Input12V DC12V DC12-36V DC12-36V DC12-36V DC12-36V DC12-36V DC
    Adapter12V / 4A12V / 4A24V / 2.5A24V / 2.5A24V / 2.5A24V / 2.5A24V / 2.5A



    MechanicalDimension459*291*62mm
    EnclosureAluminum alloy housing
    Cooling SystemFanless
    MountingPanel-mount, Embedded, desktop, wall-mounted, VESA75/100mm, open frame, etc.



    Product ReliabilityWorking Temp -10°C ~ 60°C
    Storage Temp -20°C ~ 70°C
    Ambient Humidity 5% - 95% (relative humidity non-condensing)
    IP ratingFront IP65
