Application:
Waterproof Android Panel PC For Kiosks and Service Robot 10.4 InchWaterproof Android Panel PC For Kiosks and Service Robot 10.4 InchWaterproof Android Panel PC For Kiosks and Service Robot 10.4 InchWaterproof Android Panel PC For Kiosks and Service Robot 10.4 Inch

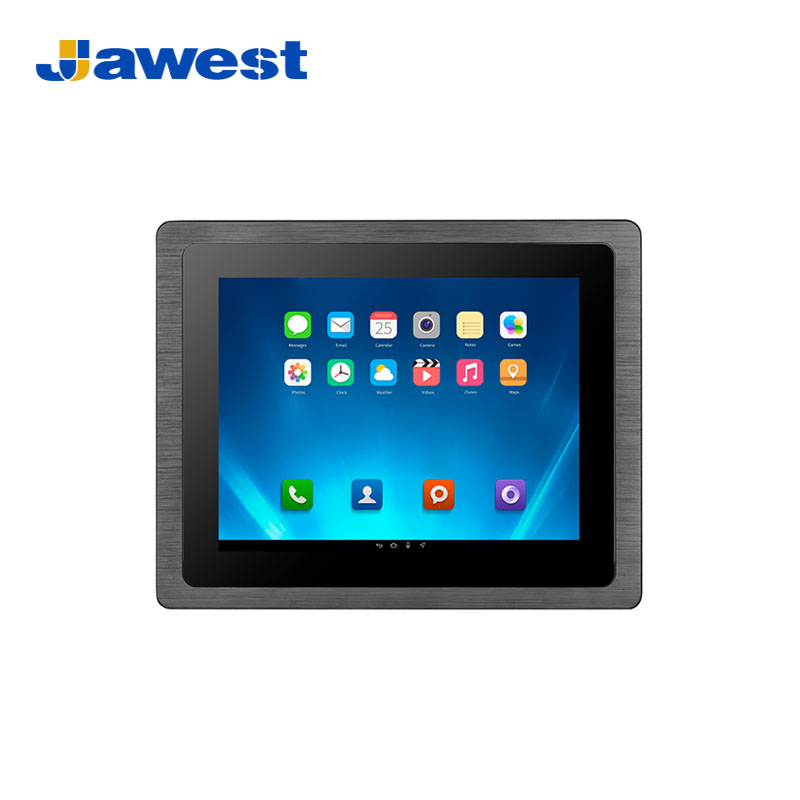

Waterproof Android Panel PC For Kiosks and Service Robot 10.4 Inch


Model: JWS104-A2

● Display size: 10.4 inch.

● Flat design, elegant appearance.

● IP65 rating of dustproof and waterproof.

● Multiple installations: panel-mount/embedded/desktop/wall-hanging/open frame.

● Ultra-sensitive touch screen, precise positioning, free control.

Appearance of the color
Black
Silver
share:
Download:
  • Description
  • Parameter
  • Case
  • 10.4 Inch Android Panel PC For Service Robot


    Model: JWS104-A2


    Jawest 10.4" industrial tablet PC with Android operating system and the 3mm thin front bezel is suitable for embedding in other devices, like service robots, power distribution cabinets, commercial terminal devices, control rooms, etc. Ten-point capacitive touch screens or mouse-controlled are available for different applications.



    Jawest 10.4" Industrial Tablet Features


    ● Large 10.4" Display: Enjoy ample screen real estate for displaying crucial data, graphics, and applications.

    ● Android Operating System: Seamlessly integrate into your existing ecosystem with the versatile Android OS, offering familiarity and flexibility.

    ● Industrial-Grade Construction: Built to withstand demanding industrial environments, ensuring durability and reliability even in harsh conditions.

    ● Touchscreen Interface: Navigate and interact with the device effortlessly through the intuitive touchscreen interface, enhancing user experience and efficiency.

    ● Rugged Design: Designed to endure vibrations, shocks, and extreme temperatures, making it suitable for a wide range of industrial applications.

    ● Enhanced Connectivity: Stay connected with a variety of connectivity options such as Wi-Fi, Bluetooth, Ethernet, USB, and serial ports, enabling seamless data transfer and communication.


    ● Mounting Flexibility: Versatile mounting options including VESA mount compatibility, allowing for easy installation in various environments.

    ● Customization Options: Tailor the device to suit your specific requirements with customizable features such as additional ports, expansion slots, and accessories.







  • Display Parameters
    Size10.4"
    Resolution1024*768
    Screen Ratio4:3
    Brightness400 nits (Optional high brightness)
    Contrast Ratio1000:1
    Viewing Angle80°/80°/80°/80° (L/R/U/D)
    Backlight typeLED backlight screen, service life ≥ 50000H
    Touch ScreenCapacitive, Resistive, or Non-touch options









    Motherboard Model SelectionJWS64
    JWS3288-IJWS3399-MAIN-LCX3399-ACX3568-ACX3588-ACX-3588-G
    System ArchitectureCPUA64 Quad-Core 1.5GHzRK3288 Quad-Core 1.8GHzRK3399 Six-Core 2.0GHzRK3399 Six-Core 2.0GHzRK3568 Quad-Core 2.0GHzRK3588 Octa-Core 2.1GHzRK3588 Octa-Core 2.1GHz
    Core Architecture Cortex-A53Cortex-A17Dual-Core Cortex-A72 + Quad-Core Cortex-A53Dual-Core Cortex-A72 + Quad-Core Cortex-A53Cortex-A55Quad-Core Cortex-A76 + Quad-Core Cortex-A55Quad-Core Cortex-A76 + Quad-Core Cortex-A55
    GPUMali-T764Mali-T764Mali-T860 MP4Mali-T860 MP4Mali-G52 2EEMali G610 MP4Mali G610 MP4
    Memory (DDR)2GB (8GB optional)2GB (4GB optional)4GB2/4GB2GB (4/8GB optional)4GB (8/32GB optional)8GB (16/32GB optional)
    Storage (eMMC)16GB (32/64GB optional)16GB (32/64/128/256GB optional)32GB (64GB optional)32/64GB (256GB optional)32GB (64/128/256GB optional)64GB (128/256GB optional)64GB (128/256GB optional)
    SATA////Support/1*SATA hard drive port
    Operating SystemAndroid 6.0Android 7.1 / 10.0Android 7.1 / 9.0 / 11 Android 7.1 / 9.0 / 11Android 12/14Android 13.0Android 12
    /Linux 4.4Linux 4.4Linux 4.4Linux 5.10Linux 5.10Linux 5.10
    /Ubuntu 18.04Ubuntu 18.04Ubuntu 18.04Ubuntu 20.04/22.04Ubuntu 20.04/22.04Ubuntu 20.04/22.04
    /Debian10.0Debian10.0Debian 10Debian 11Debian 11Debian 11









    NetworkingEthernet1*10M/100M/1000M adaptive Ethernet1*Gigabit Ethernet + 1*100 Mbit Ethernet2*10M/100M/1000M adaptive Ethernet
    4GOptional. Based on the 4G module selection
    5G//////Support M.2 5G module interface
    WIFI2.4GDual-band 2.4/5GDual-band 2.4/5GDual-band 2.4/5GWIFI6, 2.4GWIFI6, Dual-band 2.4/5GWIFI5/WIFI6 (optional), dual-band 2.4/5G
    BluetoothBT5.0BT5.0BT5.0BT5.0BT5.2BT5.0BT4.2 (WIFI 5) / BT5.0 (WIFI 6)









    Touch FunctionTouch InterfaceUSB/IICUSBUSB/IIC

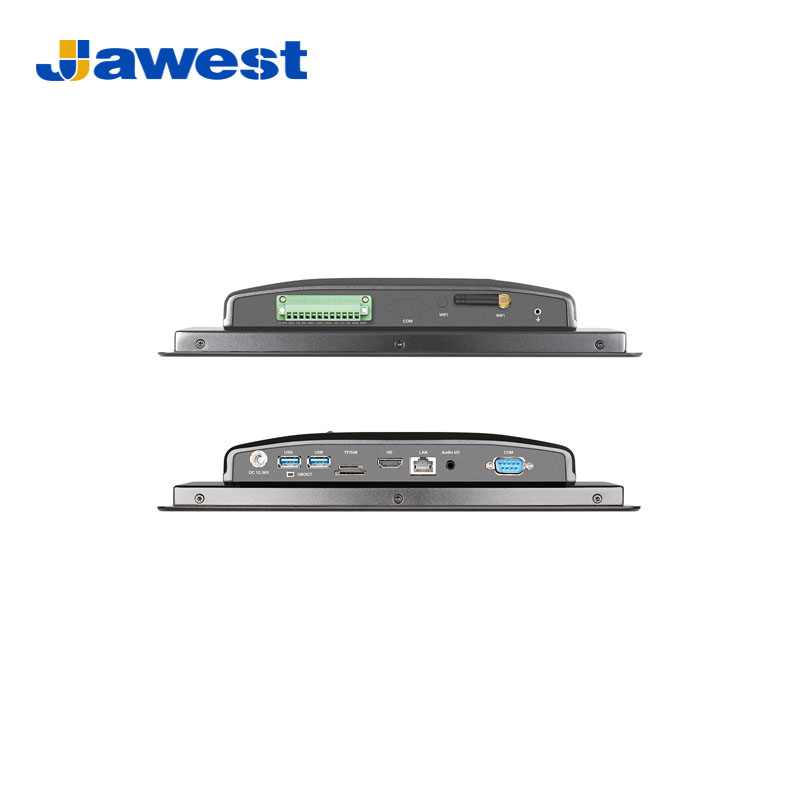

    I/O PortsUSB1*USB HOST, 1*USB OTG1*USB HOST, 1*USB OTG1*USB HOST, 1*USB OTG1*USB, 1*OTG2*USB3.01*USB, 1*OTG4*USB3.0
    HDMI1*HDMI, up to 4K1*HDMI, up to 4K1*HDMI, up to 4K1*HDMI, up to 4K1*HDMI, up to 4K1*HDMI, up to 4K1*HDMI In+1*HDMI Out, 8K
    LAN1*LAN1*LAN1*LAN1*LAN1*LAN2*LAN2*LAN
    DC1*DC2.11*DC2.11*DC2.11*DC2.11*DC2.11*DC2.11*DC2.1
    COM2*RS232+2*Reserved holes1*RS232+1*Reserved hole
    TF/SIM1* TF/SIM slot1*TF/SIM slot1*TF/SIM slot1*TF/SIM slot1*TF/SIM slot1*TF/SIM slot1*TF/SIM slot
    WiFi Antenna1*WiFi Antenna*11*WiFi Antenna1*WiFi Antenna+1*Reserved hole
    Audio I/O1*3.5mm Earphone Jack
    Reset Button1*UBOOT1*UBOOT1*UBOOT1*UBOOT1*UBOOT1*UBOOT1*UBOOT
    GND1*GND1*GND1*GND1*GND1*GND1*GND1*GND
    MICRO OTG1*MICRO OTG//////
    12P Phoenix Terminal ///1*12P (1*DC+1*RS232+1*RS485+1*TTL+3*GPIO)1*12P Phoenix Terminal (1*DC+1*RS232+1*RS485+1*CAN+3*GPIO)
    I/O Expansion Support









    PowerPower Input12V DC12V DC12-36V DC12-36V DC12-36V DC12-36V DC12-36V DC
    Adapter12V / 4A12V / 4A24V / 2.5A24V / 2.5A24V / 2.5A24V / 2.5A24V / 2.5A

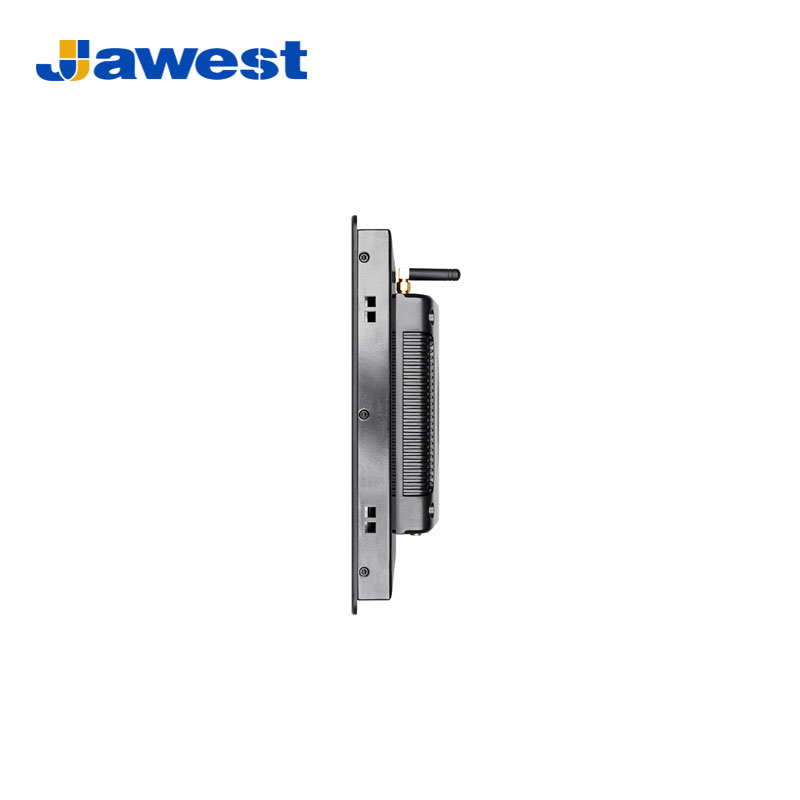

    MechanicalDimension288*231*50.5mm
    EnclosureAluminum alloy housing
    Cooling SystemFanless

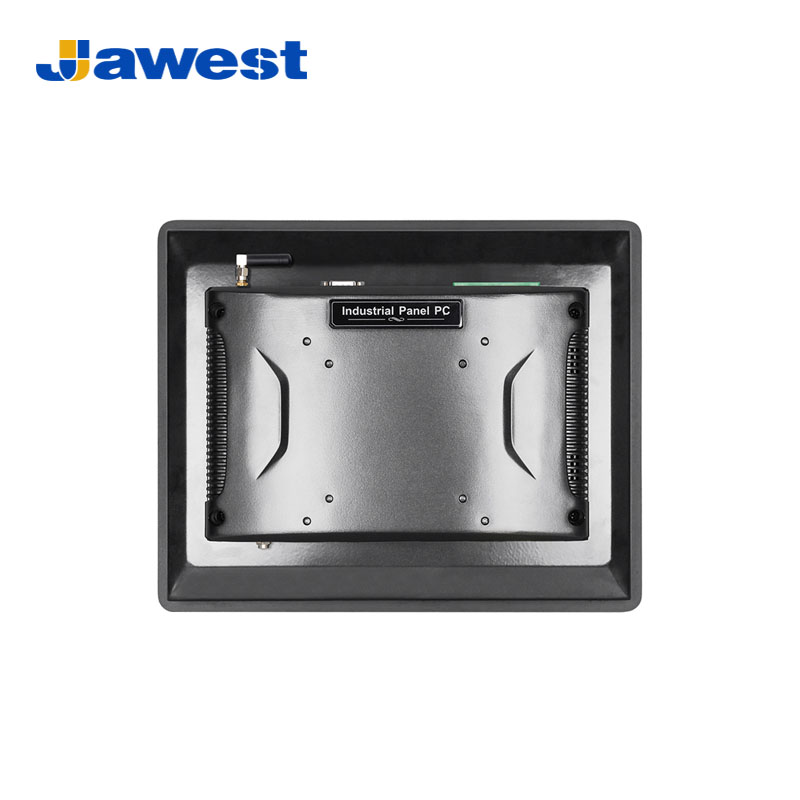

    MountingPanel-mount, Embedded, desktop, wall-mounted, VESA75/100mm, open frame, etc.



    Product ReliabilityWorking Temp -10°C ~ 60°C
    Storage Temp -20°C ~ 70°C
    Ambient Humidity 5% - 95% (relative humidity non-condensing)
    IP ratingFront IP65
