PoE Touch Screen Panel PC Computer 8 Inch


Model: JWS080-A-QD

● Display size: 8 inch

● True flat panel design, IP65 dustproof, and waterproof

● Flexible Android operating system

Multiple installations: embedded / desktop / wall-hanging / VESA / open frame options

● Ultra-sensitive touch screen, precise positioning, free control

● Support multi-function module customization.

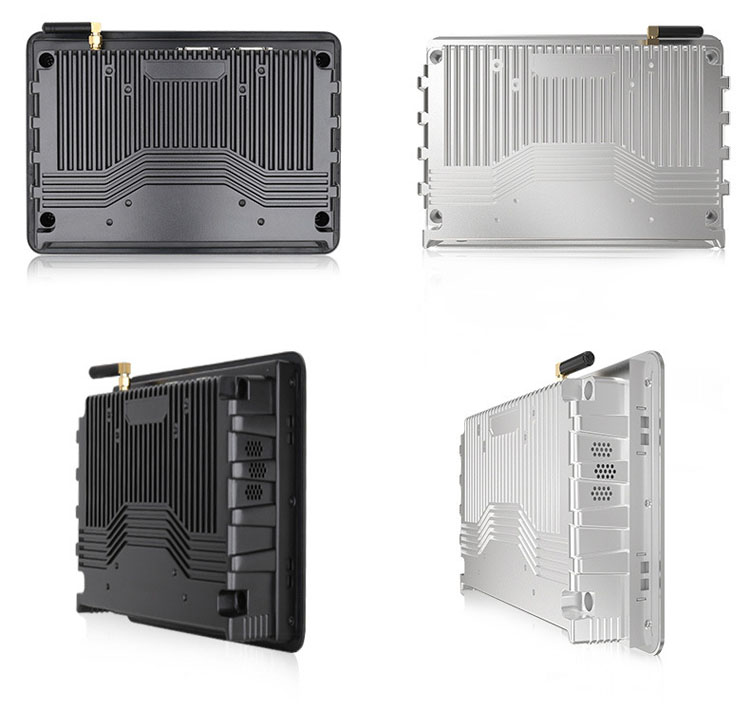

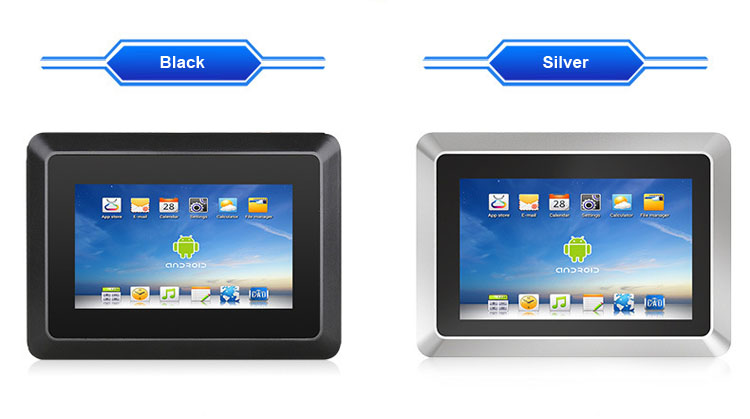

Appearance of the color
Black
Silver
share:
Download:
  • Description
  • Parameter
  • Case
  • PoE Touch Screen Panel PC Computer 8 Inch


    Model: JWS080-A-QD


    Jawest small size 8-inch industrial-grade PoE tablet PC with capacitive touch screen for HMI projects. These industrial tablet PCs are quite suitable for the Internet of Things (IoT), HVAC control, smart home, building automation, access control, smart security, interactive systems, and interactive patient room information displays.



    Jawest 8 Inch Industrial Tablet PC Features


    ● Processor: Rockchip RK3568, Cortex-A55 Quad-Core, 64 bits, 2.0GHz. (RK3288/RK3399/RK3588 options).

    ● Memory: 2GB (4/8GB options).

    ● Storage: 32GB (64/128/256GB options).

    ● OS: Android12 / Linux 5.10 / Ubuntu 20.04 / Debian 11 options.

    ● Display panel up to IP65 dust and waterproof

    ● 7/24 uninterrupted operation in harsh environment

    ● Aluminum alloy construction designed for harsh and industrial environments

    ● Supports embedded, panel, wall, and VESA arm mounting

    ● Support I/O expansion

    ● Customer service and sales support

    ● Three-year warranty



    PoE Touch Screen Panel PC Computer 8 Inch

    PoE Touch Screen Panel PC Computer 8 Inch

    PoE Touch Screen Panel PC Computer 8 Inch






  • Display Parameters
    Size8"
    Resolution1024*768
    Screen Ratio4:3
    Brightness250~300 nits (Optional high brightness)
    Contrast Ratio800:1
    Viewing Angle85°/85°/85°/85° (L/R/U/D)
    Backlight typeLED backlight screen, service life ≥ 50000H
    Touch ScreenCapacitive, Resistive, or Non-touch options









    Motherboard Model SelectionJWS64
    JWS3288-IJWS3399-MAIN-LCX3399-ACX3568-ACX3588-ACX-3588-G
    System ArchitectureCPUA64 Quad-Core 1.5GHzRK3288 Quad-Core 1.8GHzRK3399 Six-Core 2.0GHzRK3399 Six-Core 2.0GHzRK3568 Quad-Core 2.0GHzRK3588 Octa-Core 2.1GHzRK3588 Octa-Core 2.1GHz
    Core Architecture Cortex-A53Cortex-A17Dual-Core Cortex-A72 + Quad-Core Cortex-A53Dual-Core Cortex-A72 + Quad-Core Cortex-A53Cortex-A55Quad-Core Cortex-A76 + Quad-Core Cortex-A55Quad-Core Cortex-A76 + Quad-Core Cortex-A55
    GPUMali-T764Mali-T764Mali-T860 MP4Mali-T860 MP4Mali-G52 2EEMali G610 MP4Mali G610 MP4
    Memory (DDR)2GB (8GB optional)2GB (4GB optional)4GB2/4GB2GB (4/8GB optional)4GB (8/32GB optional)8GB (16/32GB optional)
    Storage (eMMC)16GB (32/64GB optional)16GB (32/64/128/256GB optional)32GB (64GB optional)32/64GB (256GB optional)32GB (64/128/256GB optional)64GB (128/256GB optional)64GB (128/256GB optional)
    SATA////Support/1*SATA hard drive port
    Operating SystemAndroid 6.0Android 7.1 / 10.0Android 7.1 / 9.0 / 11 Android 7.1 / 9.0 / 11Android 12Android 13.0Android 12
    /Linux 4.4Linux 4.4Linux 4.4Linux 5.10/Linux 5.10
    /Ubuntu 18.04Ubuntu 18.04Ubuntu 18.04Ubuntu 20.04/Ubuntu 20.04
    /Debian10.0Debian10.0Debian 10Debian 11/Debian 11









    NetworkingEthernet1*10M/100M/1000M adaptive Ethernet1*Gigabit Ethernet + 1*100 Mbit Ethernet2*10M/100M/1000M adaptive Ethernet
    4GOptional. Based on the 4G module selection
    5G//////Support M.2 5G module interface
    WIFI2.4GDual-band 2.4/5GDual-band 2.4/5GDual-band 2.4/5GWIFI6, 2.4GWIFI6, Dual-band 2.4/5GWIFI5/WIFI6 (optional), dual-band 2.4/5G
    BluetoothBT5.0BT5.0BT5.0BT5.0BT5.2BT5.0BT4.2 (WIFI 5) / BT5.0 (WIFI 6)









    Touch FunctionTouch InterfaceUSB/IICUSBUSB/IIC

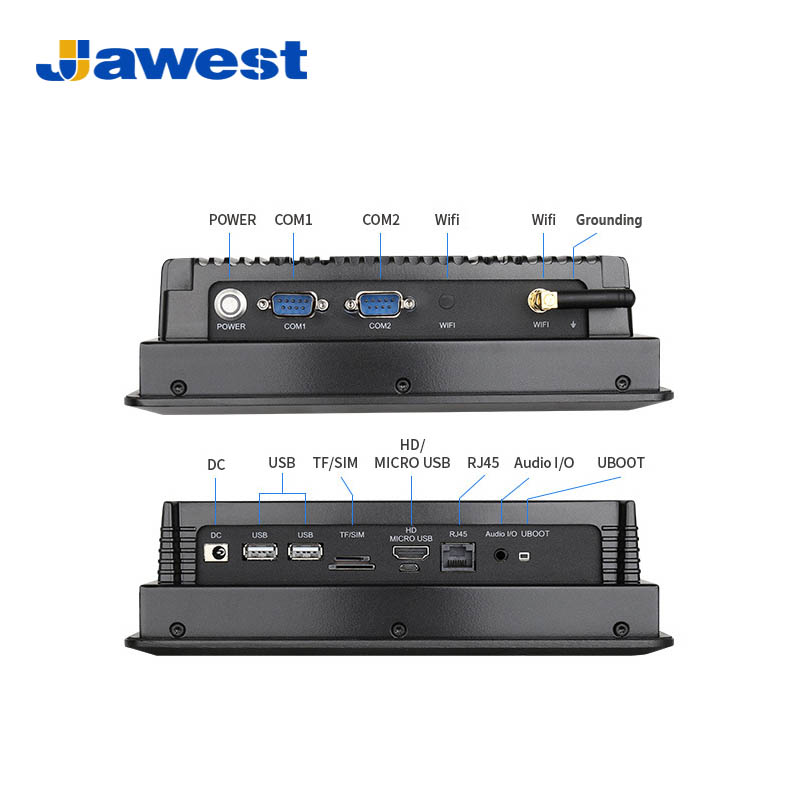

    I/O PortsUSB2*USB1*USB HOST, 1*USB OTG1*USB HOST, 1*USB OTG1*USB, 1*OTG2*USB3.01*USB, 1*OTG4*USB3.0
    HDMI1*HDMI, up to 4K1*HDMI, up to 4K1*HDMI, up to 4K1*HDMI, up to 4K1*HDMI, up to 4K1*HDMI, up to 4K1*HDMI In, 1*HDMI Out, 8K
    LAN1*LAN1*LAN1*LAN1*LAN1*LAN2*LAN2*LAN
    DC1*DC2.11*DC2.11*DC2.11*DC2.11*DC2.11*DC2.11*DC2.1
    COM2*RS2322*RS2322*RS2321*RS2321*RS2321*RS2321*RS232
    TF/SIM1* TF/SIM slot1*TF/SIM slot1*TF/SIM slot1*TF/SIM slot1*TF/SIM slot1*TF/SIM slot1*TF/SIM slot
    WiFi Antenna1*WiFi Antenna+1*Reserved hole
    Audio I/O1*3.5mm Earphone Jack
    Reset Button1*UBOOT1*UBOOT1*UBOOT1*UBOOT1*UBOOT1*UBOOT1*UBOOT
    GND1*GND1*GND1*GND1*GND1*GND1*GND1*GND
    OTG1*OTG//////
    12P Phoenix Terminal ///1*12P (1*DC+1*RS232+1*RS485+1*TTL+3*GPIO)1*12P (1*DC+1*RS232+1*RS485+1*CAN+3*GPIO)/1*12P (1*DC+1*RS232+1*RS485+1*CAN+3*GPIO)
    I/O Expansion Support









    PowerPower Input12V DC12V DC12-36V DC12-36V DC12-36V DC12-36V DC12-36V DC
    Adapter12V / 4A12V / 4A24V / 2.5A24V / 2.5A24V / 2.5A24V / 2.5A24V / 2.5A



    MechanicalDimension225.5*185*64.5mm
    EnclosureAluminum alloy housing
    Cooling SystemFanless
    MountingPanel-mount, Embedded, desktop, wall-mounted, VESA75/100mm, open frame, etc.



    Product ReliabilityWorking Temp -10°C ~ 60°C
    Storage Temp -20°C ~ 70°C
    Ambient Humidity 5% - 95% (relative humidity non-condensing)
    IP ratingFront IP65
