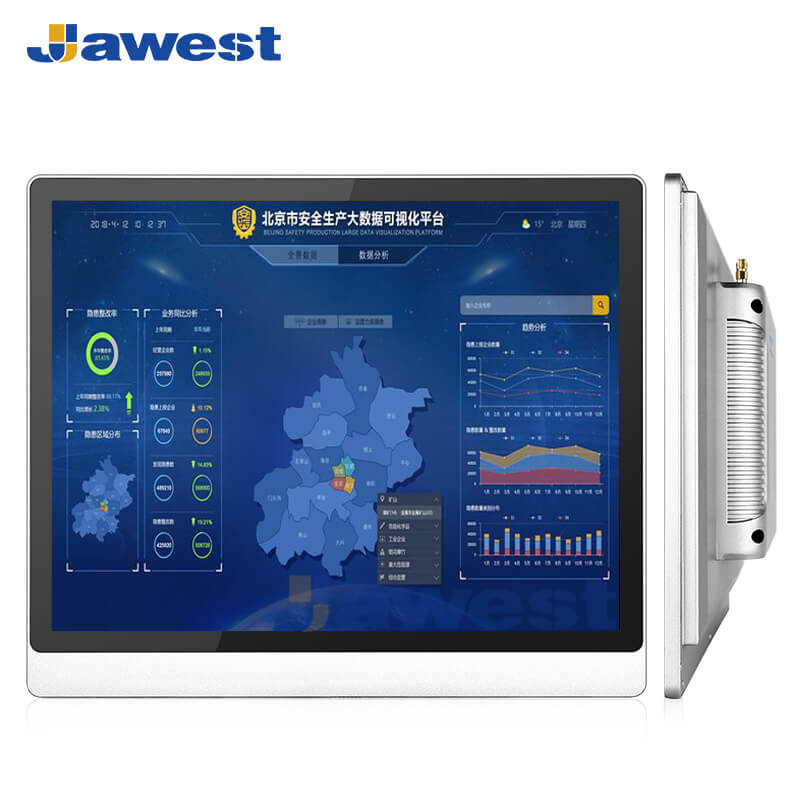

Model: JWS104-W41
• Display size: 10.4 inch.
• Working temperature: -10~60°C.
• Support 24/7 operation.
• IP65-rated dust-proof and water-proof for the front panel.
• 10mm enhanced display panel, excellent impact resistance performance.

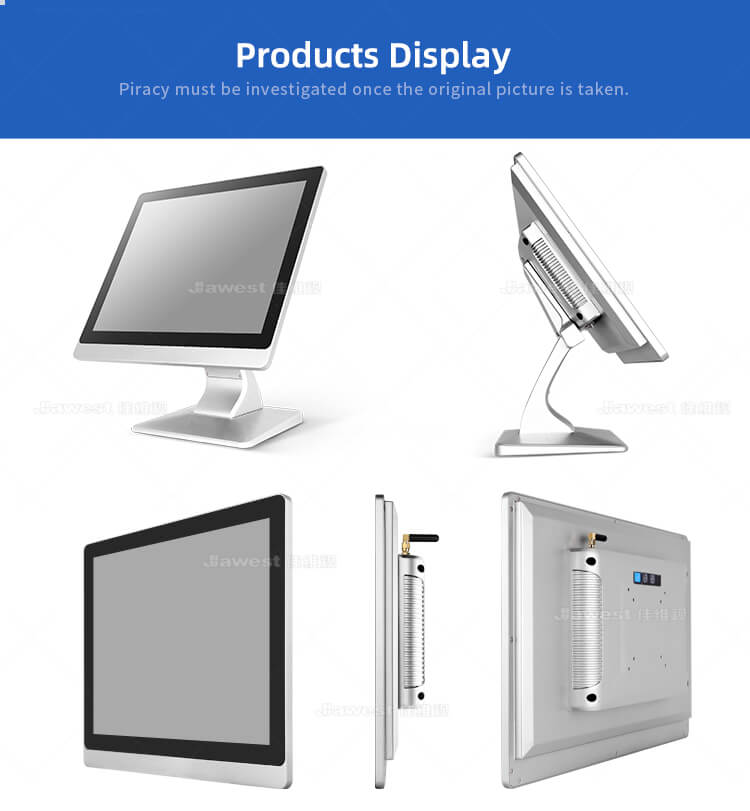

• Installation options: wall-mounted, desktop stand, VESA75/100mm, and ceiling-mounted.
10.4 Inch All in One Computers On Sale
Model: JWS104-W41
Jawest offers a full range of LCD display all-in-one industrial computers for intelligent manufacturing, smart factories, and other professional industrial applications. They are also widely used for commercial use and indoor and outdoor devices. Also, performs perfectly under direct sunlight environments. With self-factory, Our industrial monitors are of premium quality, low-cost, and economically competitive.
Jawest 10.4-inch Industrial All-in-one Panel PC Features
● CPU options: Intel Celeron J1900, J4125, J6412.
● RAM options: 4/8/16GB.
● Storage options: 64/128/256/512GB.

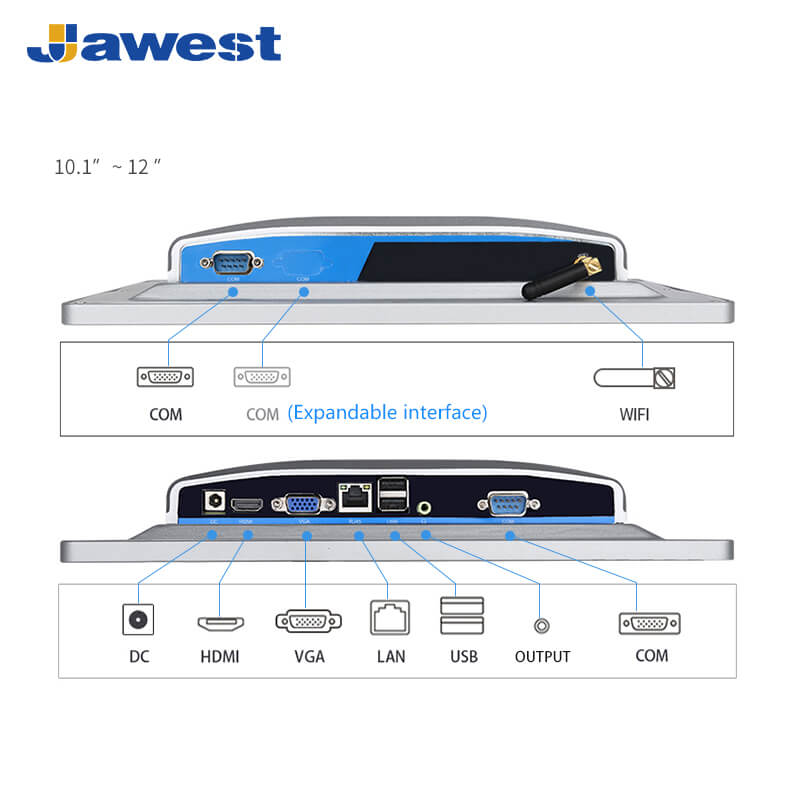

● I/Os: USB 2.0*2, COM*2, WIFI*1, DC 12V*1, HDMI*1, VGA*1, RJ45*1, Audio I/O. Support more I/O OEM for different applications.
● Multi-point capacitive touchscreen, five-wire resistive touchscreen, or non-touch are available.
● Special anti-shedding design for the DC interface, which prolongs its service life.

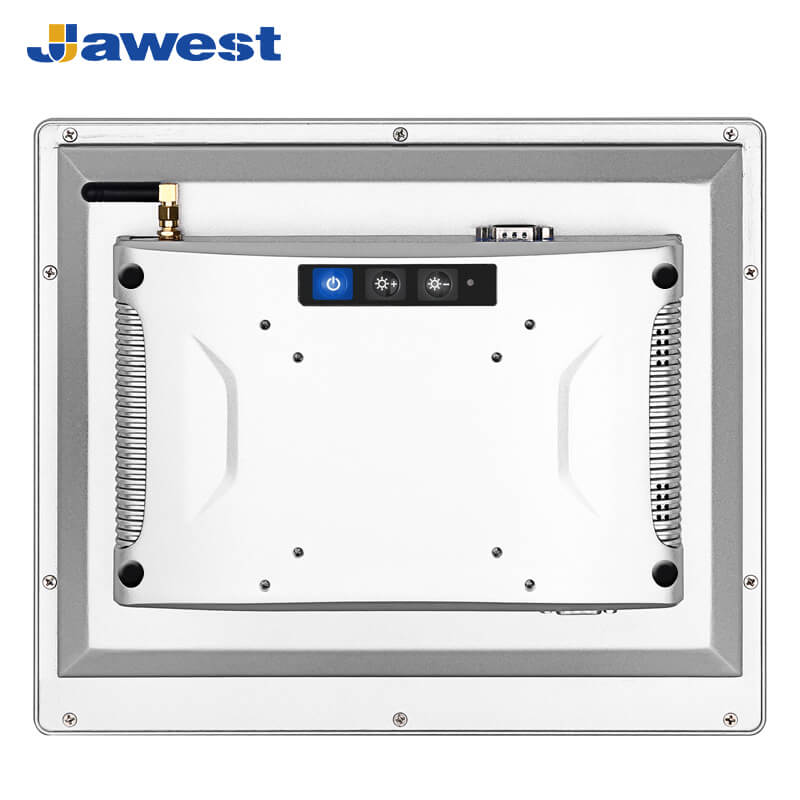

● OSD adjustment on the back panel.

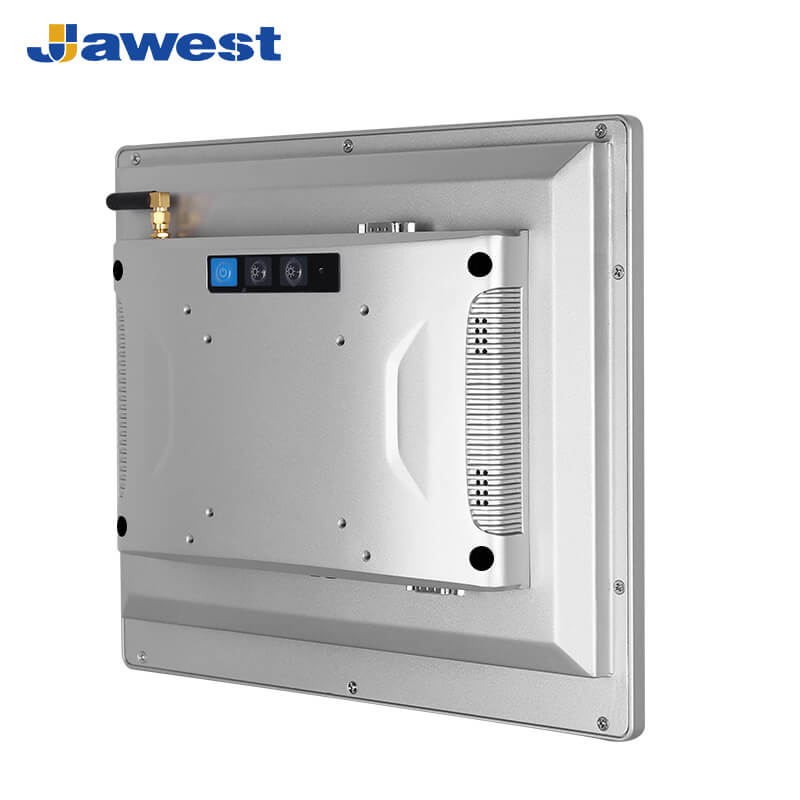

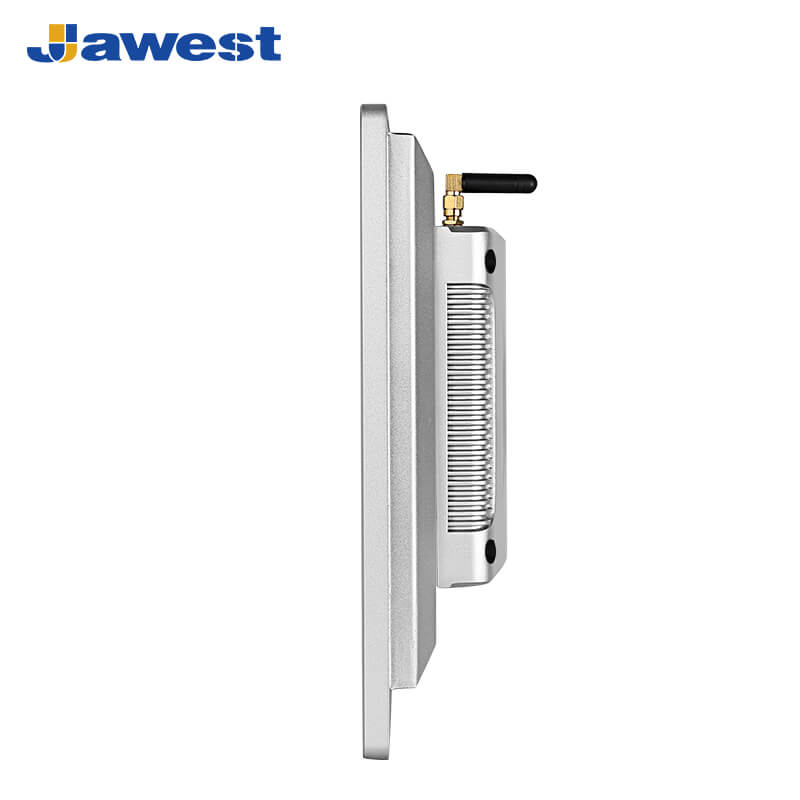

● Fanless heating-dissipation, the industrial all-in-one panel PC keeps mute running.
● Support multiple installations: VESA arm, desktop, wall-mounted, and ceiling-mounted.
Display Parameters | Size | 10.4" | ||
Resolution | 1024*768 | |||
Screen Ratio | 4:3 | |||
Brightness | 400 nits (high brightness for optional) | |||
Contrast Ratio | 1000:1 | |||
Viewing Angle | 80°/80°/80°/80° (L/R/U/D) | |||
Backlight type | LED backlight screen, service life ≥ 50000H | |||
Touch Screen | Capacitive(Resistive, or Non-touch options) | |||
Motherboard Model Selection | CX-J1900 | CX-J4125-A | CX-J6412 | |
System Architecture | Processor | Intel® Celeron® J1900 | Intel® Celeron® J4125 | Intel® Celeron® J6412 |
Physical Core Count | 4 | 4 | 4 | |
Total Threads | 4 | 4 | 4 | |
Base Frequency | 2.00 GHz | 2.00 GHz | 2.00 GHz | |
GPU | Intel HD Graphics | Intel UHD Graphics 600 | Intel UHD Graphics 16 EUs | |
Memory (DDR) | 4GB (8GB optional) | 8GB | 8GB (16GB optional) | |
Storage (eMMC) | 64GB (optional 128/256/512GB SSD, 1T/2T HDD) | 128GB (optional 256/512GB SSD, 1T/2T HDD) | 256GB (optional 512GB SSD, 1T/2T HDD) | |
Operating System | Win 7/10 | Win 10/11 | Win 10/11 | |
Ubuntu 14.04.6/16.04.7/18.04.5/18.04.6/20.04.1/20.04.3/20.04.4/22.04 | Ubuntu 14.04.6/16.04.7/18.04.5/18.04.6/20.04.1/20.04.3/20.04.4/22.04 | Ubuntu 14.04.6/16.04.7/18.04.5/18.04.6/20.04.1/20.04.3/20.04.4/22.04 | ||
CentOS 7.4/7.8/7.9 | CentOS 7.8/8.4/7.9 | CentOS 7.8/8.4/7.9 | ||
Redhat 7.4 | Redhat 7.4 | Redhat 7.4 | ||
Debian 11.6 | Debian 10.0/11.6 | Debian 10.0/11.6 | ||
Networking | Ethernet | 1*10M/100M/1000M adaptive Ethernet | 2*10M/100M/1000M adaptive Ethernet | 2*10M/100M/1000M adaptive Ethernet |
4G | Support | Support | Support | |
5G | / | / | / | |
WIFI | Dual-band 2.4/5GHz | Dual-band 2.4/5GHz | Dual-band 2.4/5GHz | |
Bluetooth | BT4.0 | BT4.0 | BT4.0 | |
Touch Function | Touch Interface | USB | USB | USB |
I/O Ports | USB | 2*USB2.0, 2*USB3.0 | 2*USB2.0, 2*USB3.0 | 2*USB2.0, 2*USB3.0 |
HDMI | 1*HDMI, up to 4K | 1*HDMI, up to 4K | 1*HDMI, up to 4K | |
LAN | 1*LAN | 2*LAN | 2*LAN | |
DC | 1*DC 12~36V | 1*DC 12~36V | 1*DC 12~36V | |
VGA | 1*VGA | 1*VGA | 1*VGA | |
Serial Port | 2*RS232 | 1*RS232 | 1*RS232 | |
SIM Slot | 1*SIM Slot | 1*SIM Slot | 1*SIM Slot | |
WiFi Antenna | 2*WiFi Antenna | 2*WiFi Antenna | 2*WiFi Antenna | |
Audio I/O | 1*3.5mm Earphone Jack | 1*3.5mm Earphone Jack | 1*3.5mm Earphone Jack | |
GND | 1*GND | 1*GND | 1*GND | |
1*12P Phoenix Terminal | / | 1*DC | 1*DC | |
/ | 1*RS232 | 1*RS232 | ||
/ | 1*RS485 | 1*RS485 | ||
/ | 5*GPIO | 5*GPIO | ||
Power Button | / | 1 | 1 | |
I/O Expansion | Support | Support | Support | |
Power | Power Input | 12~36V DC | 12V~36 DC | 12-36V DC |
Adapter | 12V / 4A | 12V / 4A | 24V / 2.5A | |
Mechanical | Enclosure | Aluminum alloy housing | ||
Cooling System | Fanless | |||
Mounting | Desk stand, wall-hanging, VESA75/100mm, etc. | |||
Product Reliability | Working Temp | -10°C ~ 60°C | ||
Storage Temp | -20°C ~ 70°C | |||
Ambient Humidity | 5% - 95% (relative humidity non-condensing) | |||
IP rating | Front IP65 |
