Model: JWS173-W41
• Display size: 17.3 inch.
• Working temperature: -10~60°C.

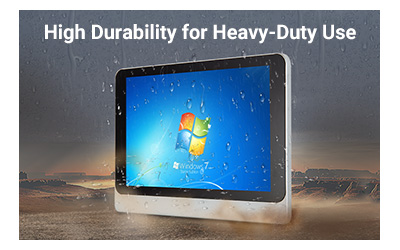

• Support 7/24 operation in harsh conditions.
• 10mm enhanced display panel, stronger impact resistance.
• IP65-rated standard dust-proof and water-proof for the front panel.
• Support embedded, wall-mounted, rack-mount, desktop, cantilever support.

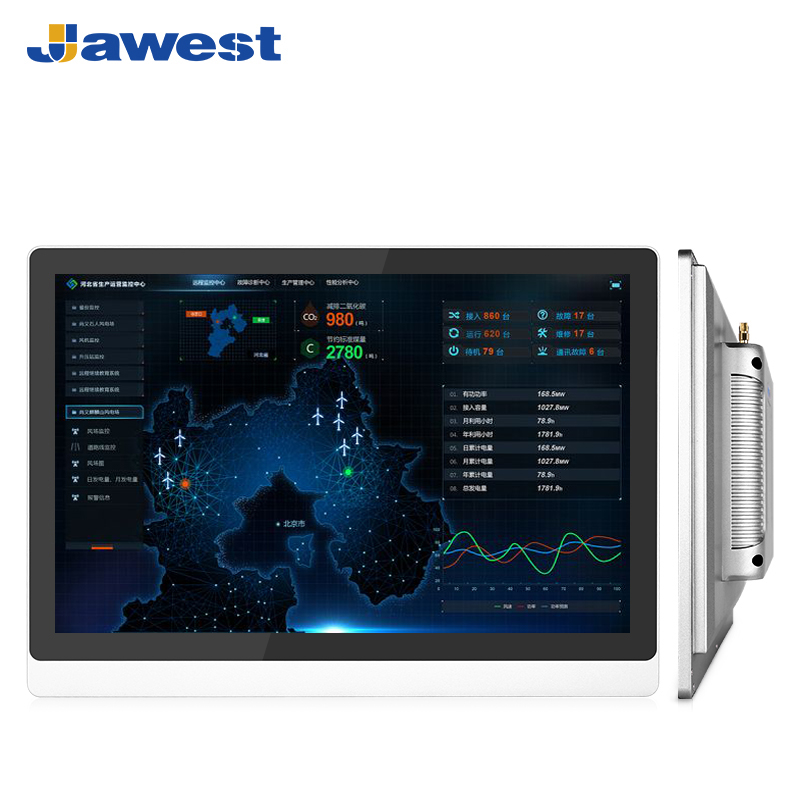

17.3" 1080P Industrial Computer All In One PC
Model: JWS173-W41
The Jawest 17.3-inch widescreen all-in-one computer is a powerful industrial panel PC. Sporting the newest Intel Core i3/i5/i7 CPU, this touch panel PC is capable of handling even the most demanding applications. And takes full advantage of the fanless heating-dissipation system, this allows it to silently and efficiently with 7/24 hours of operation. The industrial AIO tablet PC is equipped with a projected capacitive touchscreen and an IP65-rated dust-proof and waterproof for the front bezel. Besides the 17-inch display, Jawest also offers other displays from 7" ~ 23.8" with capacitive, resistive, or non-touch screens for the all-in-one PCs. You can find your most affordable industrial all-in-one PCs with highly competitive prices, reliable products, and outstanding services in Jawest.
Jawest Industrial All-in-one Panel PC Features

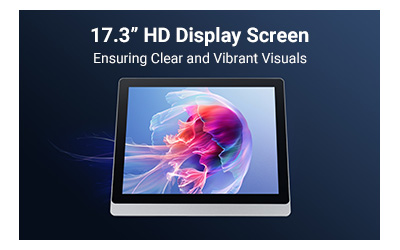

● 17.3-inch with 1920x1080 resolution display; Aspect ratio: 16:9.
● Full flat IP65 protected touchscreen.
● Thin body, attractive appearance, and one-piece die-Cast Housing design.
● Abundant I/O ports, support expansion.

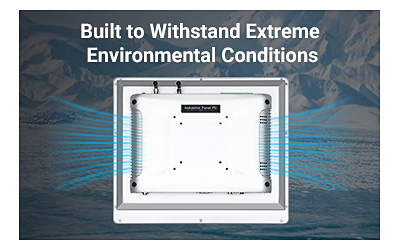

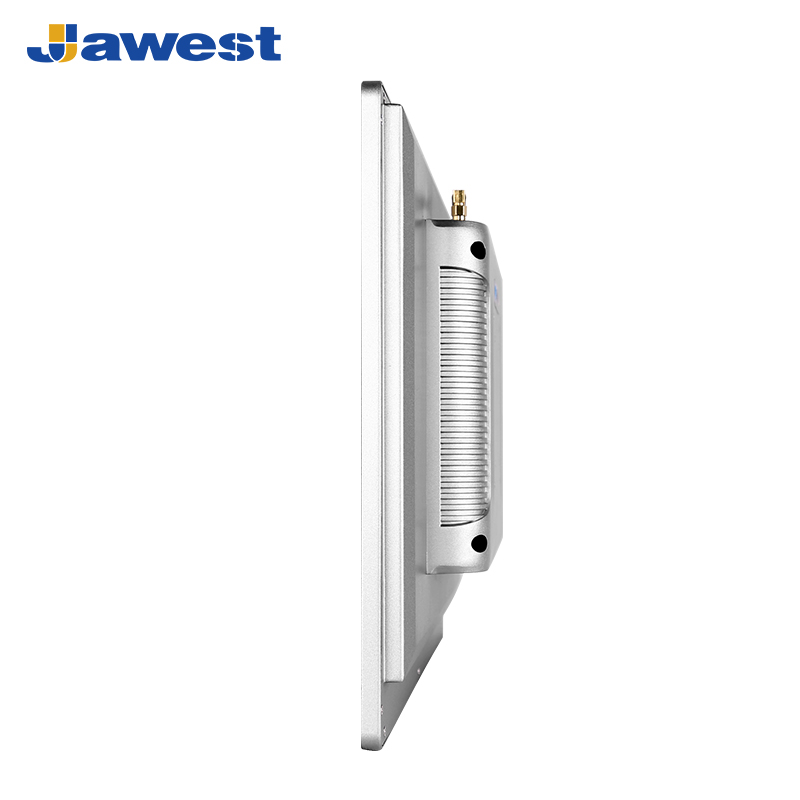

● Fanless heating-dissipation, no-noise, and low power consumption.
● Sunlight readable screen for outdoor devices (up to 1500 nits).
● Operating System: Windows, Linux, or Android for option.
● Default configuration: J1900 CPU (expandable to higher configuration).
● Ten-point PCAP touch control screen, five-wire resistive touch for option.
● 10mm front bezel and aluminum enclosure, strong impact resistance in harsh environments.
● 2GB DDR3 RAM expandable to 4G/8G; 32G SSD, expandable to 64G/256G/512G.
● Multi-mounting options: VESA, open frame, desktop, embedded, panel mount, and wall-mounted.
Aluminum Industrial All In One PC | ||||||||
Size | 17.3 inch | |||||||
Display | ||||||||
Panel Type | Industrial LCD panel A, A+grade | |||||||
Aspect Ratio | 16 : 9 | |||||||
Resolution | 1920*1080 | |||||||
Contrast | 1000:1 | |||||||
Luminance | 300nit-1500nit | |||||||
Response time | 5ms | |||||||
Active Area (mm) | 250*188.4 | |||||||
Display colors | 16.7M(8-bit) | |||||||
View angle | 75/75/75/75 | |||||||
PC Configuration | ||||||||
CPU | Intel celeron J1900 fanless, Intel i3/i5/i7 can be customized | |||||||
Graphic Card | Integrated Intel HD Graphics | |||||||
Inner memory | 2G DDR3 RAM ( 4G/8G RAM can be customized) | |||||||
Storage | 32G SSD (64G/128G/256G SSD, 500G HDD can be customized) | |||||||
Expansion Card Slot | 2xMini-PCIE slot, support SSD, WIFI, 3G module | |||||||
Audio | Realtek ALG662 6 sound track audio frequency | |||||||
Internet | 1xRTL811E gigabit network card | |||||||
Operating System | Pre-installed Win7, and offer Win8, 10 for optional | |||||||
Support multi-language | English/Portuguese/French…etc | |||||||
Touch Screen | 10-point capacitive touchscreen, 5 wire resistive touchscreen and infrared touch optional | |||||||

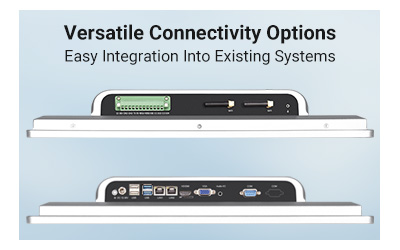

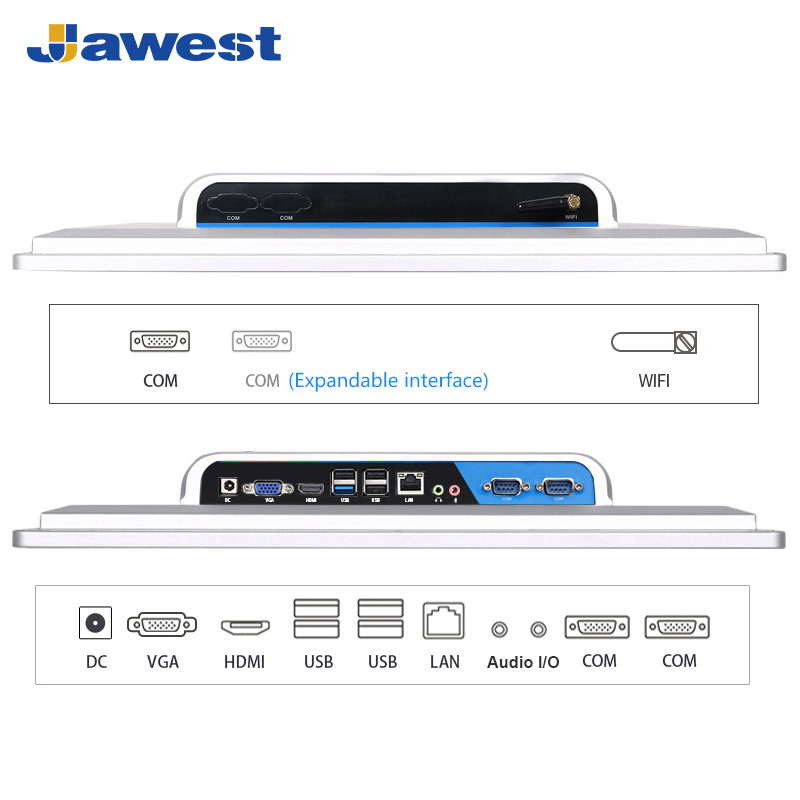

I/O Ports | 1*12V DC_JACK input (ATX is optional) , 1*VGA,1*HDMI, 4*USB port | |||||||
1*RJ-45 network interface, 1*Audio I/O interface, 2*COM (can be customized, up to 4*COM) | ||||||||
Power Input | AC 110-240V, 50/60Hz | |||||||
Operation Temperature | -10°C-60°C | |||||||
Storage Temperature | -30°C-60°C | |||||||
Operation Humidity | 10%--80% | |||||||
Storage Humidity | 10%-90% | |||||||
Material | Aluminum alloy enclosure+High Strength Cold Rolled Steel | |||||||
Bezel Thickness | 10mm bezel | |||||||
IP Rating | IP65 standard seamless front | |||||||
Color | Silver, Black | |||||||

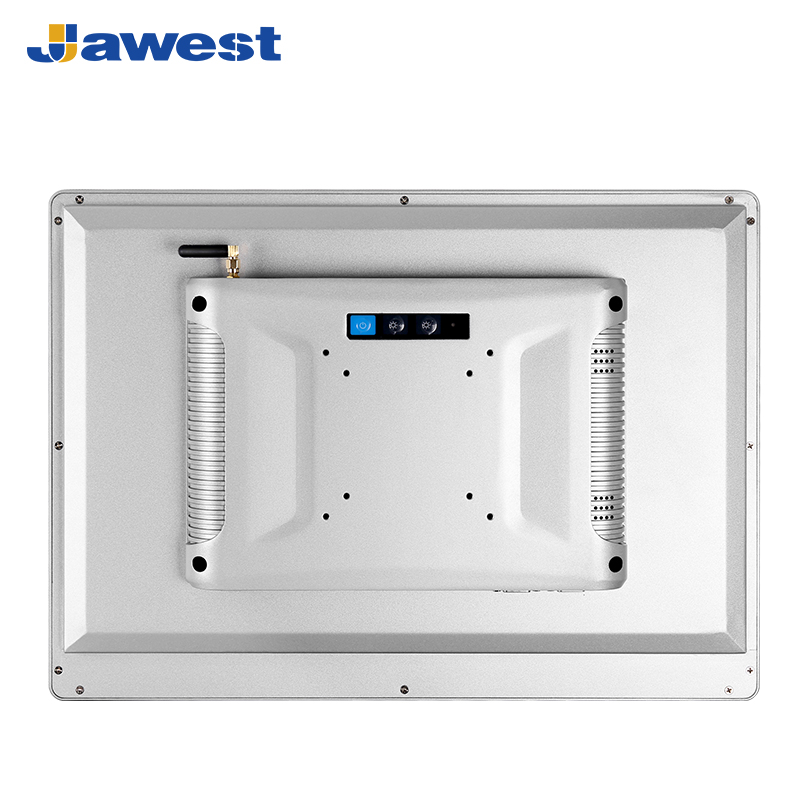

Installation Way | VESA, Embedded, Wall Mount, Desktop optional | |||||||
Certification | CE,FCC,ROHS,ISO | |||||||
Packaging | EPE+Carton (wooden crate for mass order) |
