Application:
12 Inch All In One Industrial Panel PCs Seller12 Inch All In One Industrial Panel PCs Seller12 Inch All In One Industrial Panel PCs Seller12 Inch All In One Industrial Panel PCs Seller12 Inch All In One Industrial Panel PCs Seller

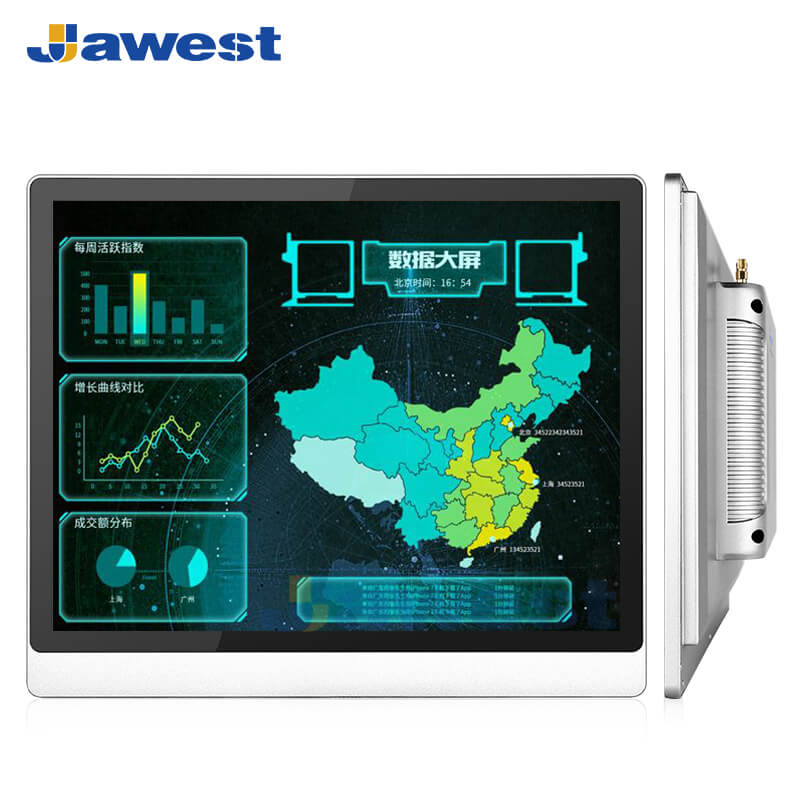

12 Inch All In One Industrial Panel PCs Seller


Model: JWS120-W41

• Display size: 12 inch.

• Ten-point capacitive touch screen.

• Working temperature: -10~60°C.

• Support 24/7 long-time operation.

• IP65-rated dust-proof and water-proof for the front panel.

• 10mm front bezel, excellent impact resistance in harsh industrial sites.

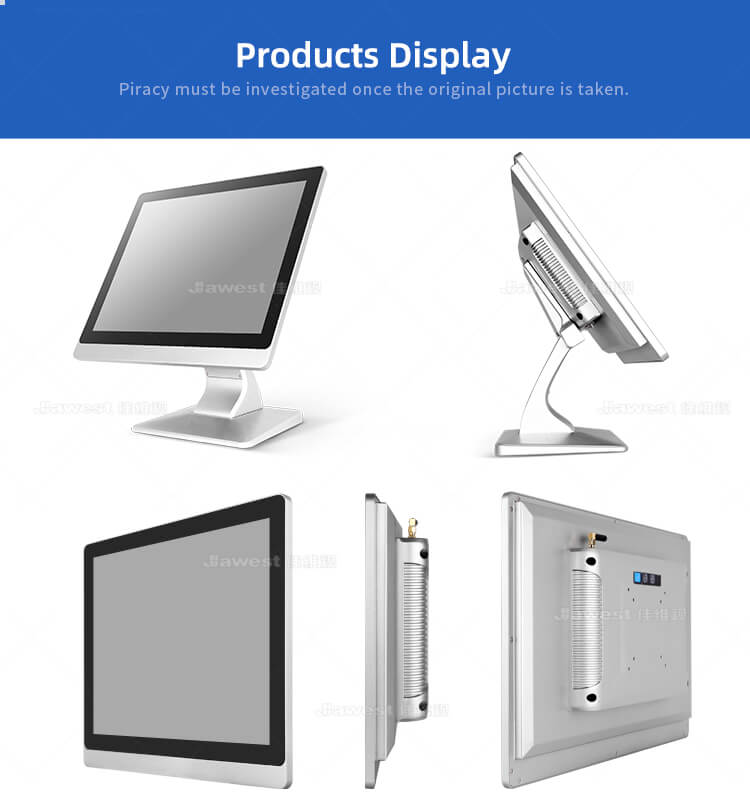

• Installation options: wall-mounted, desktop stand, VESA75/100mm, and ceiling-mounted.

Appearance of the color
Black
Silver
share:
  • Description
  • Parameter
  • Case
  • 12 Inch All-In-One Industrial Panel PCs Seller


    Model: JWS120-W41


    Jawest newest industrial tablet PCs are produced and used in Internet of Things projects, industrial automation, and commercial terminal devices. support OEM/ODM customization services, in terms of high brightness, anti-glare and explosion proof for the screen; Wide temperature and wide voltage ranges operation; Functional module customization and so on. And Jawest products come with a three-year warranty.



    Jawest Industrial All-in-one Panel PC Features


    ● 12-inch 1024x768 resolution screen.

    ● CPU options: J1900, J4125, and J6412.

    ● RAM options: 4/8/16GB

    ● Storage options: 64/128/256/512GB.

    ● Operation System: Win7/Win10/Win11.

    ● Chassis material: Aluminum alloy for the whole casing.

    ● Ten-point PCAP touch control screen.

    ● 10mm front bezel and aluminum enclosure, good impact resistance performance in harsh environments.




    12 Inch All In One Industrial Panel PCs Seller

    12 Inch All In One Industrial Panel PCs Seller





  • Screen
    ModelJWS120-W41
    Size12 inch
    Aspect Ratio4:3
    Resolution1024*768
    Contrast1000:1
    Luminance500 Nits (High brightness screen for optional)
    Display Colors16.7M
    Response Time5ms
    View Angle85/85/85/85
    Touch Screen10-point capacitive touchscreen (4/5 wire resistive touchscreen, and Non-touch for optional)
    Panel TypeIndustrial LCD panel A, A+ Grade quality
    Motherboard Configuration OptionsCX-J1900CX-J4125-ACX-J6412
    CPUIntel Celeron J1900Intel Celeron J4125Intel Celeron J6412
    GPUIntel HD GraphicsIntel UHD Graphics 600Intel UHD Graphics 16 EUs
    ArchitectureIntel Bay TrailIntel Gemini Lake RefreshIntel Elkhart Lake
    Inner memory4GB DDR3 RAM ( 8GB options)8GB LPDDR4 (16GB options)8GB LPDDR4 (16GB options)
    Storage64GB SSD (128/256GB SSD, 500G HDD options)256GB SSD (512GB SSD, 1T/2T HDD options)128GB SSD (256/512 GB SSD, 1T/2T HDD options)
    Operating SystemWindows 7/10Windows 10/11Windows 10/11
    Ubuntu 14.04.6/16.04.7/18.04.5/18.04.6/20.04.1/20.04.3/20.04.4/22.04Ubuntu 14.04.6/16.04.7/18.04.5/18.04.6/20.04.1/20.04.3/20.04.4/22.04Ubuntu14.04.6/16.04.7/18.04.5/18.04.6/20.04.1/20.04.3/20.04.4/22.04
    CentOS 7.4/7.8/7.9CentOS  7.8/8.4/7.9CentOS 7.8/8.4/7.9
    Redhat 7.4Redhat 7.4Redhat 7.4
    Debian 11.6Debian 10.0/11.6Debian 10.0/11.6

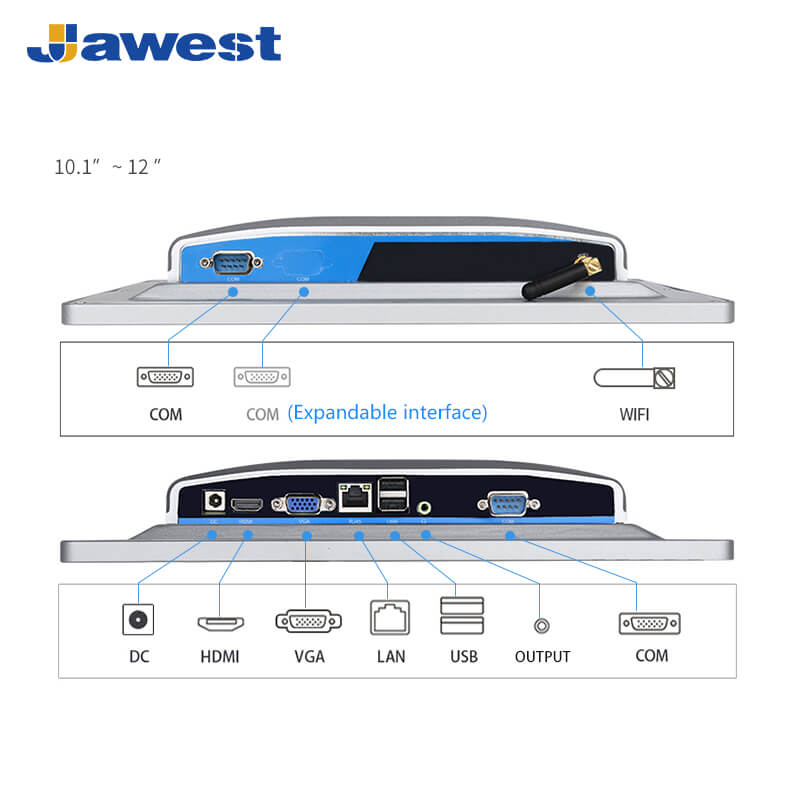

    I/O Ports


    Power Port1*DC port, support 12V-36V wide voltage operation1*DC port, support 12V-36V wide voltage operation1*DC port, support 12V-36V wide voltage operation
    USB Port2*USB2.0, 2*USB3.02*USB2.0, 2*USB3.02*USB2.0, 2*USB3.0
    Network Port1*LAN, 10M/100M/1000M adaptive Ethernet2*LAN, 10M/100M/1000M adaptive Ethernet2*LAN, 10M/100M/1000M adaptive Ethernet
    HDMI1*HDMI, support HDMI data output, up to 4K1*HDMI, support HDMI data output, up to 4K1*HDMI, support HDMI data output, up to 4K
    VGA1*VGA1*VGA1*VGA
    Serial Port2*RS2322*RS2321*RS232
    WiFi Antenna2*WiFi Antenna2*WiFi Antenna2*WiFi Antenna
    SIM Slot1*SIM Slot1*SIM Slot1*SIM Slot
    Audio I/O1*Audio I/O 1*Audio I/O 1*Audio I/O
    Phoenix Terminal//1*12P Phoenix Terminal ((Power supply/1*RS232/1*RS485/5*GPIO)
    Power Button1*Power Button1*Power Button1*Power Button
    Grounding1*GND1*GND1*GND
    Power


    Power InputDC 12~36VDC 12~36VDC 12~36V
    Standby Power18W18W18W
    Reliability
    Operation Temperature-10°C~60°C
    Storage Temperature-20°C~70°C
    Operation Humidity10%~80%
    Storage Humidity10%~90%
    MaterialAluminum alloy enclosure+High Strength Cold Rolled Steel
    Bezel Thickness10mm bezel
    IP RatingIP65 standard seamless front
    CertificationCE, FCC, ROHS, ISO9001
    Mechanical
    Dimension292*250.5*59.7mm
    ColorSilver, Black
    Installation OptionsVESA, Wall-mounted, Desktop stand, ceiling-mounted.
    PackagingEPE+Carton  (wooden crate for mass order)
