Application:
19.119.119.119.1

19.1" All-in-one Panel PC Capacitive Touch Screen Computers 1000 High Nits Panel PC


Model: JWS191-W41

• Display size: 19.1 inch.

• Working temperature: -10~60°C.

• Support 7/24 operation.

• 10mm enhanced display panel, good impact resistance.

• IP65-rated standard dust-proof and water-proof for the front panel.

• Installation options: wall-mounted, desktop stand, VESA, and ceiling-mounted.

Appearance of the color
Black
Silver
share:
  • Description
  • Parameter
  • Case
  • 19.1" All-in-one Panel PC Capacitive Touch Screen Computers


    Model: JWS191-W41


    This Jawest industrial all-in-one touch screen computer offers durability and great design to fit customers' needs. It is built for 7/24hours long-time running non-stop commercial and industrial applications. High-quality components are built into the industrial panel pc to ensure high reliability of performance in diverse environments and harsh conditions under all weather. The streamlined appearance design offers a perfect human-machine experience touch feeling. This touchscreen panel PC offers optional wireless LAN connectivity and popular I/O interfaces. The fanless panel PC enables you to fully maximize your business output by making your processes more efficient.



    Jawest Industrial All-in-one Panel PC Features


    ● 19.1-inch with 1440x900 resolution display; Aspect ratio: 16:10.

    ● CPU options: J1900, J4125, and J6412.

    ● RAM options: 4/8/16GB.

    ● Storage options: 64/128/256/512GB.

    ● Sunlight readable screen for outdoor devices (up to 1500 nits).

    ● Operating System: Windows, Linux, or Android for option.

    ● Appearance: black or Silver color, support customization.

    ● Ten-point PCAP touch control screen, five-wire resistive touchscreen, and Non-touch options.

    ● 10mm front bezel and aluminum enclosure, good impact resistance in harsh environments.

    ● IP65 dust-proof and waterproof for front enclosure protection.

    ● Support functional module: NFC, RFID, IC card, ID card reader optional.

    ● Full-enclosed aluminum alloy material, sturdy and durable.

    ● Multi-mounting options: VESA, desktop, wall-mounted, and ceiling-mounted.

    ● Support OEM, and ODM customization.




    19.1" All-in-one Service Capacitive Touch Computers

    Industrial Computer Multi-Point Capacitive Touch Screen

    19.1" All-in-one Service Capacitive Touch Computers

    industrial computer






  • Screen
    ModelJWS191-W41
    Size19.1 inch
    Aspect Ratio16:10
    Resolution1440*900
    Contrast1000:1
    Luminance250~300 Nits (High brightness screen for optional)
    Display Colors16.7M
    Response Time5ms
    View Angle80/80/80/80
    Touch Screen10-point capacitive touchscreen (4/5 wire resistive touchscreen, and Non-touch for optional)
    Panel TypeIndustrial LCD panel A, A+ Grade quality
    Motherboard Configuration OptionsCX-J1900CX-J4125-ACX-J6412
    CPUIntel Celeron J1900Intel Celeron J4125Intel Celeron J6412
    GPUIntel HD GraphicsIntel UHD Graphics 600Intel UHD Graphics 16 EUs
    ArchitectureIntel Bay TrailIntel Gemini Lake RefreshIntel Elkhart Lake
    Inner memory4GB DDR3 RAM ( 8GB options)8GB LPDDR4 (16GB options)8GB LPDDR4 (16GB options)
    Storage64GB SSD (128/256GB SSD, 500G HDD options)256GB SSD (512GB SSD, 1T/2T HDD options)128GB SSD (256/512 GB SSD, 1T/2T HDD options)
    Operating SystemWindows 7/10Windows 10/11Windows 10/11
    Ubuntu 14.04.6/16.04.7/18.04.5/18.04.6/20.04.1/20.04.3/20.04.4/22.04Ubuntu 14.04.6/16.04.7/18.04.5/18.04.6/20.04.1/20.04.3/20.04.4/22.04Ubuntu14.04.6/16.04.7/18.04.5/18.04.6/20.04.1/20.04.3/20.04.4/22.04
    CentOS 7.4/7.8/7.9CentOS  7.8/8.4/7.9CentOS 7.8/8.4/7.9
    Redhat 7.4Redhat 7.4Redhat 7.4
    Debian 11.6Debian 10.0/11.6Debian 10.0/11.6

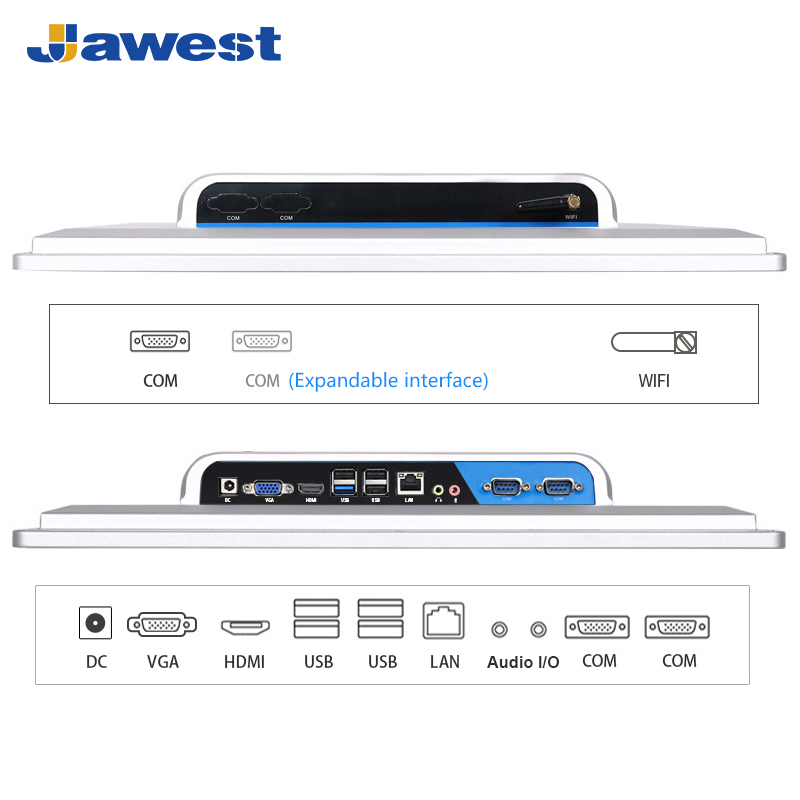

    I/O Ports


    Power Port1*DC port, support 12V-36V wide voltage operation1*DC port, support 12V-36V wide voltage operation1*DC port, support 12V-36V wide voltage operation
    USB Port2*USB2.0, 2*USB3.02*USB2.0, 2*USB3.02*USB2.0, 2*USB3.0
    Network Port1*LAN, 10M/100M/1000M adaptive Ethernet2*LAN, 10M/100M/1000M adaptive Ethernet2*LAN, 10M/100M/1000M adaptive Ethernet
    HDMI1*HDMI, support HDMI data output, up to 4K1*HDMI, support HDMI data output, up to 4K1*HDMI, support HDMI data output, up to 4K
    VGA1*VGA1*VGA1*VGA
    Serial Port2*RS2322*RS2321*RS232
    WiFi Antenna2*WiFi Antenna2*WiFi Antenna2*WiFi Antenna
    SIM Slot1*SIM Slot1*SIM Slot1*SIM Slot
    Audio I/O1*Audio I/O 1*Audio I/O 1*Audio I/O
    Phoenix Terminal//1*12P Phoenix Terminal ((Power supply/1*RS232/1*RS485/5*GPIO)
    Power Button1*Power Button1*Power Button1*Power Button
    Grounding1*GND1*GND1*GND
    Power


    Power InputDC 12~36VDC 12~36VDC 12~36V
    Standby Power18W18W18W
    Reliability
    Operation Temperature-10°C~60°C
    Storage Temperature-20°C~70°C
    Operation Humidity10%~80%
    Storage Humidity10%~90%
    MaterialAluminum alloy enclosure+High Strength Cold Rolled Steel
    Bezel Thickness10mm bezel
    IP RatingIP65 standard seamless front
    CertificationCE, FCC, ROHS, ISO9001
    Mechanical
    Dimension455.5*328.2*60.8mm
    ColorSilver, Black
    Installation OptionsVESA, Wall-mounted, Desktop stand, ceiling-mounted.
    PackagingEPE+Carton  (wooden crate for mass order)
