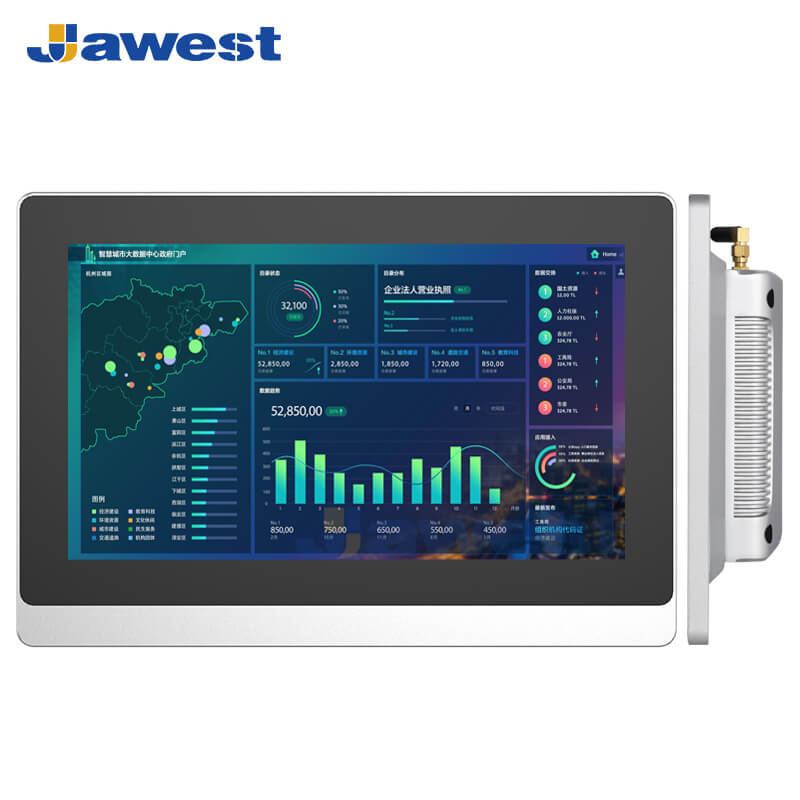

11.6 Inch Industrial All-in-one Computers Seamless Panels PC Fully Enclosed


Model: JWS116-W41

• LCD display size: 11.6 inch.

• Working temperature: -10 ~ +60°C.

• Support 24/7 operation in harsh environments.

• 10mm enhanced display panel, excellent impact resistance.

• IP65-rated dust-proof and water-proof for the front panel.

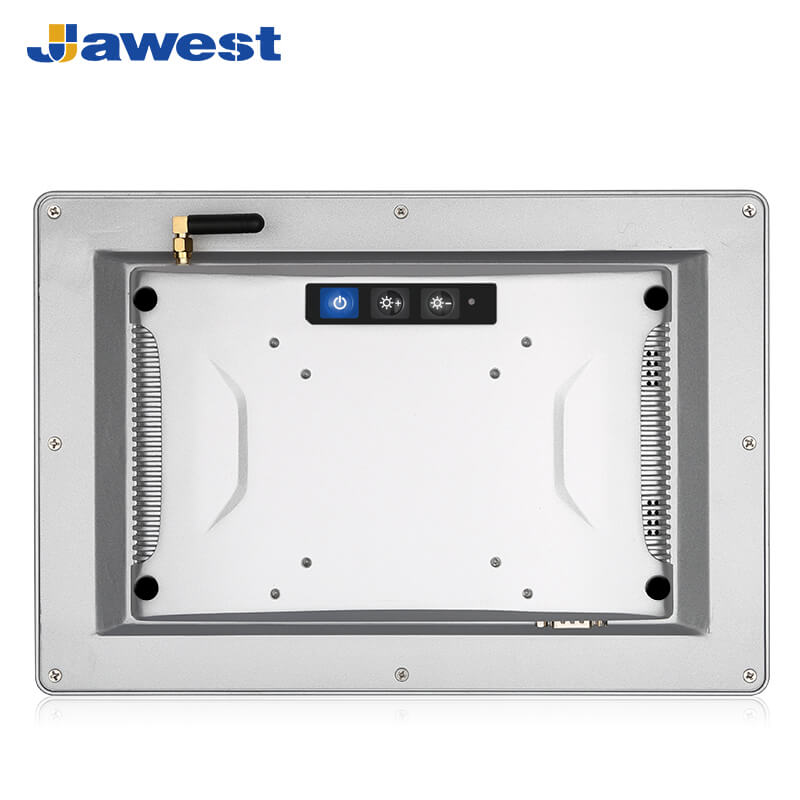

• Installation options: wall-mounted, desktop stand, VESA 75/100mm, and ceiling-mounted.

Appearance of the color
Black
Silver
share:
  • Description
  • Parameter
  • Case
  • 11.6 Inch Industrial All-in-one Computers Fully Enclosed


    Model: JWS116-W41


    This 11.6-inch front IP65-rated dust-proof and water-proof protection all-in-one Windows industrial panel PC is designed for use in harsh industrial environments during 7/24 hours. It supports a sunlight-readable screen of up to 1500 nits (optional) making it excellent for outdoor self-service equipment, touch screen kiosks, information collection, and display systems, emergency command, transportation scheduling, industrial control, facility management, and other IoT applications.



    Jawest Industrial All-in-one Panel PC Features


    ● 11.6" 1920x1080 resolution display

    ● CPU options: J1900, J4125, and J6412.

    ● RAM options: 4/8/16GB

    ● Storage options: 64/128/256/512GB.

    ● Chassis material: Aluminum alloy for the whole casing.

    ● OS: Windows 7/10/11; Ubuntu, Centos, Redhat, Debian.

    ● Appearance: Black or Silver color.

    ● Ten-point PCAP touch control screen.

    ● 10mm front bezel and aluminum enclosure, strong impact resistance in harsh environments.

    ● Custom options: Fingerprint Scanner, NFC, RFID, IC card, and ID card reader.

    ● Sunlight readable screen (up to 1500 nits).

    ● Mounting options: VESA, desktop stand, wall-mounted, and ceiling-mounted.




    11.6 Inch Industrial All-in-one Computers Fully Enclosed


    11.6 Inch Industrial All-in-one Computers Fully Enclosed




  • Screen
    ModelJWS116-W41
    Size11.6 inch
    Aspect Ratio16:9
    Resolution1920*1080
    Contrast1000:1
    Luminance220~300 Nits (High brightness screen for optional)
    Display Colors16.7M
    Response Time5ms
    View Angle85/85/85/85
    Touch Screen10-point capacitive touchscreen (4/5 wire resistive touchscreen, and Non-touch for optional)
    Panel TypeIndustrial LCD panel A, A+ Grade quality
    Motherboard Configuration OptionsCX-J1900CX-J4125-ACX-J6412
    CPUIntel Celeron J1900Intel Celeron J4125Intel Celeron J6412
    GPUIntel HD GraphicsIntel UHD Graphics 600Intel UHD Graphics 16 EUs
    ArchitectureIntel Bay TrailIntel Gemini Lake RefreshIntel Elkhart Lake
    Inner memory4GB DDR3 RAM ( 8GB options)8GB LPDDR4 (16GB options)8GB LPDDR4 (16GB options)
    Storage64GB SSD (128/256GB SSD, 500G HDD options)256GB SSD (512GB SSD, 1T/2T HDD options)128GB SSD (256/512 GB SSD, 1T/2T HDD options)
    Operating SystemWindows 7/10Windows 10/11Windows 10/11
    Ubuntu 14.04.6/16.04.7/18.04.5/18.04.6/20.04.1/20.04.3/20.04.4/22.04Ubuntu 14.04.6/16.04.7/18.04.5/18.04.6/20.04.1/20.04.3/20.04.4/22.04Ubuntu14.04.6/16.04.7/18.04.5/18.04.6/20.04.1/20.04.3/20.04.4/22.04
    CentOS 7.4/7.8/7.9CentOS  7.8/8.4/7.9CentOS 7.8/8.4/7.9
    Redhat 7.4Redhat 7.4Redhat 7.4
    Debian 11.6Debian 10.0/11.6Debian 10.0/11.6

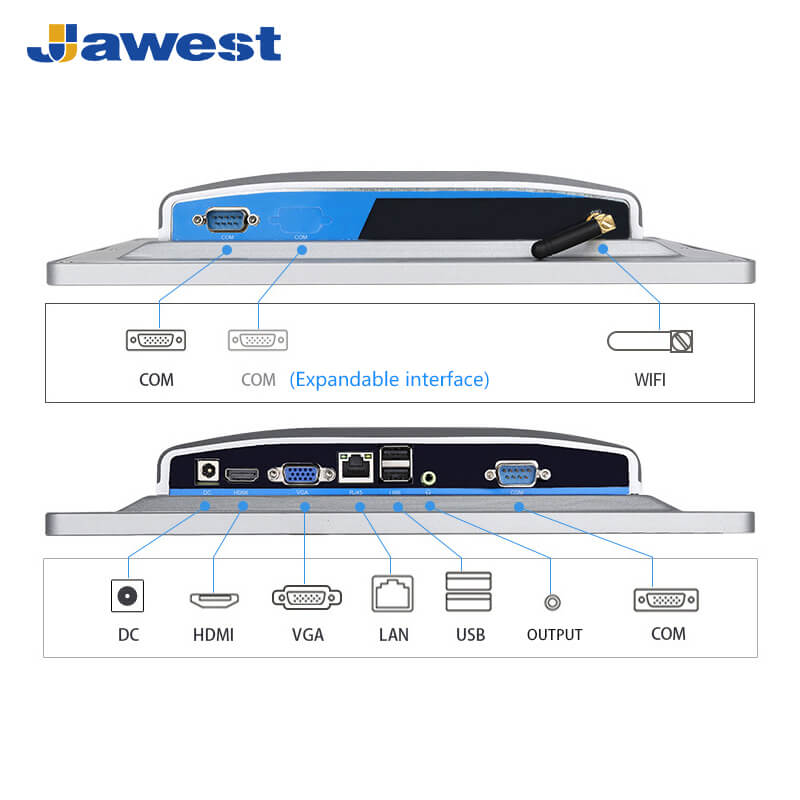

    I/O Ports


    Power Port1*DC port, support 12V-36V wide voltage operation1*DC port, support 12V-36V wide voltage operation1*DC port, support 12V-36V wide voltage operation
    USB Port2*USB2.0, 2*USB3.02*USB2.0, 2*USB3.02*USB2.0, 2*USB3.0
    Network Port1*LAN, 10M/100M/1000M adaptive Ethernet2*LAN, 10M/100M/1000M adaptive Ethernet2*LAN, 10M/100M/1000M adaptive Ethernet
    HDMI1*HDMI, support HDMI data output, up to 4K1*HDMI, support HDMI data output, up to 4K1*HDMI, support HDMI data output, up to 4K
    VGA1*VGA1*VGA1*VGA
    Serial Port2*RS2322*RS2321*RS232
    WiFi Antenna2*WiFi Antenna2*WiFi Antenna2*WiFi Antenna
    SIM Slot1*SIM Slot1*SIM Slot1*SIM Slot
    Audio I/O1*Audio I/O 1*Audio I/O 1*Audio I/O
    Phoenix Terminal//1*12P Phoenix Terminal ((Power supply/1*RS232/1*RS485/5*GPIO)
    Power Button1*Power Button1*Power Button1*Power Button
    Grounding1*GND1*GND1*GND
    Power


    Power InputDC 12~36VDC 12~36VDC 12~36V
    Standby Power18W18W18W
    Reliability
    Operation Temperature-10°C~60°C
    Storage Temperature-20°C~70°C
    Operation Humidity10%~80%
    Storage Humidity10%~90%
    MaterialAluminum alloy enclosure+High Strength Cold Rolled Steel
    Bezel Thickness10mm bezel
    IP RatingIP65 standard seamless front
    CertificationCE, FCC, ROHS, ISO9001
    Mechanical
    Dimension305.9*211.2*48.5mm
    ColorSilver, Black

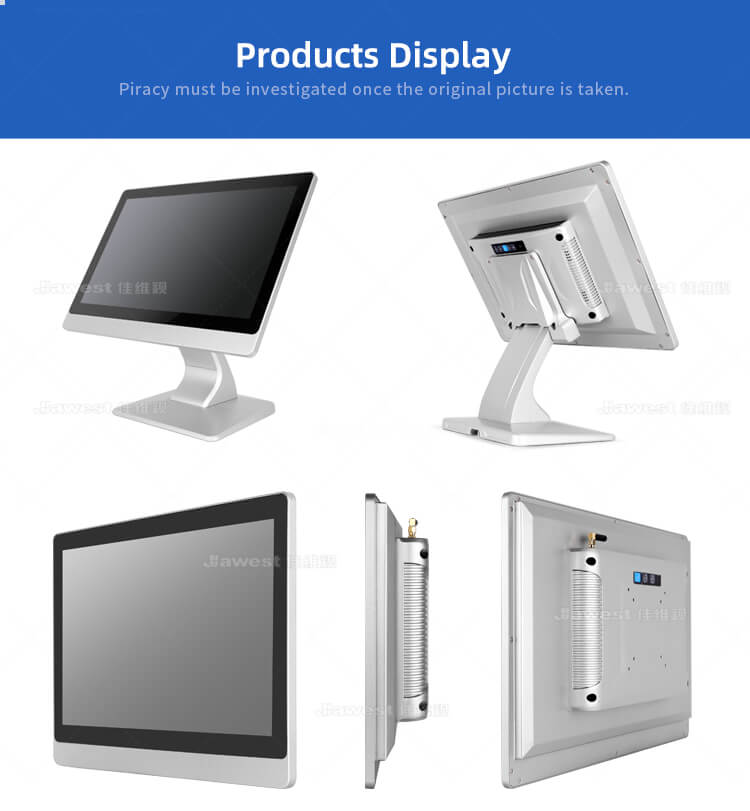

    Installation OptionsVESA, Wall-mounted, Desktop stand, ceiling-mounted.
    PackagingEPE+Carton  (wooden crate for mass order)
