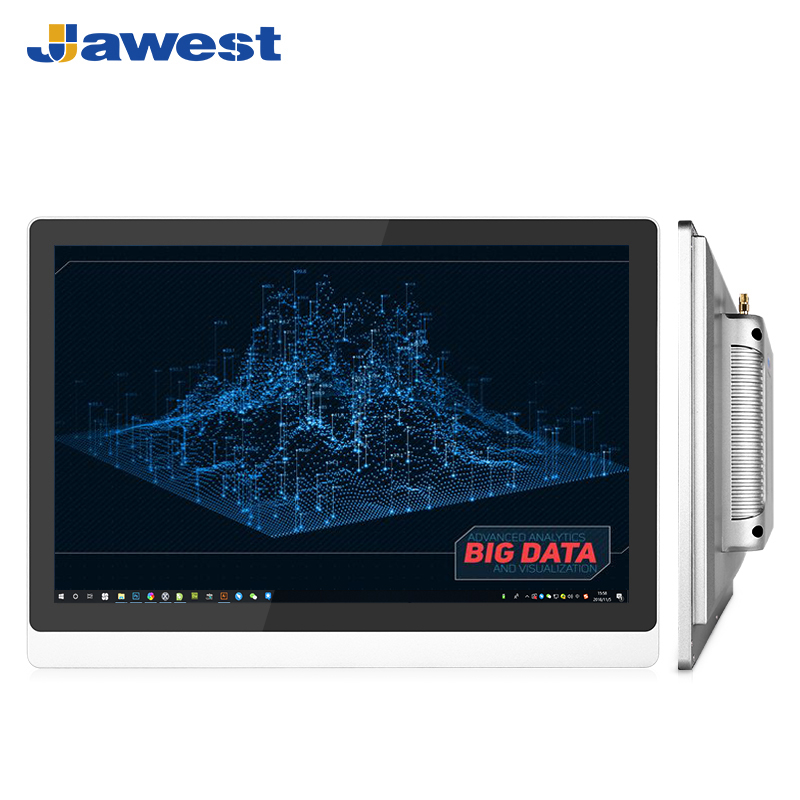

21.5" Wide Screen Industrial Panel Computer Multi-Point Capacitive Touch Screen


Model: JWS215-W41

• Display size: 21.5 inch.

• Working temperature: -10 ~ +60°C.

• Support 7/24 operation.

• 10mm enhanced display panel, stronger impact resistance.

• IP65-rated standard dust-proof and water-proof for the front panel.

• Support embedded, wall-mounted, rack-mount, desktop, cantilever support.

Appearance of the color
Black
Silver
share:
  • Description
  • Parameter
  • Case
  • 21.5" Industrial Computer Multi-Point Capacitive Touch Screen


    Model: JWS215-W41


    This 21.5-inch industrial computer with an all-in-one design, Windows operating system, and industrial panel PC is designed for use in harsh industrial environments, such as industrial machinery and the equipment industry. It supports a sunlight-readable screen up to 1500 nits (optional) making it excellent for outdoor self-service equipment, touch screen kiosks and information collection and display systems, emergency command, transportation scheduling, industrial control, facility management, and other IoT applications. Jawest offers our customers highly competitive prices, reliable products, and outstanding services.



    Jawest Industrial All-in-one Panel PC Features


    ● 21.5-inch with 1920x1080 resolution display; Aspect ratio: 16:9.

    ● CPU options: J1900, J4125, and J6412.

    ● RAM options: 4/8/16GB.

    ● Storage options: 64/128/256/512GB.

    ● Sunlight readable screen for outdoor devices (up to 1500 nits).

    ● Operating System: Windows, Linux, or Android for option.

    ● Appearance: black or Silver color, support customization.

    ● Ten-point PCAP touch control screen, five-wire resistive touchscreen, and Non-touch screen options.

    ● 10mm front bezel and aluminum enclosure, strong impact resistance in harsh environments.

    ● IP65 dust-proof and waterproof for front enclosure protection.

    ● Support functional module: NFC, RFID, IC card, ID card reader optional.

    ● Aluminum alloy chassis and casing, good heating-dissipation under high-temperature conditions.

    ● Multi-mounting options: VESA, desktop, wall-mounted, and ceiling-mounted.




    Industrial Computer Multi-Point Capacitive Touch Screen

    21.5" Industrial Computer Multi-Point Capacitive Touch Screen

    21.5" Industrial Computer Multi-Point Capacitive Touch Screen


    21.5" Industrial Computer Multi-Point Capacitive Touch Screen





  • Screen
    ModelJWS215-W41
    Size21.5 inch
    Aspect Ratio16:9
    Resolution1920*1080
    Contrast1000:1
    Luminance250~300 Nits (High brightness screen for optional)
    Display Colors16.7M
    Response Time5ms
    View Angle89/89/89/89
    Touch Screen10-point capacitive touchscreen (4/5 wire resistive touchscreen, and Non-touch for optional)
    Panel TypeIndustrial LCD panel A, A+ Grade quality
    Motherboard Configuration OptionsCX-J1900CX-J4125-ACX-J6412
    CPUIntel Celeron J1900Intel Celeron J4125Intel Celeron J6412
    GPUIntel HD GraphicsIntel UHD Graphics 600Intel UHD Graphics 16 EUs
    ArchitectureIntel Bay TrailIntel Gemini Lake RefreshIntel Elkhart Lake
    Inner memory4GB DDR3 RAM ( 8GB options)8GB LPDDR4 (16GB options)8GB LPDDR4 (16GB options)
    Storage64GB SSD (128/256GB SSD, 500G HDD options)256GB SSD (512GB SSD, 1T/2T HDD options)128GB SSD (256/512 GB SSD, 1T/2T HDD options)
    Operating SystemWindows 7/10Windows 10/11Windows 10/11
    Ubuntu 14.04.6/16.04.7/18.04.5/18.04.6/20.04.1/20.04.3/20.04.4/22.04Ubuntu 14.04.6/16.04.7/18.04.5/18.04.6/20.04.1/20.04.3/20.04.4/22.04Ubuntu14.04.6/16.04.7/18.04.5/18.04.6/20.04.1/20.04.3/20.04.4/22.04
    CentOS 7.4/7.8/7.9CentOS  7.8/8.4/7.9CentOS 7.8/8.4/7.9
    Redhat 7.4Redhat 7.4Redhat 7.4
    Debian 11.6Debian 10.0/11.6Debian 10.0/11.6

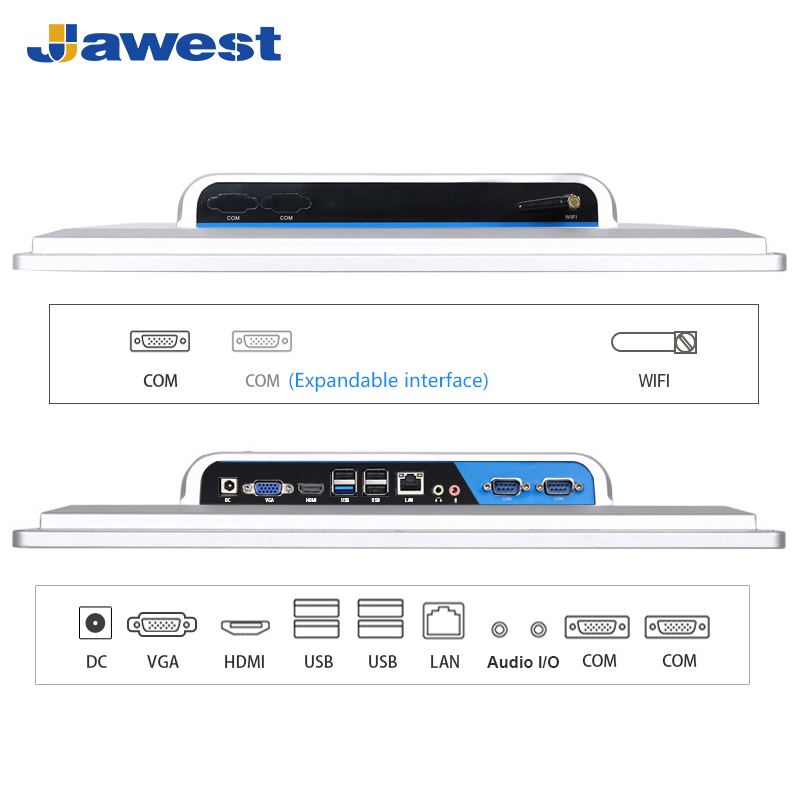

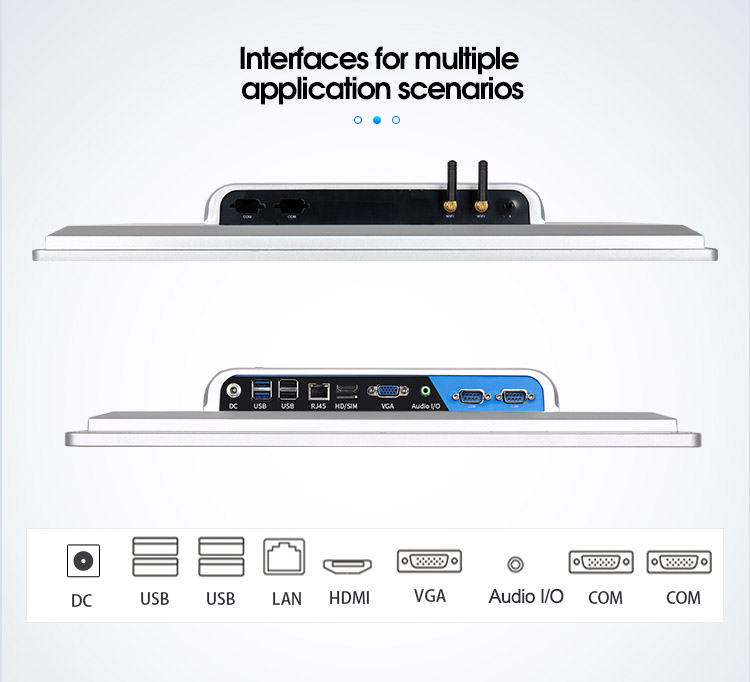

    I/O Ports


    Power Port1*DC port, support 12V-36V wide voltage operation1*DC port, support 12V-36V wide voltage operation1*DC port, support 12V-36V wide voltage operation
    USB Port2*USB2.0, 2*USB3.02*USB2.0, 2*USB3.02*USB2.0, 2*USB3.0
    Network Port1*LAN, 10M/100M/1000M adaptive Ethernet2*LAN, 10M/100M/1000M adaptive Ethernet2*LAN, 10M/100M/1000M adaptive Ethernet
    HDMI1*HDMI, support HDMI data output, up to 4K1*HDMI, support HDMI data output, up to 4K1*HDMI, support HDMI data output, up to 4K
    VGA1*VGA1*VGA1*VGA
    Serial Port2*RS2322*RS2321*RS232
    WiFi Antenna2*WiFi Antenna2*WiFi Antenna2*WiFi Antenna
    SIM Slot1*SIM Slot1*SIM Slot1*SIM Slot
    Audio I/O1*Audio I/O 1*Audio I/O 1*Audio I/O
    Phoenix Terminal//1*12P Phoenix Terminal ((Power supply/1*RS232/1*RS485/5*GPIO)
    Power Button1*Power Button1*Power Button1*Power Button
    Grounding1*GND1*GND1*GND
    Power


    Power InputDC 12~36VDC 12~36VDC 12~36V
    Standby Power18W18W18W
    Reliability
    Operation Temperature-10°C~60°C
    Storage Temperature-20°C~70°C
    Operation Humidity10%~80%
    Storage Humidity10%~90%
    MaterialAluminum alloy enclosure+High Strength Cold Rolled Steel
    Bezel Thickness10mm bezel
    IP RatingIP65 standard seamless front
    CertificationCE, FCC, ROHS, ISO9001
    Mechanical
    Dimension522.1*338.5*62.6mm
    ColorSilver, Black

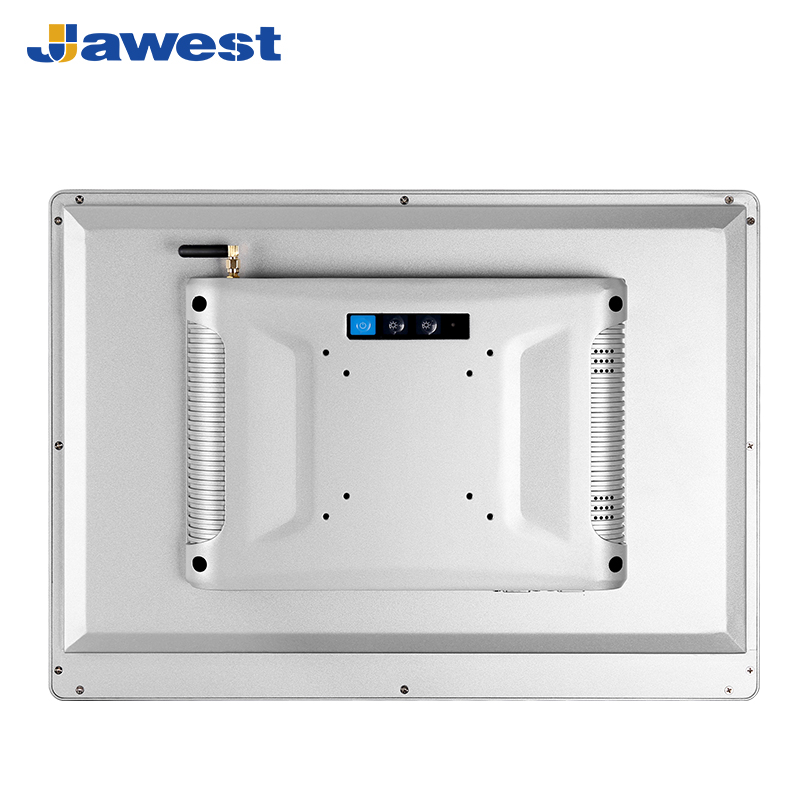

    Installation OptionsVESA, Wall-mounted, Desktop stand, ceiling-mounted.
    PackagingEPE+Carton  (wooden crate for mass order)
