Application:
10.1 Inch All In One Panel PC Single Point Resistive Touch Control10.1 Inch All In One Panel PC Single Point Resistive Touch Control10.1 Inch All In One Panel PC Single Point Resistive Touch Control10.1 Inch All In One Panel PC Single Point Resistive Touch Control

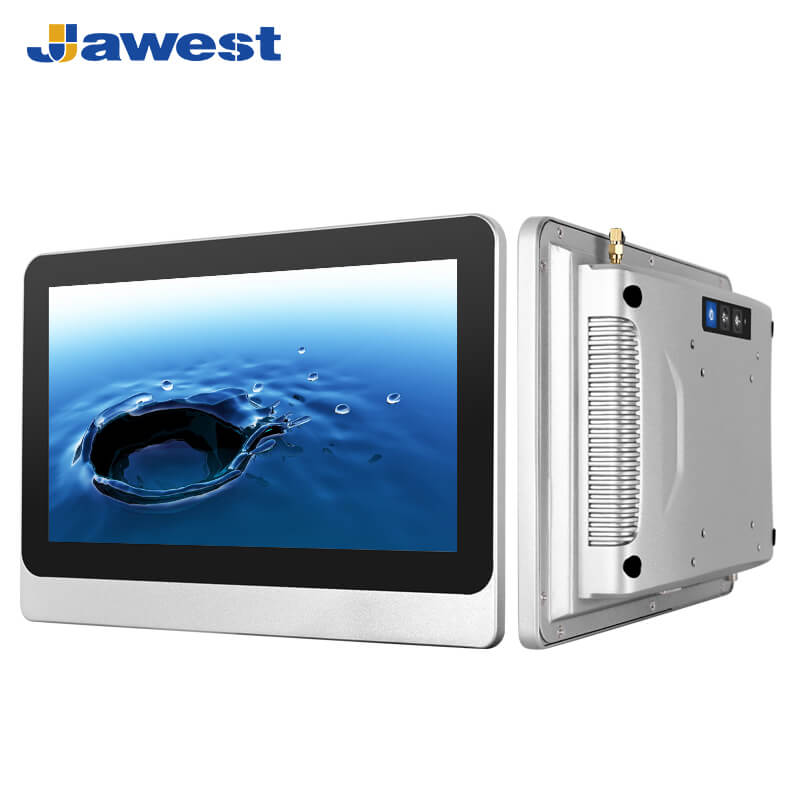

10.1 Inch All In One Panel PC Single Point Resistive Touch Control


Model: JWS101-W42

● Display size: 10.1 inch.

● Working temperature: -10~60°C.

● 10mm enhanced display panel, good impact resistance.

● IP65-rated standard dust-proof and water-proof for the front panel.

● Versatile I/O supported: USB2.0/3.0, RS232, RS422, RS485, RJ45, VGA, HDMI.etc.

● Installation options: Wall-mounted, VESA, desktop stand.

● Aluminum alloy enclosure, high efficiency for heat-dissipation.

● Support sunlight-readable, high-nit screen.

● Resistive touchscreen (capacitive, or Non-touch screen options).



Appearance of the color
Black
Silver
share:
  • Description
  • Parameter
  • Case
  • 10.1 Inch Industrial All-in-One Panel PC With Single Point Resistive Touch Control


    Model: JWS101-W42


    Jawest offers a full range of industrial all-in-one panel PCs with LCD displays for professional industrial sites. They are widely used for indoor and outdoor devices. Perform perfectly under high brightness sunlight or harsh environments. With a self-developed factory, these industrial panel PCs are produced with premium quality, low cost, and are economically competitive.




    10.1 Inch All In One Panel PC Single Point Control

    10.1 Inch All In One Panel PC Single Point Control

    10.1 Inch All In One Panel PC Single Point Control

    10.1 Inch All In One Panel PC Single Point Control

    10.1 Inch All In One Panel PC Single Point Control






  • Display Parameters
    Size10.1"
    Resolution1280*800
    Screen Ratio16:10
    Brightness400 nits (Optional high brightness)
    Contrast Ratio1000:1
    Viewing Angle85°/85°/80°/80° (L/R/U/D)
    Backlight typeLED backlight screen, service life ≥ 50000H
    Touch ScreenResistive (Capacitive, or Non-touch options)





    Motherboard Model SelectionCX-J1900CX-J4125-ACX-J6412
    System ArchitectureProcessorIntel® Celeron® J1900Intel® Celeron® J4125Intel® Celeron® J6412
    Physical Core Count444
    Total Threads444
    Base Frequency2.00 GHz2.00 GHz2.00 GHz
    GPUIntel HD GraphicsIntel UHD Graphics 600Intel UHD Graphics 16 EUs
    Memory (DDR)4GB (8GB optional)8GB8GB (16GB optional)
    Storage (eMMC)64GB (optional 128/256/512GB SSD, 1T/2T HDD)128GB (optional 256/512GB SSD, 1T/2T HDD)256GB (optional 512GB SSD, 1T/2T HDD)
    Operating SystemWin 7/10Win 10/11Win 10/11
    Ubuntu 14.04.6/16.04.7/18.04.5/18.04.6/20.04.1/20.04.3/20.04.4/22.04Ubuntu 14.04.6/16.04.7/18.04.5/18.04.6/20.04.1/20.04.3/20.04.4/22.04Ubuntu 14.04.6/16.04.7/18.04.5/18.04.6/20.04.1/20.04.3/20.04.4/22.04
    CentOS 7.4/7.8/7.9CentOS 7.8/8.4/7.9CentOS 7.8/8.4/7.9
    Redhat 7.4Redhat 7.4Redhat 7.4
    Debian 11.6Debian 10.0/11.6Debian 10.0/11.6





    NetworkingEthernet1*10M/100M/1000M adaptive Ethernet2*10M/100M/1000M adaptive Ethernet2*10M/100M/1000M adaptive Ethernet
    4GSupportSupportSupport
    5G///
    WIFIDual-band 2.4/5GHzDual-band 2.4/5GHzDual-band 2.4/5GHz
    BluetoothBT4.0BT4.0BT4.0





    Touch FunctionTouch InterfaceUSBUSBUSB

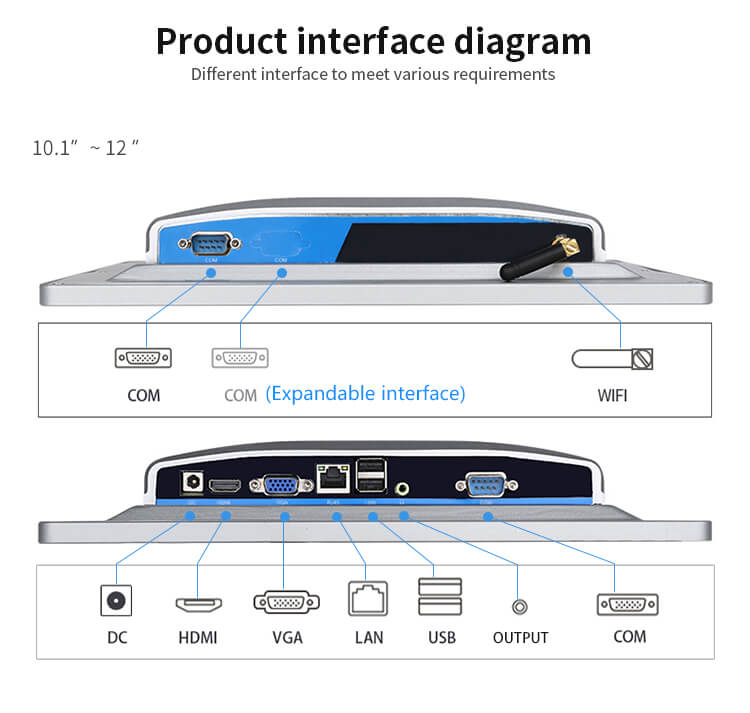

    I/O PortsUSB2*USB2.0, 2*USB3.02*USB2.0, 2*USB3.02*USB2.0, 2*USB3.0
    HDMI1*HDMI, up to 4K1*HDMI, up to 4K1*HDMI, up to 4K
    LAN1*LAN2*LAN2*LAN
    DC1*DC 12~36V1*DC 12~36V1*DC 12~36V
    VGA1*VGA1*VGA1*VGA
    Serial Port2*RS2321*RS2321*RS232
    SIM Slot1*SIM Slot1*SIM Slot1*SIM Slot
    WiFi Antenna2*WiFi Antenna2*WiFi Antenna2*WiFi Antenna
    Audio I/O1*3.5mm Earphone Jack1*3.5mm Earphone Jack1*3.5mm Earphone Jack
    GND1*GND1*GND1*GND
    1*12P Phoenix Terminal /1*DC1*DC
    /1*RS2321*RS232
    /1*RS4851*RS485
    /5*GPIO5*GPIO
    Power Button/11
    I/O ExpansionSupportSupportSupport





    PowerPower Input12~36V DC12V~36 DC12-36V DC
    Adapter12V / 4A12V / 4A24V / 2.5A



    MechanicalEnclosureAluminum alloy housing
    Cooling SystemFanless
    MountingDesk stand, wall-hanging, VESA75/100mm, etc.



    Product ReliabilityWorking Temp-10°C ~ 60°C
    Storage Temp-20°C ~ 70°C
    Ambient Humidity5% - 95% (relative humidity non-condensing)
    IP ratingFront IP65
