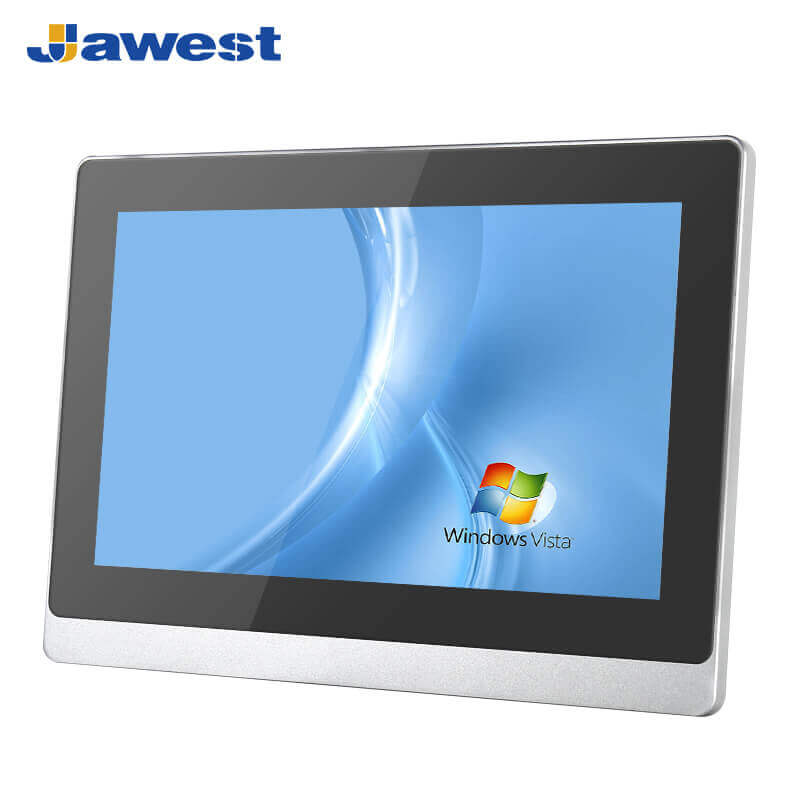

10.4 Inch Intel CPU Industrial Touch Screen Computer Best Factory Price

10.4 Inch Intel CPU Industrial Touch Screen Computer Best Factory Price

Model: JWS104-W42

● Display size: 10.4 inch.

● 4/5-wire resistive touchscreen.

● Working temperature: -10°C ~ +60°C.

● Intel Celeron J1900/J4125/J6412 CPU options.

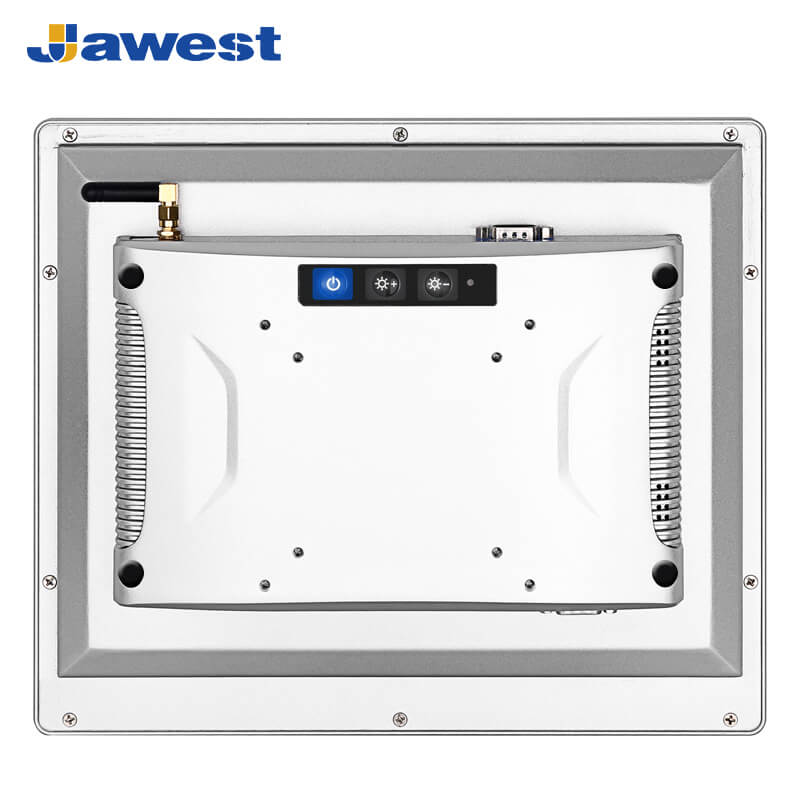

● Support OSD adjustment on the back panel.

● Enhanced bezel panel, excellent impact resistance performance.

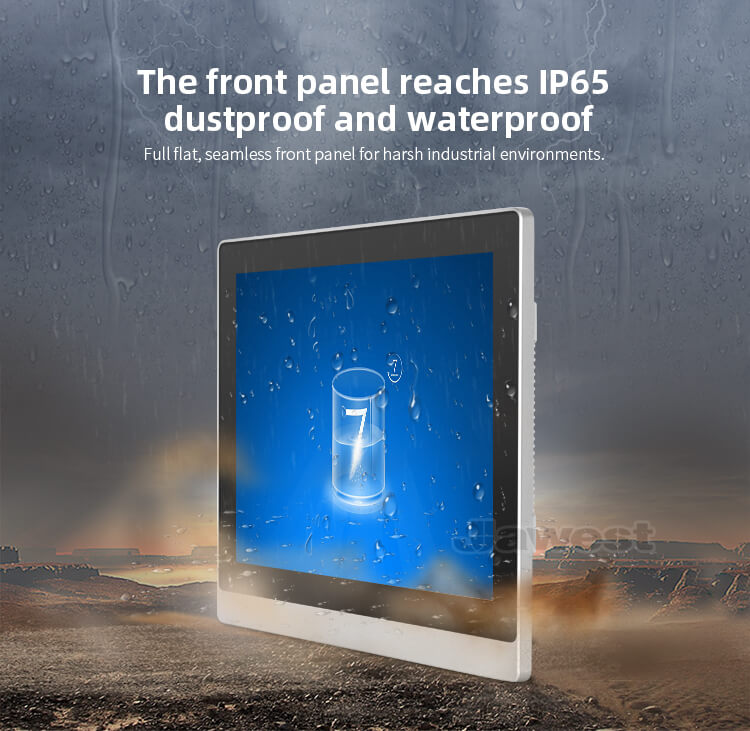

● IP65-rated dust-proof and water-proof for front panel.

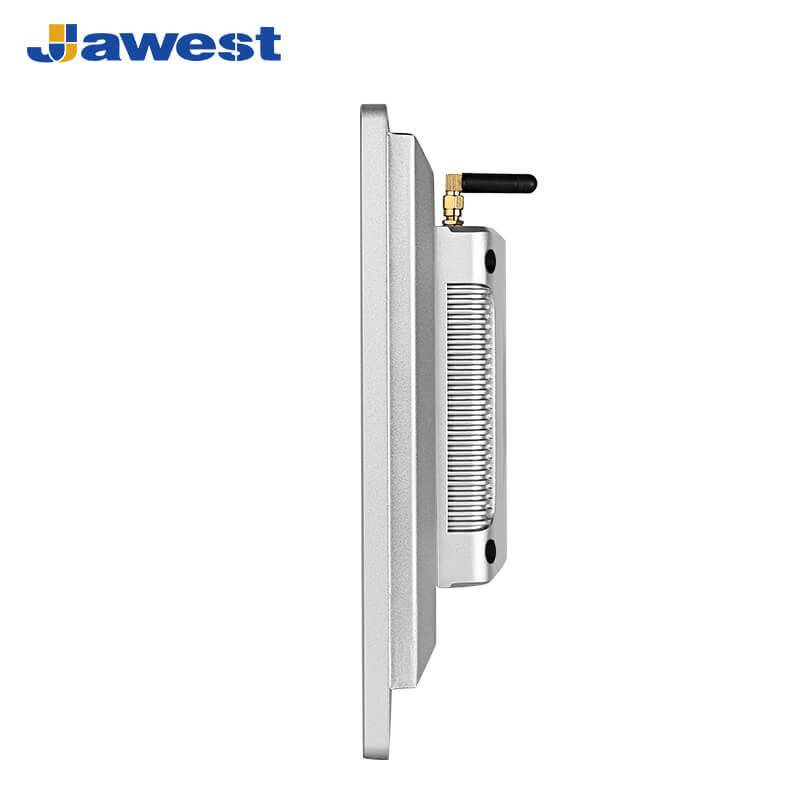

● Fanless design, excellent heating-dissipation performance.

● Mounting options: wall-mounted, rack-mounted, desktop, VESA75/100mm.

● Support 24/7 long-time operation.

● OEM/ODM available.

Appearance of the color

Black

Silver

Description
Parameter
Case

10.4 Inch Intel CPU Industrial Resistive Touch Screen Computer

Model: JWS104-W42

Jawest offers a full range of LCD display industrial all-in-one computers for intelligent manufacturing, smart factories, and other professional industrial applications. They are also widely used for commercial use and indoor and outdoor devices. Also, performs perfectly under direct sunlight environments. With self-factory, Our industrial panel PCs are of premium quality, low-cost, and economically competitive.


Display Parameters	Size	10.4"
	Resolution	1024*768
	Screen Ratio	4:3
	Brightness	400 nits (Optional high brightness)
	Contrast Ratio	1000:1
	Viewing Angle	80°/80°/80°/80° (L/R/U/D)
	Backlight type	LED backlight screen, service life ≥ 50000H
	Touch Screen	Resistive (Capacitive, or Non-touch options)

Motherboard Model Selection		CX-J1900	CX-J4125-A	CX-J6412
System Architecture	Processor	Intel® Celeron® J1900	Intel® Celeron® J4125	Intel® Celeron® J6412
	Physical Core Count	4	4	4
	Total Threads	4	4	4
	Base Frequency	2.00 GHz	2.00 GHz	2.00 GHz
	GPU	Intel HD Graphics	Intel UHD Graphics 600	Intel UHD Graphics 16 EUs
	Memory (DDR)	4GB (8GB optional)	8GB	8GB (16GB optional)
	Storage (eMMC)	64GB (optional 128/256/512GB SSD, 1T/2T HDD)	128GB (optional 256/512GB SSD, 1T/2T HDD)	256GB (optional 512GB SSD, 1T/2T HDD)
	Operating System	Win 7/10	Win 10/11	Win 10/11
		Ubuntu 14.04.6/16.04.7/18.04.5/18.04.6/20.04.1/20.04.3/20.04.4/22.04	Ubuntu 14.04.6/16.04.7/18.04.5/18.04.6/20.04.1/20.04.3/20.04.4/22.04	Ubuntu 14.04.6/16.04.7/18.04.5/18.04.6/20.04.1/20.04.3/20.04.4/22.04
		CentOS 7.4/7.8/7.9	CentOS 7.8/8.4/7.9	CentOS 7.8/8.4/7.9
		Redhat 7.4	Redhat 7.4	Redhat 7.4
		Debian 11.6	Debian 10.0/11.6	Debian 10.0/11.6

Networking	Ethernet	1*10M/100M/1000M adaptive Ethernet	2*10M/100M/1000M adaptive Ethernet	2*10M/100M/1000M adaptive Ethernet
	4G	Support	Support	Support
	5G	/	/	/
	WIFI	Dual-band 2.4/5GHz	Dual-band 2.4/5GHz	Dual-band 2.4/5GHz
	Bluetooth	BT4.0	BT4.0	BT4.0

Touch Function	Touch Interface	USB	USB	USB
I/O Ports	USB	2USB2.0, 2USB3.0	2USB2.0, 2USB3.0	2USB2.0, 2USB3.0
	HDMI	1*HDMI, up to 4K	1*HDMI, up to 4K	1*HDMI, up to 4K
	LAN	1*LAN	2*LAN	2*LAN
	DC	1*DC 12~36V	1*DC 12~36V	1*DC 12~36V
	VGA	1*VGA	1*VGA	1*VGA
	Serial Port	2*RS232	1*RS232	1*RS232
	SIM Slot	1*SIM Slot	1*SIM Slot	1*SIM Slot
	WiFi Antenna	2*WiFi Antenna	2*WiFi Antenna	2*WiFi Antenna
	Audio I/O	1*3.5mm Earphone Jack	1*3.5mm Earphone Jack	1*3.5mm Earphone Jack
	GND	1*GND	1*GND	1*GND
	1*12P Phoenix Terminal	/	1*DC	1*DC
		/	1*RS232	1*RS232
		/	1*RS485	1*RS485
		/	5*GPIO	5*GPIO
	Power Button	/	1	1
	I/O Expansion	Support	Support	Support

Power	Power Input	12~36V DC	12V~36 DC	12-36V DC
Power	Adapter	12V / 4A	12V / 4A	24V / 2.5A

Mechanical	Enclosure	Aluminum alloy housing
	Cooling System	Fanless
	Mounting	Desk stand, wall-hanging, VESA75/100mm, etc.

Product Reliability	Working Temp	-10°C ~ 60°C
	Storage Temp	-20°C ~ 70°C
	Ambient Humidity	5% - 95% (relative humidity non-condensing)
	IP rating	Front IP65
