Application:
21.5 Inch Touch Screen All in one Industrial Panel Computer21.5 Inch Touch Screen All in one Industrial Panel Computer21.5 Inch Touch Screen All in one Industrial Panel Computer21.5 Inch Touch Screen All in one Industrial Panel Computer

21.5 Inch Touch Screen All in one Industrial Panel Computer


Model: JWS215-W42

● Display size: 21.5 inch

● Onboard Intel® Celeron® J1900/J4125/J6412 processors options

● Operation temperature: -10°C ~ +60°C

● Waterproof connectors & cables

● 7/24 operation in all-weather conditions

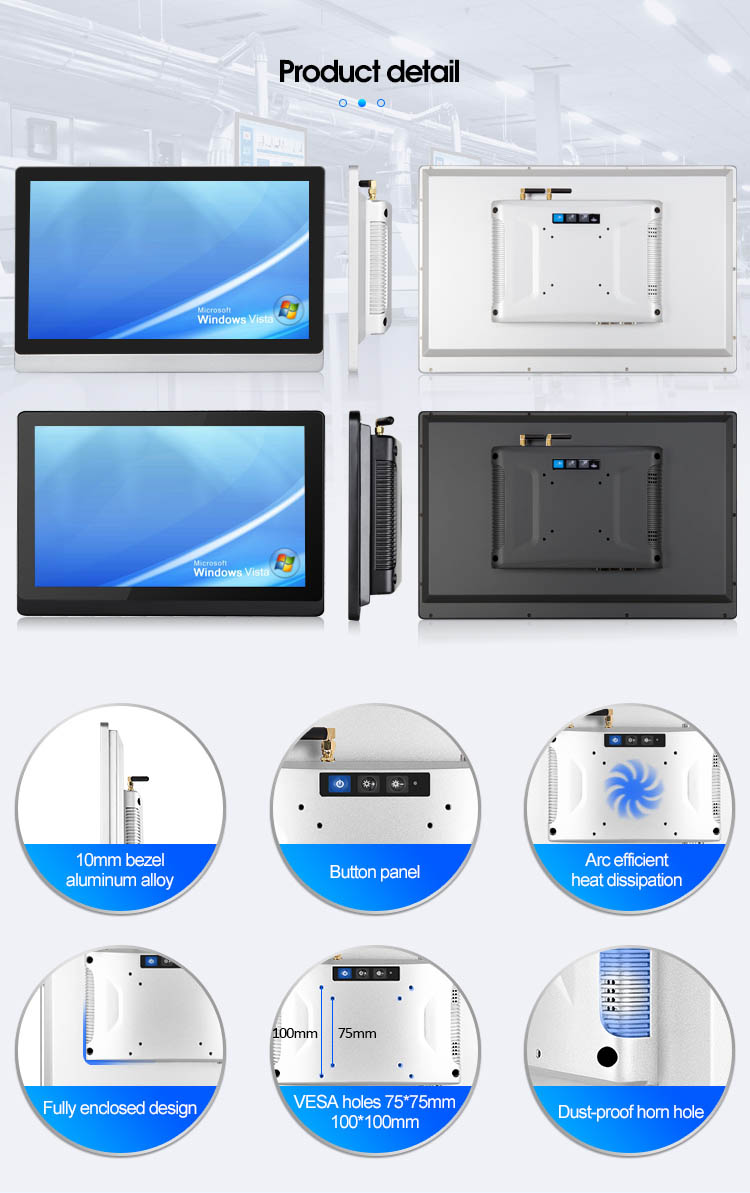

● 10mm thin front bezel for impact resistance

● IP65 Front Bezel, Aluminum alloy housing

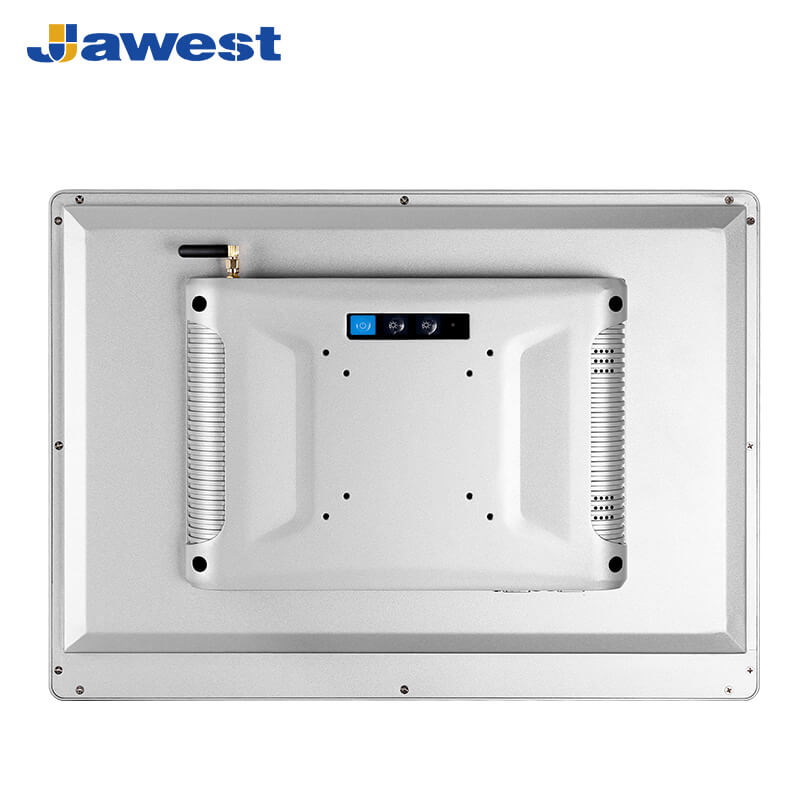

● Supports wall-mounted, open frame, desktop, VESA 75/100mm

Appearance of the color
Black
Silver
share:
  • Description
  • Parameter
  • Case
  • 21.5 Inch Industrial All-in-one Computer With Resistive Touch Screen


    Model: JWS215-W42

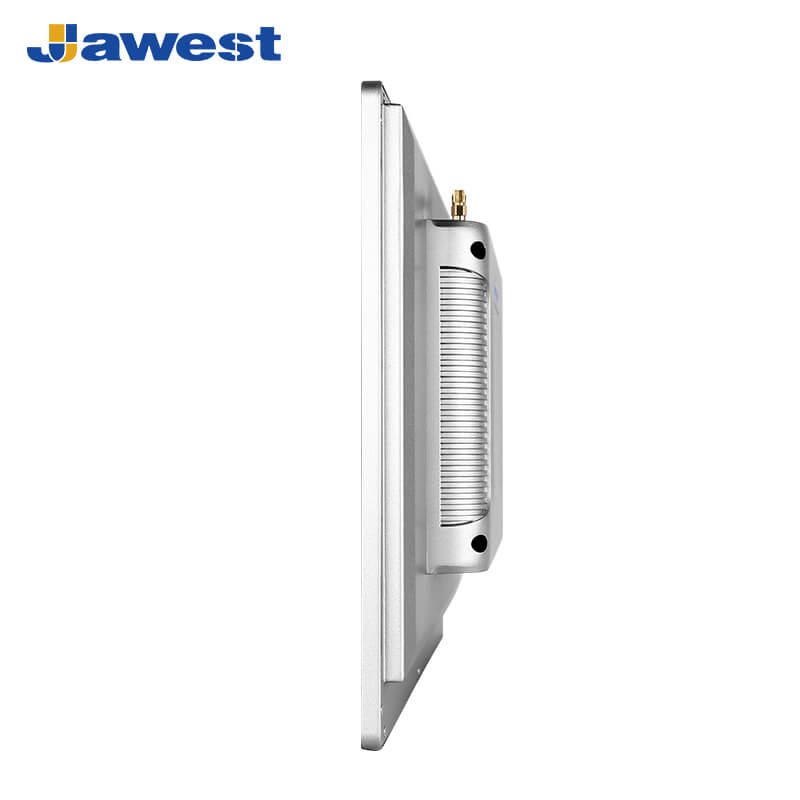

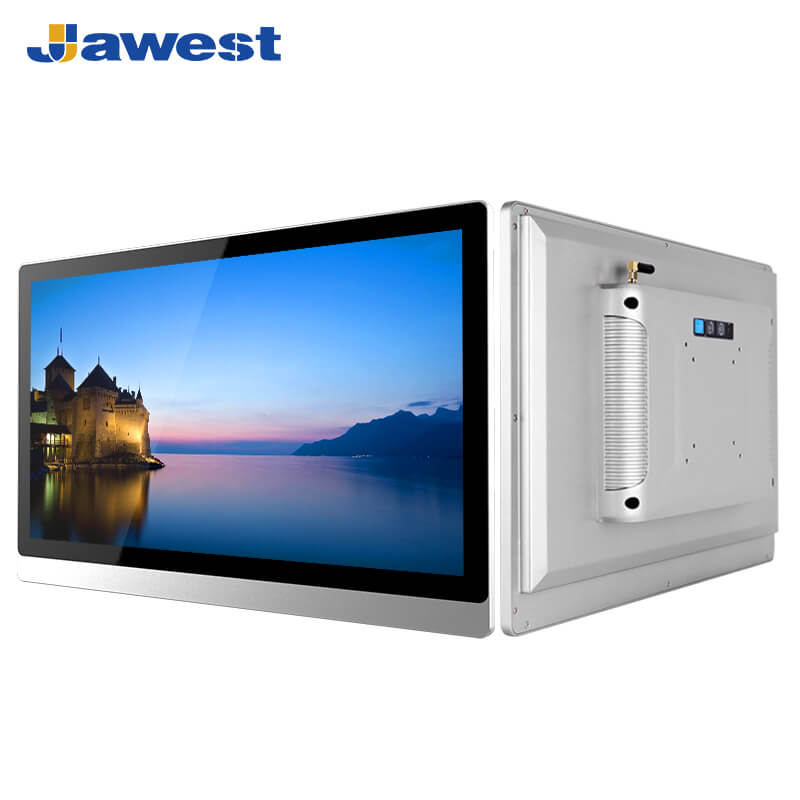

    This 21.5-inch LED industrial all-in-one touch panel pc with a 10mm front bezel, is suitable for use in harsh industrial environments with good impact resistance. The true flat panel is well-embedded in cabinets, a power distribution box, and a control table. Single-point resistive touch screen with default IP65 (front panel). Typical 1920*1080 resolution. Compact fanless design for heat-dissipation, fully functional, all the power and functionality of a desktop computer in all in one design, powered by Intel processor, ideal for industrial and commercial applications. It is suitable for multiple applications, and industries such as manufacturing, production lines, security, smart factory workshops, business, finance, and projects.



    Jawest Industrial All-in-one Panel PC Features


    ● 21.5-inch with 1920x1080 resolution display; Aspect ratio: 16:9.

    ● 2GB DDR3 RAM expandable to 4/8GG; 32GB SSD, expandable to 64/256/512GB.

    ● Configuration Options: J1900/J4125/J6412 CPUs for optional.

    ● Operating System Options: Windows 7/10/11, Ubuntu, CentOS, Redhat, and Debian for optional.

    ● Appearance: Black or Silver color, support customization.

    ● Sunlight readable screen for outdoor devices (up to 1500 nits).

    ● 4/5-wire resistive touch, with water, dust, and oil-proof (capacitive, and Non-touchscreen for optional)

    ● Supports customized LOGO on the front panel.

    ● Rugged IP65 Aluminium alloy enclosure, modular & fanless design.

    ● Support functional modules: NFC, RFID, IC card, and ID card reader are optional.

    ● Aluminum alloy chassis and casing, good heating-dissipation performance under high-temperature conditions.

    ● Multi-mounting options: VESA, desktop stand, wall-mounted, and ceiling-mounted.




    21.5 Inch Touch Screen All in one Industrial Computer

    21.5 Inch Touch Screen All in one Industrial Computer

    21.5 Inch Touch Screen All in one Industrial Computer

    21.5 Inch Touch Screen All in one Industrial Computer





  • Screen
    ModelJWS215-W42
    Size21.5 inch
    Aspect Ratio16:9
    Resolution1920*1080
    Contrast1000:1
    Luminance250~300 Nits (High brightness screen for optional)
    Display Colors16.7M
    Response Time5ms
    View Angle89/89/89/89
    Touch Screen4/5 wire resistive touchscreen (10-point capacitive touchscreen, and Non-touch for optional)
    Panel TypeIndustrial LCD panel A, A+ Grade quality
    Motherboard Configuration OptionsCX-J1900CX-J4125-ACX-J6412
    CPUIntel Celeron J1900Intel Celeron J4125Intel Celeron J6412
    GPUIntel HD GraphicsIntel UHD Graphics 600Intel UHD Graphics 16 EUs
    ArchitectureIntel Bay TrailIntel Gemini Lake RefreshIntel Elkhart Lake
    Inner memory4GB DDR3 RAM ( 8GB options)8GB LPDDR4 (16GB options)8GB LPDDR4 (16GB options)
    Storage64GB SSD (128/256GB SSD, 500G HDD options)256GB SSD (512GB SSD, 1T/2T HDD options)128GB SSD (256/512 GB SSD, 1T/2T HDD options)
    Operating SystemWindows 7/10Windows 10/11Windows 10/11
    Ubuntu 14.04.6/16.04.7/18.04.5/18.04.6/20.04.1/20.04.3/20.04.4/22.04Ubuntu 14.04.6/16.04.7/18.04.5/18.04.6/20.04.1/20.04.3/20.04.4/22.04Ubuntu14.04.6/16.04.7/18.04.5/18.04.6/20.04.1/20.04.3/20.04.4/22.04
    CentOS 7.4/7.8/7.9CentOS  7.8/8.4/7.9CentOS 7.8/8.4/7.9
    Redhat 7.4Redhat 7.4Redhat 7.4
    Debian 11.6Debian 10.0/11.6Debian 10.0/11.6

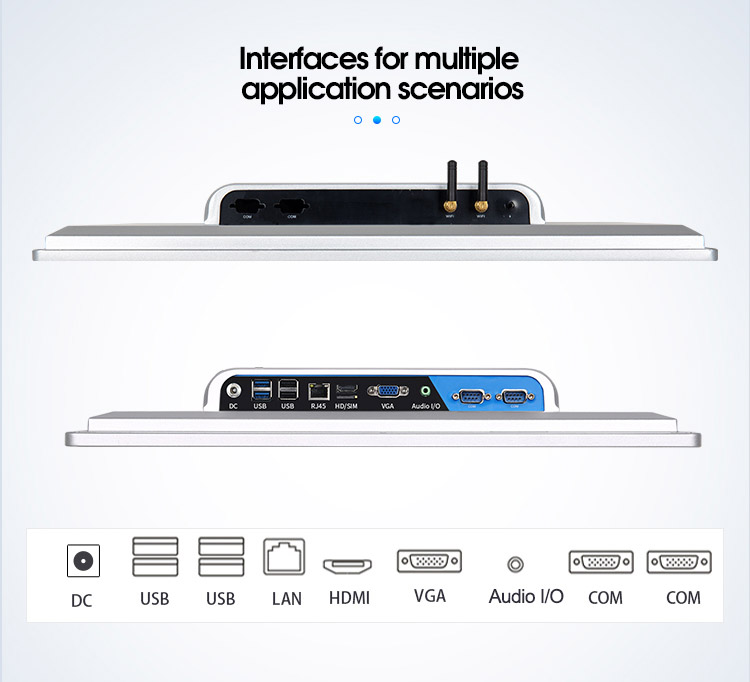

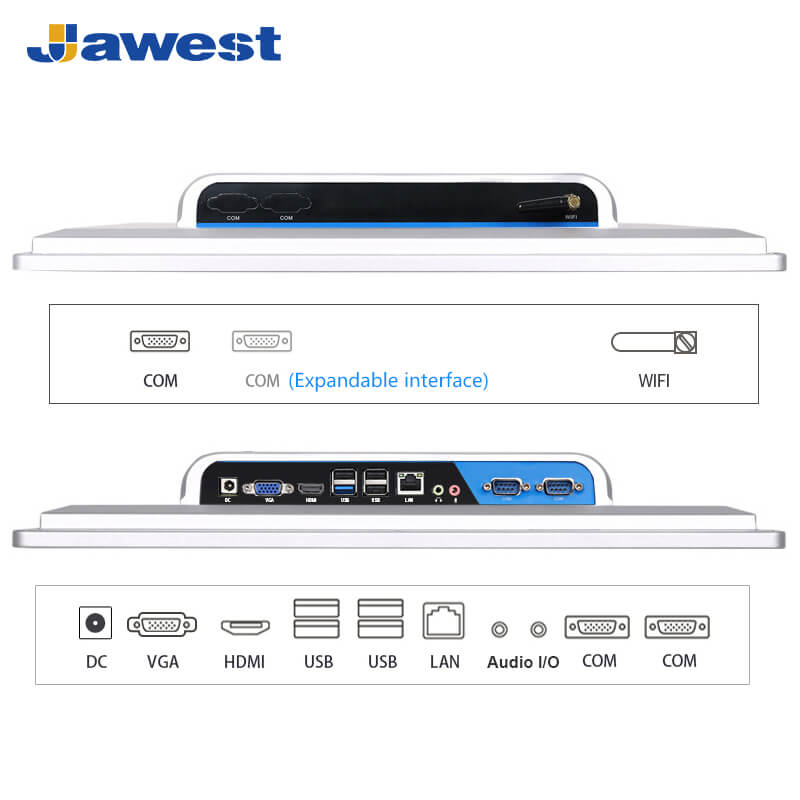

    I/O Ports


    Power Port1*DC port, support 12V-36V wide voltage operation1*DC port, support 12V-36V wide voltage operation1*DC port, support 12V-36V wide voltage operation
    USB Port2*USB2.0, 2*USB3.02*USB2.0, 2*USB3.02*USB2.0, 2*USB3.0
    Network Port1*LAN, 10M/100M/1000M adaptive Ethernet2*LAN, 10M/100M/1000M adaptive Ethernet2*LAN, 10M/100M/1000M adaptive Ethernet
    HDMI1*HDMI, support HDMI data output, up to 4K1*HDMI, support HDMI data output, up to 4K1*HDMI, support HDMI data output, up to 4K
    VGA1*VGA1*VGA1*VGA
    Serial Port2*RS2322*RS2321*RS232
    WiFi Antenna2*WiFi Antenna2*WiFi Antenna2*WiFi Antenna
    SIM Slot1*SIM Slot1*SIM Slot1*SIM Slot
    Audio I/O1*Audio I/O 1*Audio I/O 1*Audio I/O
    Phoenix Terminal//1*12P Phoenix Terminal ((Power supply/1*RS232/1*RS485/5*GPIO)
    Power Button1*Power Button1*Power Button1*Power Button
    Grounding1*GND1*GND1*GND
    Power


    Power InputDC 12~36VDC 12~36VDC 12~36V
    Standby Power18W18W18W
    Reliability
    Operation Temperature-10°C~60°C
    Storage Temperature-20°C~70°C
    Operation Humidity10%~80%
    Storage Humidity10%~90%
    MaterialAluminum alloy enclosure+High Strength Cold Rolled Steel
    Bezel Thickness10mm bezel
    IP RatingIP65 standard seamless front
    CertificationCE, FCC, ROHS, ISO9001
    Mechanical
    Dimension522.1*338.5*62.6mm
    ColorSilver, Black
    Installation OptionsVESA, Wall-mounted, Desktop stand, ceiling-mounted.
    PackagingEPE+Carton  (wooden crate for mass order)
