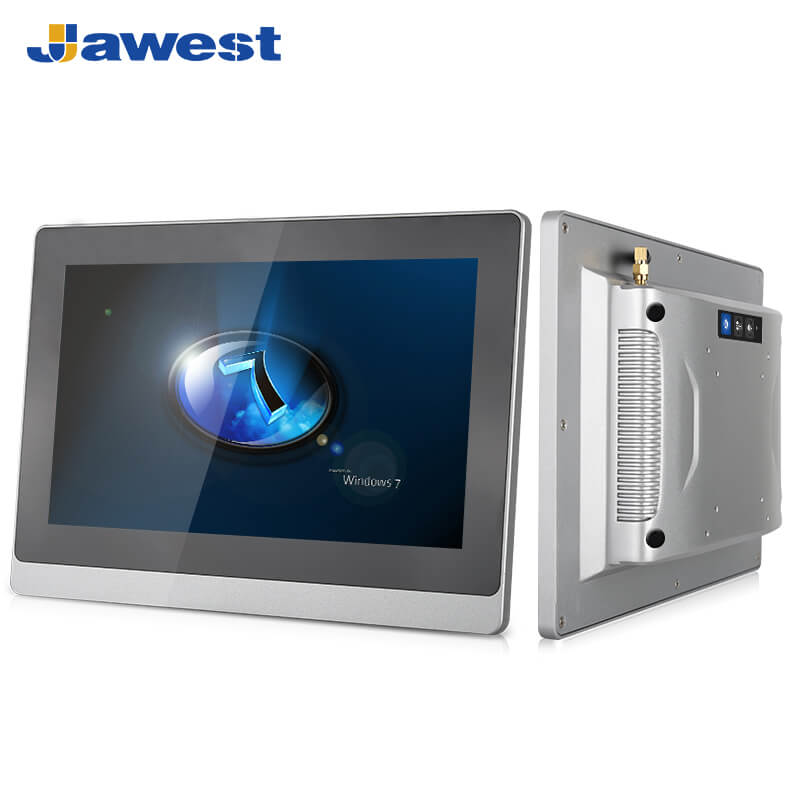

11.6" Fanless Industrial Panel PC With Resistive Touch Screen


Model: JWS116-W42

• Display size: 11.6 inch.

• Operation temperature: -10° ~ +60°C.

• 7/24 long-time operation.

• IP65 dust-proof and water-proof protection for the front panel.

• 10mm front bezel with good impact resistance in industrial sites.

• Multiple installations: embedded, wall-mounted, VESA, desktop, panel mount.

Appearance of the color
Black
Silver
share:
  • Description
  • Parameter
  • Case
  • 11.6" Industrial Panel PC with Single-point Resistive Touchscreen


    Model: JWS116-W42


    Jawest 11.6 inch industrial panel PC designed IP65 rated dust-proof and water-proof protection for the front panel. Support Windows operating system, Win7 / Win8 / Win10. Industrial-grade mainboards ensure reliable performance under harsh conditions. Our customization items include high brightness and sunlight readable screens, up to 1500nits for outdoor applications; Wide temperature and voltage operation, and more customization items please contact us for details.



    Products Features


    ● Jawest industrial panel PC mounting options: VESA, desktop, embedded, panel mount, and wall-mounted.

    ● Panel PC's casing is made of antioxidant materials (Aluminum alloy), which provides excellent heat dissipation.

    ● Windows operating system is pre-installed (Win7/Win8/Win10).

    ● Default configuration: J1900 2GHz quad-core CPU (expandable to higher configuration).

    ● Four or five-wire resistive touch control screen, which is more suitable for industrial sites.

    ● 10mm front bezel and aluminum enclosure, strong impact resistant in harsh environments.

    ● Multi-functional modules for options, such as fingerprint scanner & verification.

    ● Support multi-functional module customization: NFC, RFID, IC card/ID card reader, printing. etc.



    11.6" Fanless Industrial Panel PC With Resistive Touch Screen

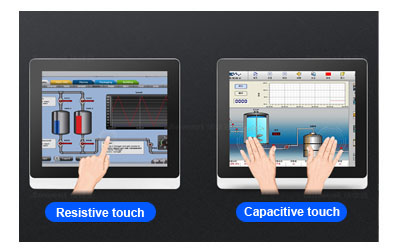

    Single-Touch Resistive Touchscreen


    The scratching-resistant 4/5-wire resistive touch screens are perfect for harsh environments. This industrial panel PC also supports a highly-sensitive PCAP multi-touch capacitive touchscreen, users can realize data input, images rotate, files drag and drop, and zoom in with two or more fingers.




    11.6" Fanless Industrial Panel PC With Resistive Touch Screen


    For Industrial Requirements


    With Aluminum alloy housing and IP65 protection for dust and water resistance, this Panel mount PC is ready for harsh and complex environments, which installed various of equipment, and with high/low-temperature. The All-in-one panel PCs are designed for industries that require stringent disinfection processes and splashing cleanup routines found in Food, Beverage, and Chemical applications.



    11.6" Fanless Industrial Panel PC With Resistive Touch Screen

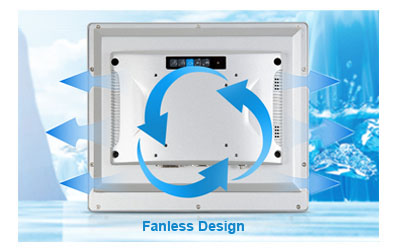

    Fanless Panel PCs

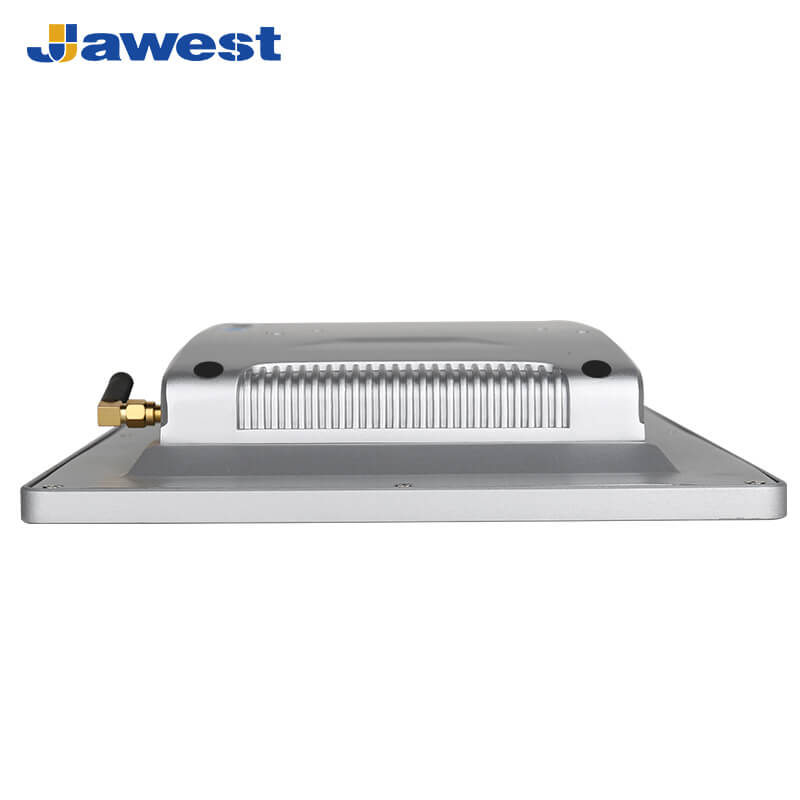

    Fanless panel PCs incorporate advanced heat dissipation techniques such as passive cooling systems, and heat sinks. These methods efficiently dissipate heat generated by the internal components, ensuring reliable operation even in challenging thermal conditions.

    Moreover, fanless panel PCs with sealing and ingress protection, allow for better sealing of the enclosure, helping to achieve the desired IP rating and ensuring the panel PC's resistance to environmental factors.


    11.6" Fanless Industrial Panel PC With Resistive Touch Screen

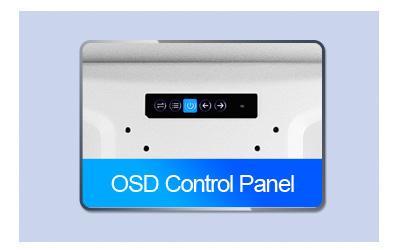

    Industrial Panel PCs Support OSD Function


    Jawest Industrial panel PCs incorporate an On-Screen Display (OSD) function, which allows users to conveniently configure and customize various display settings directly from the panel PC. It provides on-screen menus and options for adjusting parameters such as brightness, contrast, color balance, aspect ratio, and more. This enables users to optimize the display to suit their specific needs and preferences.





    Product Model Fast Guide


    Product ModelsLCD DisplaysResolutionAspect RatioGet A Request
    JWS101-W4210.1"
    1280*80016:10

    Inquiry

    JWS104-W4210.4"1024*7684:3

    Inquiry

    JWS116-W4211.6"1920*108016:9

    Inquiry

    JWS120-W4212"1024*7684:3

    Inquiry

    JWS133-W4213.3"1920*108016:9

    Inquiry

    JWS150-W4215"1024*768
    4:3

    Inquiry

    JWS156-W4215.6"1920*108016:9

    Inquiry

    JWS170-W4217"1280*10245:4

    Inquiry

    JWS173-W4217.3"1920*108016:9

    Inquiry

    JWS190-W4219"1280*10245:4

    Inquiry

    JWS191-W42
    19.1"1440*90016:10

    Inquiry

    JWS215-W4221.5"1920*108016:9

    Inquiry

    JWS238-W4223.8"1920*108016:9

    Inquiry






  • 11.6 inch Industrial All In One PC
    Size11.6 inch
    Display
    Panel TypeIndustrial LCD panel A, A+grade
    Aspect Ratio16 : 9
    Resolution1920*1080
    Contrast800:1
    Luminance300nit-1500nit
    Response time5ms
    Active Area (mm)256.32*144.18
    Display colors16.7M(8-bit)
    View angle85/85/85/85
    PC Configuration
    CPUIntel Celeron J1900 fanless, Intel i3/i5/i7 can be customized
    Graphics CardIntegrated Intel HD Graphics
    Inner memory2G DDR3 RAM ( 4G/8G RAM can be customized)
    Storage32G SSD (64G/128G/256G SSD, 500G HDD can be customized)
    Expansion Card Slot2xMini-PCI-E slot, support SSD, WIFI, 3G module
    AudioRealtek ALG662 6 soundtrack audio frequency
    Internet1xRTL811E gigabit network card
    Operating SystemPre-installed Win7, and offer Win8, 10 for optional
    Support multi-languageEnglish/Portuguese/French,. etc.
    Touch Screen4/5 wire resistive touchscreen/mouse control

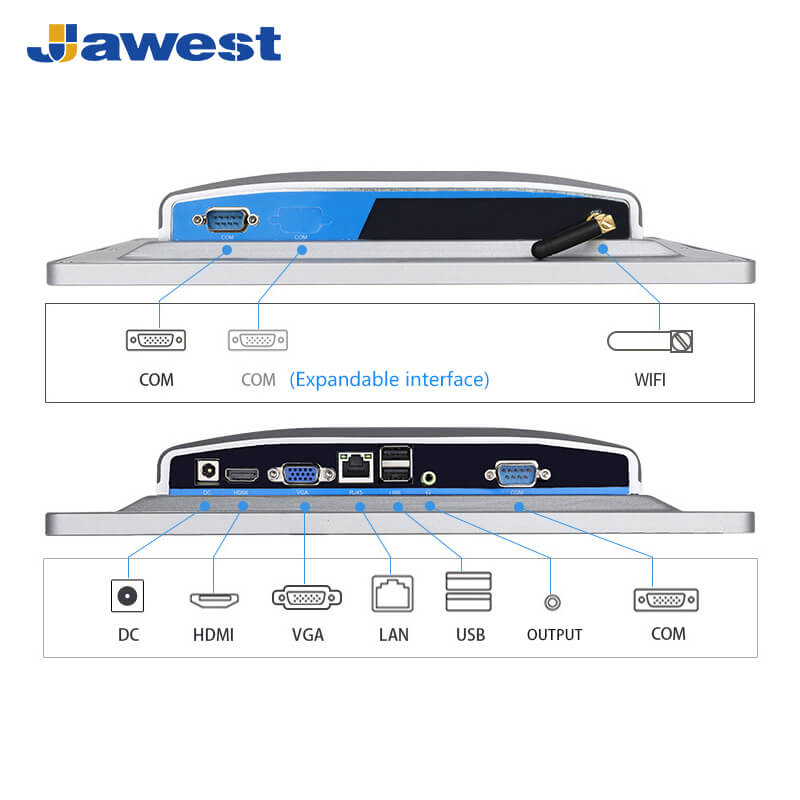

    I/O Ports1*12V DC_JACK input (ATX is optional) ,  1*VGA,1*HDMI, 4*USB  port

    1*RJ-45 network interface, 1*Audio I/O interface, 2*COM (can be customized, up to 4*COM)
    Power InputAC 110-240V, 50/60Hz
    Operation Temperature-10°C-60°C
    Storage Temperature-30°C-60°C
    Operation Humidity10%--80%
    Storage Humidity10%-90%
    MaterialAluminum alloy enclosure
    Bezel Thickness10mm bezel
    IP RatingIP65 standard seamless front
    ColorSilver / Black
    Installation WayVESA, Embedded, Wall Mount, panel mount, desktop
    CertificationCE,FCC,ROHS,ISO
    PackagingEPE+Carton  (wooden crate for mass order)
