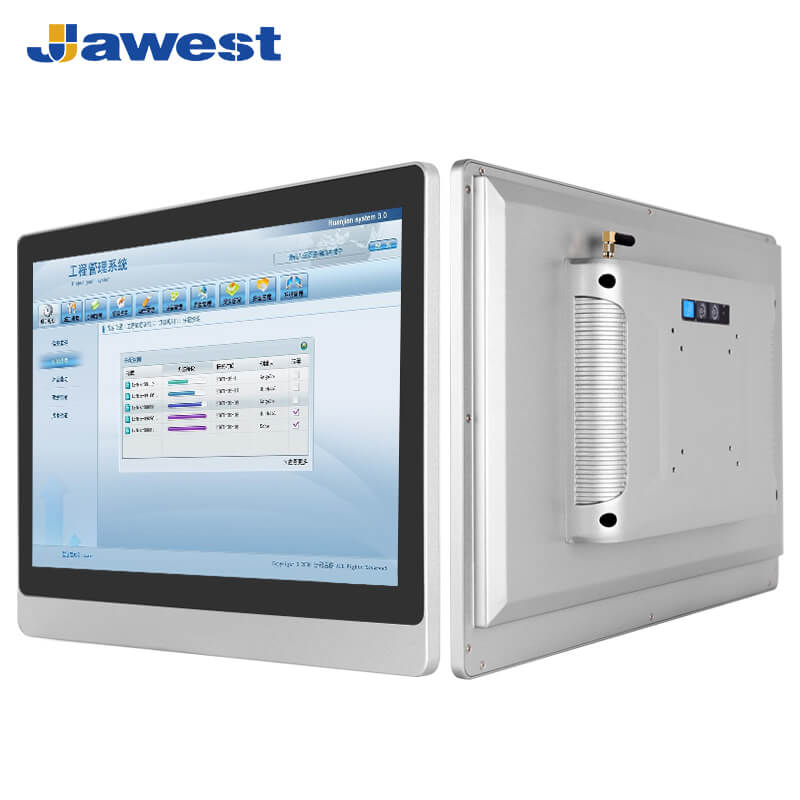

17.3" All In One Panel PC 5 Wire 4 Wire Resistive Touchscreen


Model: JWS173-W42

● Display size: 17.3 inch.

● Working temperature: -10~60°C.

● Support 7/24 operation.

● 10mm enhanced display panel, good impact resistance performance.

● IP65-rated standard dust-proof and water-proof.

● Installation Options: VESA, wall-mounted, desktop stand, and ceiling-mounted.

Appearance of the color
Black
Silver
share:
  • Description
  • Parameter
  • Case
  • 17.3" All In One Panel PC with Five-wire & Four-wire Resistive Touchscreen


    Model: JWS173-W42


    The Jawest 17.3-inch widescreen all-in-one computer is a powerful industrial panel PC. Equipped with Intel Celeron J1900/J4125/J6412 CPU for optional, this touch panel PC is capable of handling even the most demanding applications. And takes full advantage of the fanless heating-dissipation system, which allows it to silently and efficiently with 7/24 hours of operation. The industrial AIO tablet PC is equipped with a projected capacitive touchscreen and an IP65-rated dust-proof and waterproof front bezel. Besides the 17.3-inch display, Jawest also offers other displays from 7" ~ 27" with capacitive, resistive, or non-touch screens for the all-in-one PCs. You can find your most affordable industrial all-in-one PCs with highly competitive prices, reliable products, and outstanding services in Jawest.



    Jawest Industrial All-in-one Panel PC Features


    ● 17.3-inch with 1920x1080 resolution display; Aspect ratio: 16:9.

    ● Full flat IP65 protected touchscreen.

    ● Configuration Options: J1900, J4125, J6412.

    ● RAM Options: 4/8/16GB;

    ● Storage Options: 64/256/512GB SSD, 1T/2T HDD.

    ● Operating System: Windows, Linux, or Android for option.

    ● Thin body, attractive appearance, and one-piece die-cast Housing design.

    ● Abundant I/O ports, support expansion.

    ● Fanless heating-dissipation, no-noise, and low power consumption.

    ● Sunlight readable screen for outdoor devices (up to 1500 nits).

    ● 4/5-wire resistive touchscreen (10-point PCAP touch control screen, and Non-touch for optional).

    ● 10mm front bezel and aluminum enclosure, good impact resistance performance in harsh environments.

    ● Multi-mounting options: VESA, desktop stand, wall-mounted, and ceiling-mounted.




  • Screen
    ModelJWS173-W42
    Size17.3 inch
    Aspect Ratio16:9
    Resolution1920*1080
    Contrast600:1
    Luminance400 Nits (High brightness screen for optional)
    Display Colors16.7M
    Response Time5ms
    View Angle85/85/60/80
    Touch Screen4/5 wire resistive touchscreen (10-point capacitive touchscreen, and Non-touch for optional)
    Panel TypeIndustrial LCD panel A, A+ Grade quality
    Motherboard Configuration OptionsCX-J1900CX-J4125-ACX-J6412
    CPUIntel Celeron J1900Intel Celeron J4125Intel Celeron J6412
    GPUIntel HD GraphicsIntel UHD Graphics 600Intel UHD Graphics 16 EUs
    ArchitectureIntel Bay TrailIntel Gemini Lake RefreshIntel Elkhart Lake
    Inner memory4GB DDR3 RAM ( 8GB options)8GB LPDDR4 (16GB options)8GB LPDDR4 (16GB options)
    Storage64GB SSD (128/256GB SSD, 500G HDD options)256GB SSD (512GB SSD, 1T/2T HDD options)128GB SSD (256/512 GB SSD, 1T/2T HDD options)
    Operating SystemWindows 7/10Windows 10/11Windows 10/11
    Ubuntu 14.04.6/16.04.7/18.04.5/18.04.6/20.04.1/20.04.3/20.04.4/22.04Ubuntu 14.04.6/16.04.7/18.04.5/18.04.6/20.04.1/20.04.3/20.04.4/22.04Ubuntu14.04.6/16.04.7/18.04.5/18.04.6/20.04.1/20.04.3/20.04.4/22.04
    CentOS 7.4/7.8/7.9CentOS  7.8/8.4/7.9CentOS 7.8/8.4/7.9
    Redhat 7.4Redhat 7.4Redhat 7.4
    Debian 11.6Debian 10.0/11.6Debian 10.0/11.6

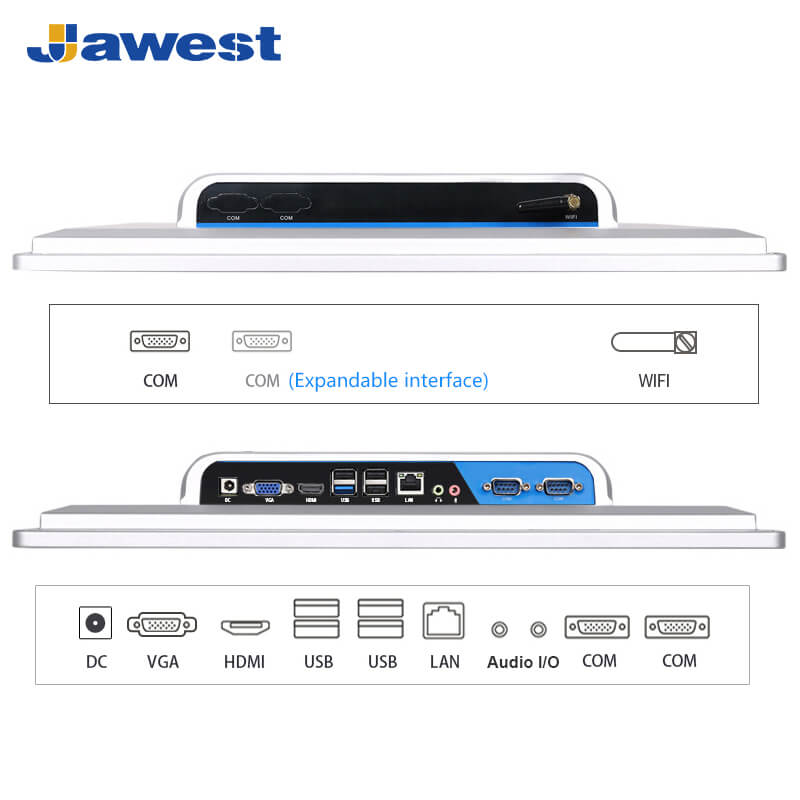

    I/O Ports


    Power Port1*DC port, support 12V-36V wide voltage operation1*DC port, support 12V-36V wide voltage operation1*DC port, support 12V-36V wide voltage operation
    USB Port2*USB2.0, 2*USB3.02*USB2.0, 2*USB3.02*USB2.0, 2*USB3.0
    Network Port1*LAN, 10M/100M/1000M adaptive Ethernet2*LAN, 10M/100M/1000M adaptive Ethernet2*LAN, 10M/100M/1000M adaptive Ethernet
    HDMI1*HDMI, support HDMI data output, up to 4K1*HDMI, support HDMI data output, up to 4K1*HDMI, support HDMI data output, up to 4K
    VGA1*VGA1*VGA1*VGA
    Serial Port2*RS2322*RS2321*RS232
    WiFi Antenna2*WiFi Antenna2*WiFi Antenna2*WiFi Antenna
    SIM Slot1*SIM Slot1*SIM Slot1*SIM Slot
    Audio I/O1*Audio I/O 1*Audio I/O 1*Audio I/O
    Phoenix Terminal//1*12P Phoenix Terminal ((Power supply/1*RS232/1*RS485/5*GPIO)
    Power Button1*Power Button1*Power Button1*Power Button
    Grounding1*GND1*GND1*GND
    Power


    Power InputDC 12~36VDC 12~36VDC 12~36V
    Standby Power18W18W18W
    Reliability
    Operation Temperature-10°C~60°C
    Storage Temperature-20°C~70°C
    Operation Humidity10%~80%
    Storage Humidity10%~90%
    MaterialAluminum alloy enclosure+High Strength Cold Rolled Steel
    Bezel Thickness10mm bezel
    IP RatingIP65 standard seamless front
    CertificationCE, FCC, ROHS, ISO9001
    Mechanical
    Dimension427.7*285.4*67.4mm
    ColorSilver, Black
    Installation OptionsVESA, Wall-mounted, Desktop stand, ceiling-mounted.
    PackagingEPE+Carton  (wooden crate for mass order)
