Cheap 12 inch Android IP65 Industrial Touch PC Android 7.1 Capacitive Wide Temperature Work Rugged Enclosure For Kiosk

Cheap 12 inch Android IP65 Industrial Touch PC Android 7.1 Capacitive Wide Temperature Work Rugged Enclosure For Kiosk

● Display size: 12 inch.

● Industrial LED panel with 50000-lifetime backlight.

● Fanless design with rugged Aluminum alloy enclosure.

● Projected capacitive multi-touch screen, single-point resistive touch.

● True-flat with IP65 certified front panel protection.

● Multiple installation: desktop / wall / VESA 75*75 /100*100.

● Ultra-sensitive touch screen, precise positioning, free control.

● Fanless design with low-power, perfectly suited for industrial applications.

Appearance of the color

Black

Silver

Description
Parameter
Case

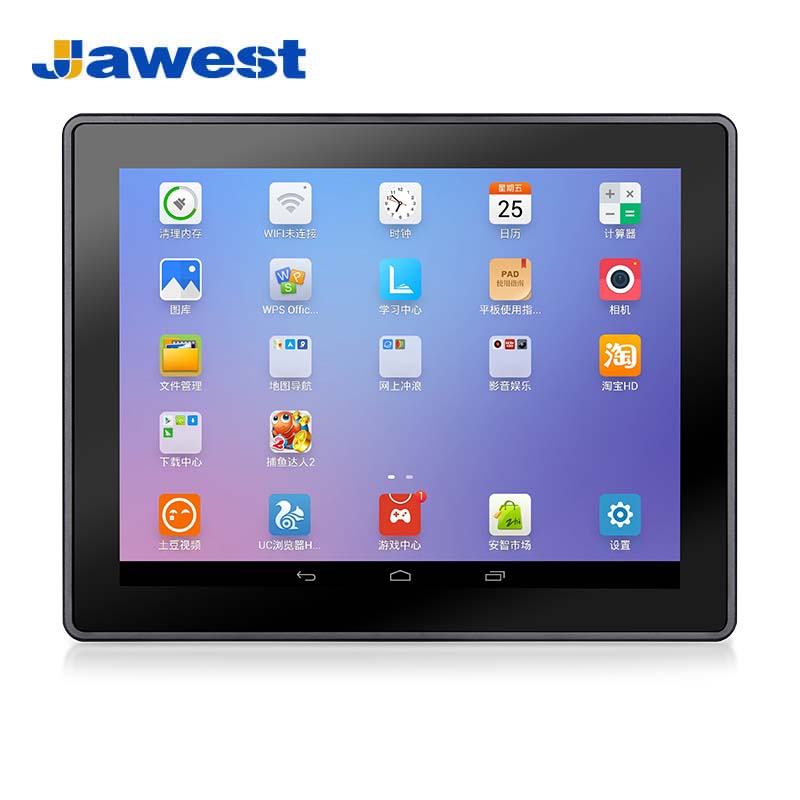

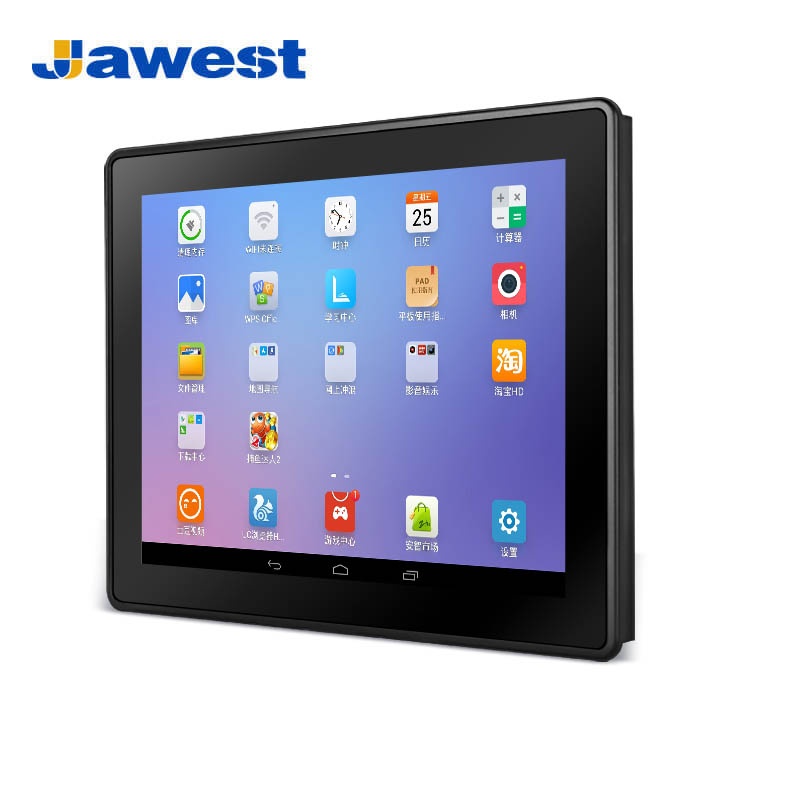

12-inch Android Industrial Panel PC

Model: JWS120-A5

This JWS120-A5 is a 12" industrial panel PC with an Android system, with a 4:3 square screen format display with a resolution of 1024*768.

It offers high flexibility for installation, including VESA 75*75mm and VESA 100*100mm, desktop mount, wall-hanging, and embedded mount. High scalability of I/O ports and configuration (2/4/8GB options for RAM, 32/64/128/256GB options for SSD) make them available for use in multiple applications.

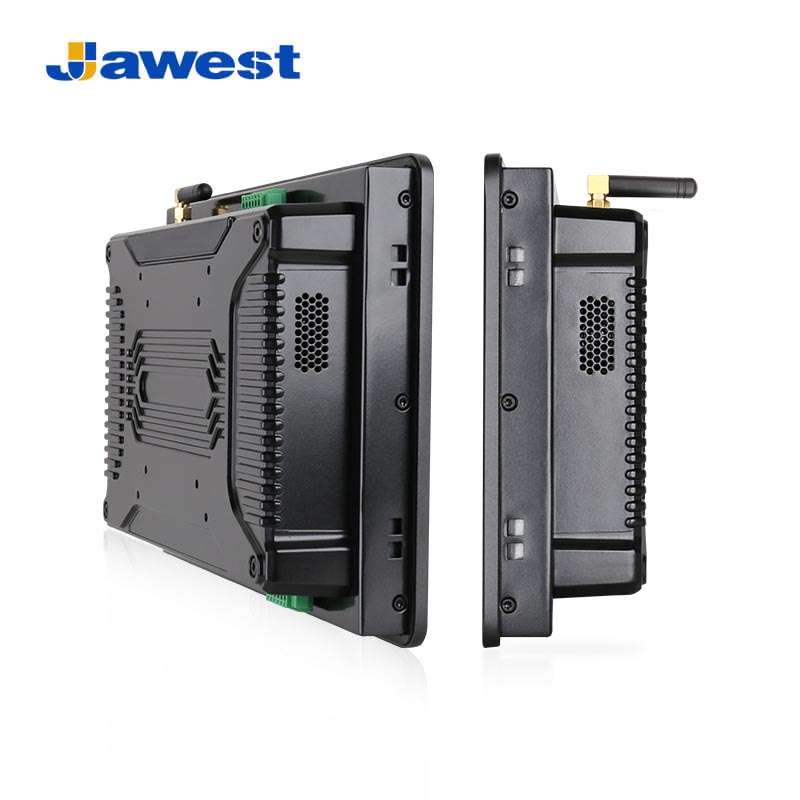

The JWS120-A5 Android industrial touch panel PC series is protected by a robust, slim aluminum alloy casing with an IP65-rated front bezel for water/dust-proof, anti-corrosion, and anti-vibration operation. With an all-in-one design, users can quickly install and maintain and quickly configure memory, storage, and expansion cards with ease.


Display Parameters	Size	12"
	Resolution	1024*768
	Screen Ratio	4:3
	Brightness	500 nits (Optional high brightness)
	Contrast Ratio	1000:1
	Viewing Angle	85°/85°/85°/85° (L/R/U/D)
	Backlight type	LED backlight screen, service life ≥ 50000H
	Touch Screen	Capacitive, Resistive, or Non-touch options

Motherboard Model Selection		JWS64	JWS3288-I	JWS3399-MAIN-L	CX3399-A	CX3568-A	CX3588-A	CX-3588-G
System Architecture	CPU	A64 Quad-Core 1.5GHz	RK3288 Quad-Core 1.8GHz	RK3399 Six-Core 2.0GHz	RK3399 Six-Core 2.0GHz	RK3568 Quad-Core 2.0GHz	RK3588 Octa-Core 2.1GHz	RK3588 Octa-Core 2.1GHz
	Core Architecture	Cortex-A53	Cortex-A17	Dual-Core Cortex-A72 + Quad-Core Cortex-A53	Dual-Core Cortex-A72 + Quad-Core Cortex-A53	Cortex-A55	Quad-Core Cortex-A76 + Quad-Core Cortex-A55	Quad-Core Cortex-A76 + Quad-Core Cortex-A55
	GPU	Mali-T764	Mali-T764	Mali-T860 MP4	Mali-T860 MP4	Mali-G52 2EE	Mali G610 MP4	Mali G610 MP4
	Memory (DDR)	2GB (8GB optional)	2GB (4GB optional)	4GB	2/4GB	2GB (4/8GB optional)	4GB (8/32GB optional)	8GB (16/32GB optional)
	Storage (eMMC)	16GB (32/64GB optional)	16GB (32/64/128/256GB optional)	32GB (64GB optional)	32/64GB (256GB optional)	32GB (64/128/256GB optional)	64GB (128/256GB optional)	64GB (128/256GB optional)
	SATA	/	/	/	/	Support	/	1*SATA hard drive port
	Operating System	Android 6.0	Android 7.1 / 10.0	Android 7.1 / 9.0 / 11	Android 7.1 / 9.0 / 11	Android 12	Android 13.0	Android 12
		/	Linux 4.4	Linux 4.4	Linux 4.4	Linux 5.10	/	Linux 5.10
		/	Ubuntu 18.04	Ubuntu 18.04	Ubuntu 18.04	Ubuntu 20.04	/	Ubuntu 20.04
		/	Debian10.0	Debian10.0	Debian 10	Debian 11	/	Debian 11

Networking	Ethernet	1*10M/100M/1000M adaptive Ethernet					1Gigabit Ethernet + 1100 Mbit Ethernet	2*10M/100M/1000M adaptive Ethernet
	4G	Optional. Based on the 4G module selection
	5G	/	/	/	/	/	/	Support M.2 5G module interface
	WIFI	2.4G	Dual-band 2.4/5G	Dual-band 2.4/5G	Dual-band 2.4/5G	WIFI6, 2.4G	WIFI6, Dual-band 2.4/5G	WIFI5/WIFI6 (optional), dual-band 2.4/5G
	Bluetooth	BT5.0	BT5.0	BT5.0	BT5.0	BT5.2	BT5.0	BT4.2 (WIFI 5) / BT5.0 (WIFI 6)

Touch Function	Touch Interface	USB/IIC	USB	USB/IIC

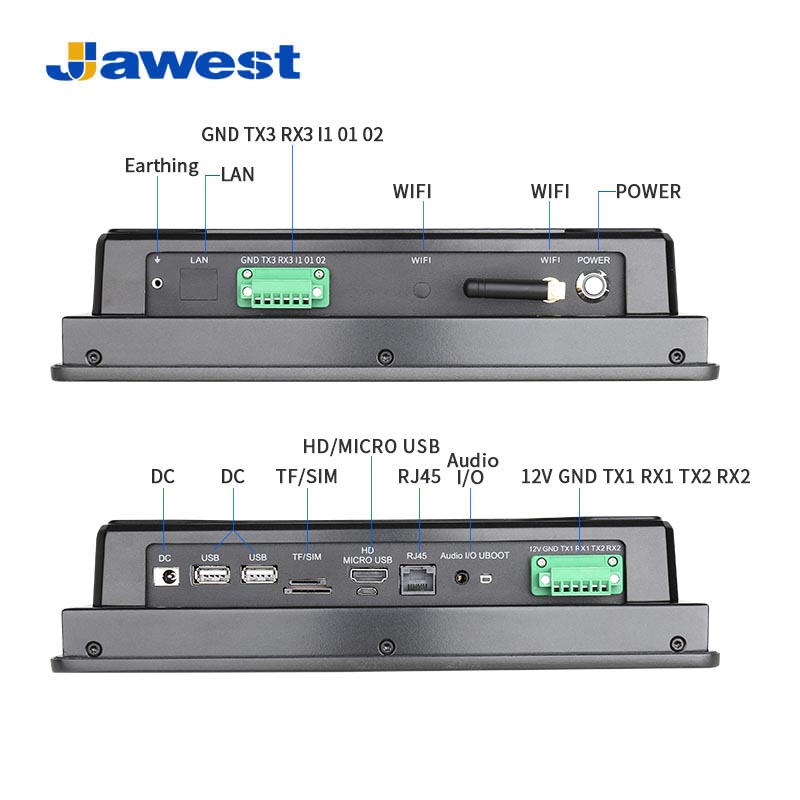

I/O Ports	USB	1USB HOST, 1USB OTG	1USB HOST, 1USB OTG	1USB HOST, 1USB OTG	1USB, 1OTG	2*USB3.0	1USB, 1OTG	4*USB3.0
	HDMI	1*HDMI, up to 4K	1*HDMI, up to 4K	1*HDMI, up to 4K	1*HDMI, up to 4K	1*HDMI, up to 4K	1*HDMI, up to 4K	1HDMI In+1HDMI Out, 8K
	LAN	1*LAN	1*LAN	1*LAN	1*LAN	1*LAN	2*LAN	2*LAN
	DC	1*DC2.1	1*DC2.1	1*DC2.1	1*DC2.1	1*DC2.1	1*DC2.1	1*DC2.1
	COM	2RS232+2Reserved holes			1RS232+1Reserved hole
	TF/SIM	1* TF/SIM slot	1*TF/SIM slot	1*TF/SIM slot	1*TF/SIM slot	1*TF/SIM slot	1*TF/SIM slot	1*TF/SIM slot
	WiFi Antenna	1*WiFi Antenna	1*WiFi Antenna	1WiFi Antenna+1Reserved hole
	Audio I/O	1*3.5mm Earphone Jack
	Reset Button	1*UBOOT	1*UBOOT	1*UBOOT	1*UBOOT	1*UBOOT	1*UBOOT	1*UBOOT
	GND	1*GND	1*GND	1*GND	1*GND	1*GND	1*GND	1*GND
	MICRO OTG	1*MICRO OTG	/	/	/	/	/	/
	1*12P Phoenix Terminal	/	/	/	1*DC	1*DC	1*DC	1*DC
		/	/	/	1*RS232	1*RS232	1*RS232	1*RS232
		/	/	/	1*RS485	1*RS485	1*RS485	1*RS485
		/	/	/	1*TTL	1*CAN	1*CAN	1*CAN
		/	/	/	3*GPIO	3*GPIO	3*GPIO	3*GPIO
	I/O Expansion	Support

Power	Power Input	12V DC	12V DC	12-36V DC	12-36V DC	12-36V DC	12-36V DC	12-36V DC
Power	Adapter	12V / 4A	12V / 4A	24V / 2.5A	24V / 2.5A	24V / 2.5A	24V / 2.5A	24V / 2.5A

Mechanical	Dimension	298236.561mm
	Enclosure	Aluminum alloy housing
	Cooling System	Fanless
	Mounting	Panel-mount, Embedded, desktop, wall-mounted, VESA75/100mm, open frame, etc.

Product Reliability	Working Temp	-10°C ~ 60°C
	Storage Temp	-20°C ~ 70°C
	Ambient Humidity	5% - 95% (relative humidity non-condensing)
	IP rating	Front IP65
