● Display size: 10.1" / 15" / 15.6" / 21.5"
● Industrial LED panel with 50000-lifetime backlight.
● Fanless design with rugged Aluminum alloy enclosure.
● Projected capacitive multi-touch screen
● True-flat with IP65 certified front panel protection.

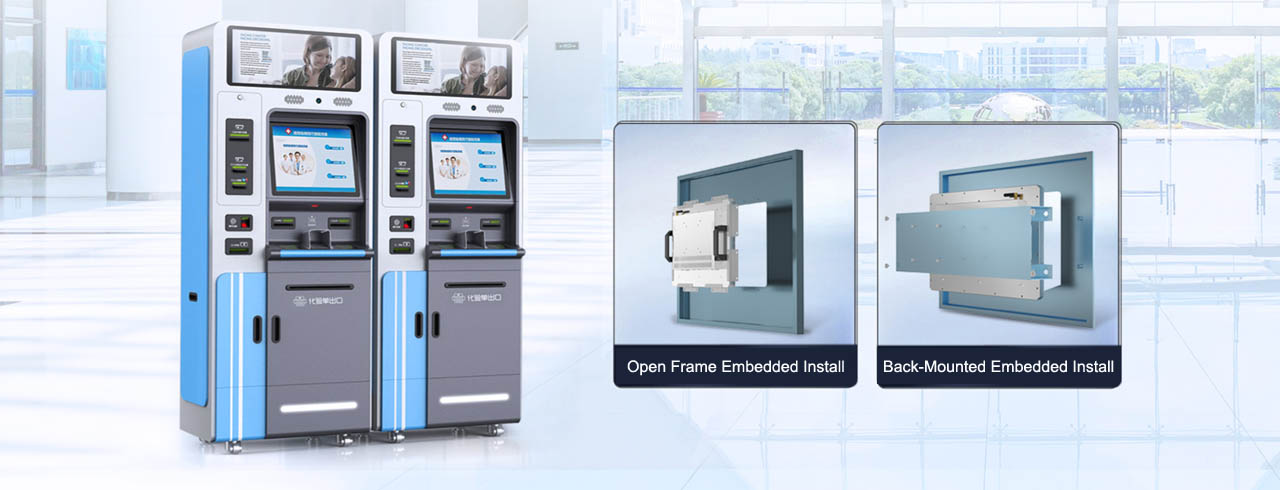

● Multiple installation: embedded / desktop / wall-mounted / VESA 75*75 /100*100.
● Ultra-sensitive touch screen, precise positioning, free control.
● Fanless design with low-power, perfectly suited for industrial applications.

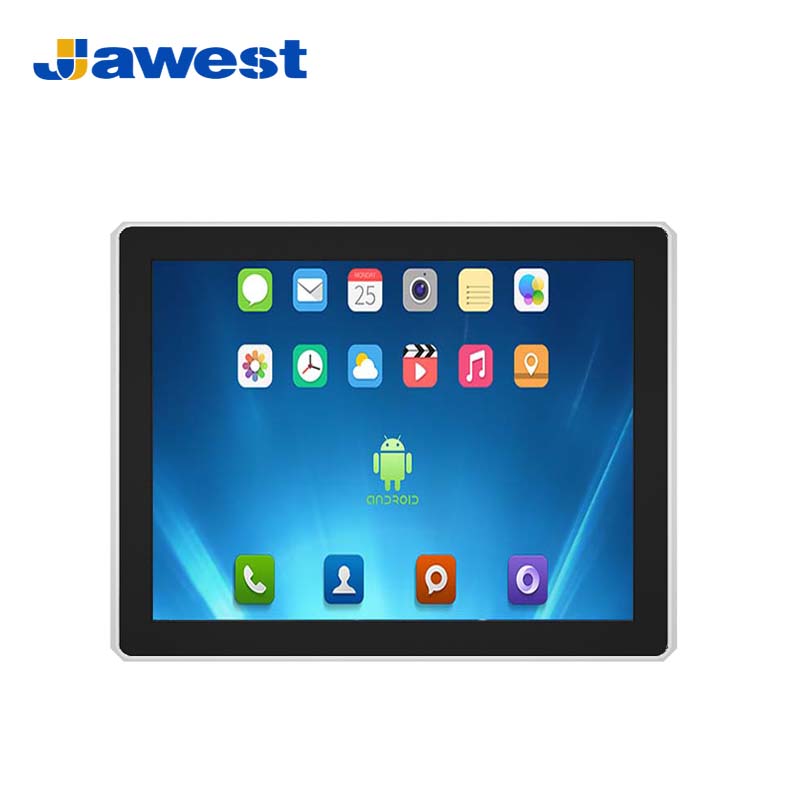

Jawest embedded industrial panel PC based on Android OS can be applied as an embedded control device in many sectors,
including kiosks, warehouse management, intelligent industrial process control, human-machine interface, medical device, etc.
Products Model Fast Guide
Products Models | LCD Display | Resolution | Aspect Ratio |
JWS101-A-E300 | 10.1" | 1280*800 | 16:10 |
JWS150-A-E300 | 15" | 1024*768 | 4:3 |
JWS156-A-E300 | 15.6" | 1920*1080 | 16:9 |
JWS215-A-E300 | 21.5" | 1920*1080 | 16:9 |
Items | Description |
LCD Display | 10.1" / 15" / 15.6" / 21.5" |
Screen brightness | 350cd/m² |
Touch technology | Capacitive, ten-point touch |
Operating system | Android 6.0 |
CPU | Allwinner A64 Cortex-A53 Quad-core 64-bit, 1.5GHz. |
RAM | 2G (4G optional) |
Memory | EMMC 8G (16/32/64G optional) |
Speakers | 8Ω 3W*2 |
Network supports | 4G, Ethernet, WIFI/Bluetooth 4.0, wireless peripheral expansion |
Video playback format | WMV, AVI, FLV, RM, RMVB, MPEG, TS, MP4, etc. |

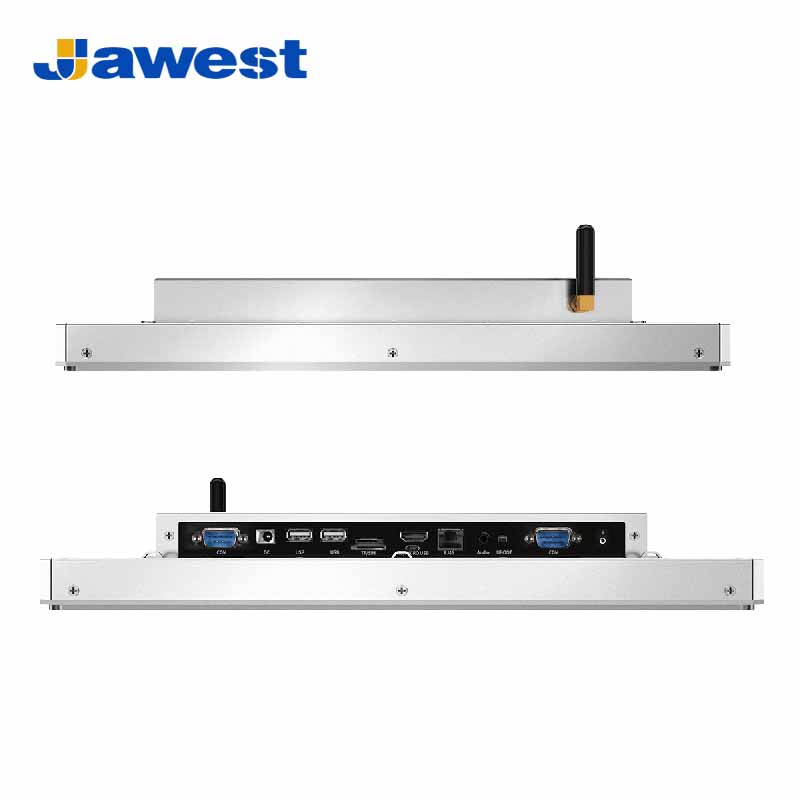

I/O Interfaces | |
Network Interface | 10M/100M/1000M adaptive Ethernet*1+WIFI (single frequency 2.4G)*1+BT4.0*1 |
DC port | 5521*1 |
Serial port | 10.1-inch *1 / 15/15.6-inch * 2 / 21.5-inch * 1 |
USB interface | USB-HOST*2(Type-A), USB-OTG*1(Micro-USB) |
HDMI | Supports HDMI signal output, maximum supports 1080P |
SD/TF | TF card for data storage, maximum support 64G |
SIM slot | Standard SIM interface supports various formats (depending on 3G/4G module) |
Headphone jack | 3.5mm standard interface |
Handles | |

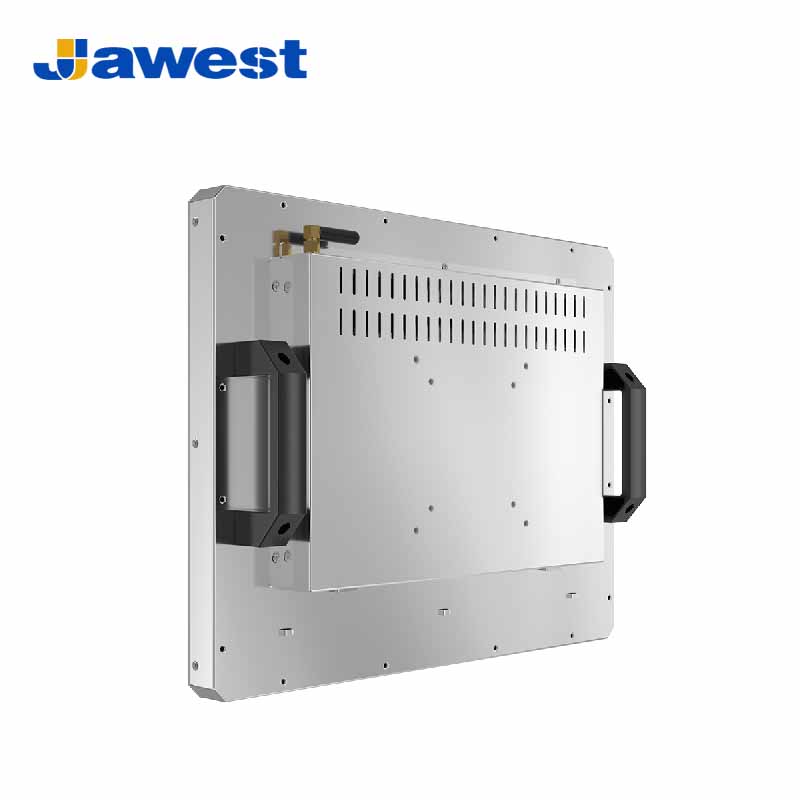

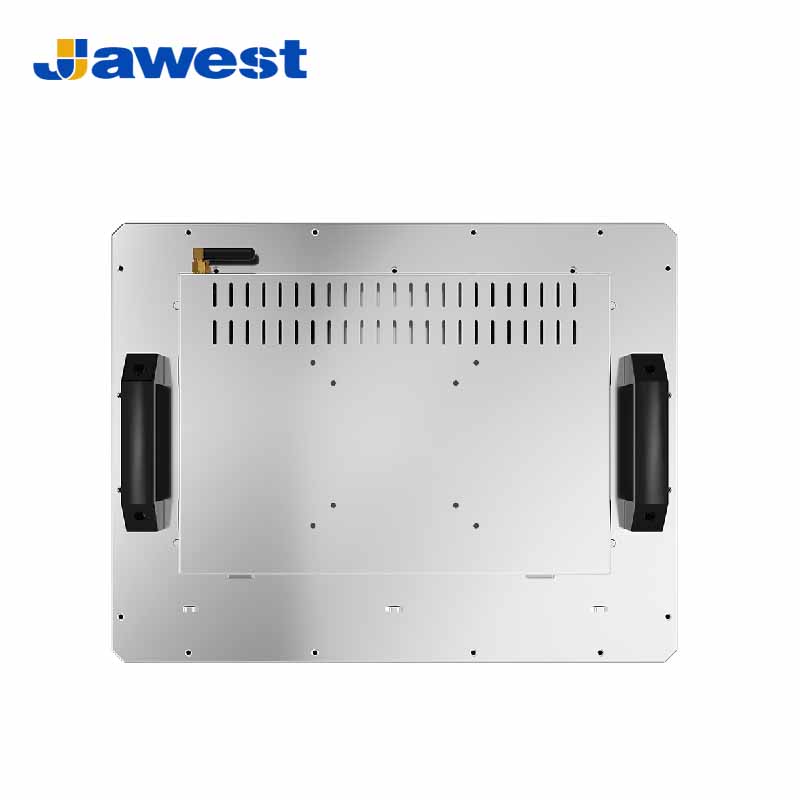

Handles | (10.1": no handles; 15"/15.6"/21.5": two handles |
Product Reliability | |
Operating temperature | -10 °C to 60 °C |
Storage temperature | -20 °C to 70 °C |
Relative humidity | 20-95% (no condensation) |
Calibration | Support |
Power Supply | |
Power Adapter | AC100-240V 50/60Hz |
Power Output | DC12V / 4A |
