Application:

11.6" Open Frame Panel PC with Android 6.1 Android 9.0 Anroid 10.0

● 11.6-inch TFT LCD screen for optional

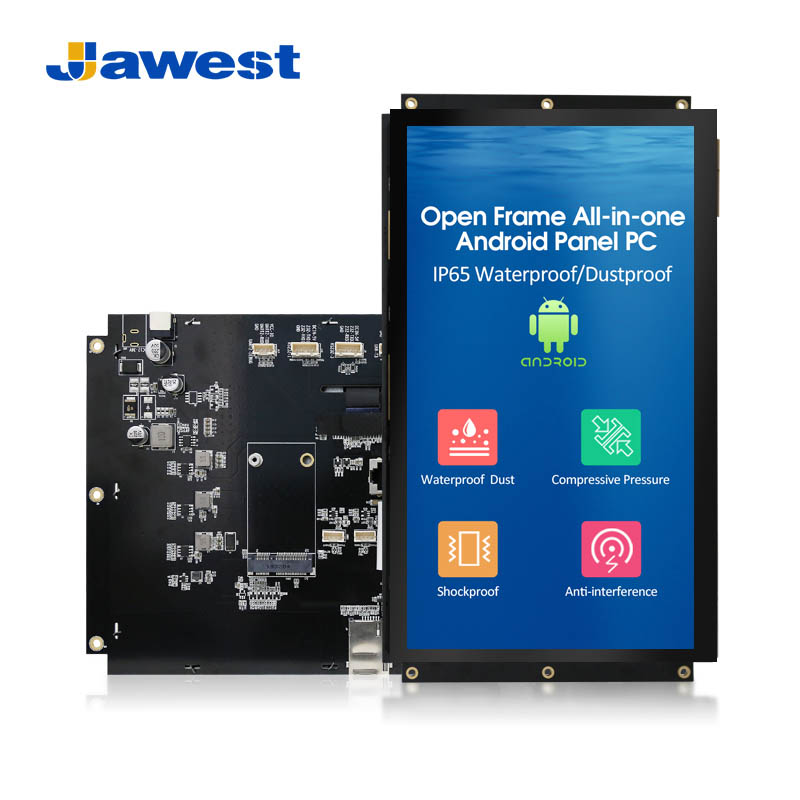

● High integration, ARM Android motherboard, rich architecture, high expansibility.

● Wide temperature operation: -10 to +60°C.

● Wide voltage design: 12~36V.

● IP65 rated dustproof and waterproof for the front panel

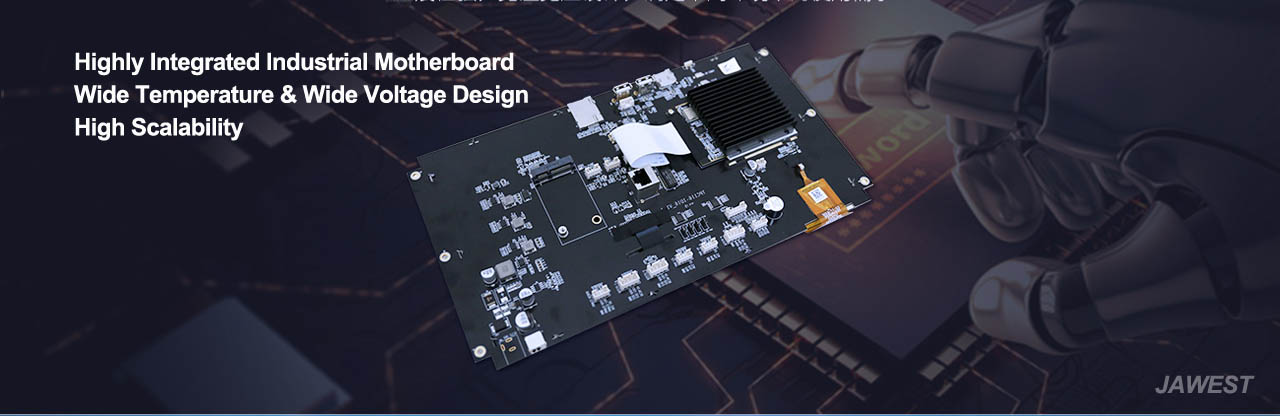

● Industrial-grade robust motherboard with anti-static, anti-vibration, and shockproof.

● Supports 7/24h unattended operation, stable performance, high reliability, and good compatibility.

● Provides complete SDK development kit for the development of upper Apps.

● Abundant I/O interfaces: Integrated Ethernet WiFi / Bluetooth multi-function, PCI-E interface, etc.

Appearance of the color

Black

Silver

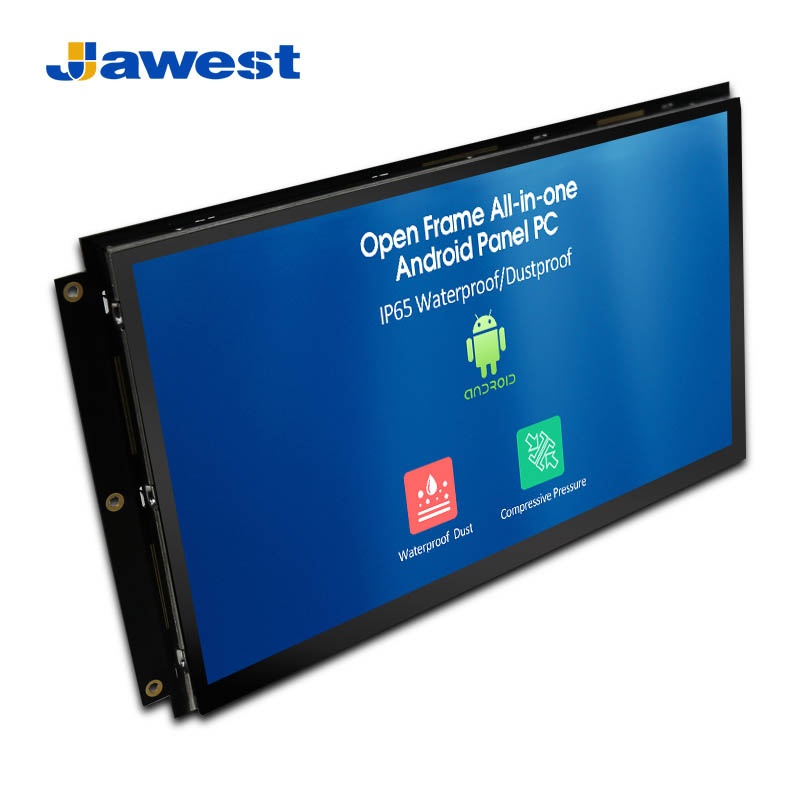

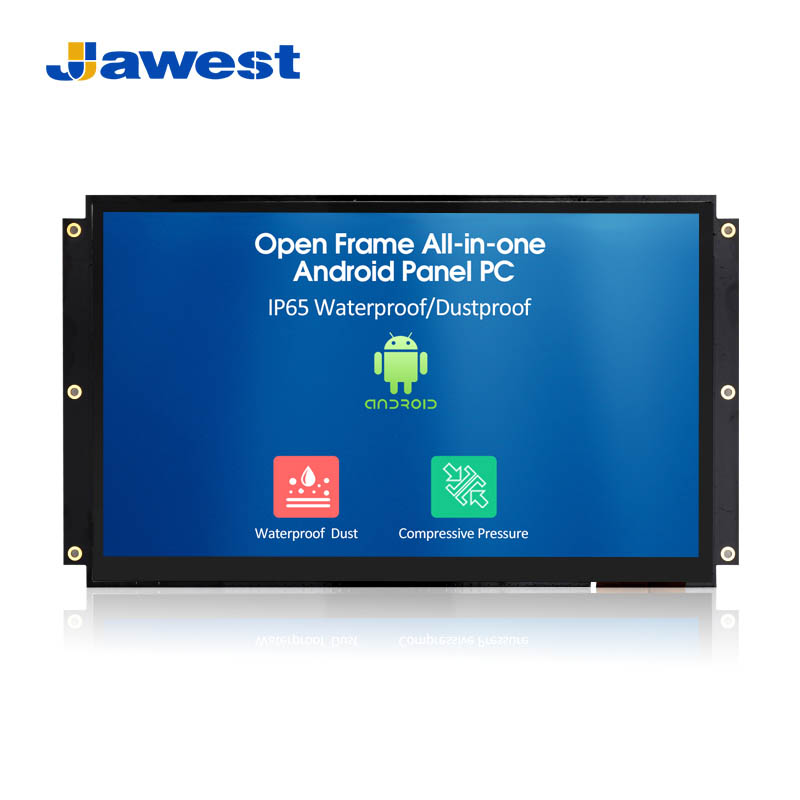

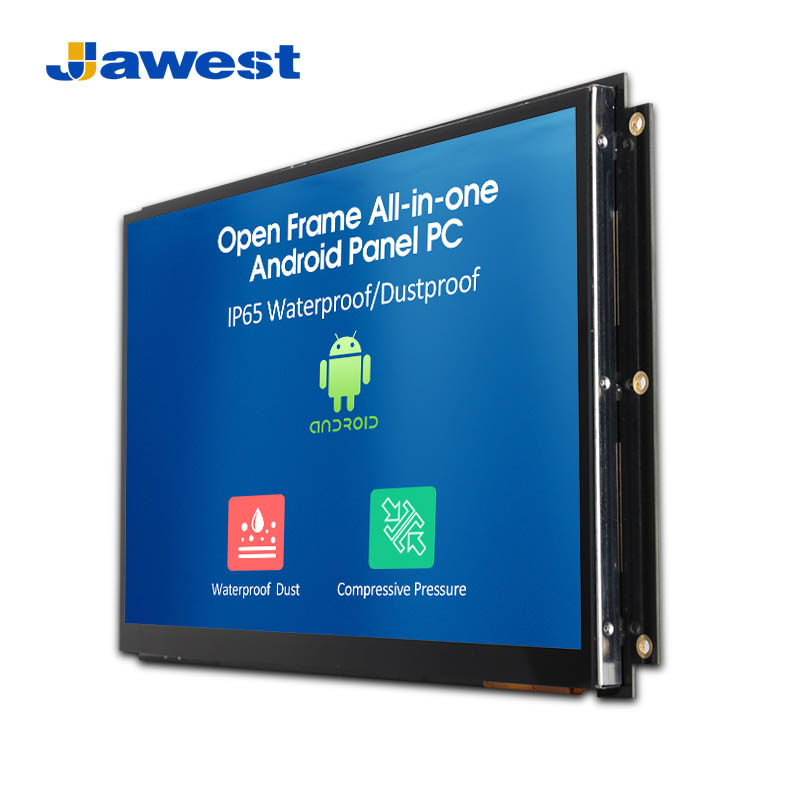

Jawest JWS116-A-KF series is an 11.6" open-frame panel PC that provides a simple and easy-to-install solution
for a variety of industrial or commercial embedded applications.

Featuring an ARM Android processor and a fanless design supports Android 6.0 / 7.1 / 9.0 / 10.1 OS,
this open-frame panel PC delivers excellent and reliable performance in applications.

Items	Description
LCD Display	11.6-inch
Resolution	1920*1080
Screen brightness	350cd/m²
Touch technology	Capacitive, ten-point touch
Operating system	Android 7.1
CPU	TPC116-ID16RK, 3288, quad-core, 1.8GHz main frequency
RAM	2G (4G optional)
Memory	EMMC 8G (16/32/64G optional)
Network supports	4G, Ethernet, WIFI/Bluetooth 4.0, wireless peripheral expansion
Video playback format	WMV, AVI, FLV, RM, RMVB, MPEG, TS, MP4, etc.
USB interface	1USB-OTG, 3USB-HOST, 4*USB sockets
Serial port	4*serial ports, three-channel 232 by default, one-channel Debug port, two of which support TTL.
Ethernet	1*Ethernet, 10M / 100M adaptive Ethernet
GPS	External GPS (optional)
WIFI/BT	Built-in WiFi, BT4.0
