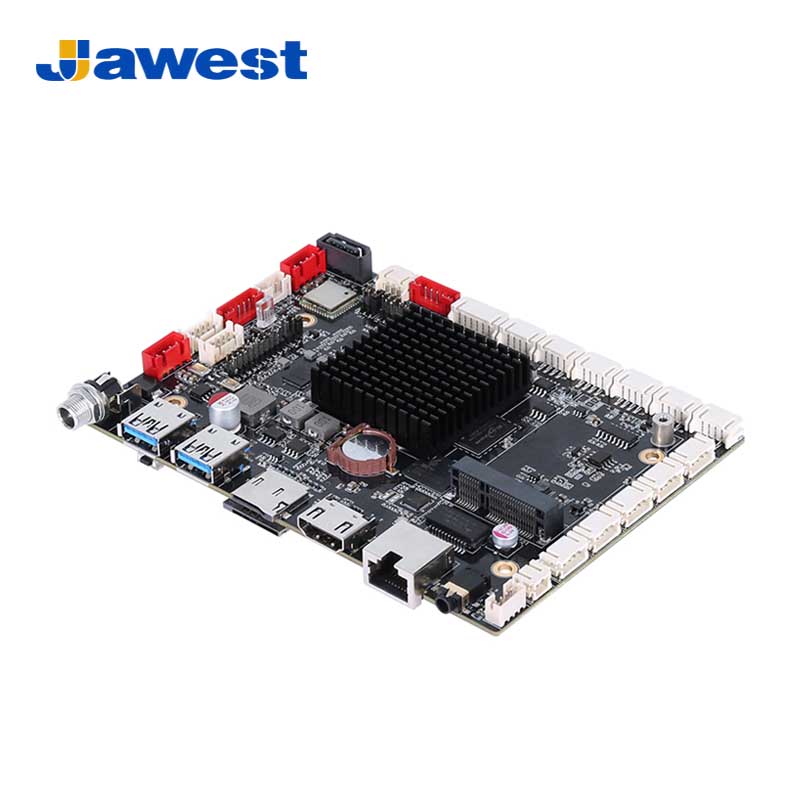

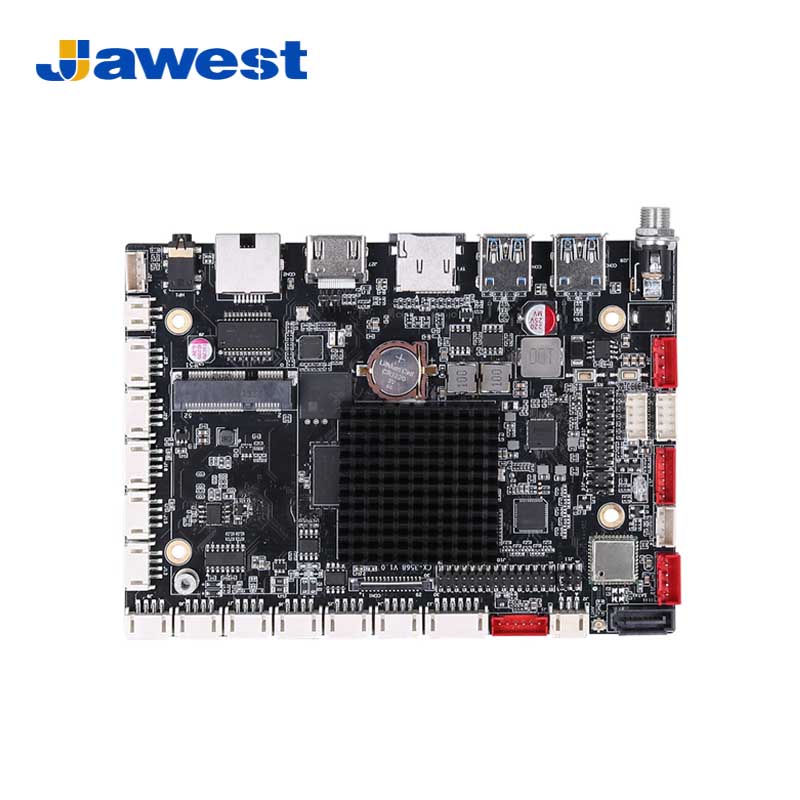

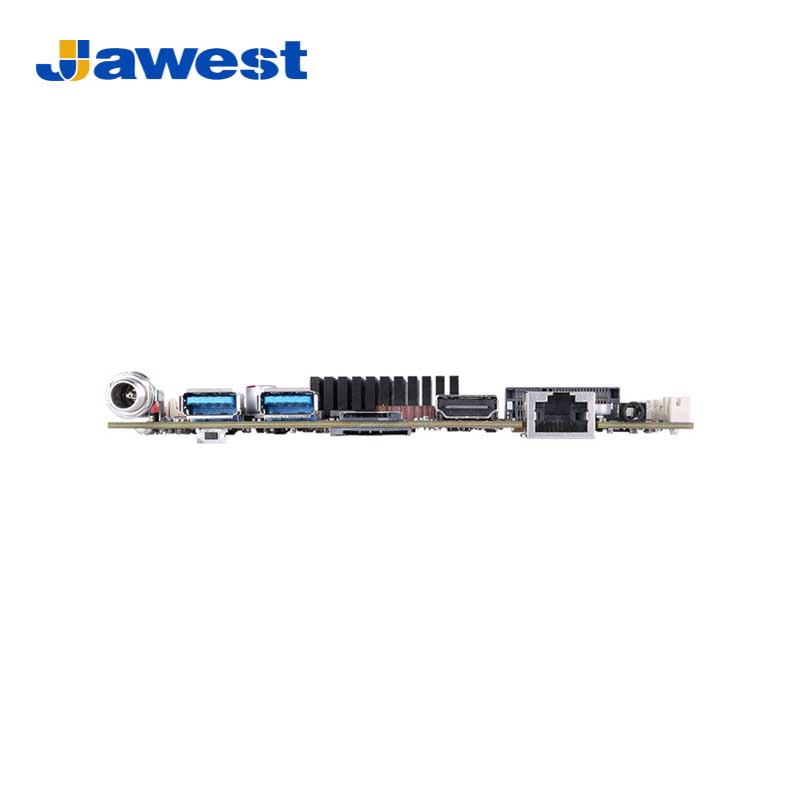

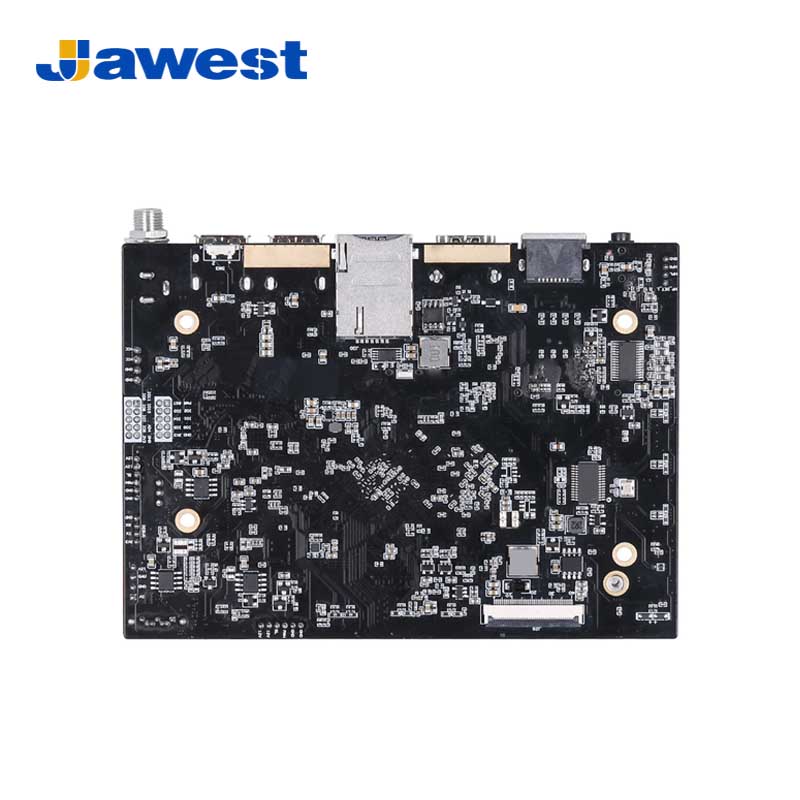

Model: CX3568-A
Jawest RK3568 is a smart Android motherboard with a rich control interface, that supports remote production, release, management, and real-time updates, supports timing shutdown, and is an efficient, safe, high-reliability product. Ideal for versatile smart applications including smart display terminals, industrial automation, and video terminals (digital signage, smart self-service kiosks, POS, Ads machines, etc.)
Motherboard Features

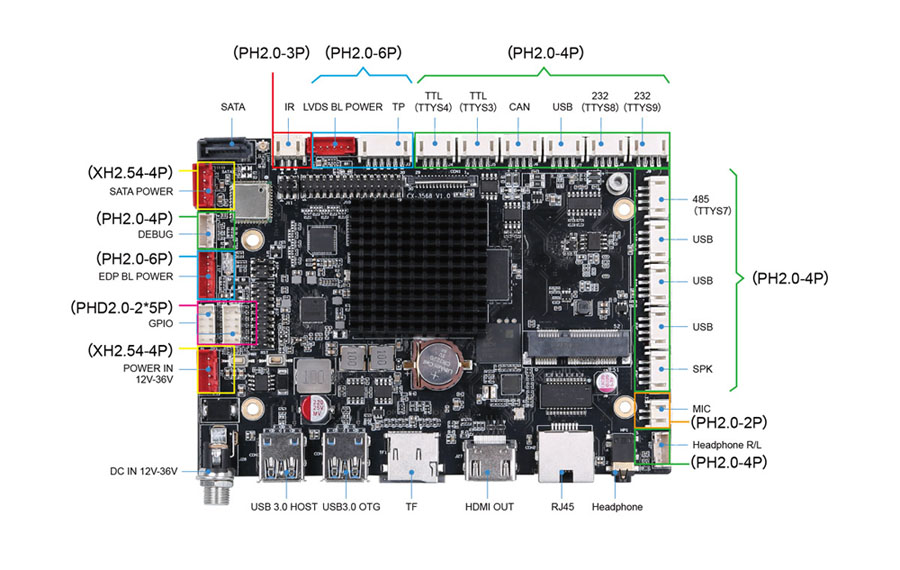

● Multi-display output ports: Dual-LVDs, eDP, MIPI, HDMI
● Rich expandable ports: 6*USB (1*USB3.0 HOST interface; 1*USB3.0 OTG interface; 4*USB2.0 PH2.0 HOST interface); 2*TTL, 2*RS232, 1*RS485, 12*GPIO.
● Network port: 1*1000M Ethernet port; Supports single-frequency 2.4G WIFI; Supports BT5.2; Built-in PCI-E 4G.
● HD: Supports 4K/60Hz video output; Supports LVDS/eDP/MIPI/HDMI LCD display screen.
● Supports Android system customization, and provides API reference code for your APP development.
● Supports mainstream touch screens: Capacity, resistive, IR, etc.
● DC 12V~36V input
● Motherboard Size: 140mm x 100mm
