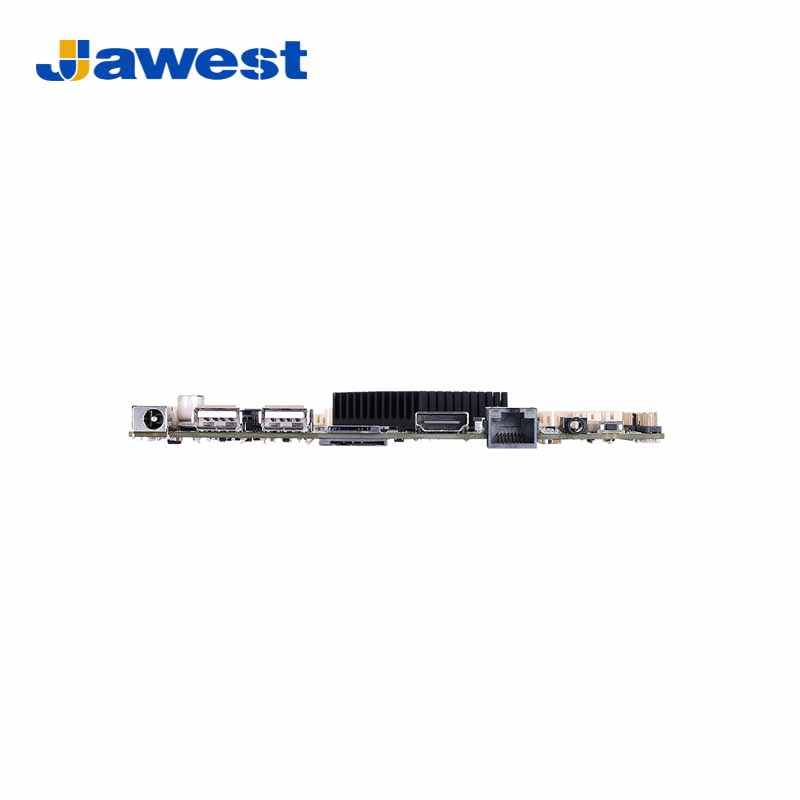

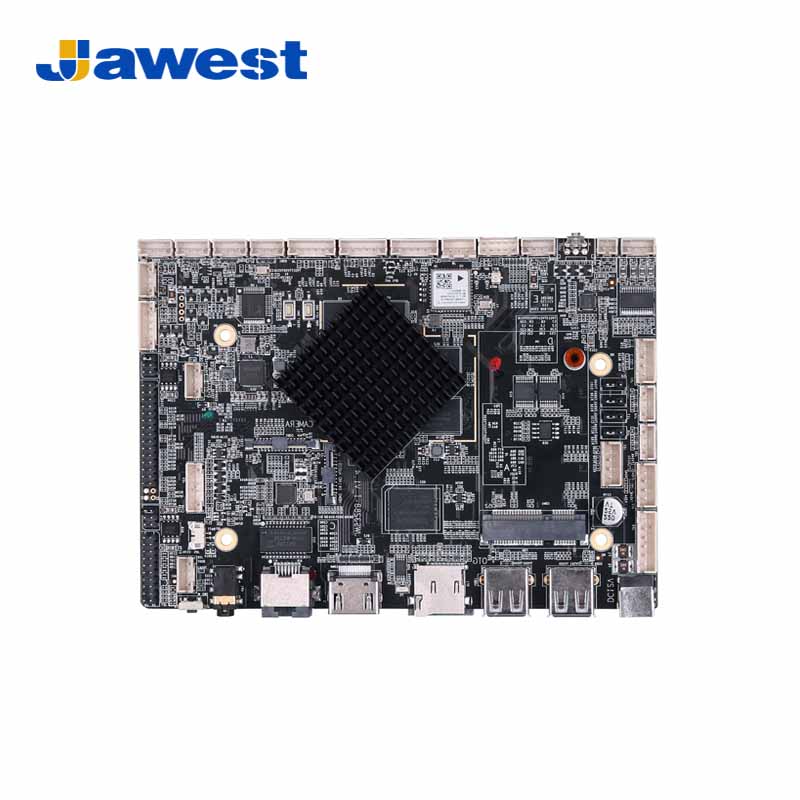

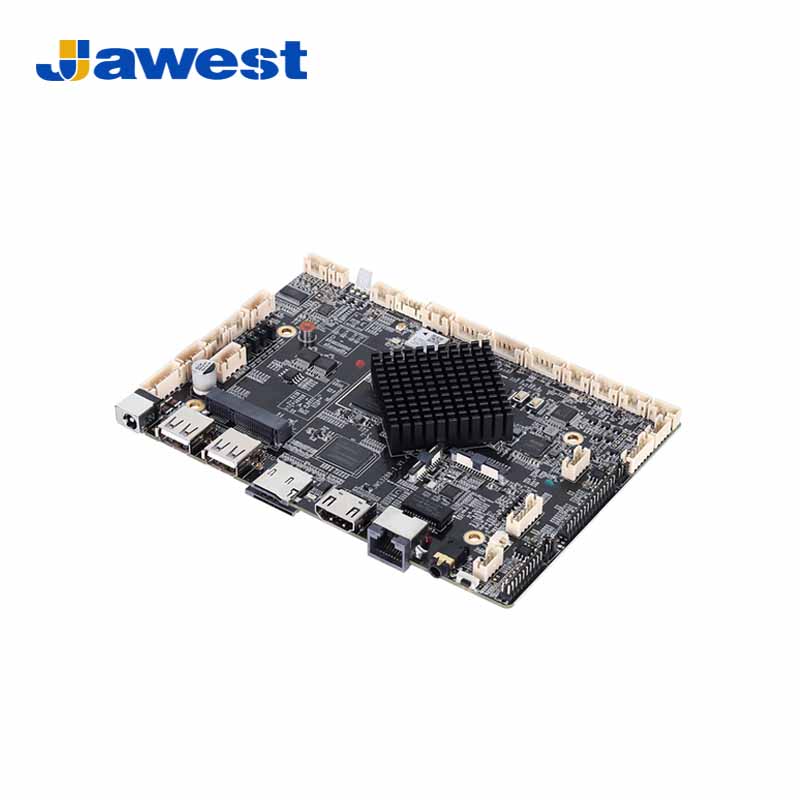

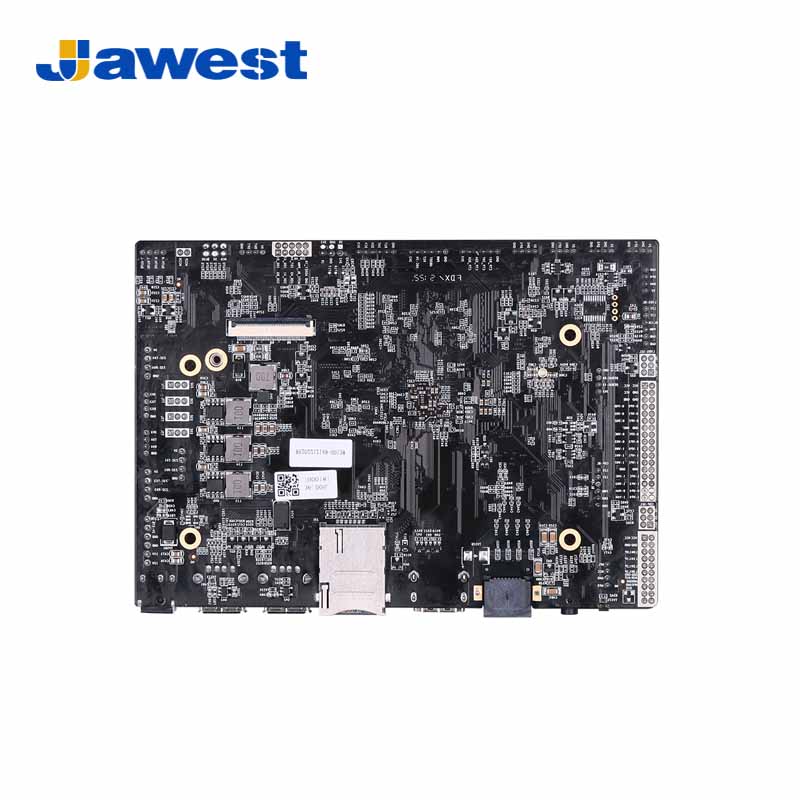

Model: JWS3288-i
In the rapidly evolving world of industrial automation, the need for powerful, reliable, and versatile embedded systems is more significant than ever. The embedded Android motherboard featuring the RK3288 chipset has emerged as a key player in this space, offering an ideal platform for industrial control, process control, and machine vision applications.
Introduction to RK3288
The RK3288 is a high-performance system-on-chip (SoC) developed by Rockchip, designed to provide robust processing power and rich multimedia capabilities. It is built on a 32-bit ARM Cortex-A17 quad-core architecture, with a clock speed of up to 1.8 GHz. Complementing the CPU is a Mali-T764 GPU, capable of handling complex graphics and supporting 4K video playback.
Originally designed for tablets, the RK3288 has found a new lease on life in industrial applications, thanks to its high processing power, energy efficiency, and extensive connectivity options. When paired with an embedded Android motherboard, the RK3288 becomes a versatile platform for a variety of industrial tasks.
Key Features of RK3288 Embedded Android Motherboard
High Processing Power: The Cortex-A17 quad-core CPU in the RK3288 provides robust processing capabilities, enabling it to handle complex tasks such as data analysis, real-time monitoring, and control processes in industrial environments.
Advanced Graphics Capabilities: The Mali-T764 GPU supports OpenGL ES 3.1, OpenCL 1.2, and DirectX 11, making it suitable for graphics-intensive applications like machine vision and human-machine interfaces (HMIs). Its ability to process 4K video also allows for high-definition displays in industrial settings.
Rich Connectivity: The RK3288 motherboard typically includes a wide range of connectivity options, such as Gigabit Ethernet, HDMI, USB 3.0, and multiple serial ports (UART, SPI, I2C). This ensures seamless integration with various industrial sensors, actuators, and peripheral devices.
Embedded Android OS: Running on the Android operating system, the RK3288 motherboard benefits from a user-friendly interface, extensive app ecosystem, and easy customization. Android’s adaptability makes it ideal for developing specialized industrial applications, including HMIs, control panels, and process management tools.
Energy Efficiency: Despite its high performance, the RK3288 is designed to be energy-efficient, which is crucial for industrial applications where power consumption needs to be minimized to reduce operational costs.
Long-Term Availability and Support: Embedded Android motherboards with the RK3288 chipset often come with long-term availability and support, ensuring that industrial systems can be maintained and updated over extended periods without the risk of obsolescence.
Applications in Industrial Control, Process Control, and Machine Vision
The RK3288-based Android motherboard is well-suited for a variety of industrial applications. Here’s how it excels in key areas:
Industrial Control: In industrial control systems, the RK3288 motherboard can be used to manage and monitor various machines and processes. Its high processing power allows it to handle real-time control tasks, such as adjusting motor speeds, controlling robotic arms, and managing conveyor systems. The Android OS enables intuitive user interfaces for operators, simplifying system management and reducing the risk of errors.
Process Control: Process control applications require precise monitoring and adjustment of industrial processes, such as temperature regulation, chemical mixing, and fluid dynamics. The RK3288’s ability to process data in real-time ensures that these processes are maintained within desired parameters, improving efficiency and reducing waste. The Android platform also allows for the development of custom apps tailored to specific process control needs.
Machine Vision: Machine vision is a critical component of modern industrial automation, used for quality control, object recognition, and defect detection. The RK3288’s advanced GPU capabilities make it ideal for machine vision tasks, enabling it to process high-resolution images and videos quickly. Combined with AI and machine learning algorithms, the RK3288 can perform complex visual inspections, ensuring products meet stringent quality standards.
Human-Machine Interface (HMI): The combination of Android and RK3288’s processing power makes it perfect for creating sophisticated HMIs. These interfaces allow operators to interact with industrial machines through touchscreens, providing real-time data visualization, control options, and system diagnostics. The Android ecosystem’s familiarity and flexibility enable the development of intuitive and responsive HMIs.
Edge Computing: In scenarios where real-time data processing is crucial, the RK3288 motherboard can serve as an edge computing node. It processes data locally, reducing latency and minimizing the need for constant communication with central servers. This is particularly useful in environments with limited connectivity or where immediate decision-making is required, such as in automated production lines.
Conclusion
The embedded Android motherboard with the RK3288 chipset is a powerful and versatile solution for a wide range of industrial applications. Its combination of high processing power, advanced graphics capabilities, rich connectivity, and the Android operating system makes it an ideal platform for industrial control, process control, and machine vision. As industries continue to evolve towards greater automation and smart manufacturing, the RK3288 motherboard is poised to play a pivotal role in enabling these advancements, offering a reliable and scalable solution for future industrial challenges.
