[Customized Product]
● Dual camera
● Fingerprint reader
● Various Interfaces design
● IP65 dustproof and waterproof

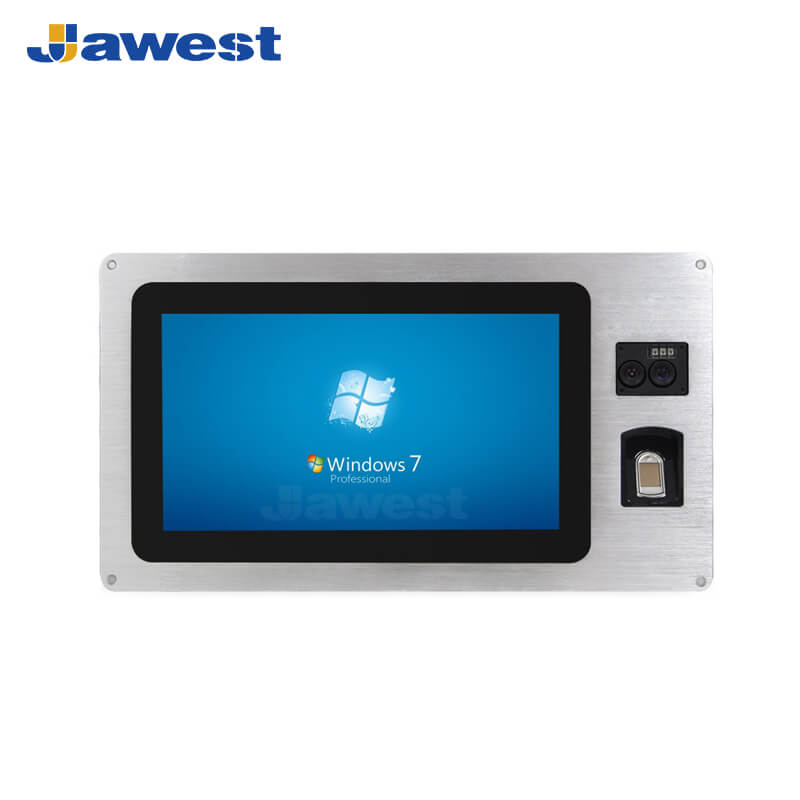

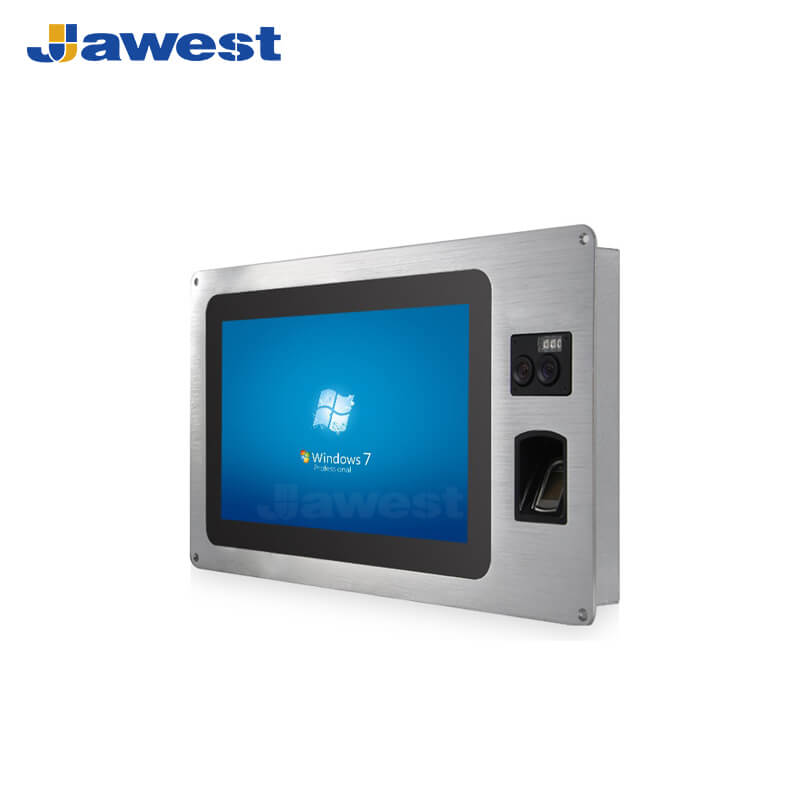

Biometric Face Recognition Attendance Machine

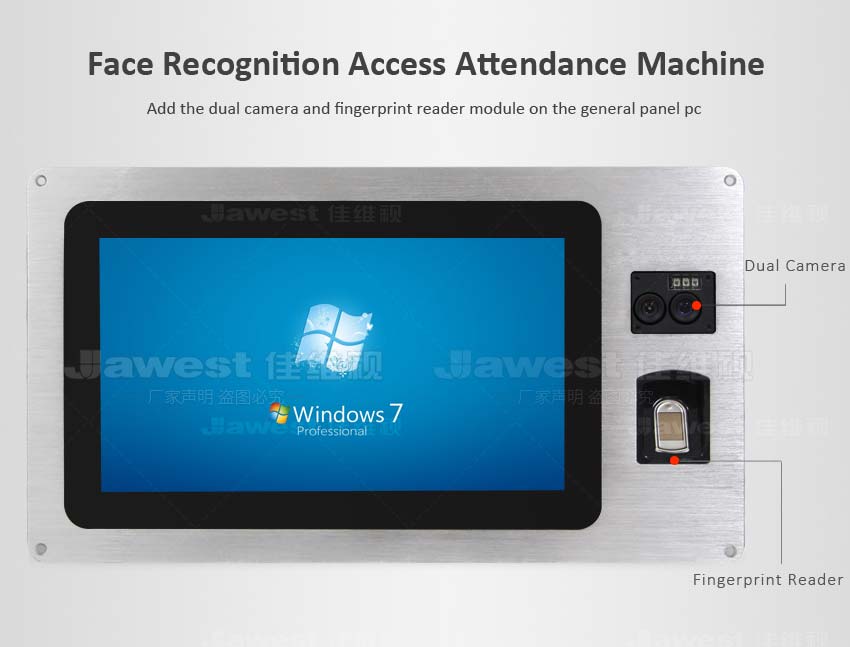

Dual Camera
Add the dual camera and fingerprint reader module on the general panel pc
Fashion Surface
Fashion surface treatment with brushed aluminum alloy technology. 3mm thin bezel seamless display panel, IP65
waterproof and dustproof, ten-point projected capacitive touch screen, precise multi-finger, Fluid experiences; Rear

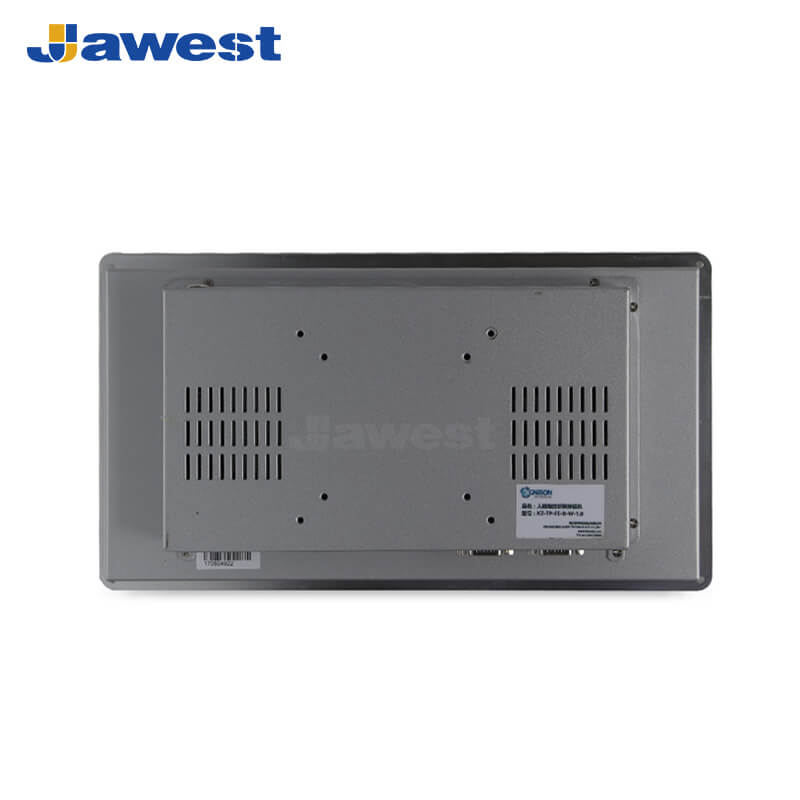

side with industrial circulation cooling system, powerful cooling system. Various Interface designs, and free connection to
different external equipment.
The new age of attendance
• Face recognition to avoid the agent, High accuracy of identification, e.g. recognition of them wearing glasses, caps, makeup, and twins; Complex condition recognition, face authenticity judgment, accurate and reliable.
• HD dual camera, High accuracy of recognition, 3D HD image, picture auto exposure, can recognition covering with a beard, glasses, bang, etc., and natural/exaggerated expression, ensure the accuracy attendance.
• New type of CMOS capacitive fingerprint sensor, using the most advanced high-precision optical fingerprint head, scratchproof, 360 °dead angle identification, fast and steady.
• Offline function, Jawest face recognition terminal with the latest aluminum alloy appearance design, a fully offline face recognition equipment, can replace the IC card/fingerprint access attendance equipment.
Application
Application of Company, School, Warehouse, Factory, Government Office, etc.
Biometric Face Recognition Attendance Machine | |||||
Size | 10.1 inch | 10.4 inch | 12 inch | 15 inch | 15.6 inch |
Display | |||||
Panel Type | Industrial LCD panel A+ grade | ||||
Aspect Ratio | 16:9 | 4:3 | 4:3 | 4:3 | 16:9 |
Resolution | 1366*768 | 1024*768 | 800*600 or 1024*768 | 1024*768 | 1366*768 |
Contrast | 800:1 | 800:1 | 800:1 | 1000:1 | 1000:1 |
Luminance | 250nit-800nit | 250nit-800nit | 250nit-1000nit | 250nit-1000nit | 250nit-1000nit |
Response time | 5ms | 5ms | 5ms | 5ms | 5ms |
Active Area (mm) | 227*131 | 218.2*165.6 | 250*188.4 | 305.8*229.8 | 342*192 |
Display colors | 16.7M(8-bit) | 16.7M(8-bit) | 16.7M(8-bit) | 16.7M(8-bit) | 16.7M(8-bit) |
View angle | 80/80/80/80 | 80/80/80/80 | 75/75/75/75 | 75/75/75/75 | 75/75/75/75 |
PC Configuration | |||||
CPU | Allwinner A83T Octa-core Cortex-A7 2.0Ghz | ||||
GPU | PowerVR SGX544 GPU | ||||
Inner memory | 2G DDR3 RAM | ||||
Storage | eMMC 8G, 16G/32G/64G(optional) | ||||
Video output | Support LVDS & HDMI 1080P video output | ||||
WiFi | Built-in WiFi module, 802.11a/b/g/n | ||||
Bluetooth | Built-in Bluetooth 4.0 module | ||||
Speaker | Inbuilt speaker | ||||
Functions requirements | Built-in 3G/4G(optional) | ||||

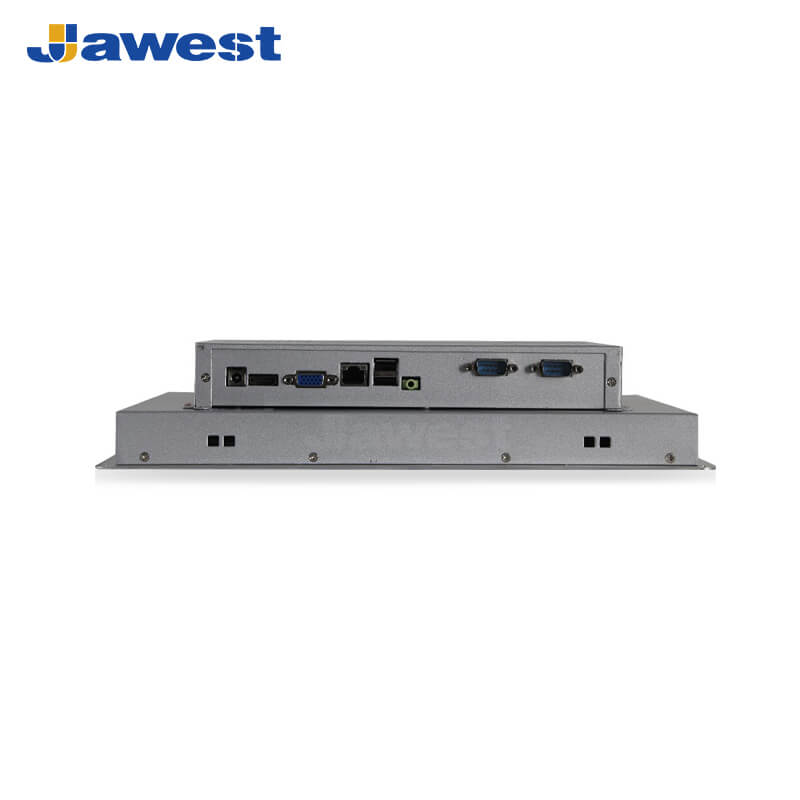

I/O ports | 1*12V 5A power input 1*SIM card slot 1*TF/SD card slot 1*HDMI port(10.1" & 12" don't have HDMI port) 2*USB 2.0 port 1*RJ45 port(100M Ethernet Interface) 1*3.5mm headphone jack 2*RS232(Serial port)(1*RS232 for 10.1" & 12" Android panel pc) 1*mini USB port for re-flash/upgrade firmware | ||||
Support multi-language | English, French, Spanish, Portuguese, Russian, Arabic, Chinese, etc. | ||||
Google play service | Support Google play service | ||||
Pre-installed App | Google market, Email, Gmail, Google talk | ||||
Certificate of Approval | CE, CCC, ISO, FCC, ROHS | ||||
Installation method | VESA, Embedded, Wall-Mounted, Desktop stand (optional) | ||||
Touch Screen | 10-point Projected capacitive touch screen with tempered glass | ||||
Color | Silver, black color optional | ||||
Front bezel thickness | 3mm bezel, 10mm bezel(option) | ||||
IP rating | IP65 dustproof and waterproof for the front panel | ||||
Material | Aluminum alloy enclosure | ||||
Package | EPE+Carton (wooden crate for mass order) | ||||
Operating System | Android/Windows OS |
