Application:

Face Recognition Access Attendance Machine

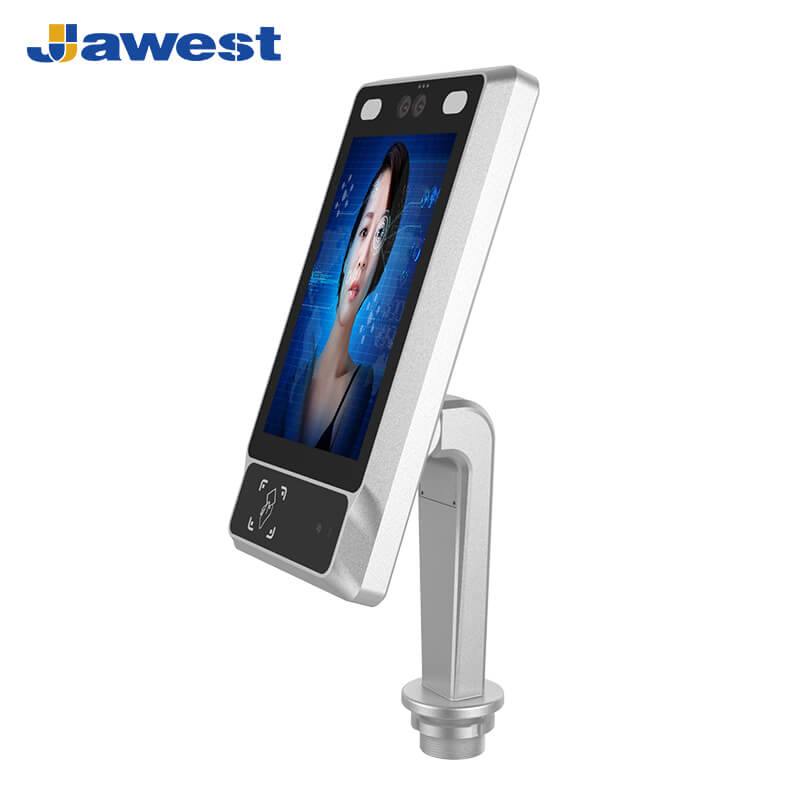

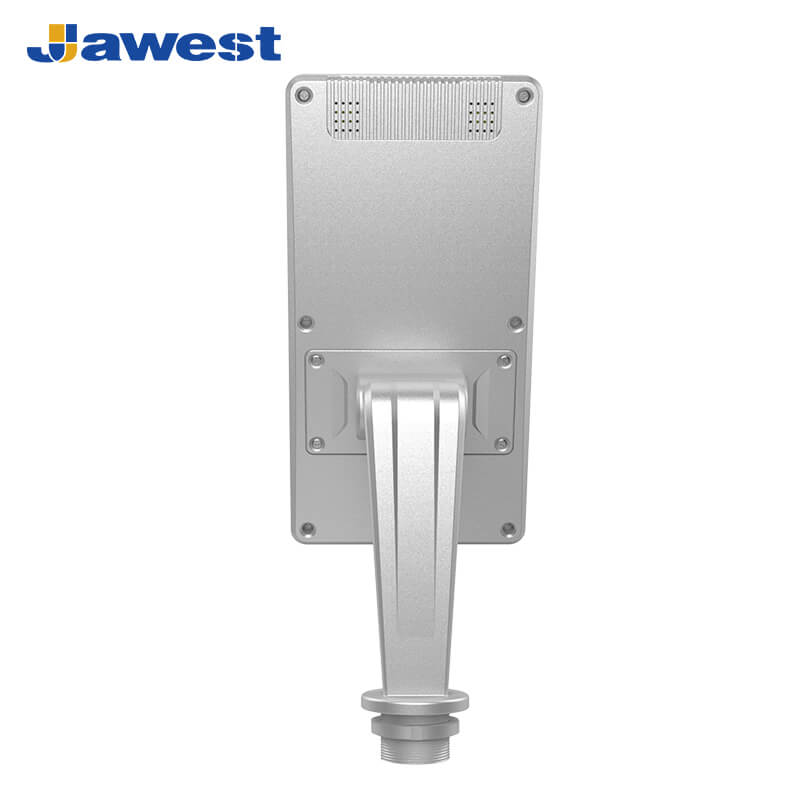

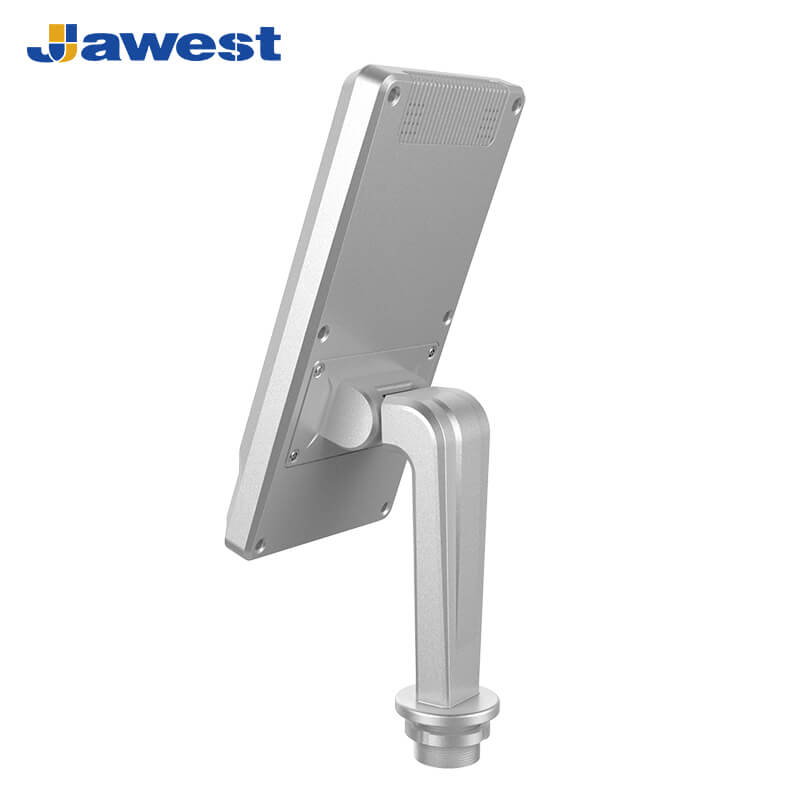

Face Recognition Access Attendance Machine

Model: JWS080-R100

● Face recognition intelligent terminal, designed for intelligent turnstile

● Aluminum alloy casing, good heat dissipation, and corrosion-resistant

● Self-designed and manufactured, Industrial Aesthetic Appearance

● IP65 rated dust-proof and waterproof

● Support plug-and-play

● Five-point capacitive touchscreen

● Support face liveness detection

● Built-in infrared induction

● Accurate recognition at night

● Provide a complete SDK development kit

● Industrial grade Android motherboard

● 7*24-hour long-time stable operation

Appearance of the color

Black

Silver

Description
Parameter
Case

Face Recognition Access Attendance Machine - JWS080-R100

Screen
Size	8 inch
Panel Type	Industrial LCD panel A/A+ grade
Aspect Ratio	16:10
Resolution	800*1280
Contrast	800:1
Luminance	450 Nits (High-brightness screen options)
Response time	5ms
Display colors	16.7M
View angle	85°/85°/85°/85° (L/R/U/D)
Touch screen type	Capacitive touch screen / Non-touch ( mouse control)
Touchpoints	Ten-point / five-point
Input mode	Fingers/capacitance pen
Surface hardness	＞6H
Configuration
CPU	RK3288 Quad-Core, 1.8GHz	RK3399 Six-Core, 1.8GHz
GPU	Mail-T764	Mali-T860 MP4
Memory	2GB (4GB options)	4GB
Storage	16GB (32/64/128/256GB options)	32GB (64/128/256GB options)
Operating System	Android 7.1/10.0	Android 7.1/9.0
WIFI	2.4GHz	Dual-band 2.4/5GHz
Bluetooth	BT4.1	BT5.0
MIC	Available
RTC	Available
LED supplemental lighting	White light, RGB camera light source, control interface in SDK
Speaker	Two-channel, 8Ω/2W
Timing turn on/off	Available
System upgrade	Support local USB upgrade
I/O Ports
DC port	1*DC 2.1
USB-OTG	1*typeA
Wiegand output	1*Wiegand output (support the Wiegand interface in 26-bit and 34-bit formats)
RJ45 Ethernet	1*Ethernet, 10M/100M Ethernet
Relay terminal	1*Relay terminal
RS485	1*RS485
Proximity sensor	Effective recognition of linear distance for 1M, support automatic sleep
Card reader	13.56MHz, IC card reader (ISO14443-A, ISO14443-B)
Product Reliability
Working temperature	-10°C to +60°C
Storage temperature	-20°C to +70°C
Working humidity	20%-95%, Non-Condensing
Power Supply
Standby power consumption	18W
Power input	12V DC
Face Recognition Parameters
Camera	200W pixel wide dynamic binocular camera (monocular camera optional)
Recognition distance	0.3M-1M
Face liveness detection	Available
Storage capacity of single-face picture	≤180KB
Verification time	The verification time for 1000 pcs face image is less than 1 second.
Face verification accuracy rate	＞99%
Mechanical
Material	Aluminum alloy enclosure
IP rating	IP65 for the front panel
Color	Silver/black (other colors can be customized)
Installation method	VESA, Embedded, Wall Mount, Desktop
Certificates	CE, CCC, ISO, FCC, ROHS
Packaging	EPE+Carton (wooden crate for mass order)
