● Display size: 10.1 inch
● Touchscreen: PCAP multi-touch panel
● Support Power-over-Ethernet (PoE)
● Flat panel design, elegant appearance

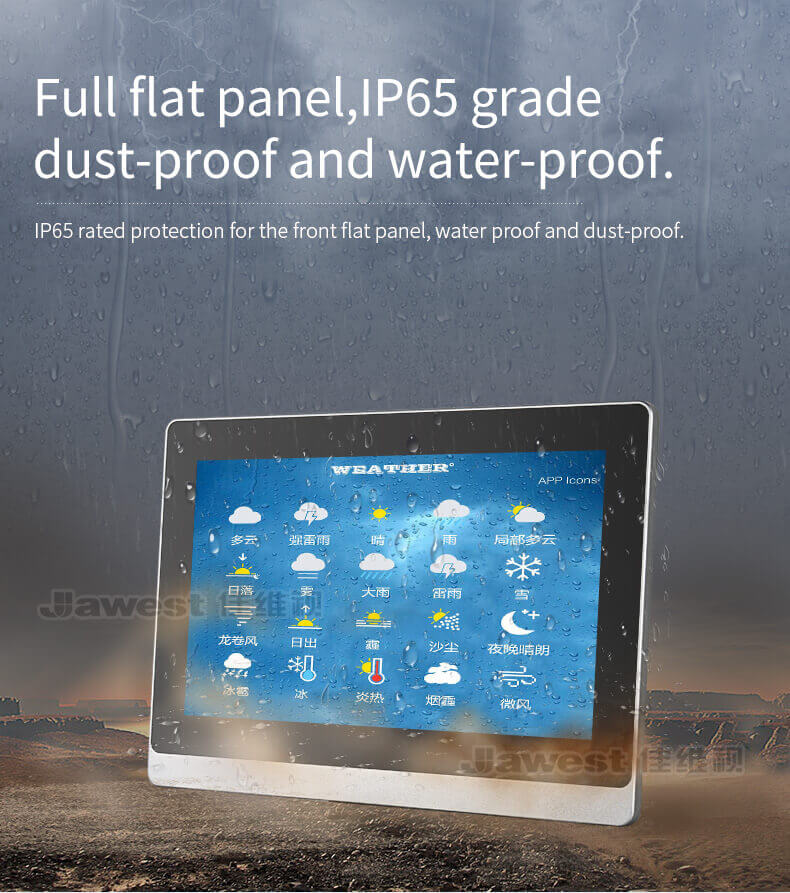

● IP65 rating of dust-proof and waterproof

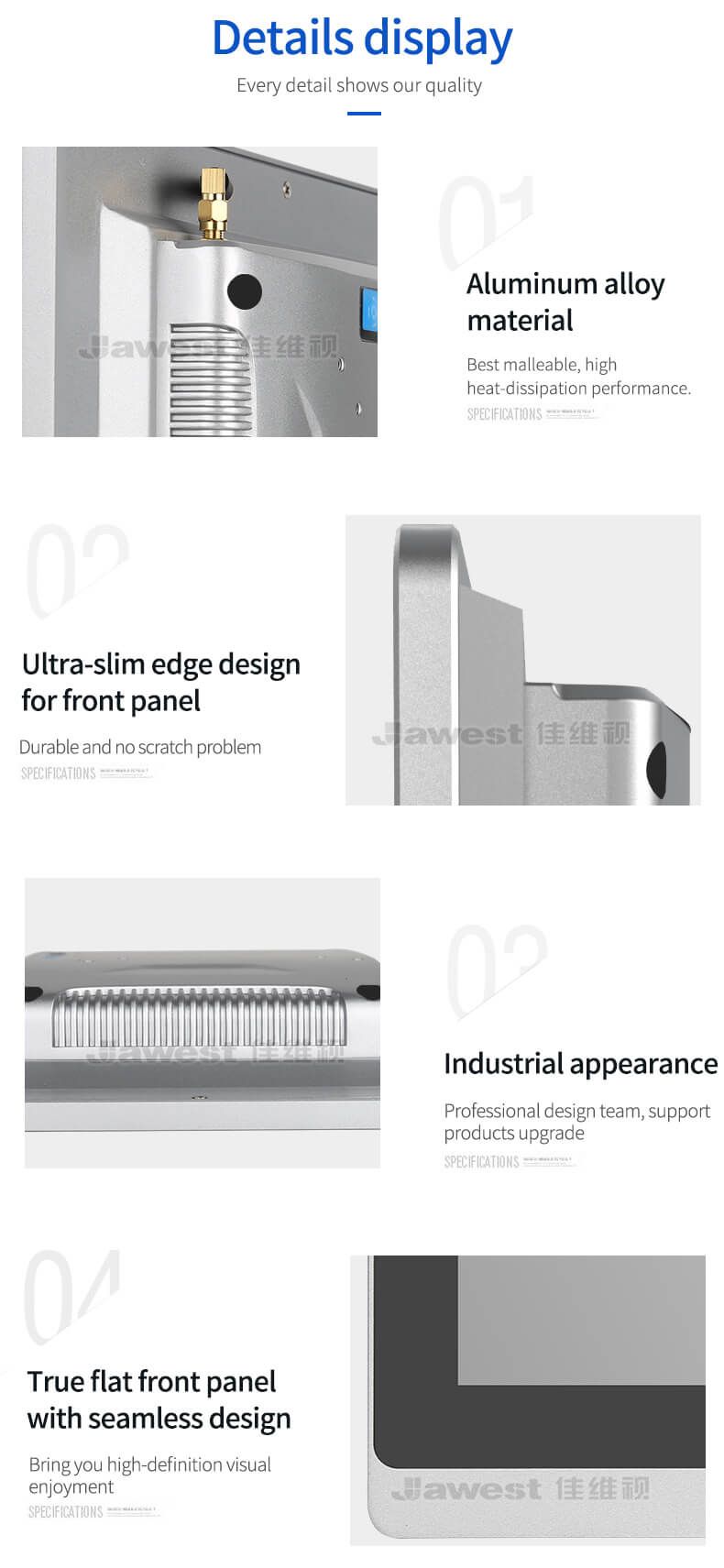

● All aluminum alloy material drawing process

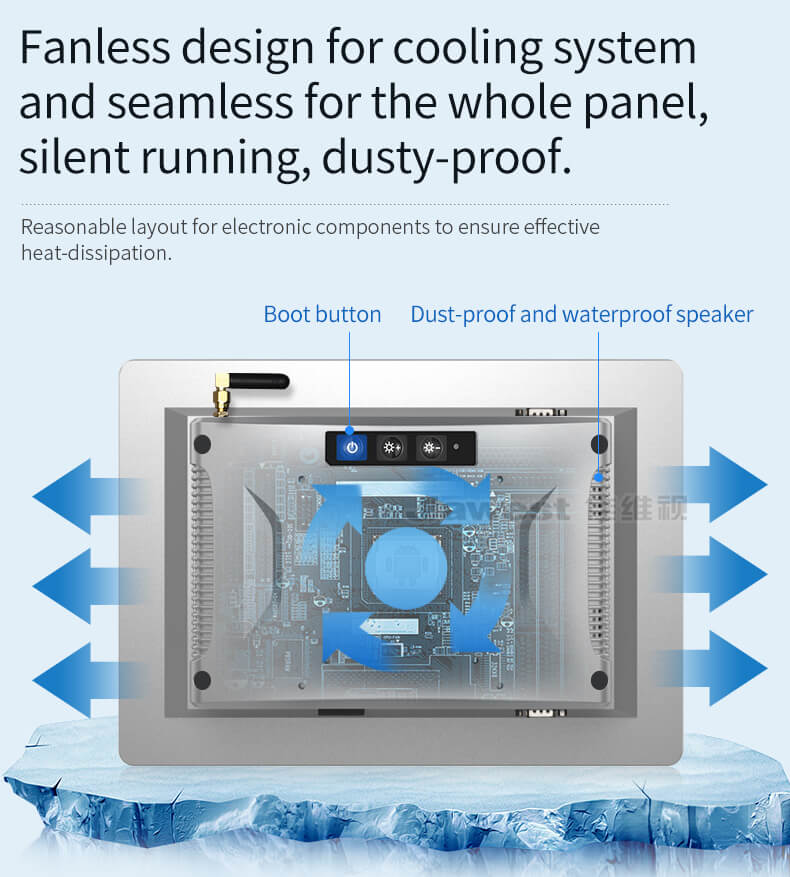

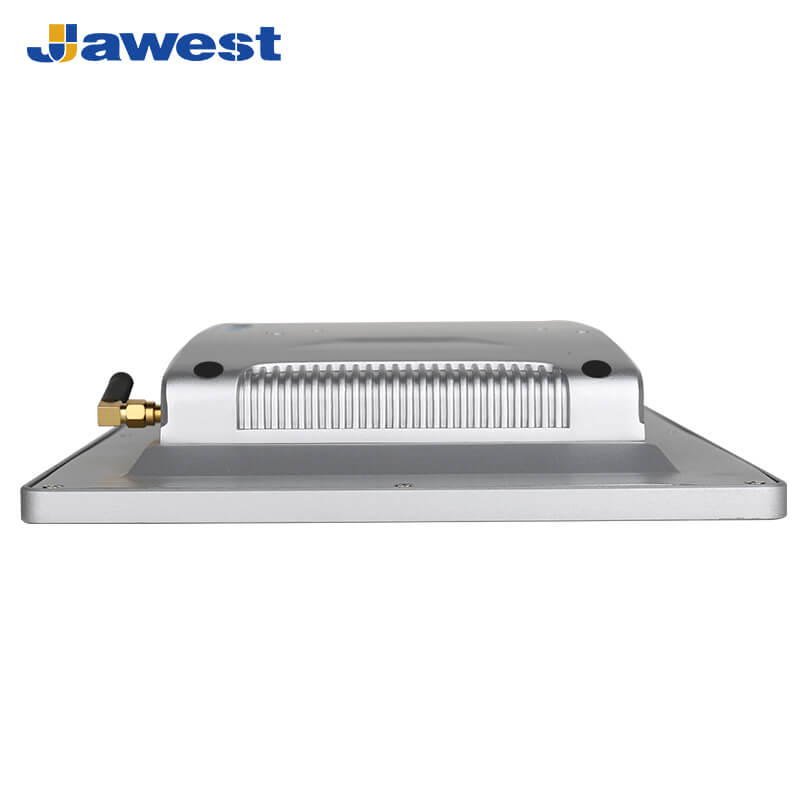

● Compact, fanless-designed panel PC for heat-dissipation

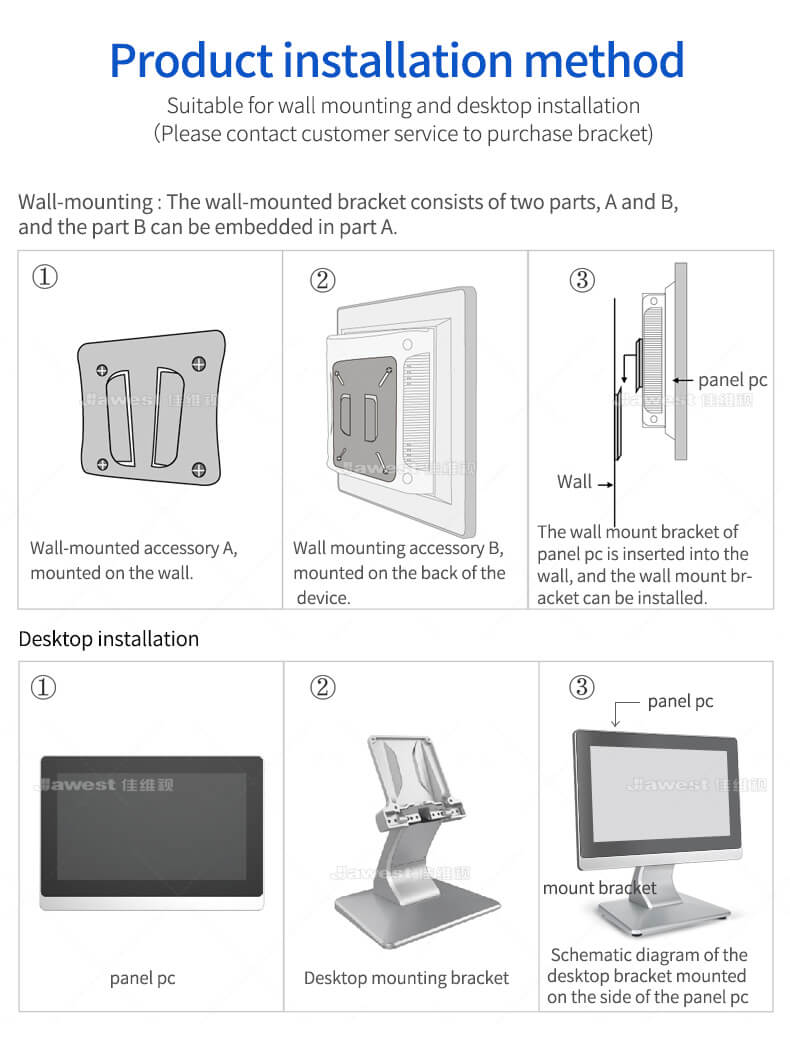

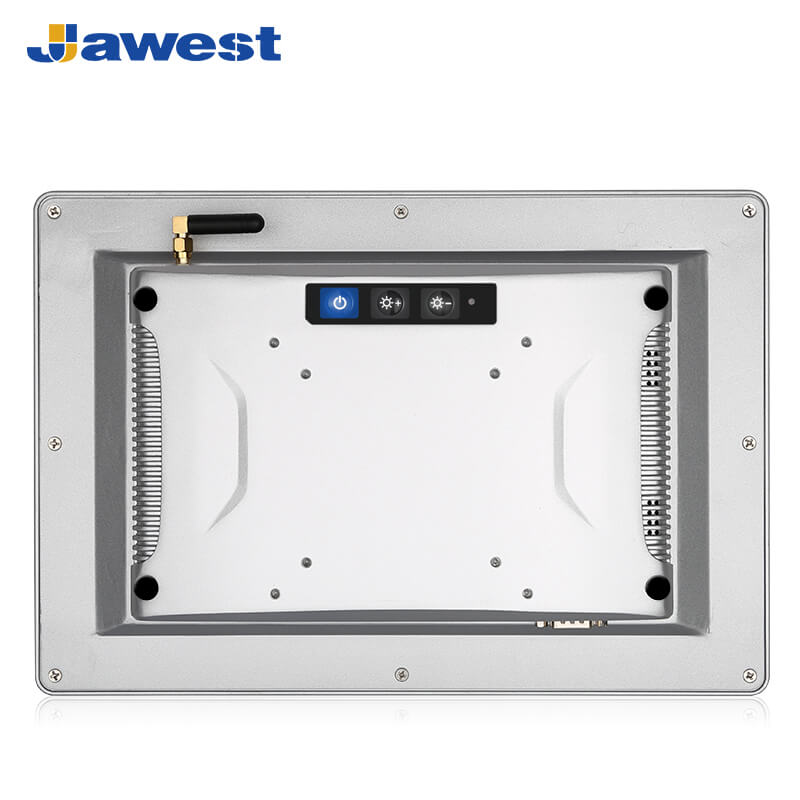

● Multiple installations: desktop, wall-hanging, VESA75/100mm
● Ultra-sensitive touch screen, precise positioning, free control
● Rich I/O ports including USB 2.0, USB 3.0, HDMI ports, COM ports, RJ45, etc
● Running on the Android platform, ideal for developers working with custom apps
● Support 24/7 operation in harsh environment

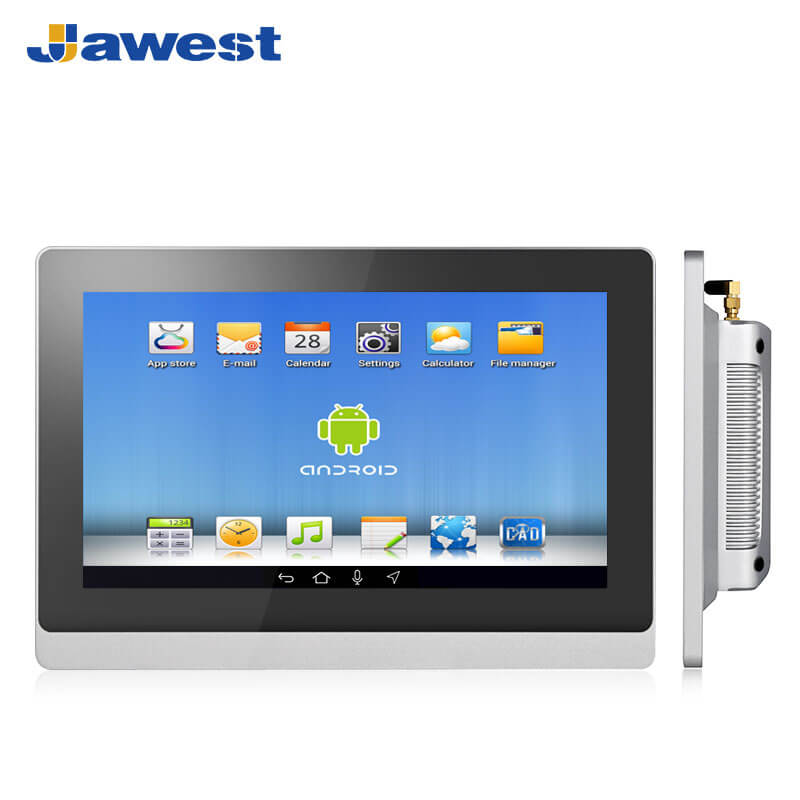

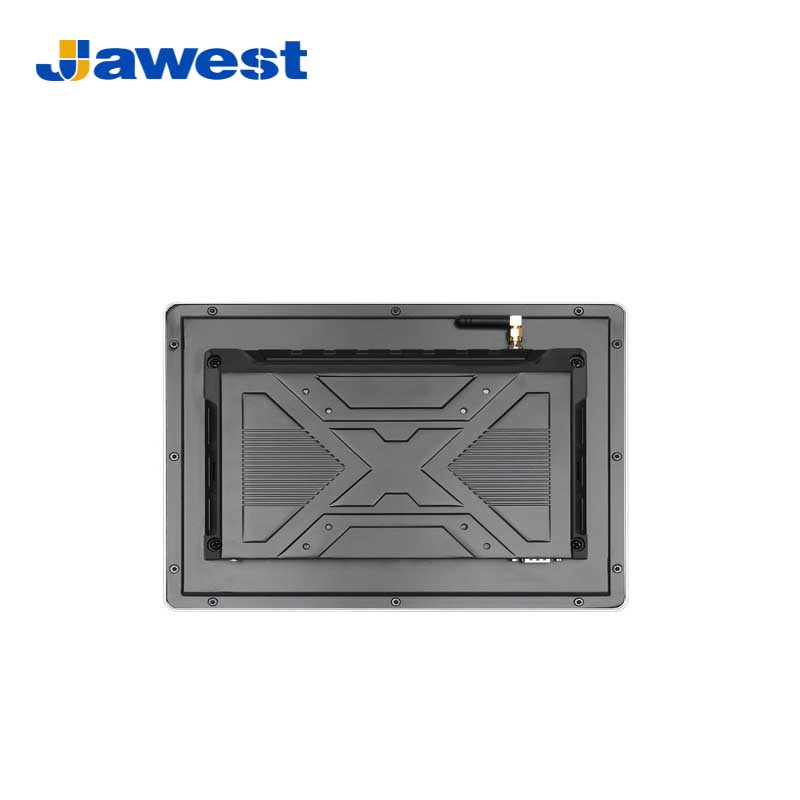

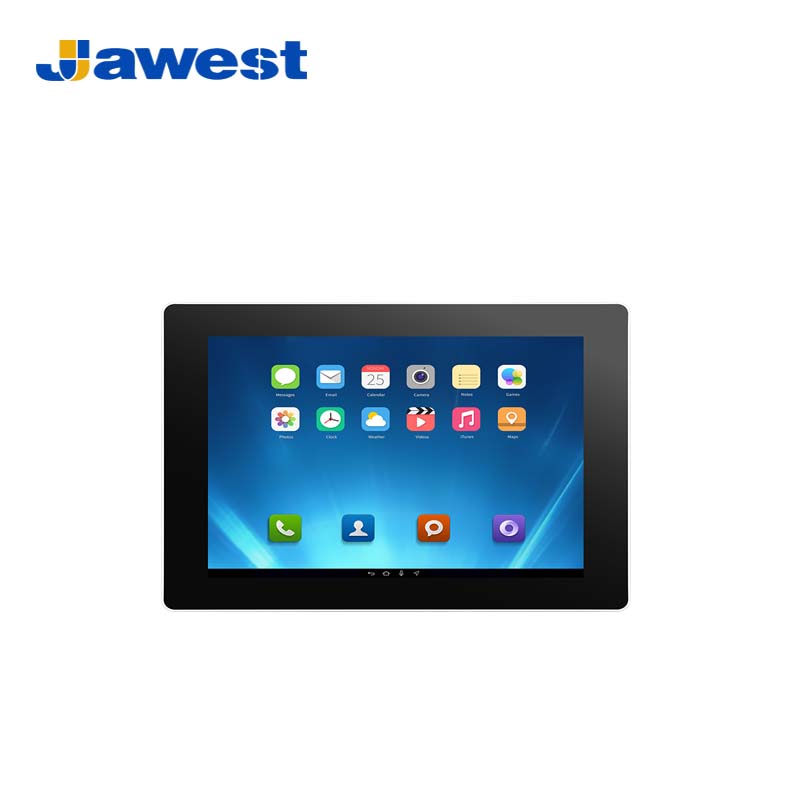

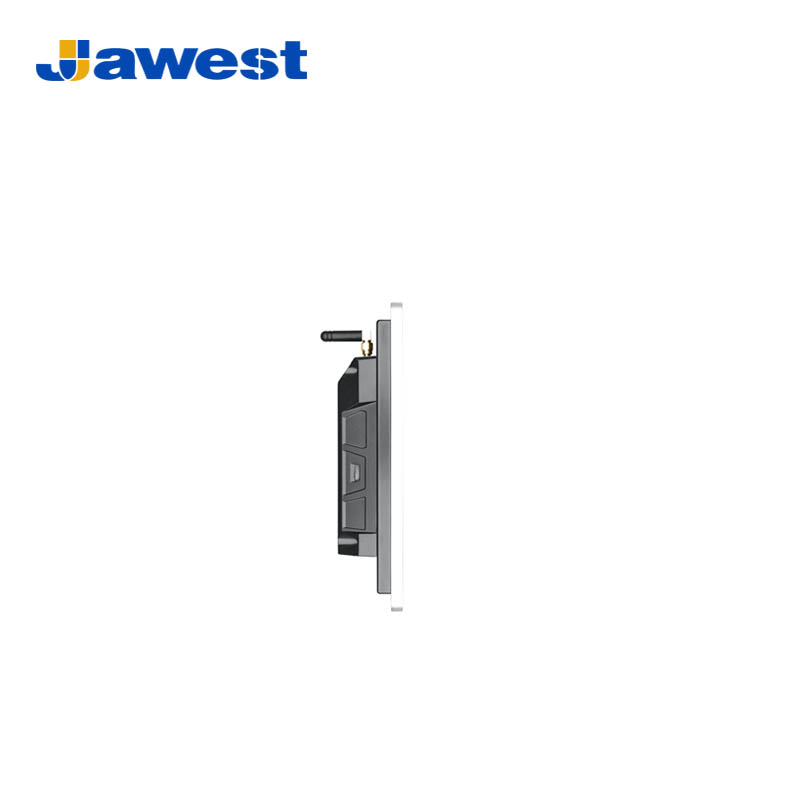

10.1 inch Android Panel PC with Multi-Point Capacitive Touch Screen Panels
Model: JWS101-A41
Jawest newest 10.1″ industrial Android all-in-one panel PC is designed to provide high-quality images & advanced features for reliable operation in any factory environment for many years. A unique streamlined design with a 10mm front bezel makes it more impact-resistant in harsh environments. Options like types of touch screen and AC or DC or power input make this all-in-one tablet PC highly versatile. Backed by standard industrial certification, 3rd-party environmental testing, and a trustworthy before-after sales service system.
Jawest is one of the most popular cooperators and suppliers for your business and solutions in terms of industrial automation, artificial intelligence, commercial terminal devices, medical projects, digital signage, point-of-care medical devices, self-ordering systems, restaurant desktop displays, building intercom systems, access control, and check-in system, smart home automation, room scheduling, building automation, building security, and lighting control, etc.
Display Parameters | Size | 10.1" | |||||
Resolution | 800*1280/1280*800 | ||||||
Screen Ratio | 10:16/16:10 | ||||||
/16:Brightness | 300 nits (Optional high brightness) | ||||||
Contrast Ratio | 1000:1 | ||||||
Viewing Angle | 85°/85°/85°/85° (L/R/U/D) | ||||||
Backlight type | LED backlight screen, service life ≥ 50000H | ||||||
Touch Screen | Capacitive (Resistive, or Non-touch options) | ||||||
Motherboard Model Selection | JWS64 | JWS3288-I | JWS3399-MAIN-L | CX3399-A | CX3568-A | CX3588-A | |
System Architecture | CPU | A64 Quad-Core 1.5GHz | RK3288 Quad-Core 1.8GHz | RK3399 Six-Core 2.0GHz | RK3399 Six-Core 2.0GHz | RK3568 Quad-Core 2.0GHz | RK3588 Octa-Core 2.1GHz |
Core Architecture | Cortex-A53 | Cortex-A17 | Dual-Core Cortex-A72 + Quad-Core Cortex-A53 | Dual-Core Cortex-A72 + Quad-Core Cortex-A53 | Cortex-A55 | Quad-Core Cortex-A76 + Quad-Core Cortex-A55 | |
GPU | Mali-T764 | Mali-T764 | Mali-T860 MP4 | Mali-T860 MP4 | Mali-G52 2EE | Mali G610 MP4 | |
Memory (DDR) | 2GB (8GB optional) | 2GB (4GB optional) | 4GB | 2/4GB | 2GB (4/8GB optional) | 4GB (8/32GB optional) | |
Storage (eMMC) | 16GB (32/64GB optional) | 16GB (32/64/128/256GB optional) | 32GB (64GB optional) | 32/64GB (256GB optional) | 32GB (64/128/256GB optional) | 64GB (128/256GB optional) | |
SATA | / | / | / | / | Support | / | |
Operating System | Android 6.0 | Android 7.1 / 10.0 | Android 7.1 / 9.0 / 11 | Android 7.1 / 9.0 / 11 | Android 12 | Android 13.0 | |
/ | Linux 4.4 | Linux 4.4 | Linux 4.4 | Linux 5.10 | Linux 5.10 | ||
/ | Ubuntu 18.04 | Ubuntu 18.04 | Ubuntu 18.04 | Ubuntu 20.04 | Ubuntu 20.04 | ||
/ | Debian 10.0 | Debian 10.0 | Debian 10.0 | Debian 11.0 | Debian 11.0 | ||
Networking | Ethernet | 1*10M/100M/1000M adaptive Ethernet | 1*Gigabit Ethernet + 1*100 Mbit Ethernet | ||||
4G | Optional. Based on the 4G module selection | ||||||
5G | / | / | / | / | / | / | |
WIFI | 2.4G | Dual-band 2.4/5G | Dual-band 2.4/5G | Dual-band 2.4/5G | WIFI6, 2.4G | WIFI6, Dual-band 2.4/5G | |
Bluetooth | BT5.0 | BT5.0 | BT5.0 | BT5.0 | BT5.2 | BT5.0 | |
Touch Function | Touch Interface | USB/IIC | USB | USB/IIC | |||

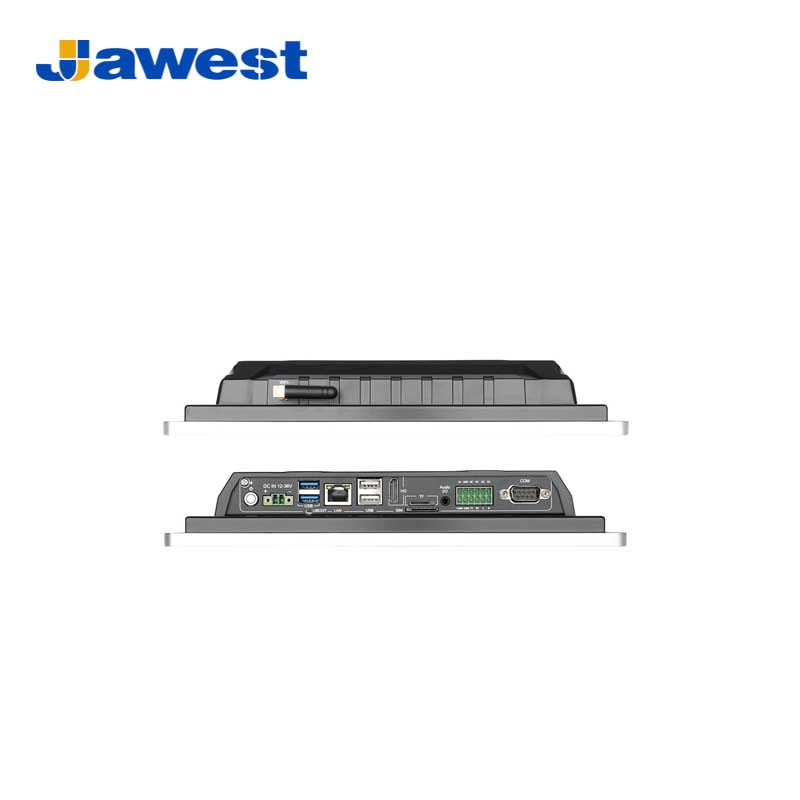

I/O Ports | USB | 1*USB HOST, 1*USB OTG | 1*USB HOST, 1*USB OTG | 1*USB HOST, 1*USB OTG | 1*USB, 1*OTG | 2*USB3.0 | 1*USB, 1*OTG |
HDMI | 1*HDMI, up to 4K | 1*HDMI, up to 4K | 1*HDMI, up to 4K | 1*HDMI, up to 4K | 1*HDMI, up to 4K | 1*HDMI, up to 4K | |
LAN | 1*LAN | 1*LAN | 1*LAN | 1*LAN | 1*LAN | 2*LAN | |
DC | 1*DC2.1 | 1*DC2.1 | 1*DC2.1 | 1*DC2.1 | 1*DC2.1 | 1*DC2.1 | |
COM | 2*RS232+2*Reserved holes | 1*RS232+1*Reserved hole | |||||
TF/SIM | 1* TF/SIM slot | 1*TF/SIM slot | 1*TF/SIM slot | 1*TF/SIM slot | 1*TF/SIM slot | 1*TF/SIM slot | |
WiFi Antenna | 1*WiFi Antenna | 1*WiFi Antenna | 1*WiFi Antenna+1*Reserved hole | ||||
Audio I/O | 1*3.5mm Earphone Jack | ||||||
Reset Button | 1*UBOOT | 1*UBOOT | 1*UBOOT | 1*UBOOT | 1*UBOOT | 1*UBOOT | |
GND | 1*GND | 1*GND | 1*GND | 1*GND | 1*GND | 1*GND | |
MICRO OTG | 1*MICRO OTG | / | / | / | / | / | |
1*12P Phoenix Terminal | / | / | / | 1*DC | 1*DC | 1*DC | |
/ | / | / | 1*RS232 | 1*RS232 | 1*RS232 | ||
/ | / | / | 1*RS485 | 1*RS485 | 1*RS485 | ||
/ | / | / | 1*TTL | 1*CAN | 1*CAN | ||
/ | / | / | 3*GPIO | 3*GPIO | 3*GPIO | ||
I/O Expansion | Support | ||||||
Power | Power Input | 12V DC | 12V DC | 12-36V DC | 12-36V DC | 12-36V DC | 12-36V DC |
Adapter | 12V / 4A | 12V / 4A | 24V / 2.5A | 24V / 2.5A | 24V / 2.5A | 24V / 2.5A | |
Mechanical | Enclosure | Aluminum alloy housing | |||||
Cooling System | Fanless | ||||||
Mounting | Desk stand, wall-hanging, VESA75/100mm, etc. | ||||||
Product Reliability | Working Temp | -10°C ~ 60°C | |||||
Storage Temp | -20°C ~ 70°C | ||||||
Ambient Humidity | 5% - 95% (relative humidity non-condensing) | ||||||
IP rating | Front IP65 |
