Model: JWS104-A41
● Display size: 10.4 inch.
● Full-flat panel rejects dust and drops penetrate.
● IP65 rating dust-proof and waterproof for the front panel.
● Multiple installation: desktop stand / wall-hanging / VESA.
● Ultra-sensitive touch screen, precise positioning, free control.
● Support I/O expansion for applying to multiple applications and environments.

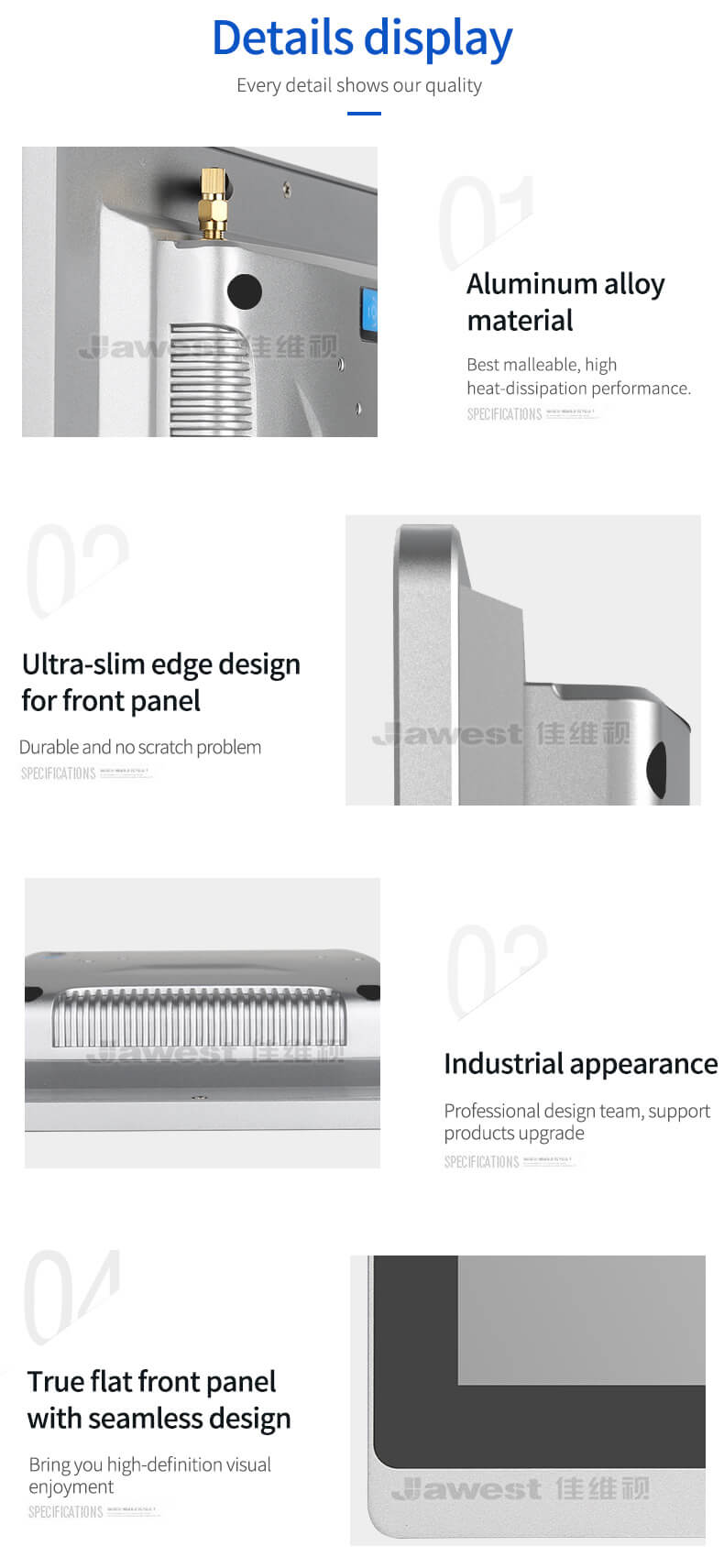

● Aluminum alloy housing with good thermal conductivity and corrosion resistance.
● 24/7 stable operation in harsh environment
● Provide customization service

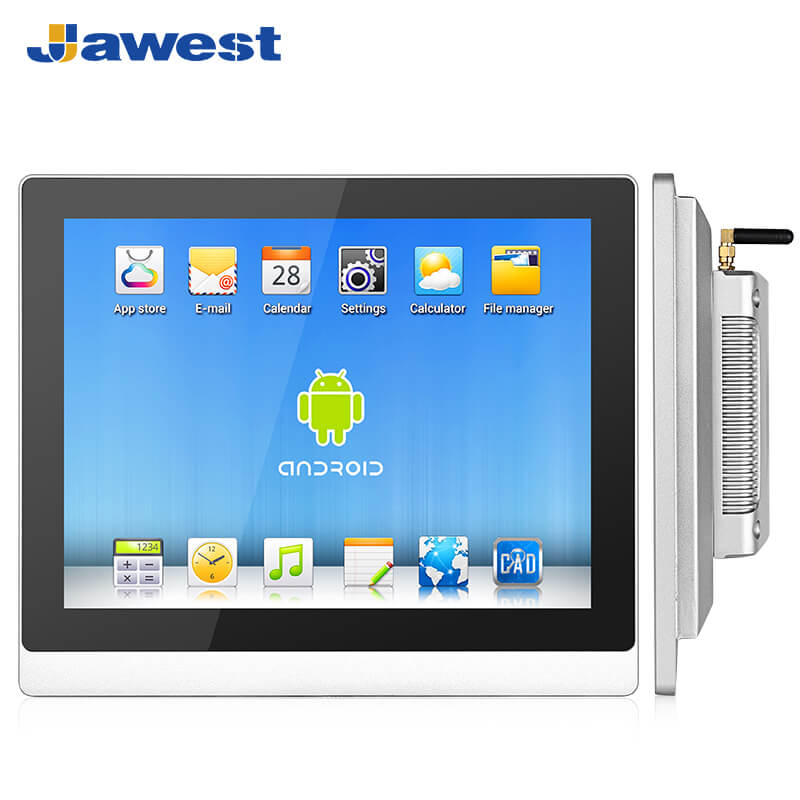

10.4 inch Android Industrial Panel PC Factory Supply
Model: JWS104-A41
Jawest introduces a series of industrial Android all-in-one tablet PCs with multiple functional modules such as built-in card readers like ID cards, RFID, IC cards, NFC, face recognition, and fingerprint collection. These aspects of functional modules make the all-in-one panel PC series apply to access control and security systems for residential, industrial, financial, commercial, educational, and government institutions. With a fanless heating-dissipation design, all inner components are well-protected during long-time operation. It offers PCAP touch panel PC or resistive touchscreen.
Product Features
Default Config.
● CPU: A64 / RK3288 / RK3399 /RK3568 / RK3588 options
● RAM: 2/4/8/16/32GB options
● Storage: 16/32/64/128/256GB options
● OS: Android 6.0 / 7.1 / 9.0 / 10.0 / 11 / 12 / 13 options
● Industrial LCD panel, wide viewing angle
● High brightness: up to 1000 cd/m2
● High-strength industrial shell, robust and solid
● Black or silver housing
● Support Power over ethernet(POE) for easy installing
● Support connecting a barcode scanner, NFC reader, or camera
● Easy to install for wall mounts, desk stands, or VESA mounts
Display Parameters | Size | 10.4" | |||||
Resolution | 1024*768 | ||||||
Screen Ratio | 4:3 | ||||||
Brightness | 400 nits (Optional high brightness) | ||||||
Contrast Ratio | 1000:1 | ||||||
Viewing Angle | 80°/80°/80°/80° (L/R/U/D) | ||||||
Backlight type | LED backlight screen, service life ≥ 50000H | ||||||
Touch Screen | Capacitive (Resistive, or Non-touch options) | ||||||
Motherboard Model Selection | JWS64 | JWS3288-I | JWS3399-MAIN-L | CX3399-A | CX3568-A | CX3588-A | |
System Architecture | CPU | A64 Quad-Core 1.5GHz | RK3288 Quad-Core 1.8GHz | RK3399 Six-Core 2.0GHz | RK3399 Six-Core 2.0GHz | RK3568 Quad-Core 2.0GHz | RK3588 Octa-Core 2.1GHz |
Core Architecture | Cortex-A53 | Cortex-A17 | Dual-Core Cortex-A72 + Quad-Core Cortex-A53 | Dual-Core Cortex-A72 + Quad-Core Cortex-A53 | Cortex-A55 | Quad-Core Cortex-A76 + Quad-Core Cortex-A55 | |
GPU | Mali-T764 | Mali-T764 | Mali-T860 MP4 | Mali-T860 MP4 | Mali-G52 2EE | Mali G610 MP4 | |
Memory (DDR) | 2GB (8GB optional) | 2GB (4GB optional) | 4GB | 2/4GB | 2GB (4/8GB optional) | 4GB (8/32GB optional) | |
Storage (eMMC) | 16GB (32/64GB optional) | 16GB (32/64/128/256GB optional) | 32GB (64GB optional) | 32/64GB (256GB optional) | 32GB (64/128/256GB optional) | 64GB (128/256GB optional) | |
SATA | / | / | / | / | Support | / | |
Operating System | Android 6.0 | Android 7.1 / 10.0 | Android 7.1 / 9.0 / 11 | Android 7.1 / 9.0 / 11 | Android 12 | Android 13.0 | |
/ | Linux 4.4 | Linux 4.4 | Linux 4.4 | Linux 5.10 | Linux 5.10 | ||
/ | Ubuntu 18.04 | Ubuntu 18.04 | Ubuntu 18.04 | Ubuntu 20.04 | Ubuntu 20.04 | ||
/ | Debian 10.0 | Debian 10.0 | Debian 10.0 | Debian 11.0 | Debian 11.0 | ||
Networking | Ethernet | 1*10M/100M/1000M adaptive Ethernet | 1*Gigabit Ethernet + 1*100 Mbit Ethernet | ||||
4G | Optional. Based on the 4G module selection | ||||||
5G | / | / | / | / | / | / | |
WIFI | 2.4G | Dual-band 2.4/5G | Dual-band 2.4/5G | Dual-band 2.4/5G | WIFI6, 2.4G | WIFI6, Dual-band 2.4/5G | |
Bluetooth | BT5.0 | BT5.0 | BT5.0 | BT5.0 | BT5.2 | BT5.0 | |
Touch Function | Touch Interface | USB/IIC | USB | USB/IIC | |||

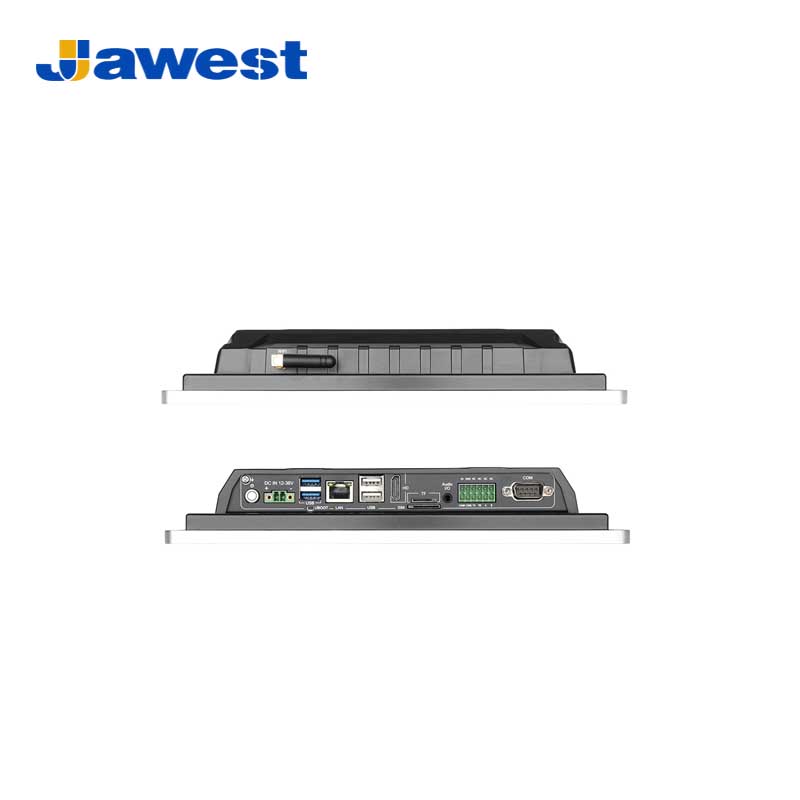

I/O Ports | USB | 1*USB HOST, 1*USB OTG | 1*USB HOST, 1*USB OTG | 1*USB HOST, 1*USB OTG | 1*USB, 1*OTG | 2*USB3.0 | 1*USB, 1*OTG |
HDMI | 1*HDMI, up to 4K | 1*HDMI, up to 4K | 1*HDMI, up to 4K | 1*HDMI, up to 4K | 1*HDMI, up to 4K | 1*HDMI, up to 4K | |
LAN | 1*LAN | 1*LAN | 1*LAN | 1*LAN | 1*LAN | 2*LAN | |
DC | 1*DC2.1 | 1*DC2.1 | 1*DC2.1 | 1*DC2.1 | 1*DC2.1 | 1*DC2.1 | |
COM | 2*RS232+2*Reserved holes | 1*RS232+1*Reserved hole | |||||
TF/SIM | 1* TF/SIM slot | 1*TF/SIM slot | 1*TF/SIM slot | 1*TF/SIM slot | 1*TF/SIM slot | 1*TF/SIM slot | |
WiFi Antenna | 1*WiFi Antenna | 1*WiFi Antenna | 1*WiFi Antenna+1*Reserved hole | ||||
Audio I/O | 1*3.5mm Earphone Jack | ||||||
Reset Button | 1*UBOOT | 1*UBOOT | 1*UBOOT | 1*UBOOT | 1*UBOOT | 1*UBOOT | |
GND | 1*GND | 1*GND | 1*GND | 1*GND | 1*GND | 1*GND | |
MICRO OTG | 1*MICRO OTG | / | / | / | / | / | |
1*12P Phoenix Terminal | / | / | / | 1*DC | 1*DC | 1*DC | |
/ | / | / | 1*RS232 | 1*RS232 | 1*RS232 | ||
/ | / | / | 1*RS485 | 1*RS485 | 1*RS485 | ||
/ | / | / | 1*TTL | 1*CAN | 1*CAN | ||
/ | / | / | 3*GPIO | 3*GPIO | 3*GPIO | ||
I/O Expansion | Support | ||||||
Power | Power Input | 12V DC | 12V DC | 12-36V DC | 12-36V DC | 12-36V DC | 12-36V DC |
Adapter | 12V / 4A | 12V / 4A | 24V / 2.5A | 24V / 2.5A | 24V / 2.5A | 24V / 2.5A | |
Mechanical | Enclosure | Aluminum alloy housing | |||||
Cooling System | Fanless | ||||||
Mounting | Desk stand, wall-hanging, VESA75/100mm, etc. | ||||||
Product Reliability | Working Temp | -10°C ~ 60°C | |||||
Storage Temp | -20°C ~ 70°C | ||||||
Ambient Humidity | 5% - 95% (relative humidity non-condensing) | ||||||
IP rating | Front IP65 |
