• Sunlight readable
• IP65 dustproof and waterproof
• Whole Aluminum alloy enclosure
• Resistive & Capacitive & Infrared touch screen option
• Versatile I/O supported: USB2.0/RS232/RJ-45/VGA/HDML
• Wall-mounted, VESA, Embedded, Desktop stand installation option
• Integrated modules option:NFC/IC/RFID/MSR/

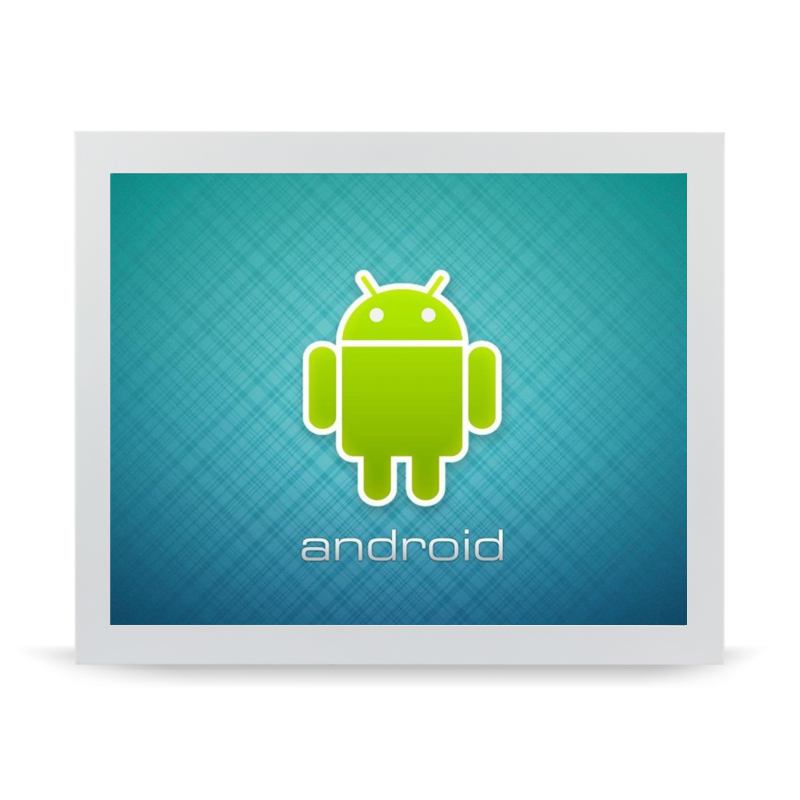

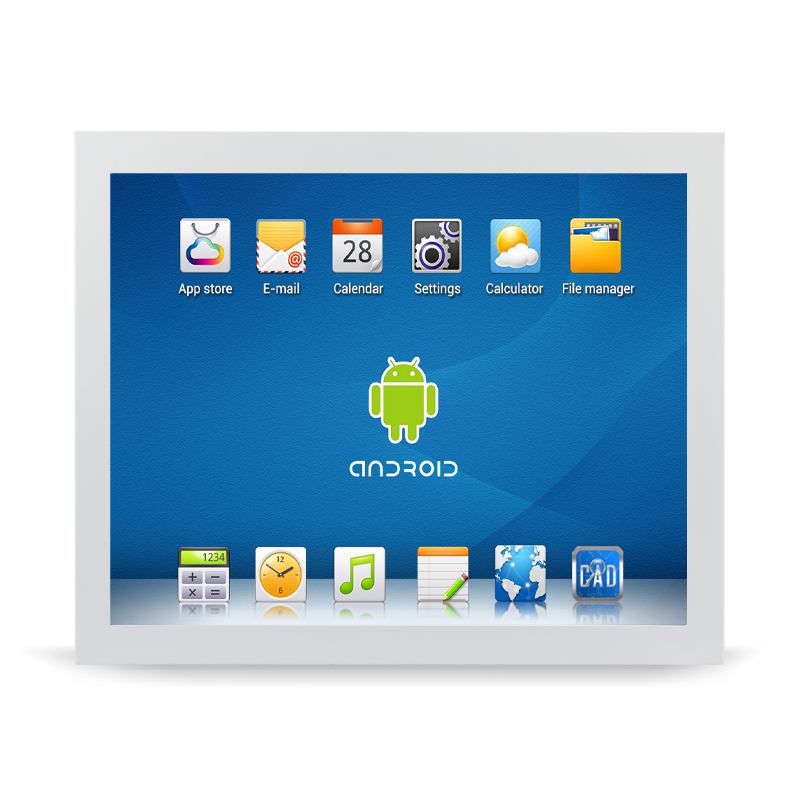

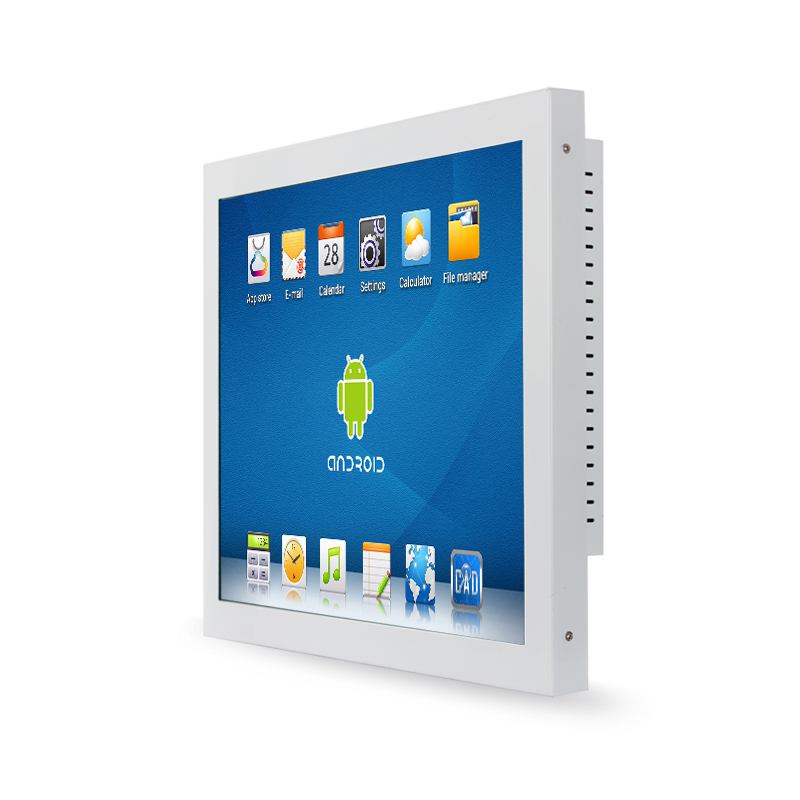

Rugged HMI Panel PC
Seamless panel design with IP65 dustproof waterproof
With an aesthetic ultrathin bezel it is perfect for seamless panel mount installation. The panel pc provides IP 65 protection, which makes it suitable for harsh environments were the front panel will be exposed to dust, damp, etc.
Anti-vibration
The anti vibration standard is up to GB2423, and it will not be damaged in the transportation / industrial / marine environment.
Material
Whole quality aluminum alloy enclosure, the best heat dissipation material.
Touch screen option
Sunlight readable and Resistive & Capacitive & Infrared touch screen option
Installation option
Wall-mounted, VESA, Embedded, Desktop stand installation option
Shenzhen Jawest Electronic Technology Co.,Ltd | |||||
Android Panel PC datasheet(Allwinner A83T motherboard) | |||||
Size | 10.1inch | 10.4inch | 12inch | 15inch | 15.6inch |
Display | |||||
Panel Type | Industrial LCD panel A+ grade | ||||
Aspect Ratio | 16:9 | 4:3 | 4:3 | 4:3 | 16:9 |
Resolution | 1366*768 | 1024*768 | 800*600 or 1024*768 | 1024*768 | 1366*768 |
Contrast | 800:1 | 800:1 | 800:1 | 1000:1 | 1000:1 |
Luminance | 250nit-800nit | 250nit-800nit | 250nit-1000nit | 250nit-1000nit | 250nit-1000nit |
Response time | 5ms | 5ms | 5ms | 5ms | 5ms |
Active Area (mm) | 227*131 | 218.2*165.6 | 250*188.4 | 305.8*229.8 | 342*192 |
Display colors | 16.7M(8-bit) | 16.7M(8-bit) | 16.7M(8-bit) | 16.7M(8-bit) | 16.7M(8-bit) |
View angle | 80/80/80/80 | 80/80/80/80 | 75/75/75/75 | 75/75/75/75 | 75/75/75/75 |
PC Configuration | |||||
CPU | Allwinner A83T Octa-core Cortex-A7 2.0Ghz | ||||
GPU | PowerVR SGX544 GPU | ||||
Inner memory | 2G DDR3 RAM | ||||
Storage | eMMC 8G, 16G/32G/64G(optional) | ||||
Video output | Support LVDS & HDMI 1080P video output | ||||
WiFi | Built-in WiFi module, 802.11a/b/g/n | ||||
Bluetooth | Built-in bluetooth 4.0 module | ||||
Speaker | Inbuilt speaker | ||||
Functions requirements | Built-in 3G/4G(optional) | ||||

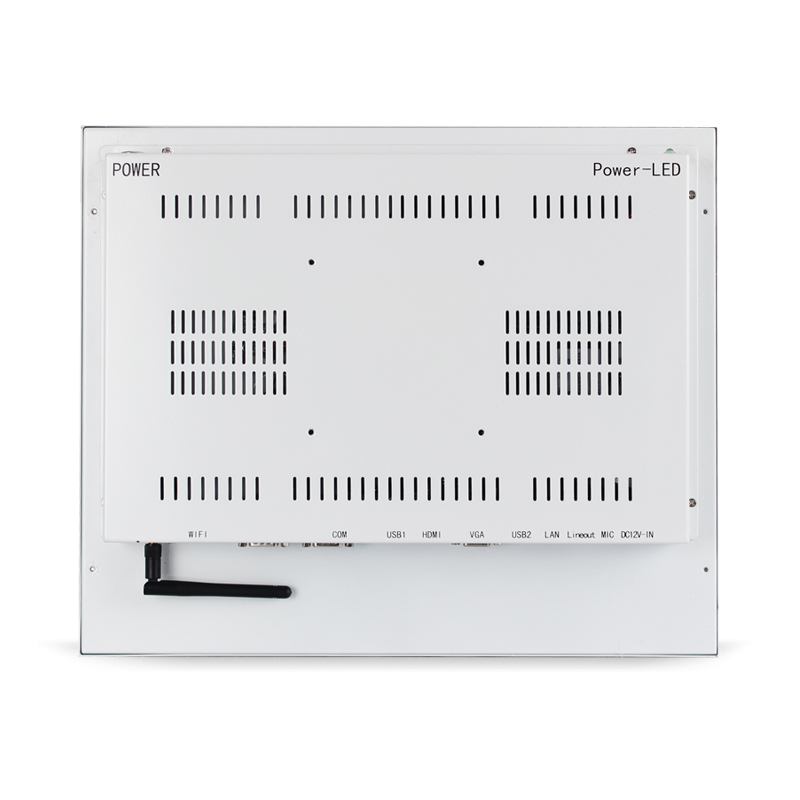

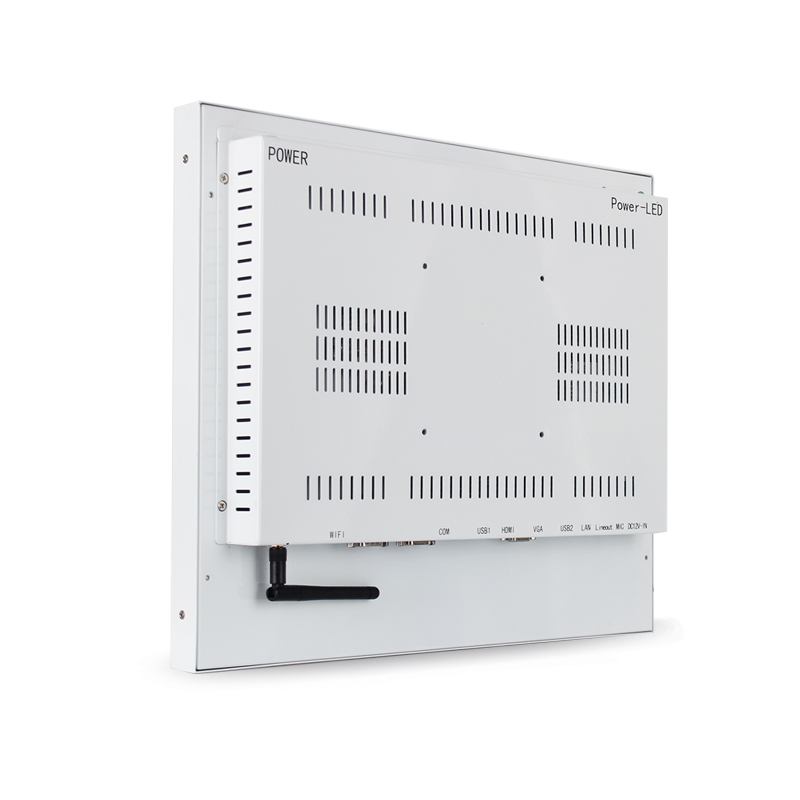

I/O ports | 1*12V 5A power input 1*SIM card slot 1*TF/SD card slot 1*HDMI port(10.1" & 12" don't have HDMI port) 2*USB 2.0 port 1*RJ45 port(100M Ethernet Interface) 1*3.5mm headphone jack 2*RS232(Serial port)(1*RS232 for 10.1" & 12" Android panel pc) 1*mini USB port for re-flash/upgrade firmware | ||||
Support multi-language | English,French,Spanish,Portuguese,Russian,Arabic,Chinese,etc. | ||||
Google play service | Support Google play service | ||||
Pre-installed App | Google market,Email,Gmail,Google talk | ||||
Certificate of Approval | CE,CCC,ISO,FCC,ROHS | ||||
Installation method | VESA, Embedded, Wall-Mounted, Desktop stand (optional) | ||||
Touch Screen | 10-point Projected capacitive touch screen with tempered glass | ||||
Color | Silver, black color optional | ||||
Bezel thickness | 3mm bezel, 10mm bezel(option) | ||||
IP rating | IP65 dustproof and waterproof for front panel | ||||
Material | Aluminum alloy enclosure | ||||
Package | EPE+Carton (wooden crate for mass order) | ||||
Operating System | Pre-installed Android 4.4 OS |
