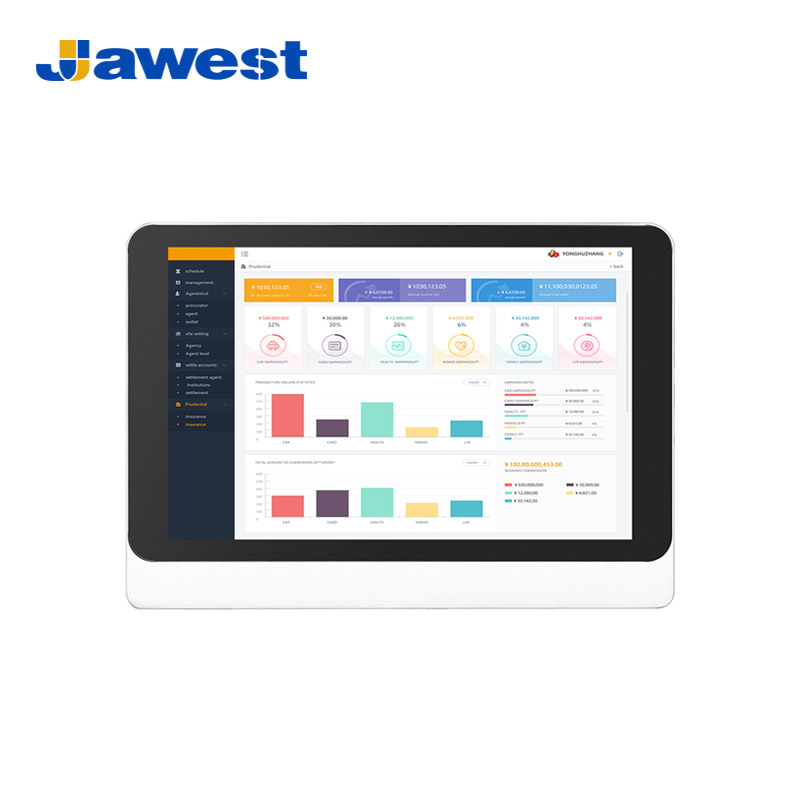

10.4" Rugged Industrial Monitor IP65 CE Approved


Model: JWS104-M41

● Display size: 10.4 inch

● High-level anti-static

● High quality industrial LCD panel

● Working temperature: -10°C to +60°C

● Industrial-grade motherboard

● 10mm Bezel Aluminum Touch Monitor

● 24/7hours long-time operation

● IP65 rated dust-proof and water-proof for front panel

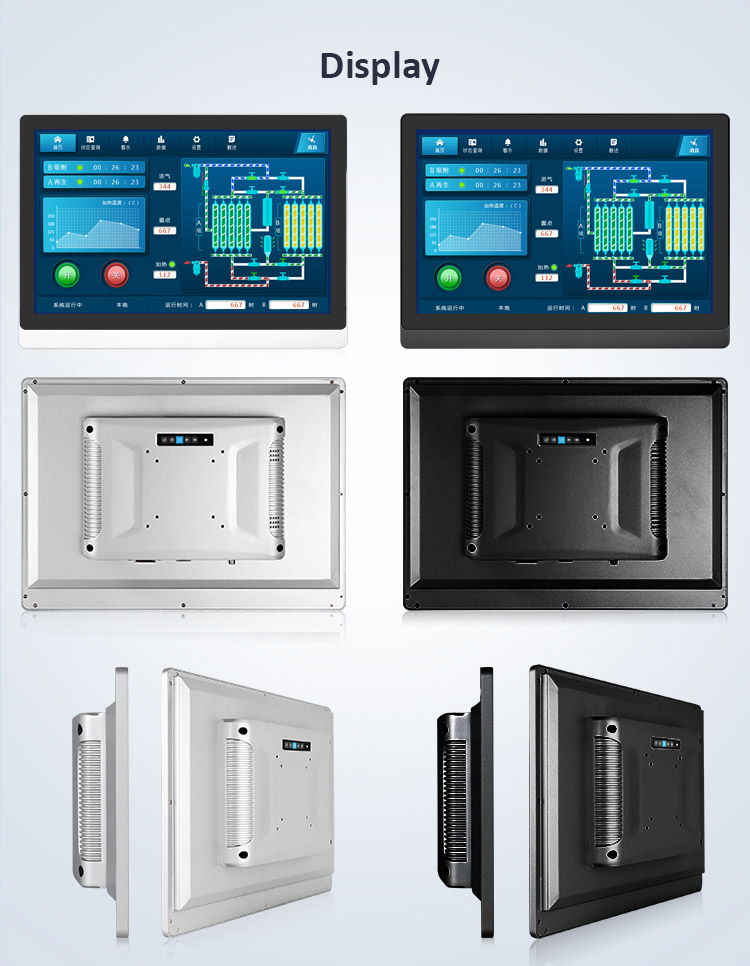

Appearance of the color
Black
Silver
share:
  • Description
  • Parameter
  • Case
  • 10.4" Rugged Industrial Monitor IP65 CE Approved


    Model: JWS104-M41


    Jawest 10.4-inch square screen designed with IP65 rated dust-proof and water-proof for the front panel. Full-enclosed flat touch panel equipped with durable and rugged aluminum alloy casing and assembled with dust and water-proof strip, extensive gasket sealing to provide protection from the ingress of water and dust. Such protection allows for uninterrupted operation in dust, wet, and other harsh conditions. The LCD monitors are also designed with fanless heating-dissipation, industrial-grade components such as motherboards, and high brightness screens that can be viewed clearly under direct sunlight, the industrial touchscreen panels are ideal for self-service devices, transportation, education, marine, AI, IIOT, IOT, kiosk, and other outdoor devices, it also supports human-machine interface functions. These all-weather touch screen HMI displays are available for embedding into other devices.



    Jawest Industrial Monitor Features


    ● 10.4-inch display screen supports bright active matrix TFT.

    ● The display definition is 1024x768, high contrast ratio, offers excellent vivid image and color.

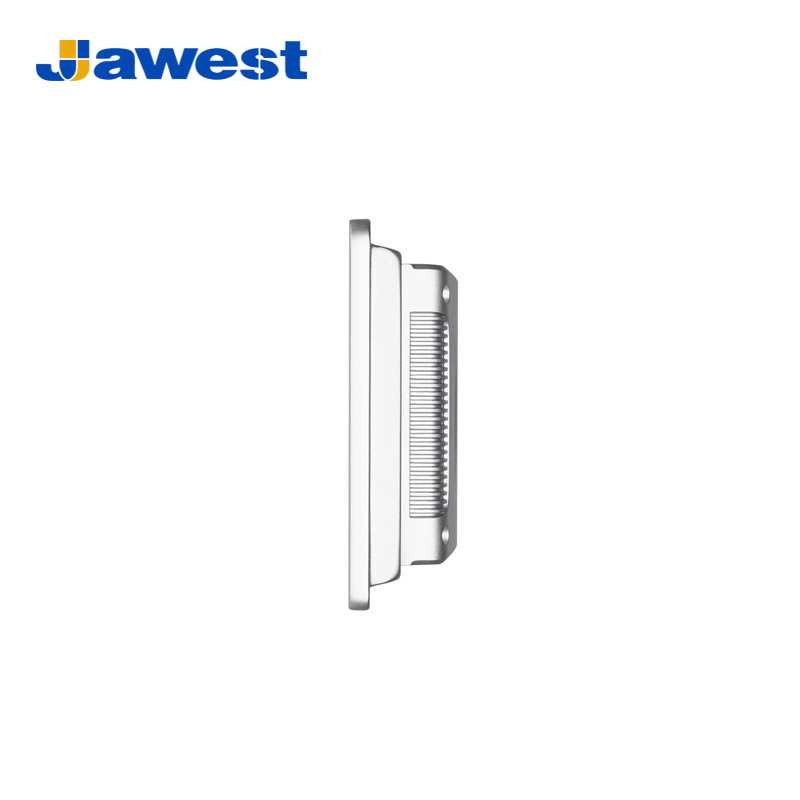

    ● Fanless heating-dissipation, energy-efficient, low power consumption.

    ● Industrial-grade electronic components and self-developed motherboard, support long-time operation in harsh industrial manufacturing and monitoring environment.

    ● Wide operational temperature range: -10°C to +60°C (support extended temperature ranges).

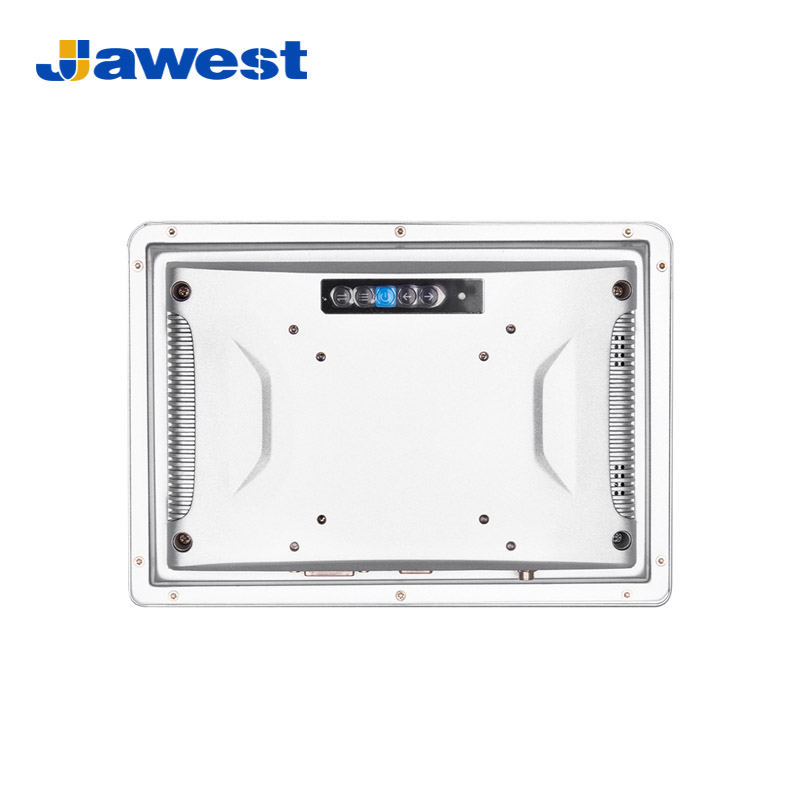

    ● Offer multi-installation methods, tabletop, wall, embedded, and VESA arm mounting.

    ● RoHS, CE compliant.

    ● Three (3) years warranty.





    10.4" Rugged Industrial Monitor IP65 CE Approved

    10.4" Rugged Industrial Monitor IP65 CE Approved

    10.4" Rugged Industrial Monitor IP65 CE Approved

    10.4" Rugged Industrial Monitor IP65 CE Approved




  • 10mm bezel aluminum touch monitor datasheet
    Size10.4-inch
    Display
    Panel TypeIndustrial LCD panel A, A+ grade
    Aspect Ratio4:3
    Resolution1024*768
    Contrast1000:1
    Luminance400 Nits (High brightness screen options)
    Response time5ms
    Display colors16.7M(8-bit)
    View angle80/80/80/80
    Touch ScreenCapacitive touch screen (4/5 wire resistive touch screen/Non-touch optional)

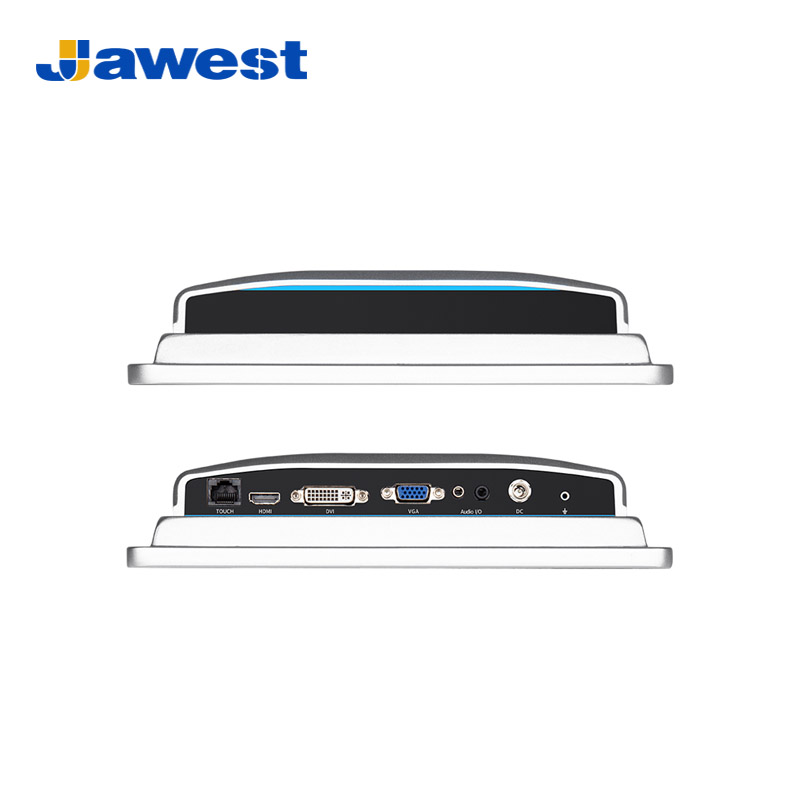

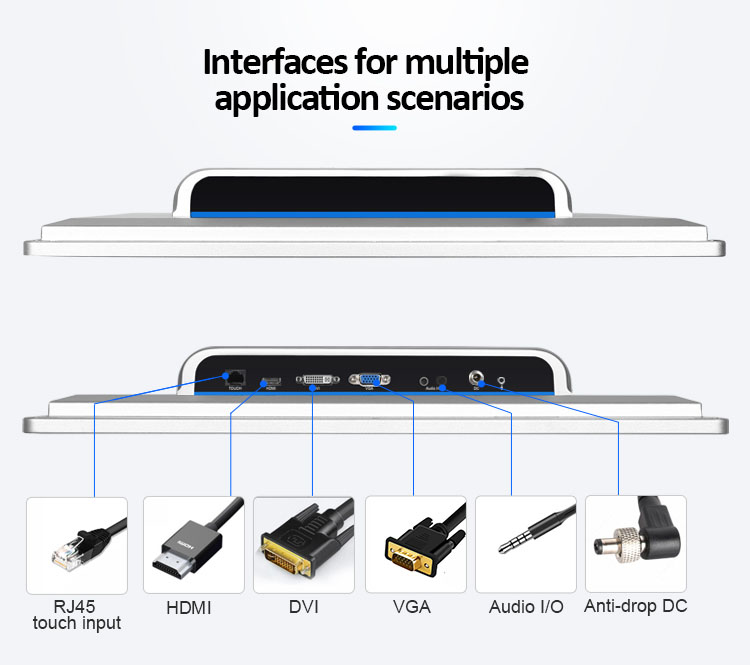

    Interface1*DC2.1, 1*HDMI, 1*RJ45(For touch cable), 1*VGA, 1*DVI, 1*Audio I/O
    Power InputDC 12~36V
    Standby Power18W
    Working LifeMore than 50,000 hours
    Operation Temperature-10°C-60°C (Support wide temperature customization)
    Storage Temperature-20°C~70°C
    Operation Humidity10%~80%
    Storage Humidity10%~90%
    Metal ShellAluminum alloy enclosure
    ColorSilver, black color optional
    IP ratingIP65 dust-proof and water-proof for front Panel
    InstallationVESA, Wall Mount, Desktop Stand
    CertificatesCE, CCC, ISO, FCC, ROHS
    PackageEPE+Carton  (wooden crate for mass order)
