Application:
10mm Bezel Aluminum Industrial Touch Screen Monitor10mm Bezel Aluminum Industrial Touch Screen Monitor10mm Bezel Aluminum Industrial Touch Screen Monitor10mm Bezel Aluminum Industrial Touch Screen Monitor

10mm Bezel Aluminum Industrial Touch Screen Monitor


● Display: 10.1" to 21.5".

● Working temperature: -10 to +60°.

● Front IP65-rating dustproof and waterproof.

● Supports 24/7 long-time operation.

● Industrial grade display drive board.

Appearance of the color
Black
Silver
share:
  • Description
  • Parameter
  • Case
  • Robust Aluminum Alloy Housing Industrial Touch Screen Monitor

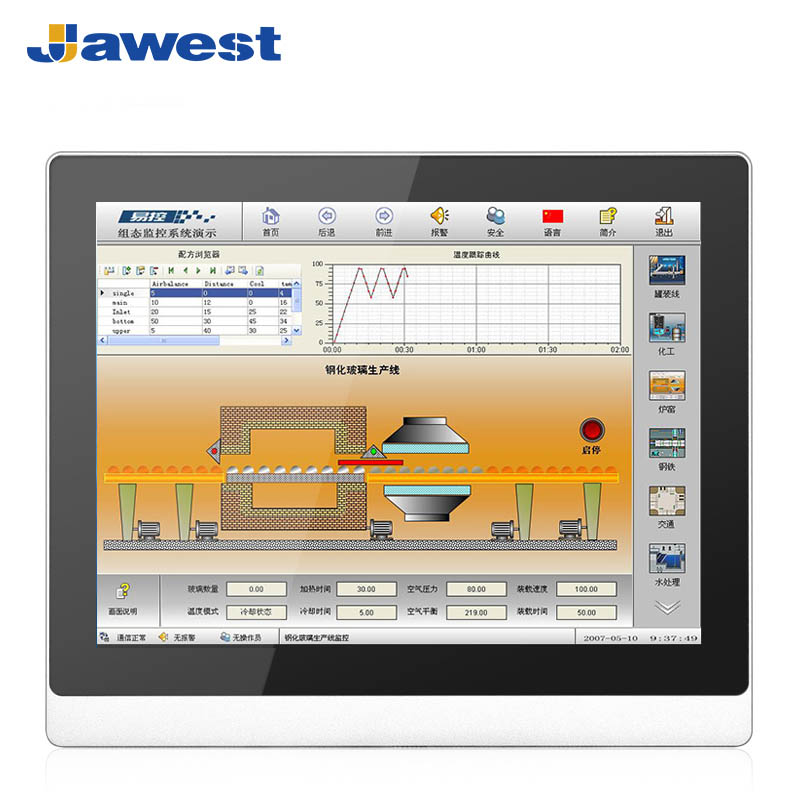

    High-quality industrial LCD panel

    High brightness 250nit-1500nit LED backlight enhancements, direct sunlight readable.

    Antireflective coating, clearer viewing.

    Stable operation with a long working life, more than 50,000 hours.

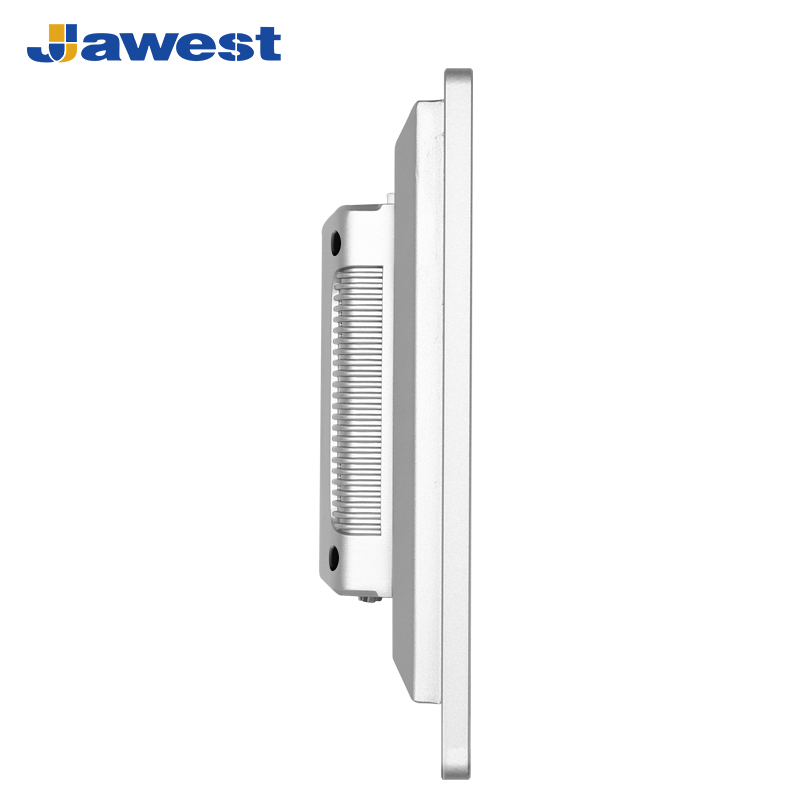

    Aluminum alloy enclosure for unique heat dissipation design

    Sealed bezel and True flat screen are more efficient for water resistance.

    Stable running in shock and vibration applications, as well as electromagnetic interference and radiation environment.


    Screen brightness

    The brightness of the backlight can be adjusted directly through OSD.

    The screen color won’t be affected while adjusting the brightness.


    Motherboard design

    REALTEK brand Industrial grade display chip.

    Industrial level components.

    Mainboard filtering solid cap withstands voltage 36V /105°.


    Anti-static

    Meet the industrial standard touch 4KV (the highest customizable 6KV).

    Meet the industry standard air 8KV (the highest customizable 16KV ).

    High-level anti-static can greatly reduce the failure rate of the machine.




    Industrial monitor's use and daily maintenance


    Due to current technical limitations and the environmental impact on the equipment, industrial displays should be maintained regularly. The industrial monitor is a highly integrated touchscreen monitor composed of various industrial-grade electronic components, it is necessary to pay attention to the following notice in use and maintenance.


    1. Before starting the monitor, ensure that the industrial monitor screen is clean, and wipe the screen with a soft dry cloth.

    2. If water drops or beverages fall on the industrial touch display screen, the touch program will be disturbed, because water droplets and fingers have similar characteristics, the operator needs to wipe the water droplets.

    3. A small amount of dust will not cause an error response of the industrial display controller, but too much dust will reduce the sensitivity of the touch screen and screen recognition, be sure to wipe the screen with a dry cloth.

    4. After using for a period of time, dirty fingerprints and oil stains on industrial displays can be scrubbed with glass cleaner.

    5. When turning on and off the power supply, strictly follow the procedures.

    6. When the industrial monitor is in operation, a large number of temporary files are generated on the hard disk. If the system is not powered off before the power is turned off frequently or shut down, it is easy to cause a hard disk error.

    7. If the industrial monitor touchscreen is equipped with a complicated mode, it is necessary to sacrifice the reaction rate and system resources. It is recommended to use a non-mouse mode that satisfies the conditions of use.

    8. The industrial touch screen belongs to the man-machine interface integrated machine, the computer main processor will produce a large amount of heat, It is recommended to take corresponding cooling measures for the industrial touch screen monitor body.





  • Aluminum touch monitor datasheet
    Size101" to 21.5"
    Display
    Panel TypeIndustrial LCD panel A+ grade
    Aspect Ratio4:3 / 16:9 / 16:10 / 5:4
    Resolution1024-768 / 1280*1024 and more.
    Contrast1000:1
    Luminance250nit-1500nit
    Response time5ms
    Display colors16.7M(8-bit)
    View angle85/85/85/85
    Touch Screen10-point capacitive touchscreen

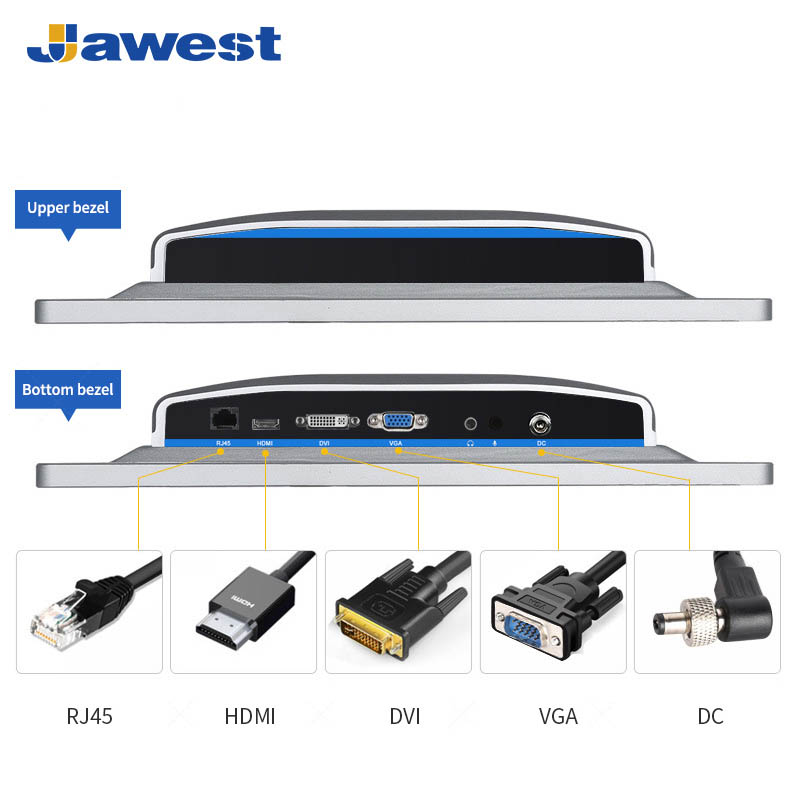

    InterfaceHDMI+DVI+VGA+USB
    Power InputAC 110-240V, 50/60Hz
    Plug&PlayDDC1/2B
    Working LifeMore than 50,000 hours
    Operation Temperature-10°C~60°C
    Storage Temperature-20°C~70°C
    Operation Humidity10%-80%
    Storage Humidity10%-90%
    Metal ShellAluminum alloy enclosure
    ColorSilver, black color optional
    Bezel thickness3mm bezel, 10mm bezel(optional)
    IP ratingIP65 for Front Panel

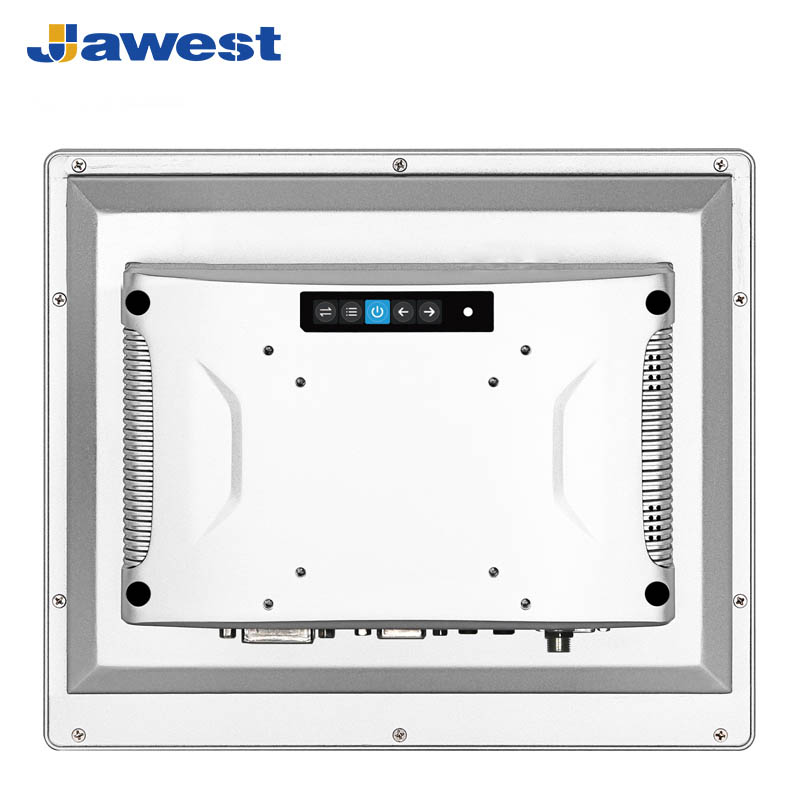

    InstallationVESA, Wall Mount, Desktop stand for optional
    CertificatesCE, CCC, ISO, FCC, ROHS
    PackageEPE+Carton  (wooden crate for mass order)
