Application:
12121212

12" Touch Screen Display Monitors with RFID For Access Control Terminal


Model: JWS120-M41

● Display size: 12 inch

● High-level anti-static

● High quality industrial LCD panel

● Working temperature:-10 ~ +60°C

● Industrial-grade motherboard

● 10mm Bezel Aluminum Touch Monitor

● 365*24hours running under all-weather condition

● IP65 rated dust-proof and water-proof for front panel

Appearance of the color
Black
Silver
share:
  • Description
  • Parameter
  • Case

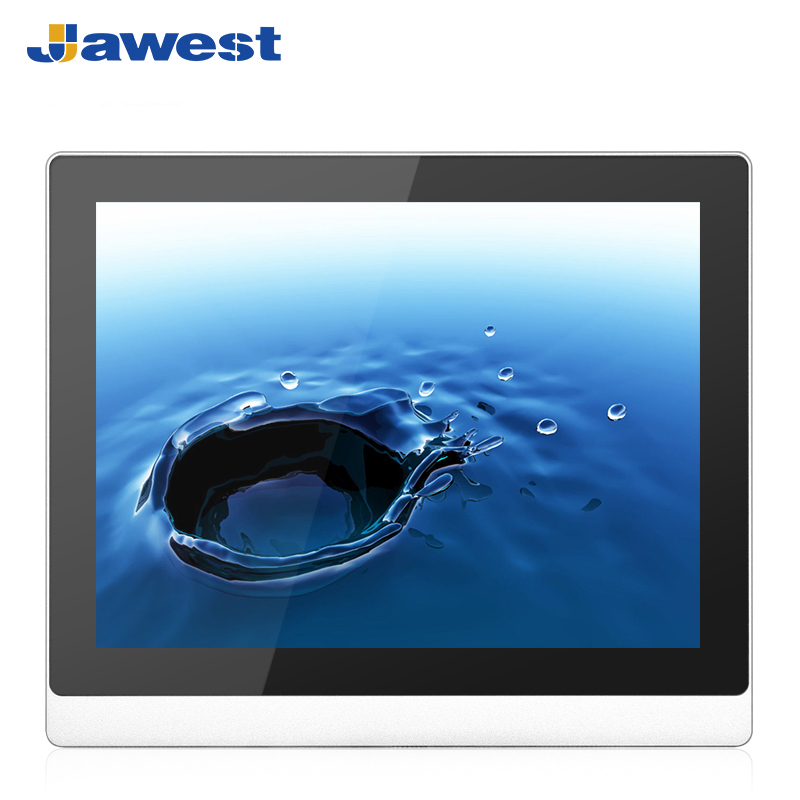

  • 12" Touch Screen Display Monitors with RFID For Access Control Terminal


    Model: JWS120-M41


    Jawest 12-inch touchscreen display delivers an industrial-grade solution that is cost-effective for OEMs, ODMs, and embedded systems, integrators requiring a reliable product for their customer. Designed with reliable and stable performance, our touchscreen monitor delivers outstanding image clarity and light transmission with a stable, drift-free operation for accurate and fast touch responses. Jawest provides customization services for color, size, brightness, and touchscreen technologies, providing the versatility needed for industrial automation, production control, and commercial display terminal device, kiosk toushscreen applications from self-service and gaming to medicalcare, smart city, and intelligent education.



    Jawest Industrial Monitor Features


    ● 12-inch screen support bright active matrix TFT display.

    ● Display definition:1024x768, support HD OEM, offer excellent vivid  image and color quality for users.

    ● Provide universal Power adapter.

    ● Support Plug-and-Play compatibility.

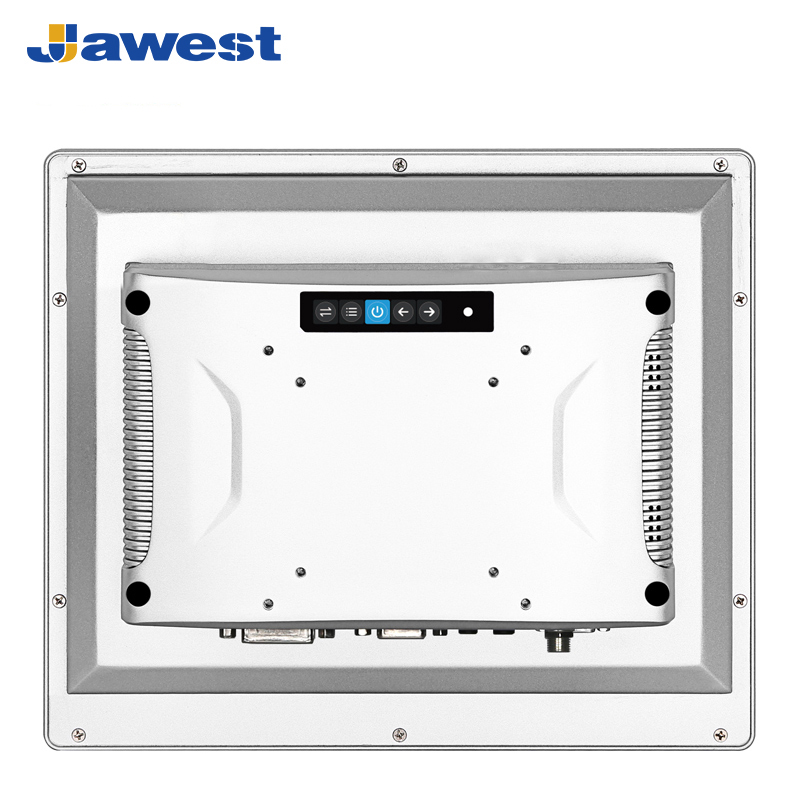

    ● OSD control for picture quality adjustment on the back of panel.

    ● Fanless heat-dissipation, aluminum alloy material casing, energy efficient, low power consumption.

    ● Industrial grade components and motherboard, support long-time operation in harsh factory and industrial environments.

    ● Wide operational temperature range: -10°C to +60°C (support extended temperature ranges).

    ● Offer multi-installation methods, desktop, wall, embedded, and VESA arm mounting.

    ● CE, RoHS compliant.

    ● Three (3) years warranty.




  • 10mm bezel aluminum touch monitor datasheet
    Size12-inch
    Display
    Panel Type Industrial LCD panel A+ grade
    Aspect Ratio4:3
    Resolution1024*768
    Contrast1000:1
    Luminance250nit-1500nit
    Response time5ms
    Active Area (mm)478*269.24
    Display colors16.7M(8-bit)
    View angle89/89/89/89
    Touch ScreenCapacitive touch screen (5 wire resistive touch screen/dual Infrared touch optional)

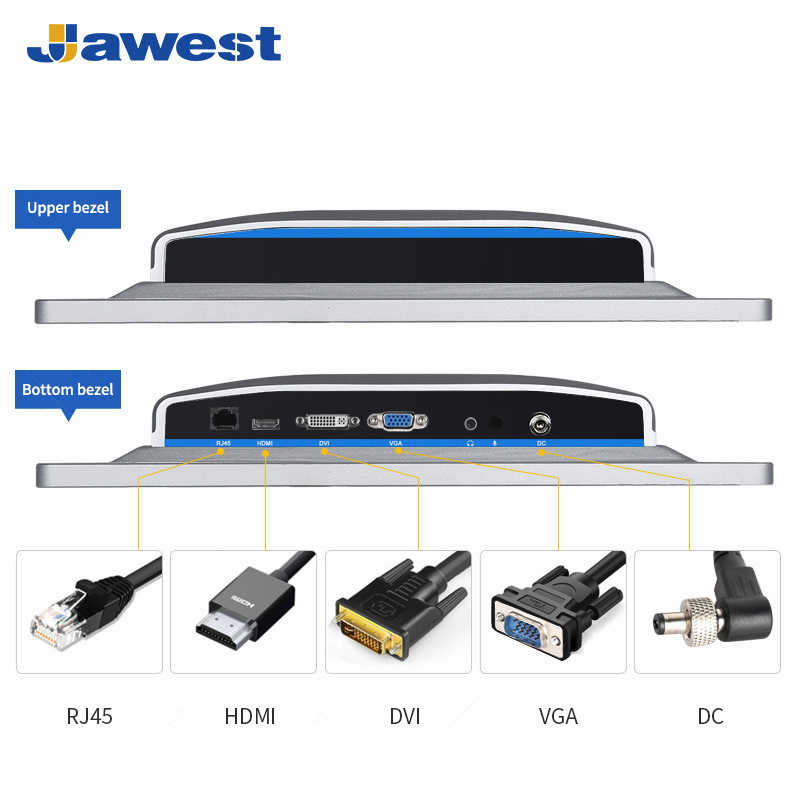

    InterfaceHDMI+DVI+VGA+USB/DVI+VGA+USB optional
    Power InputAC 110-240V, 50/60Hz
    Power Consumption≤30W
    Power Standby≤1.5W
    Plug&PlayDDC1/2B
    Working LifeMore than 50,000 hours
    Operation Temperature-10°C-60°C (Support wide temperature customization)
    Storage Temperature-10°C-60°C
    Operation Humidity10%--80%
    Storage Humidity10%-90%
    Metal ShellAluminum alloy enclosure
    ColorSilver, black color optional

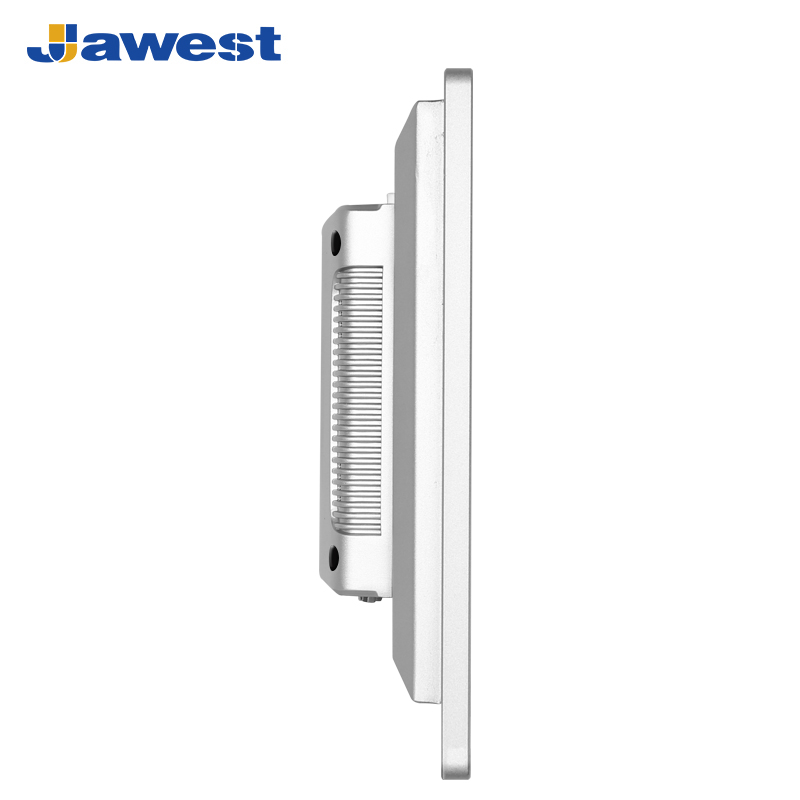

    Bezel thickness10mm bezel
    IP ratingIP65 dust-proof and water-proof for front Panel
    InstallationVESA, Embedded, Wall Mount, Desktop, open frame optional
    CertificatesCE,CCC,ISO,FCC,ROHS
    PackageEPE+Carton  (wooden crate for mass order)
