Application:
15 Inch High Quality POS Touch Screen Monitor Capacitive LED Backlit Multi-Touch Monitor VGA and HDMI Input15 Inch High Quality POS Touch Screen Monitor Capacitive LED Backlit Multi-Touch Monitor VGA and HDMI Input15 Inch High Quality POS Touch Screen Monitor Capacitive LED Backlit Multi-Touch Monitor VGA and HDMI Input15 Inch High Quality POS Touch Screen Monitor Capacitive LED Backlit Multi-Touch Monitor VGA and HDMI Input

15 Inch High Quality POS Touch Screen Monitor Capacitive LED Backlit Multi-Touch Monitor VGA and HDMI Input


Model: JWS150-M41

● Display size: 15 inch

● High-level anti-static

● High-quality industrial TFT LCD panel

● LED-backlit multi-touch monitor

● Working temperature: -10 ~ +60°C

● Industrial-grade motherbaord

● 10mm Bezel Aluminum Touch Monitor

● 365*24hours running under all-weather condition

● IP65 rated dust-proof and water-proof for front panel

● Drivers support Windows 7 / 8 / 10 / 10Pro

 USB connection for touch control

 Suitable for retail, restaurant, bar, gym, warehouse

Appearance of the color
Black
Silver
share:
  • Description
  • Parameter
  • Case

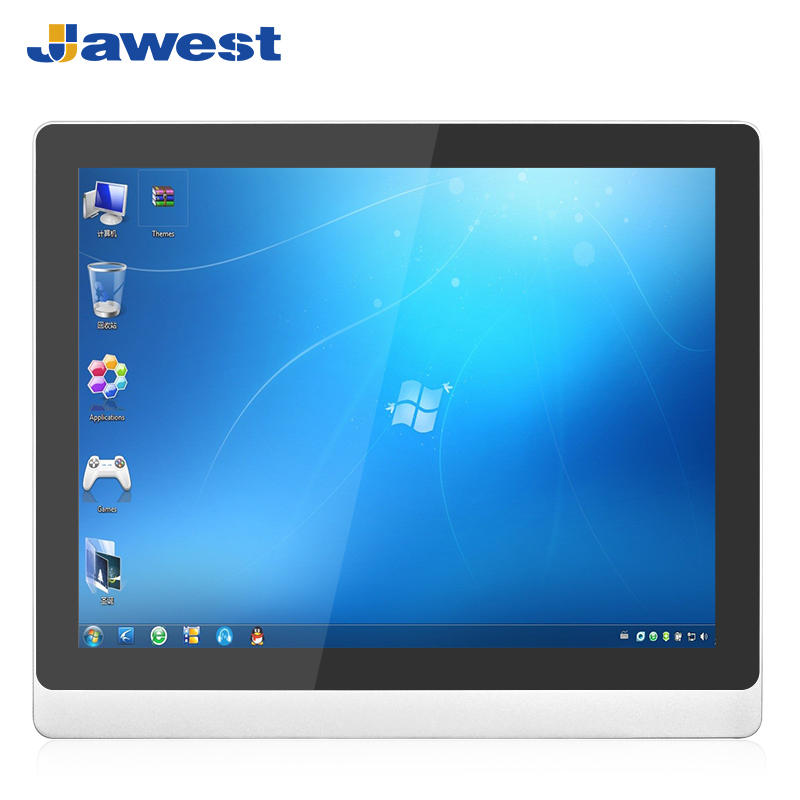

  • 15" High-Quality Pos Touch Screen Monitor


    Model: JWS150-M41


    Jawest 15" touch screen monitor. Durable and rugged design for harsh environment or retail system,  industrial touch screen monitors have what it takes to perform in demanding point-of-sale, point-of-purchase, industrial automation, industrial production control and public environment. Jawest brings years of extreme application display experience to industrial-grade touchscreen LCD monitors, making them the most reliable and well-performing on the market.



    Jawest Industrial Touchscreen Monitor Features


    ● 15-inch screen support bright active matrix TFT display.

    ● Definition is 1024x768, aspect ratio is 4:3, providing excellent vivid image and color quality.

    ● Fanless heat-dissipation, aluminum alloy housing, energy-efficient, low power consumption.

    ● Industrial-grade electronic components and motherboard, vibration / shock resistance.

    ● Support plug and play by BIOS, which is suitable for the continuous boot-up environment.

    ● 7*24 unattended high-load running.

    ● Support gigabit network card RJ45, WIFI, providing faster and more stable network experience.

    ● Watchdog function to ensure the stable operation.

    ● Remote wake-up and automatic reset function.

    ● Wide operational temperature range: -10°C to +60°C (support extended temperature).

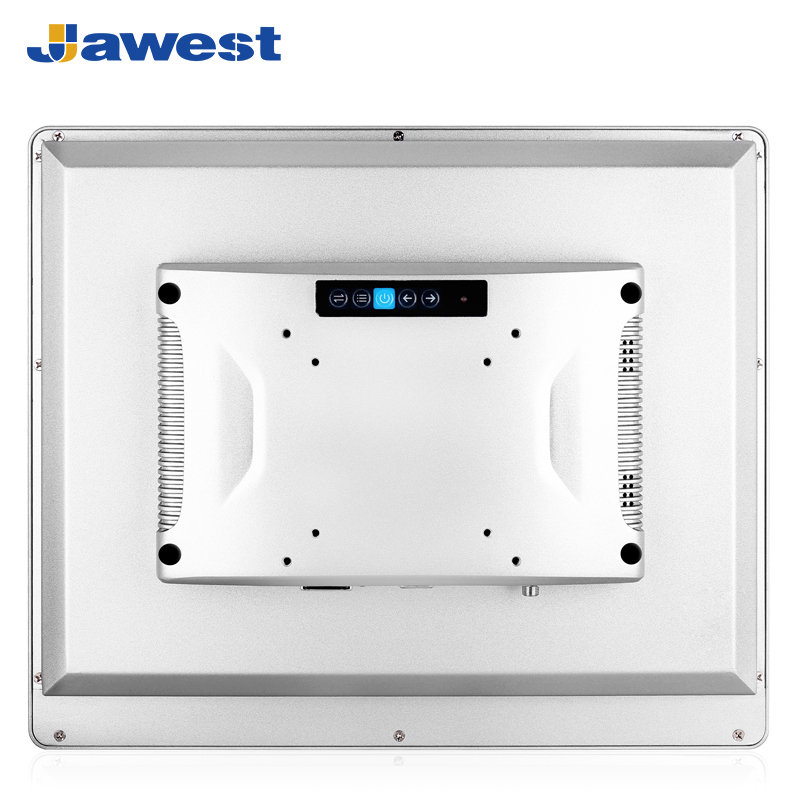

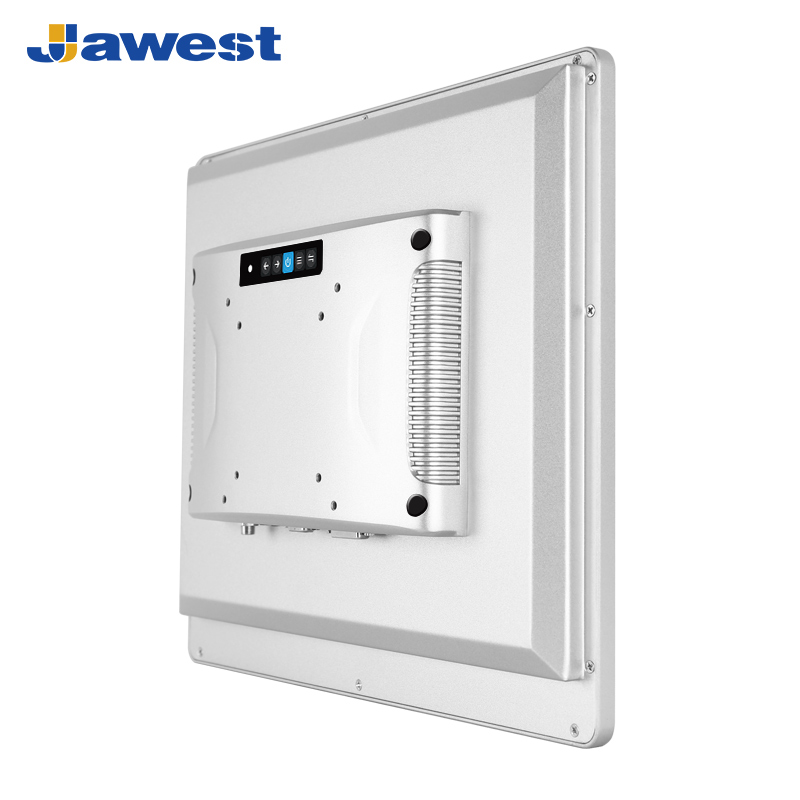

    ● Offer multi-installation methods, desktop, wall, embedded, and VESA arm mounting.

    ● CE, RoHS compliant.

    ● Three (3) years warranty.





  • 10mm bezel aluminum touch monitor datasheet
    Size15-inch
    Display
    Panel Type Industrial LCD panel A+ grade
    Aspect Ratio4:3
    Resolution1024*768
    Contrast1000:1
    Luminance250nit-1500nit
    Response time5ms
    Active Area (mm)478*269.24
    Display colors16.7M(8-bit)
    View angle89/89/89/89
    Touch ScreenCapacitive touch screen (5 wire resistive touch screen/dual Infrared touch optional)

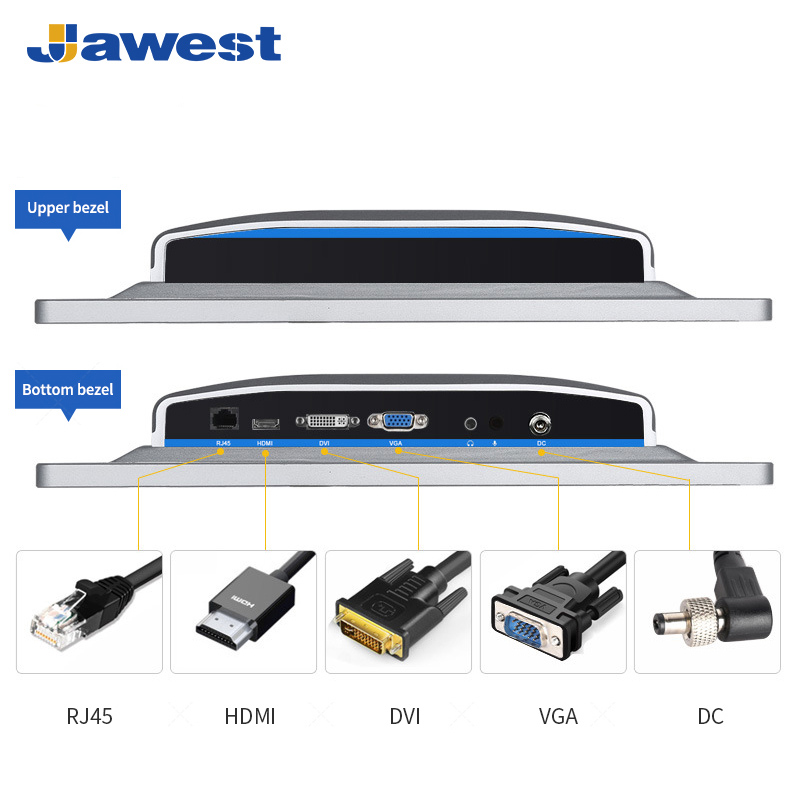

    InterfaceHDMI+DVI+VGA+USB/DVI+VGA+USB optional
    Power InputAC 110-240V, 50/60Hz
    Power Consumption≤30W
    Power Standby≤1.5W
    Plug&PlayDDC1/2B
    Working LifeMore than 50,000 hours
    Operation Temperature-10°C-60°C (Support wide temperature customization)
    Storage Temperature-10°C-60°C
    Operation Humidity10%--80%
    Storage Humidity10%-90%
    Metal ShellAluminum alloy enclosure
    ColorSilver, black color optional
    Bezel thickness10mm bezel
    IP ratingIP65 dust-proof and water-proof for front Panel
    InstallationVESA, Embedded, Wall Mount, Desktop, open frame optional
    CertificatesCE,CCC,ISO,FCC,ROHS
    PackageEPE+Carton  (wooden crate for mass order)
