Application:
15.6 Inch Industrial Capacitive Touchscreen Monitor Factory Wholesale Price15.6 Inch Industrial Capacitive Touchscreen Monitor Factory Wholesale Price15.6 Inch Industrial Capacitive Touchscreen Monitor Factory Wholesale Price15.6 Inch Industrial Capacitive Touchscreen Monitor Factory Wholesale Price

15.6 Inch Industrial Capacitive Touchscreen Monitor Factory Wholesale Price


Model: JWS156-M41

● Display size: 15.6 inch LCD display with long service life LED Backlight

● 1920 x 1080 resolution; 16:9 widescreen display

● 10mm front bezel, Aluminum alloy casing

● High Bright TFT display: 300~1500 nits

● Extended operating temperature rating: -10°C to +60°C

● Industrial grade display chip, high-level anti-static

● 7*24 hours long-time running

● IP65 dust-proof and waterproof.

● VGA + DVI video Inputs; Composite Video (NTSC/PAL) – RCA Jack

● Panel mount, VESA 75/100, desktop, open frame

● OEM/ODM for global clients

Appearance of the color
Black
Silver
share:
  • Description
  • Parameter
  • Case
  • 15.6" Industrial Capacitive Touchscreen Monitor Factory Wholesale Price


    Model: JWS156-M41


    Jawest is pleased to announce the launch of its new generation of industrial monitors, support wide temperature, wide voltage, sunlight-readable, multi-touch capacitive touch, or single-touch resistive monitor. Designed and made by Jawest, one of the leading manufacturers of industrial monitors, industrial panel PC, Android tablet PCs, and industrial mini PCs in China, which possess decades of experience, reliability, timely deliveries, warranty support.



    Jawest Industrial Monitor Customization Service Items


    ● Appearance customization: material structure, installation methods, product color, independent molding

    ● Screen performance customization: screen display size, screen brightness, wide temperature screen, anti-glare, viewing angle, resolution ratio, photosensitive screen, touch screen types, SAW touch screen, electromagnetic screen, nano-screen, ultraviolet proof screen.


    Jawest Industrial Touch Screen Monitor Features


    15.6 Inch Industrial Capacitive Touchscreen Monitor Factory Wholesale Price

    15.6-inch Industrial Touch Screen Monitor

    This Jawest JWS156-M41 series widescreen touch screen monitor with industrial-grade quality and performance, they're built with a tough, reliable, high-specification 15.6” LCD display, designed and built under serious production  & inspection standards in the Jawest factory. You can be confident that our industrial monitors excel in highly sensitive touch and picture quality displays using high-quality components sourced from carefully selected suppliers.

    - Robust aluminum alloy casing with strong anti-oxidant and corrosion resistance performance;

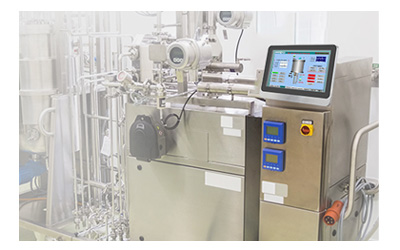

    - Support 24/7 long-time operation, suitable for smart factory automation projects;

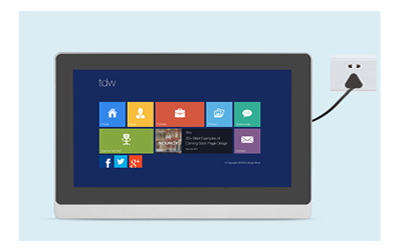

    - Industrial standards wide voltage ranging operation, support 12 - 24V wide voltage input.


    15.6 Inch Industrial Capacitive Touchscreen Monitor Factory Wholesale Price

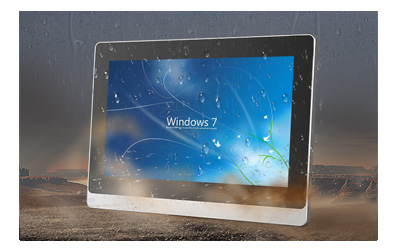

    High Brightness Industrial Monitor For Outdoor Use

    - Our high brightness professional industrial monitors are available for an enclosed chassis monitor or a panel for integration or even an open frame monitor for ease in installation.

    - Our outstanding high brightness LCD monitors and displays are varying brightness options including 300cd, 350cd, 400cd, and high up to 1,500 nits.

    - The high brightness industrial panels are designed for outdoor usage. Wide temperature operation ranging from -10°C to +60°C, and IP65 dustproof and waterproof.


    15.6 Inch Industrial Capacitive Touchscreen Monitor Factory Wholesale Price


    Multi Applications

    This industrial monitor is ideal for indoor/outdoor uses including a variety of equipment, like industrial, Lab, testing, CNC, laser, welding; Commercial terminal touch displays like kiosk, advertising, digital signage, and some other professional fields, such as military, aerospace, transport, marine, and medical as well as many more.









  • Aluminum Alloy Industrial Touch Screen Monitor Datasheet
    Size15.6 inch
    Display
    Panel TypeIndustrial LCD panel A, A+ grade
    Aspect Ratio16:9
    Resolution1920*1080
    Contrast800:1
    Luminance250nit-1500nit
    Response time5ms
    Active Area (mm)341.5*274
    Display colors16.7M(8-bit)
    View angle75/75/75/75
    Touch Screen10-point capacitive (Resistive touch screen and mouse control for optional)
    InterfaceHDMI+DVI+VGA+USB/DVI+VGA+USB optional
    Power InputAC 110-240V, 50/60Hz
    Power Consumption≤30W
    Power Standby≤1.5W
    Plug&PlayDDC1/2B
    Working LifeMore than 50,000 hours
    Operation Temperature-10°C-60°C
    Storage Temperature-10°C-60°C
    Operation Humidity10%--80%
    Storage Humidity10%-90%
    Metal ShellAluminum alloy enclosure
    ColorSilver, black color optional
    Bezel thickness10mm bezel (3mm bezel for optional)
    IP ratingIP65 for front Panel
    InstallationVESA, Embedded, Wall Mount, Desktop optional, Panel Mount
    CertificatesCE, CCC, ISO, FCC, ROHS
    PackageEPE+Carton  (wooden crate for mass order)
