17.3" Industrial Touch Screen Monitors For Outdoor Use


Model: JWS173-M41

● Display size: 17.3-inch.

● High-level anti-static.

● High-quality industrial LCD panel.

● Working temperature:-10°~ +60°C.

● Industrial grade display chip.

● 10mm bezel Aluminum touch monitor.

● 7*24 hours long-time running.

● IP65 rated dust-proof and waterproof.

Appearance of the color
Black
Silver
share:
  • Description
  • Parameter
  • Case
  • 17.3" Industrial Multi-Touch Capacitive Touch Screen Monitors


    Model: JWS173-M41


    It's important to protect hardware when using industrial LCD monitors outdoors or in harsh industrial environments, while this point is not easy for commercial-grade monitors. Industrial monitors are compliant with IP65-rating protection, which means the equipment is being protected from hazardous elements such as dirt or water. Jawest provides this type of LCD monitor in fields of industrial automation, IIOT, IoT,  AI, remote access, security systems, and other embedded solutions. These monitors are integrated with extremely durable and high-brightness displays, ranging from 300nits to 1500nits. And offers more screen visibility even when used under direct sunlight or in a high-lighting environment. Our product features extended operating temperature for the device to withstand extreme conditions such as super hot or super cold. Besides, the high contrast ratio and outstanding vivid color deliver superior image quality.



    Jawest Industrial Monitor Features


    ● IP65 / NEMA4-rated dust and water resistance

    ● 300~1,500NIT sunlight readable with long-service life LED backlight

    ● Automatic backlight adjustment through a built-ambient light sensor

    ● Support anti-reflective and anti-fingerprint coating

    ● Multi-monitor touchscreen support

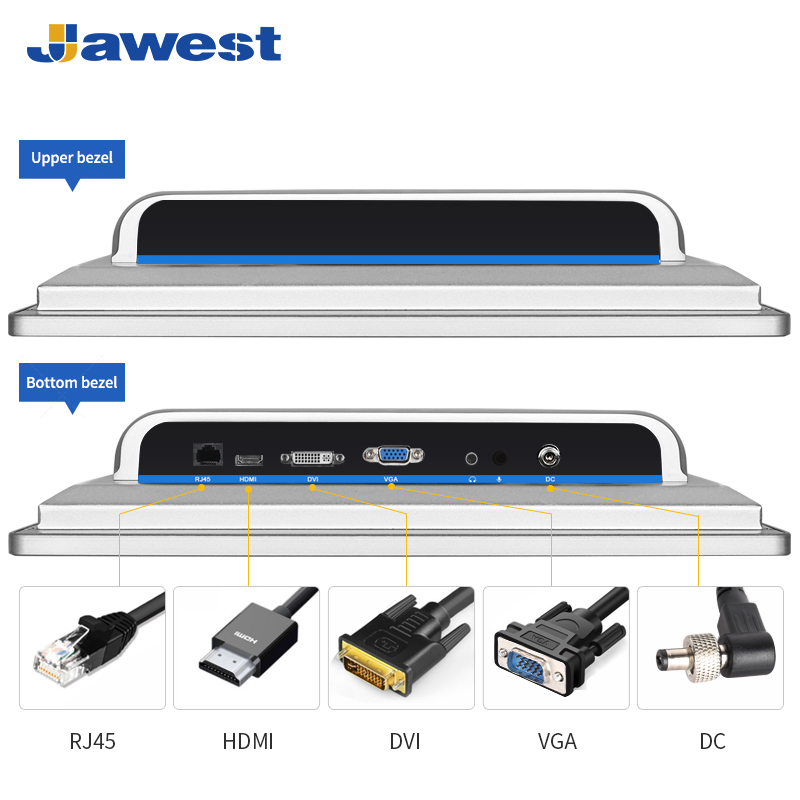

    ● HDMI, VGA, Video, DVI, Audio input, and offer Built-In waterproof speaker

    ● 1920x1080 native resolution, 16:9 aspect ratio

    ● Solid capacitors for improved durability

    ● Plug-and-Play

    ● Industrial motherboard with explosion-proof, flameproof, moisture-proof, and anti-surge.

    ● Shock resistance standard reached GB2423, well-protected during transportation.

    ● Power supply management: TI chipset, wide range 12~36V input

    ● The industrial monitor supports a multi-functional module customization service.





  • 10mm bezel aluminum industrial touch monitor datasheet
    Size17.3 inch
    Display
    Panel TypeIndustrial LCD panel A, A+ grade
    Aspect Ratio16:9
    Resolution1920*1080
    Contrast1000:1
    Luminance400 Nits (High-brightness screen options)
    Response time5ms
    Display colors16.7M(8-bit)
    View angle85/85/60/80 (L/R/U/D)
    Touch ScreenCapacitive touch screen (resistive and Non-touch for optional)
    InterfaceHDMI+DVI+VGA+USB optional
    Power InputDC 12~36V
    Power Consumption≤30W
    Standby Power≤1.5W
    Plug&PlayDDC1/2B
    Working LifeMore than 50,000 hours
    Operation Temperature-10°C~60°C
    Storage Temperature-20°C~70°C
    Operation Humidity10%~80%
    Storage Humidity10%~90%
    Metal ShellAluminum alloy enclosure
    ColorSilver, black color optional
    IP ratingIP65 protection for front panel
    InstallationVESA, Wall Mount, Desktop Standoptions
    CertificatesCE, CCC, ISO, FCC, ROHS
    PackageEPE+Carton  (wooden crate for mass order)
